Headlight Beam Level Control: Notes

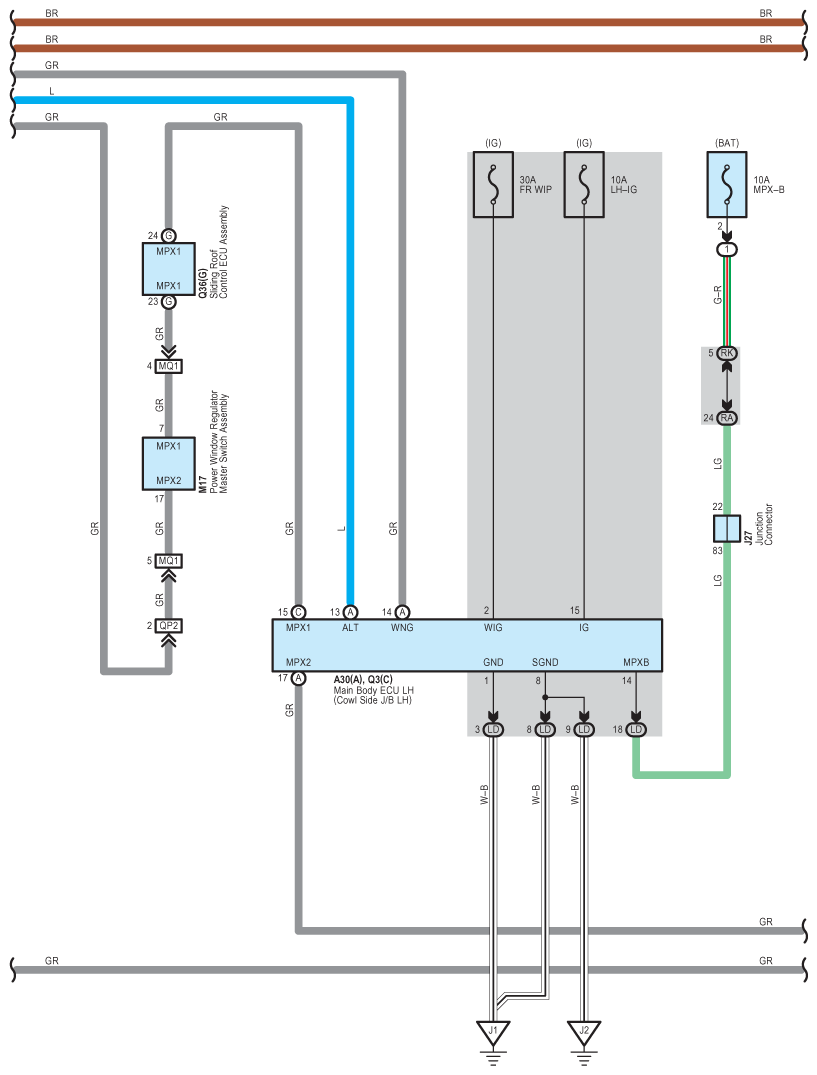

Fig 1: Headlight Beam Level Control - Wiring Diagram (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

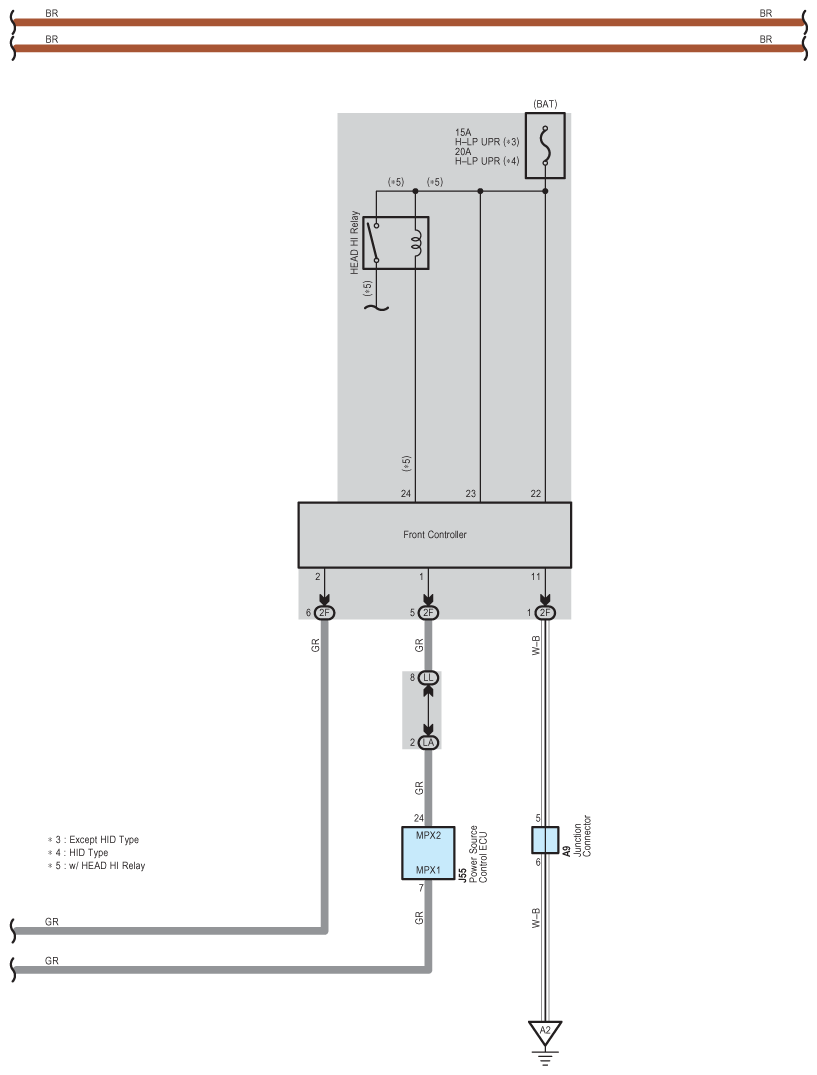

Fig 2: Headlight Beam Level Control - Wiring Diagram (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

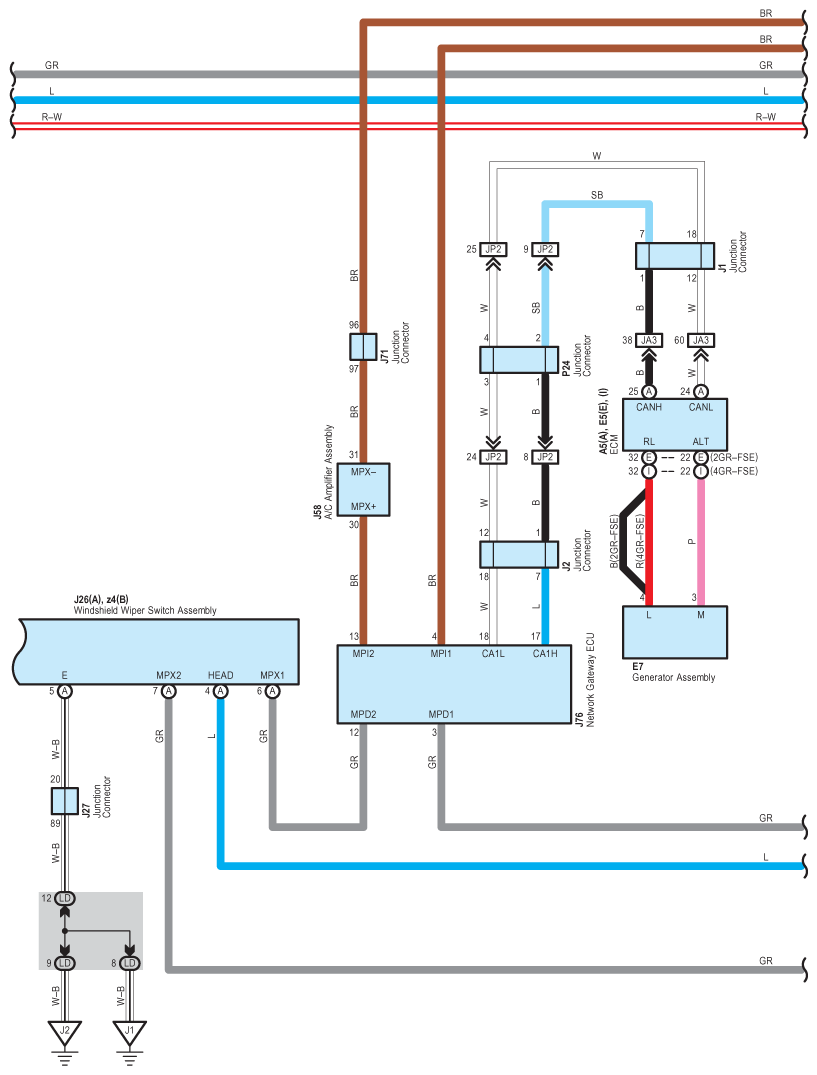

Fig 3: Headlight Beam Level Control - Wiring Diagram (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

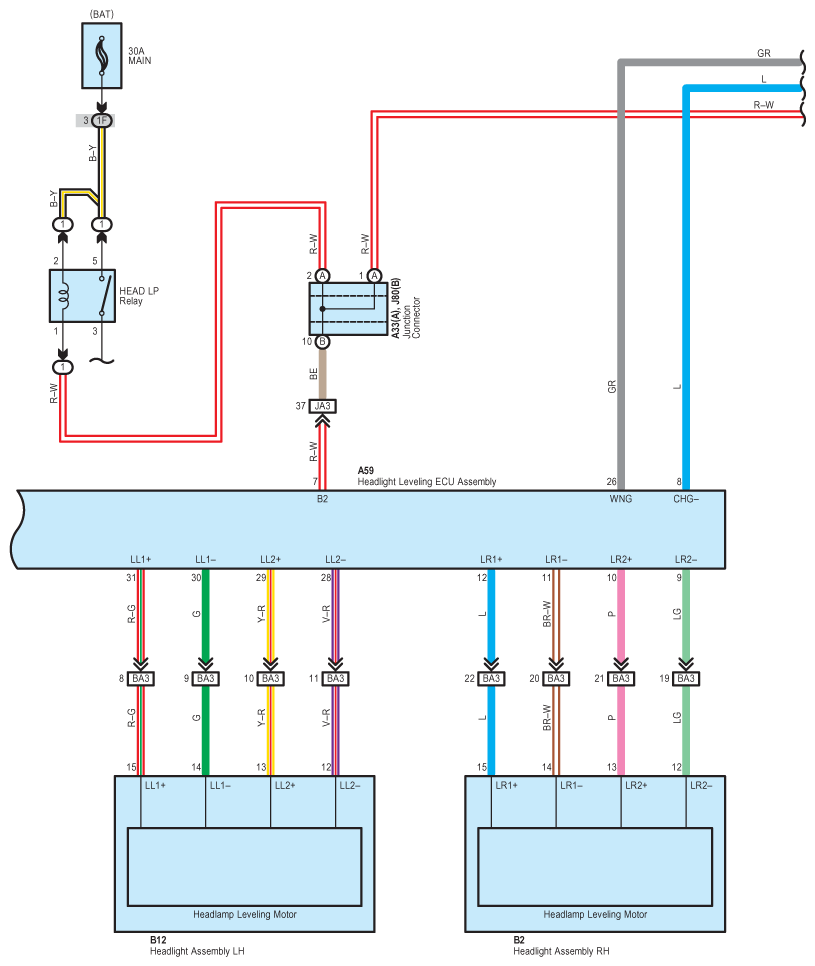

Fig 4: Headlight Beam Level Control - Wiring Diagram (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

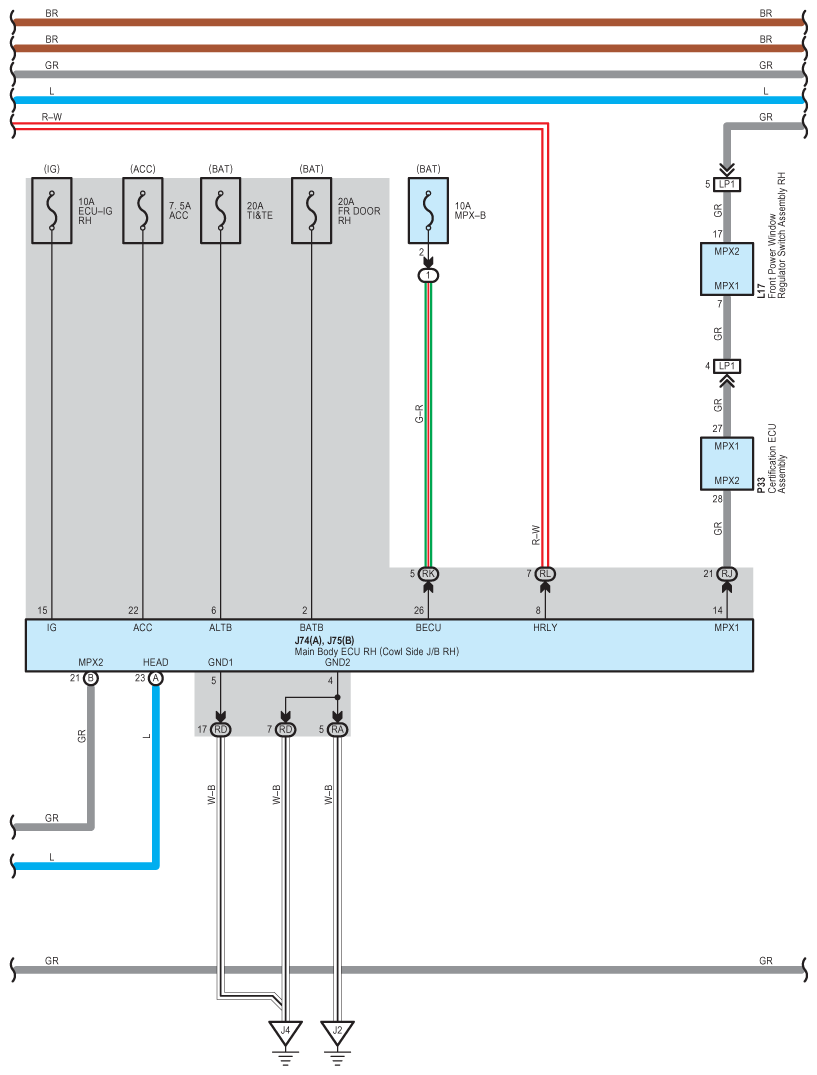

Fig 5: Headlight Beam Level Control - Wiring Diagram (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

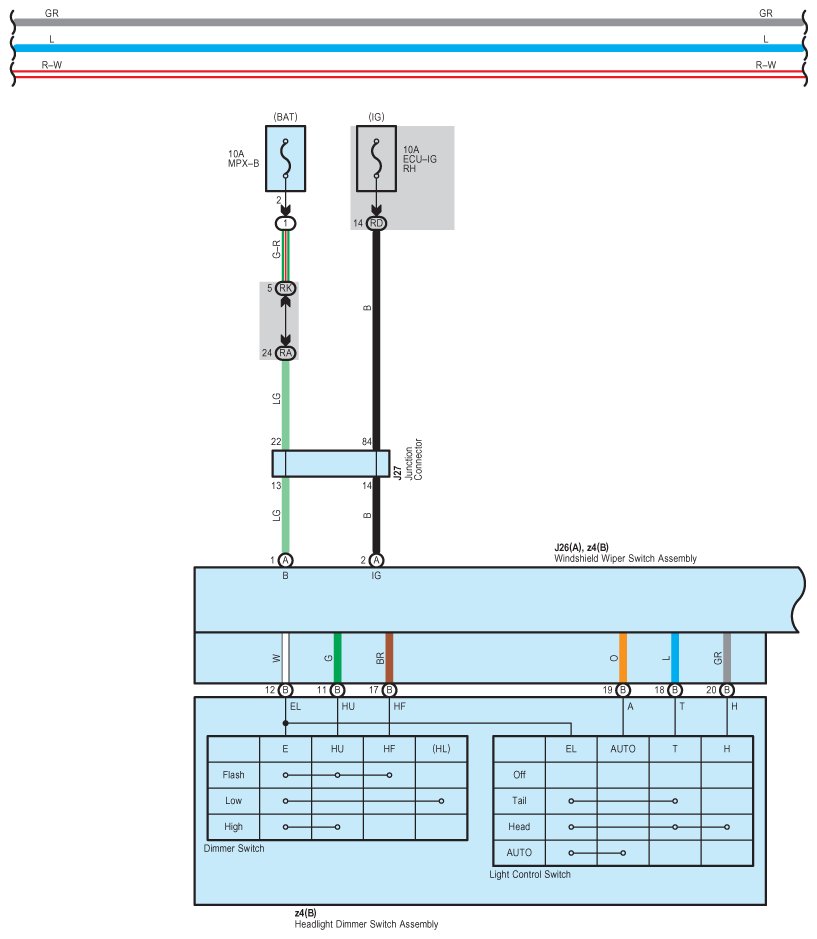

Fig 6: Headlight Beam Level Control - Wiring Diagram (6 Of 8)

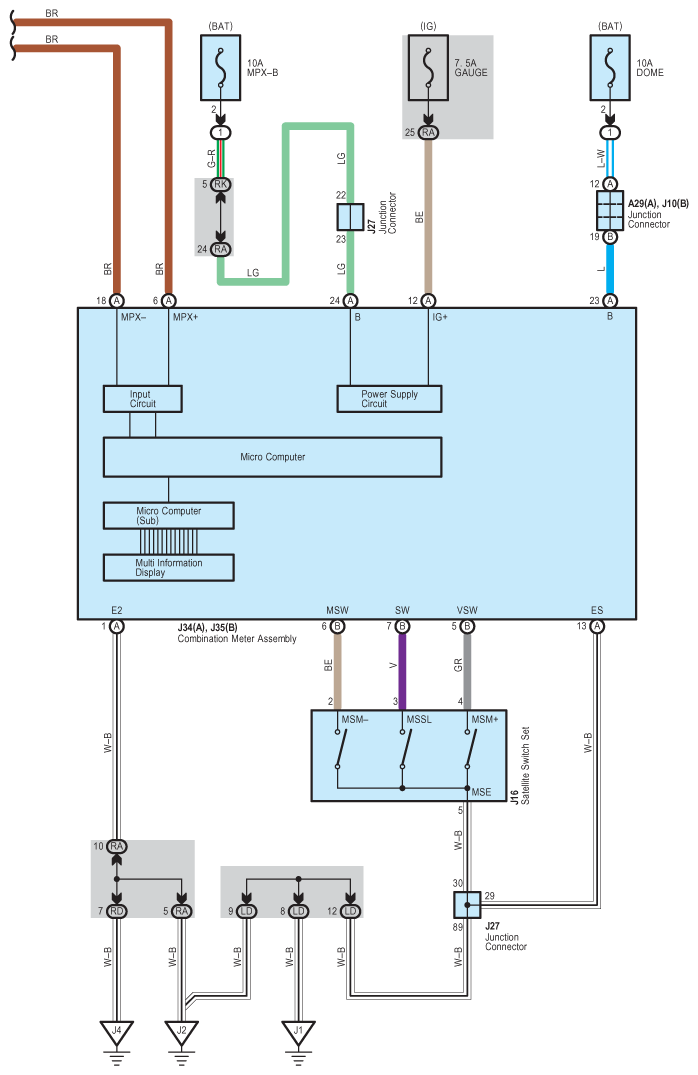

Fig 7: Headlight Beam Level Control - Wiring Diagram (7 Of 8)

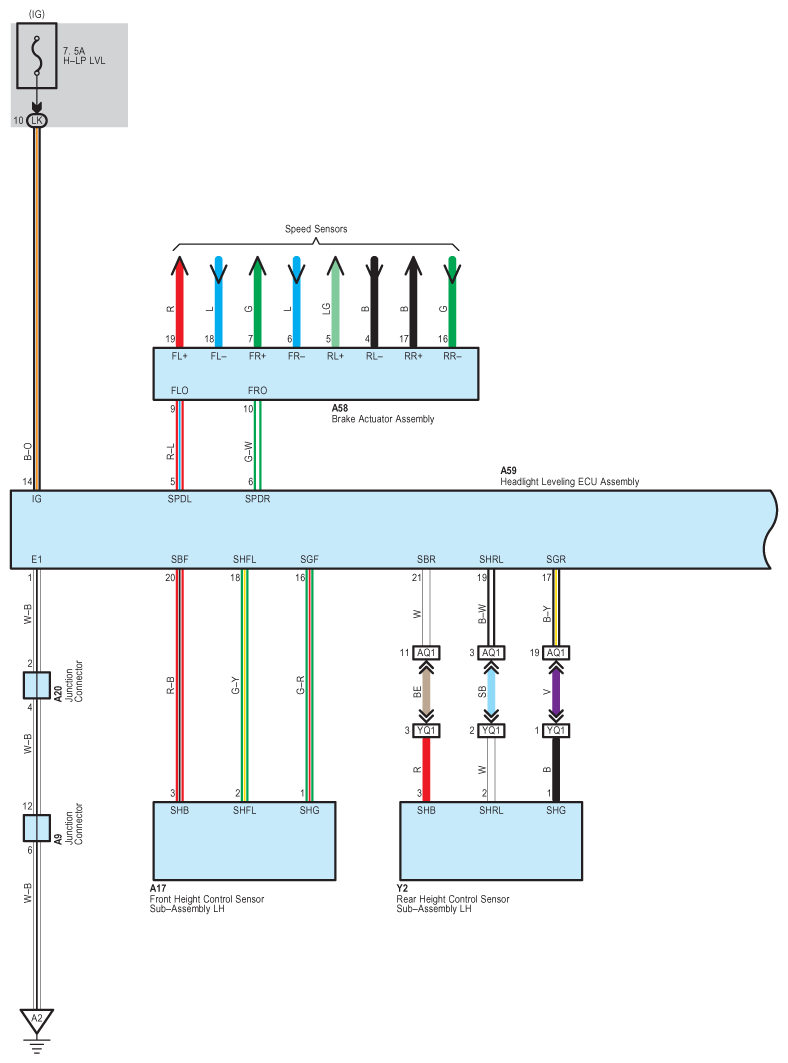

Fig 8: Headlight Beam Level Control - Wiring Diagram (8 Of 8)
