OEM System Circuits: Horn: Notes

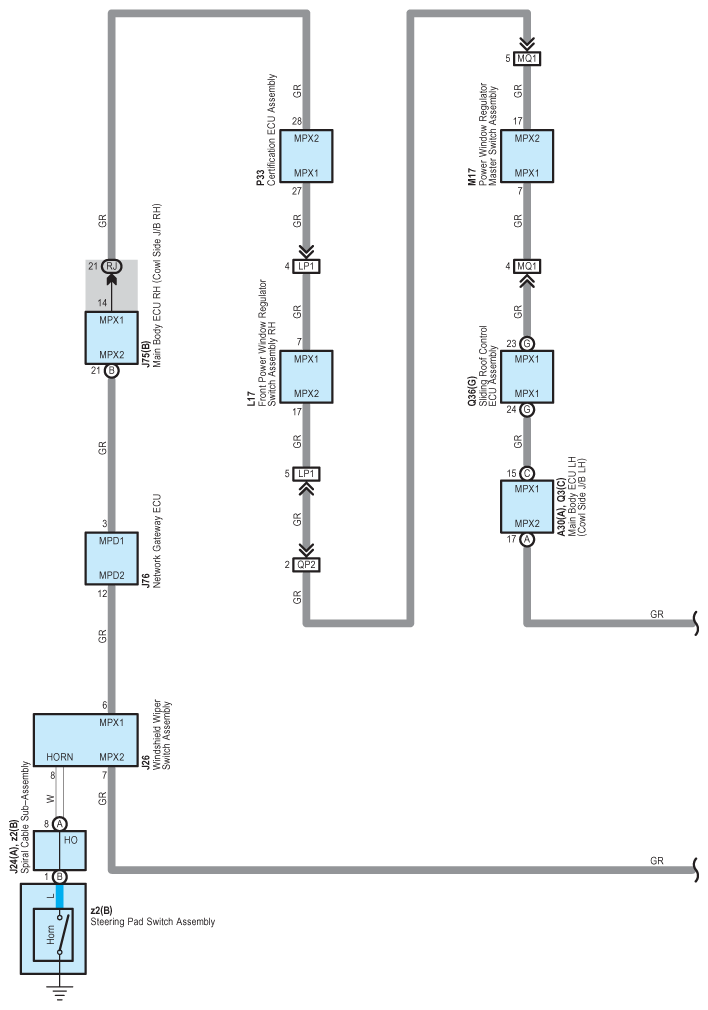

Fig 1: Horn - Wiring Diagram (1 Of 2)
G08938875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

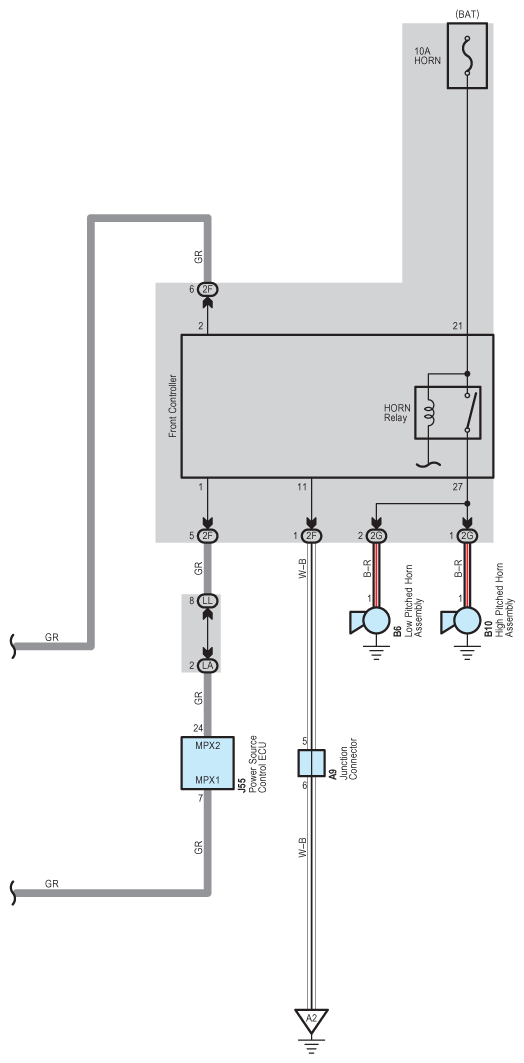

Fig 2: Horn - Wiring Diagram (2 Of 2)
G08938876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
