Light Auto Turn Off System: Notes

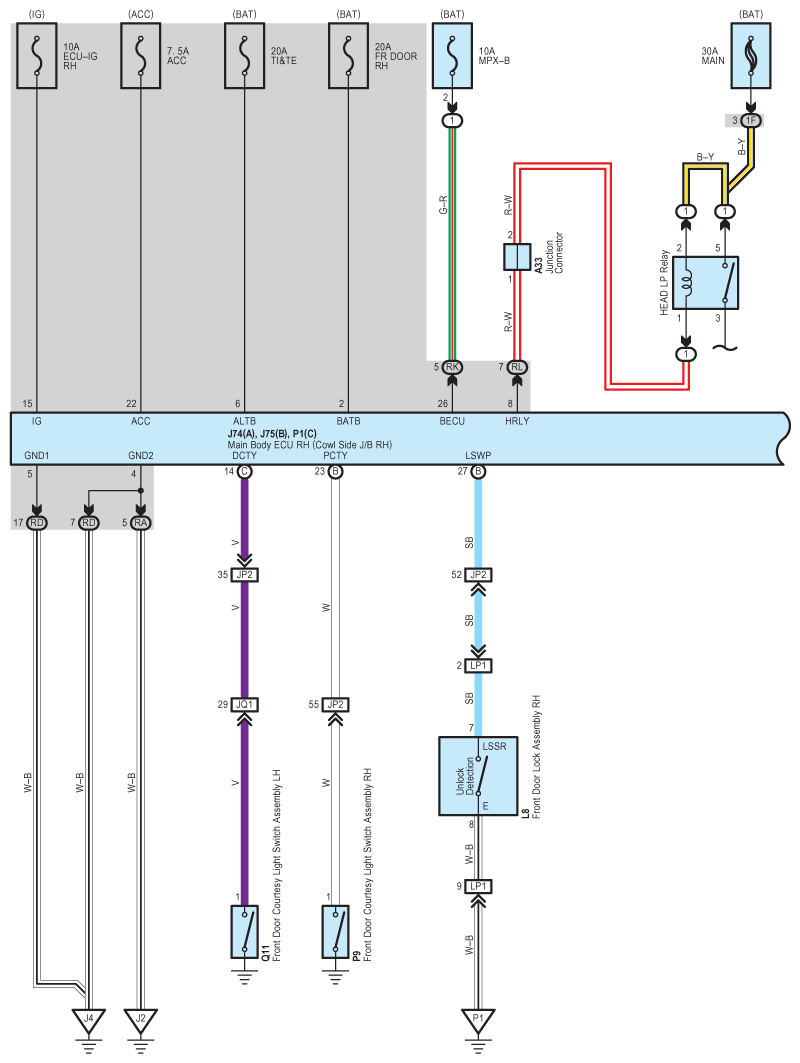

Fig 1: Light Auto Turn Off System - Wiring Diagram (1 Of 5)
G08938679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

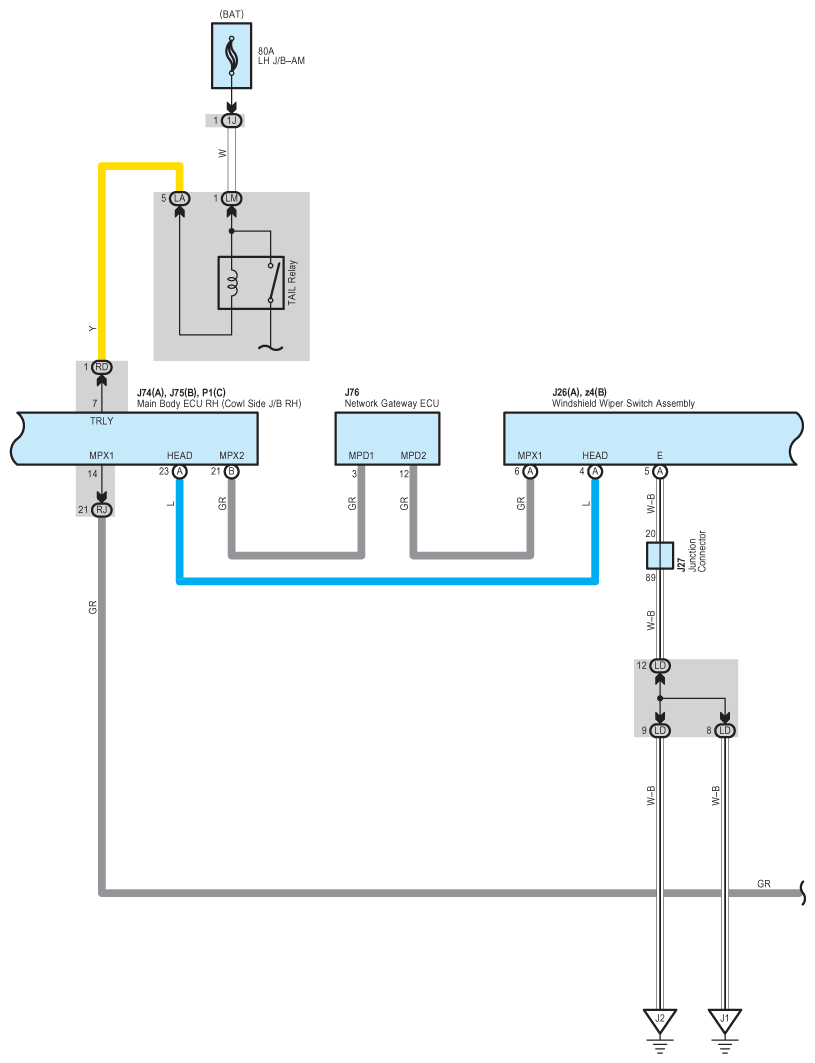

Fig 2: Light Auto Turn Off System - Wiring Diagram (2 Of 5)
G08938680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

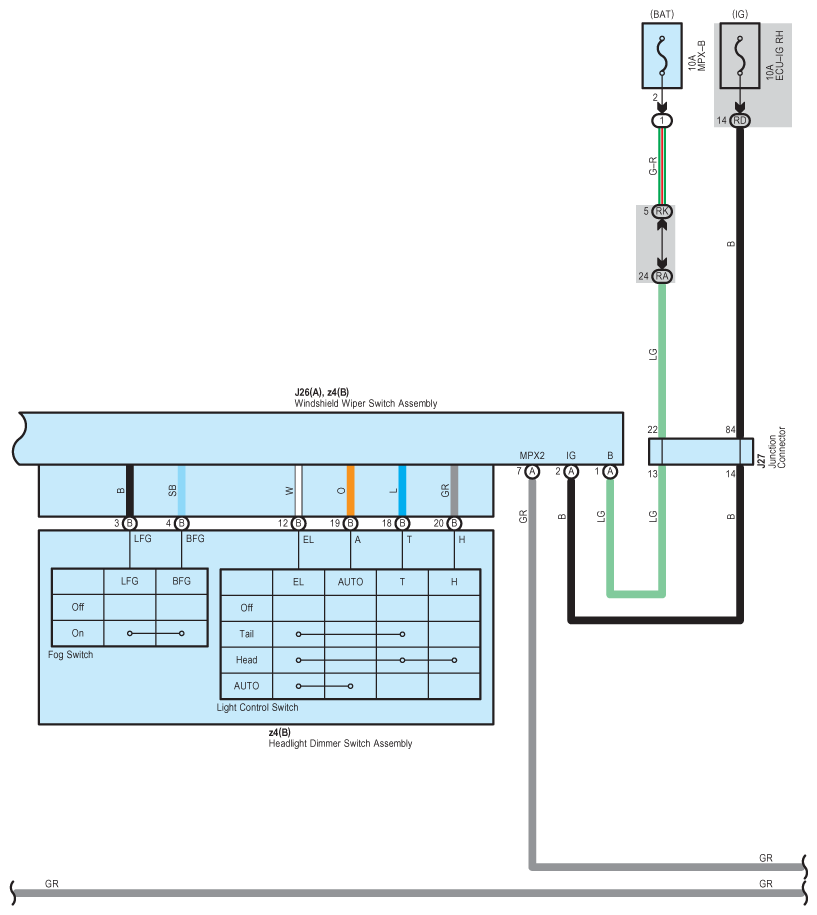

Fig 3: Light Auto Turn Off System - Wiring Diagram (3 Of 5)
G08938681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

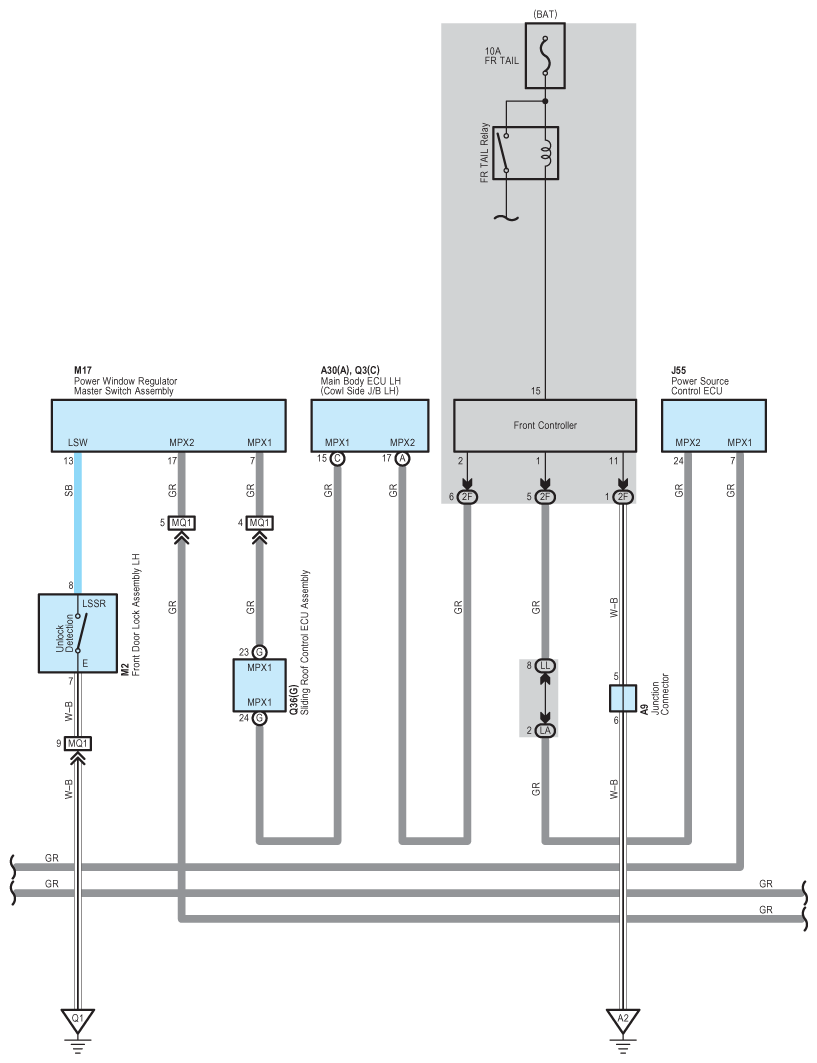

Fig 4: Light Auto Turn Off System - Wiring Diagram (4 Of 5)
G08938682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

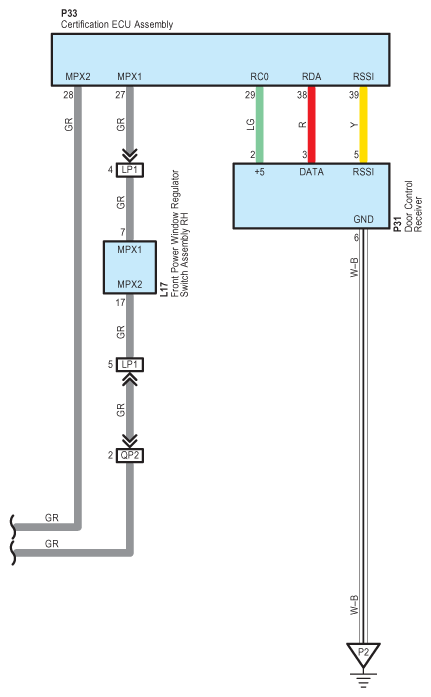

Fig 5: Light Auto Turn Off System - Wiring Diagram (5 Of 5)
G08938683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
