Power Window: Notes

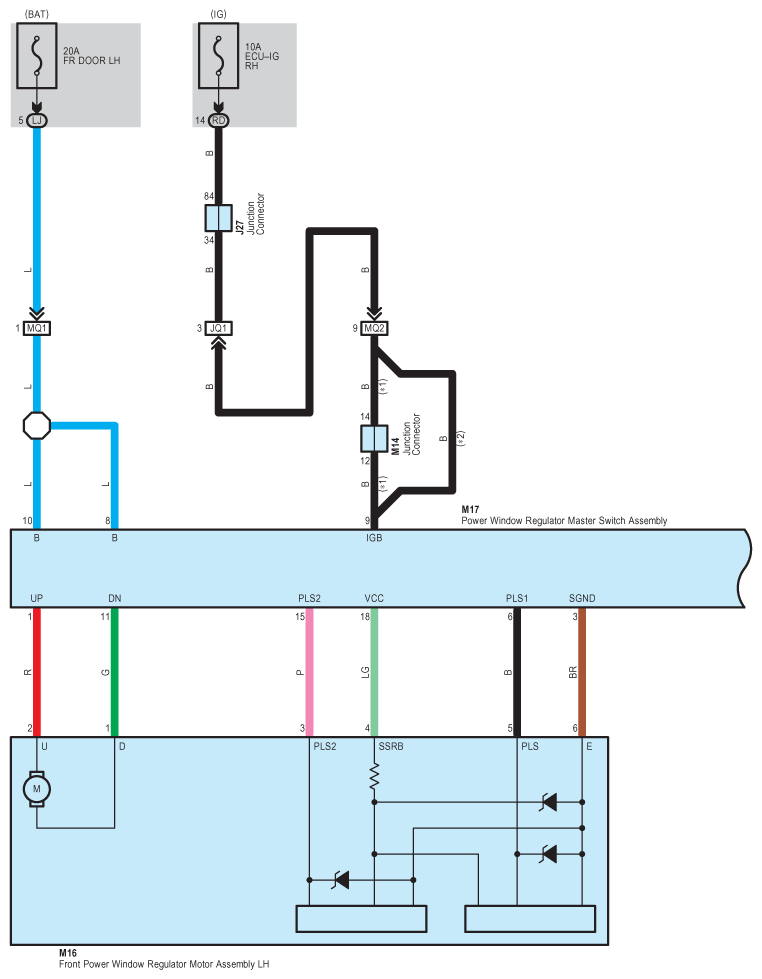

Fig 1: Power Window - Wiring Diagram (1 Of 5)
G08938701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

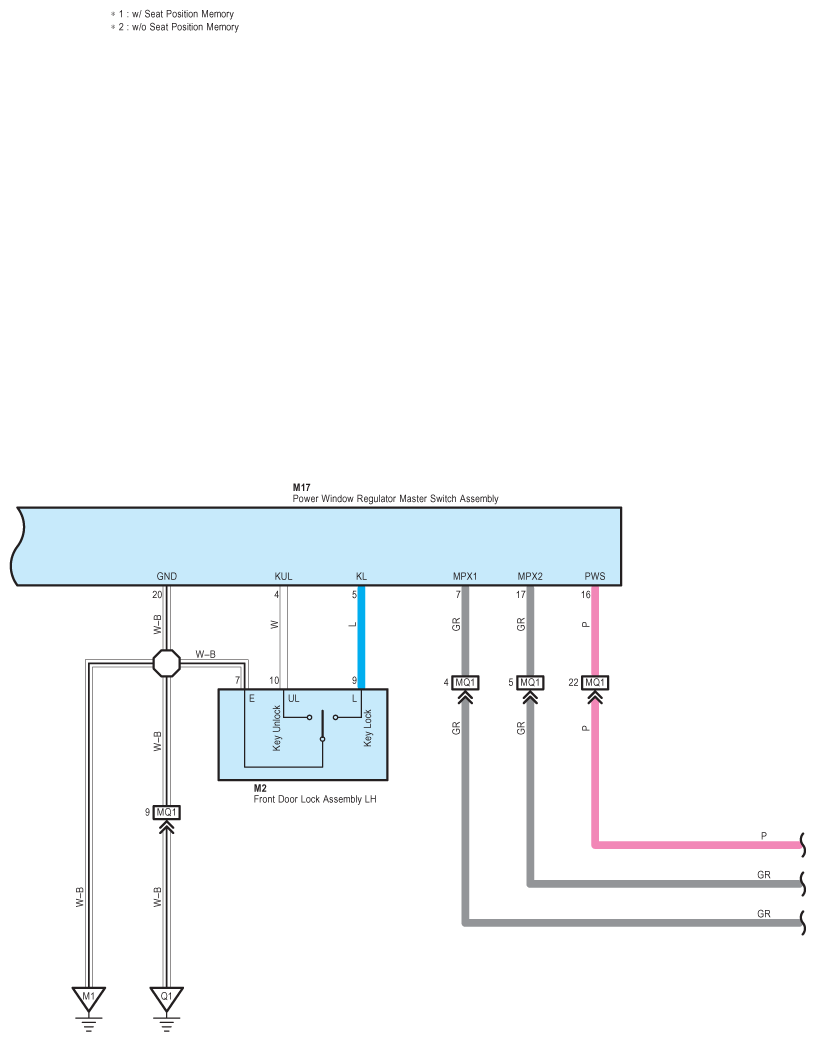

Fig 2: Power Window - Wiring Diagram (2 Of 5)
G08938702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

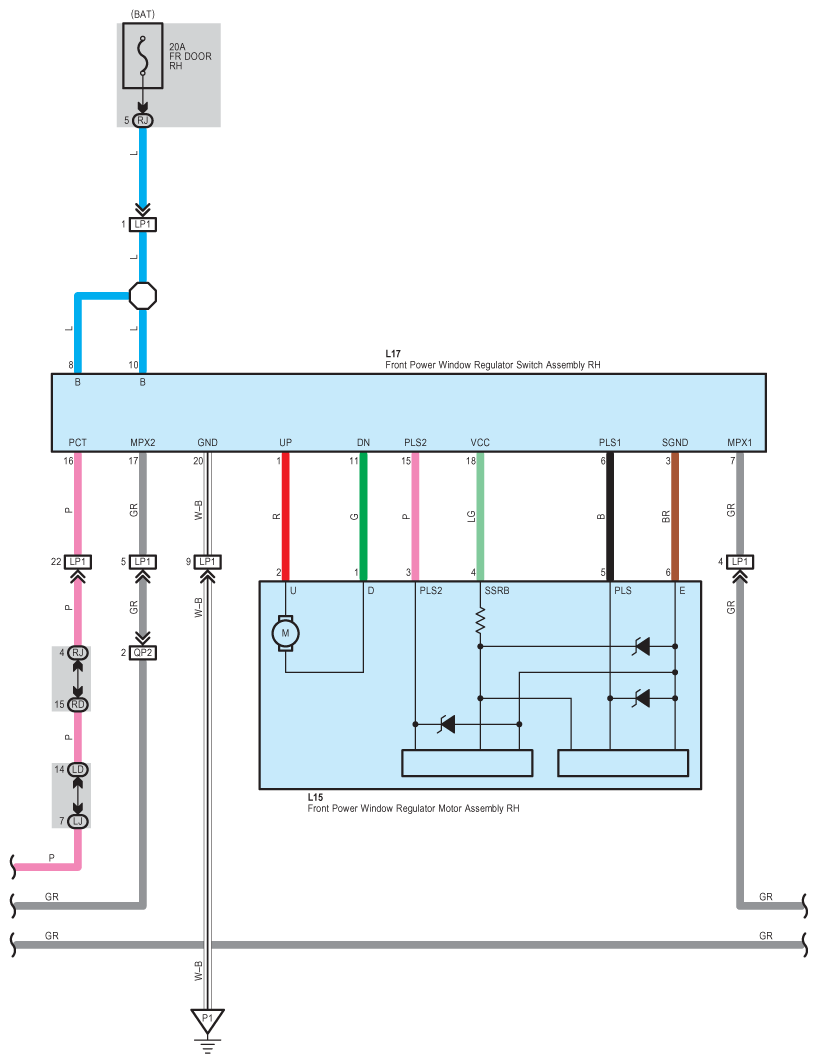

Fig 3: Power Window - Wiring Diagram (3 Of 5)
G08938703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

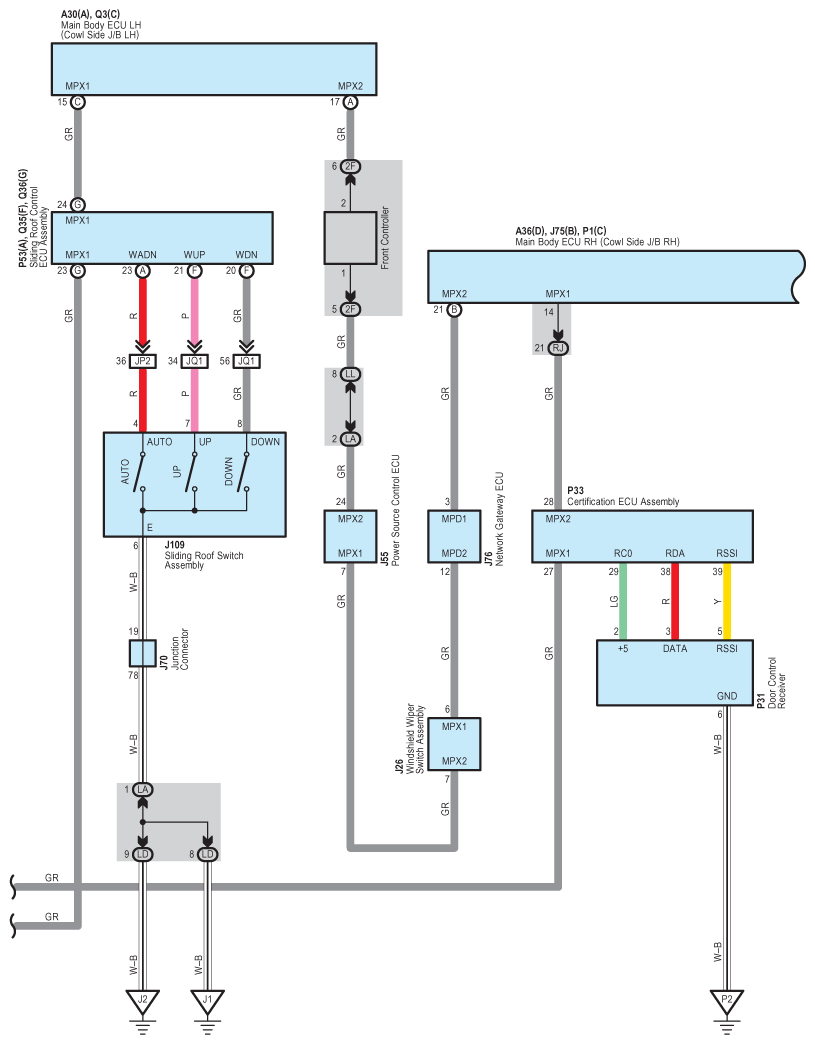

Fig 4: Power Window - Wiring Diagram (4 Of 5)
G08938704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

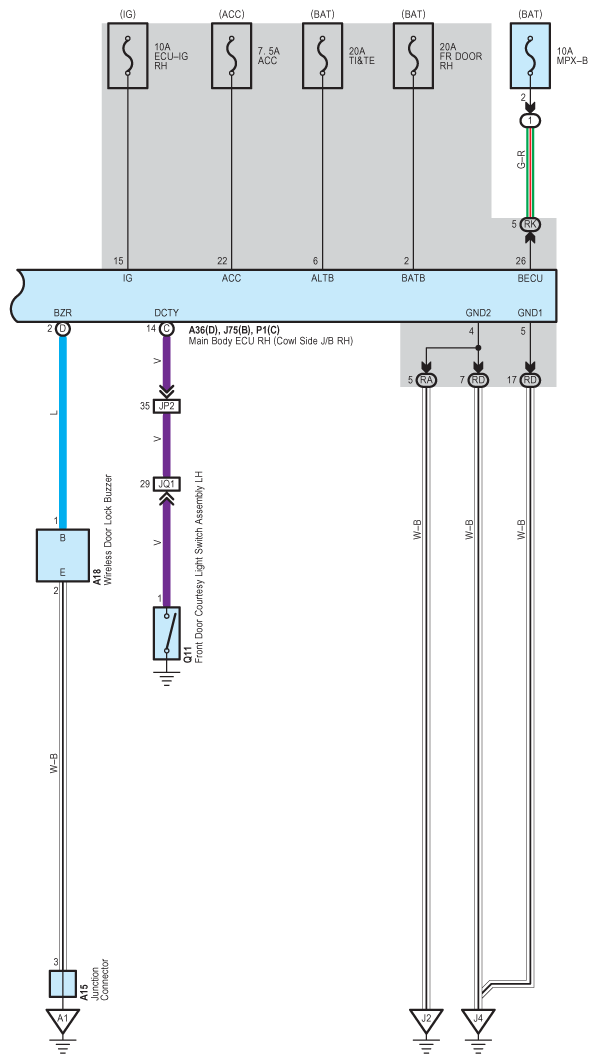

Fig 5: Power Window - Wiring Diagram (5 Of 5)
G08938705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
