Remote Control Mirror (w/Seat Position Memory): Notes

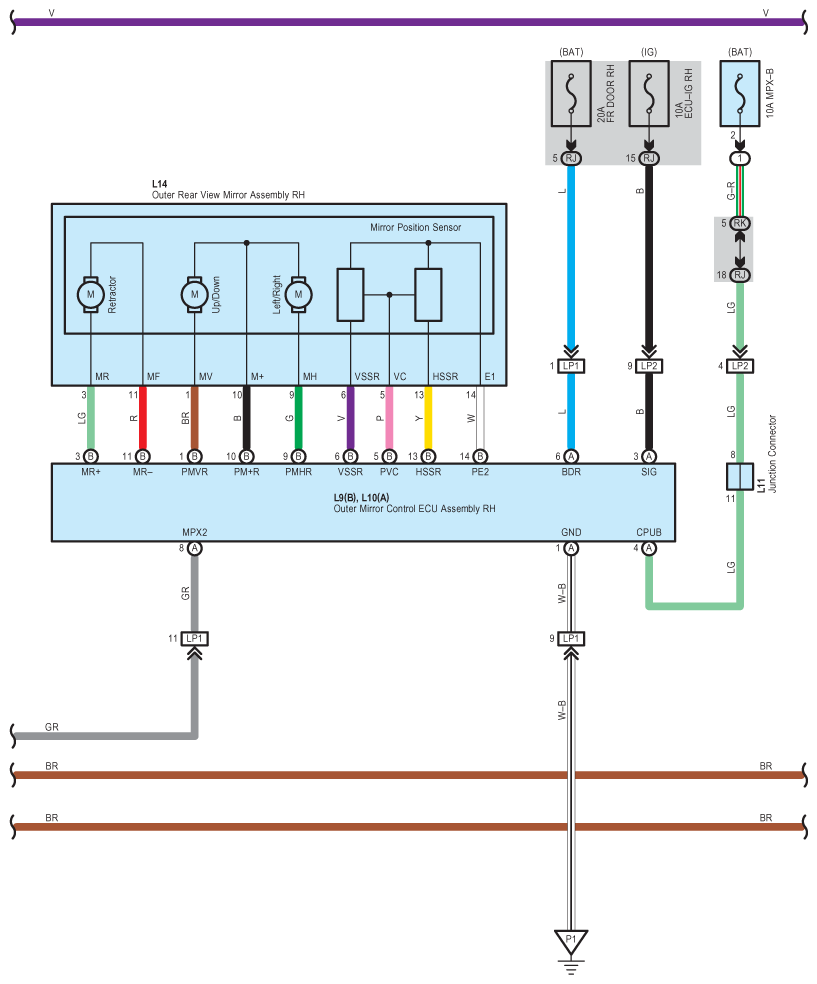

Fig 1: Remote Control Mirror (W/ Seat Position Memory) - Wiring Diagram (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

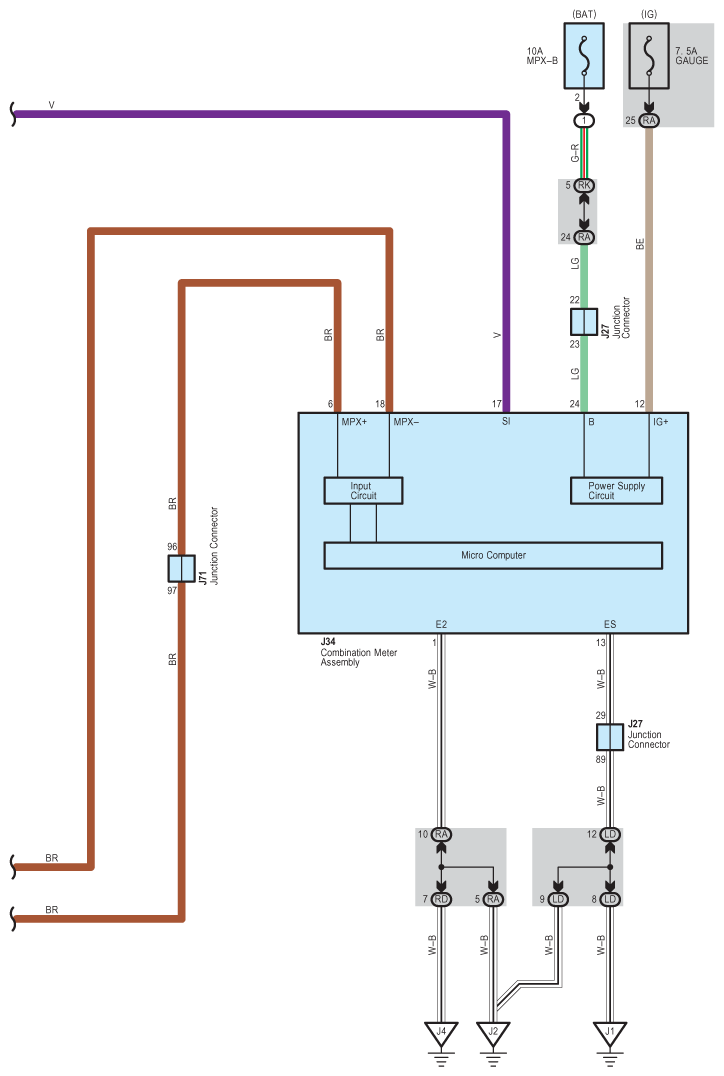

Fig 2: Remote Control Mirror (W/ Seat Position Memory) - Wiring Diagram (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

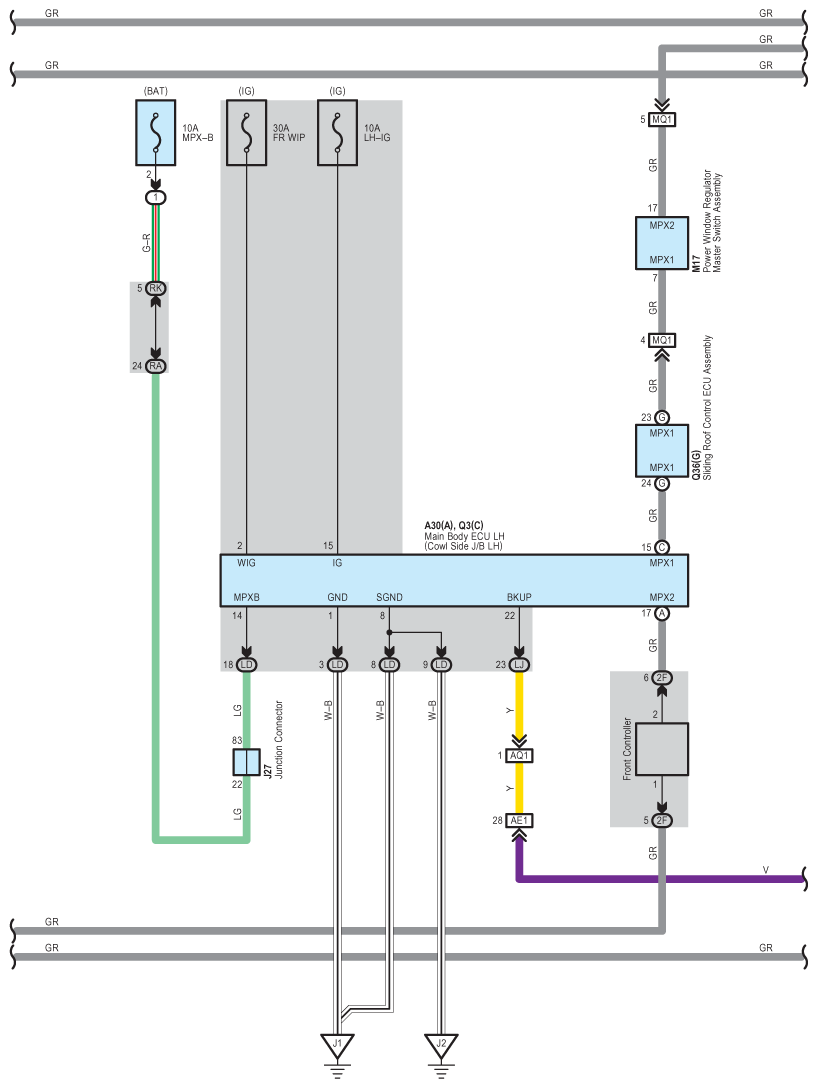

Fig 3: Remote Control Mirror (W/ Seat Position Memory) - Wiring Diagram (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

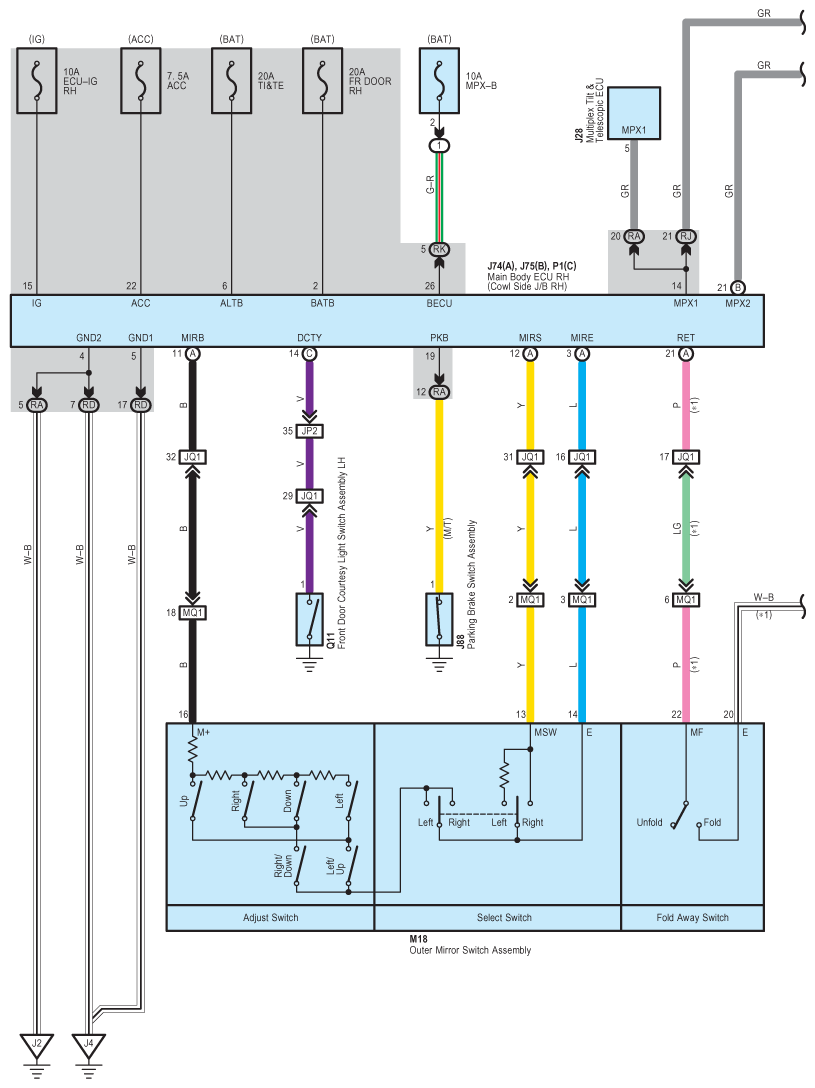

Fig 4: Remote Control Mirror (W/ Seat Position Memory) - Wiring Diagram (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

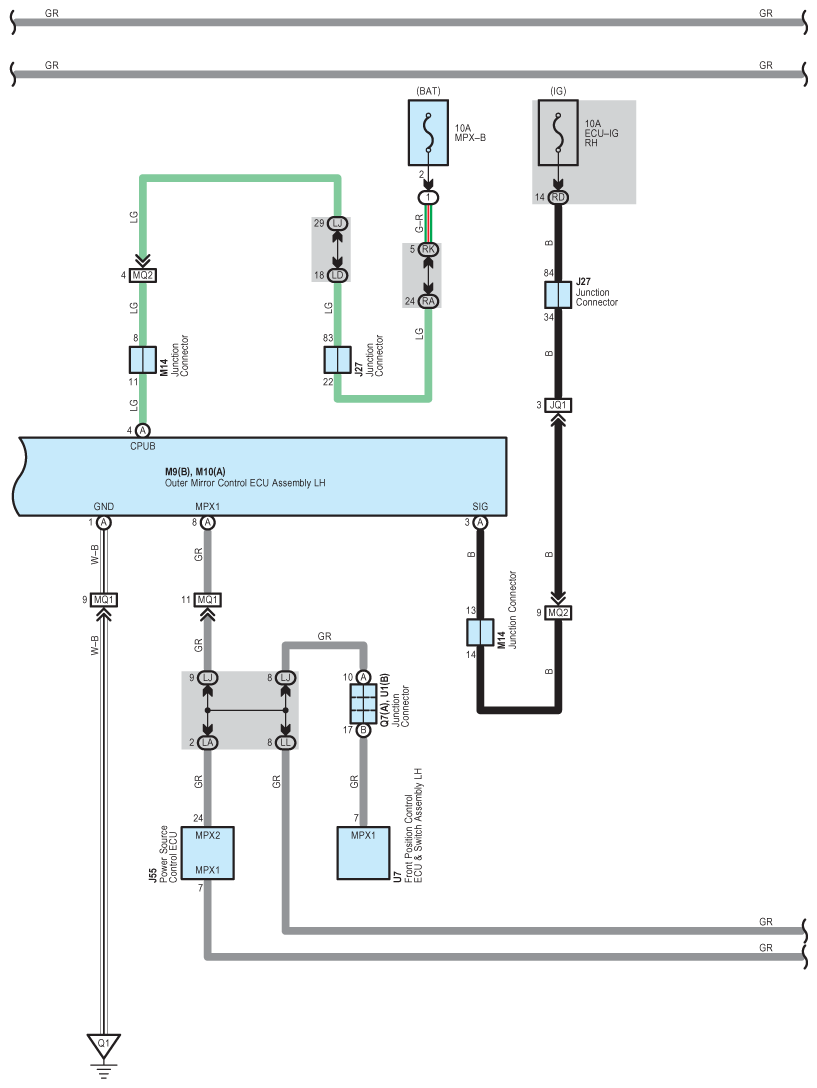

Fig 5: Remote Control Mirror (W/ Seat Position Memory) - Wiring Diagram (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

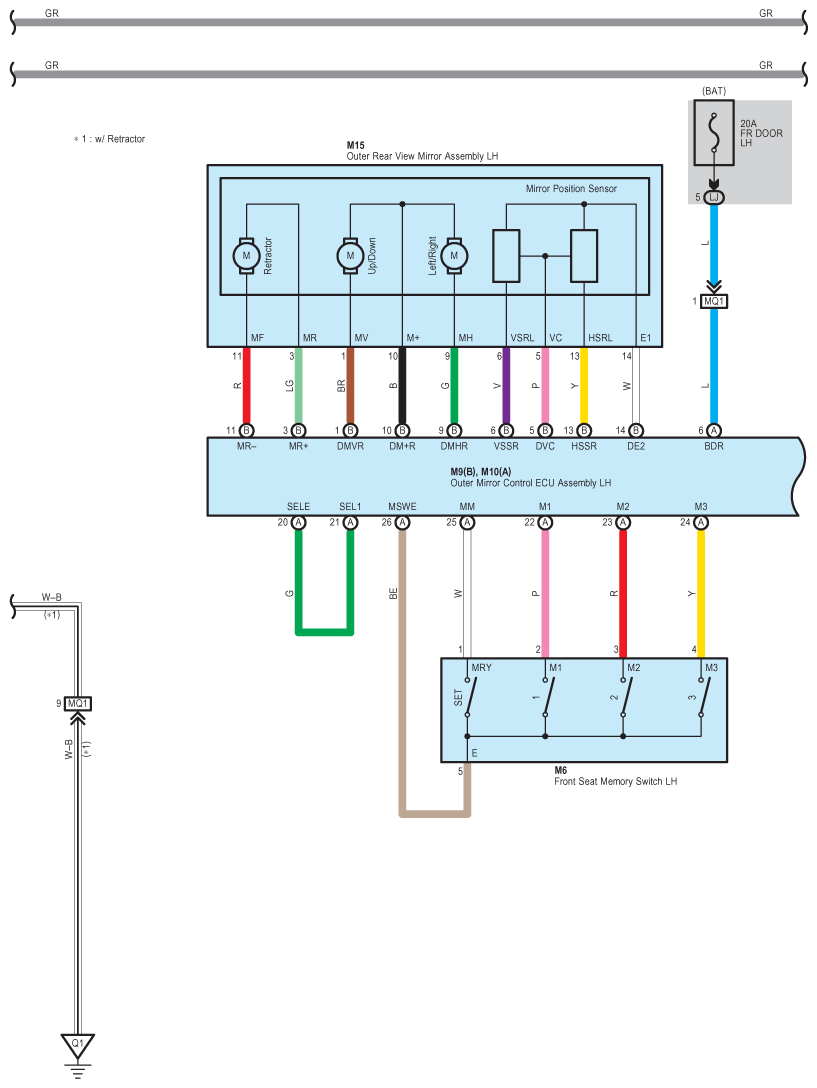

Fig 6: Remote Control Mirror (W/ Seat Position Memory) - Wiring Diagram (6 Of 8)

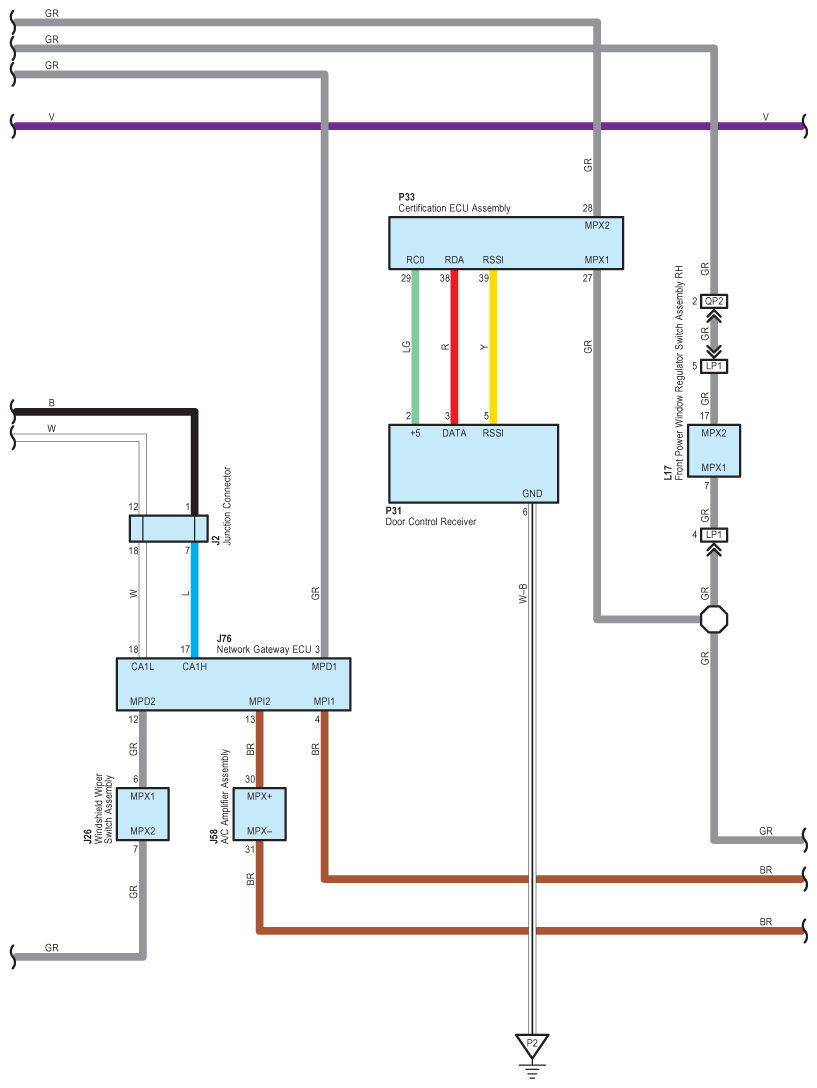

Fig 7: Remote Control Mirror (W/ Seat Position Memory) - Wiring Diagram (7 Of 8)

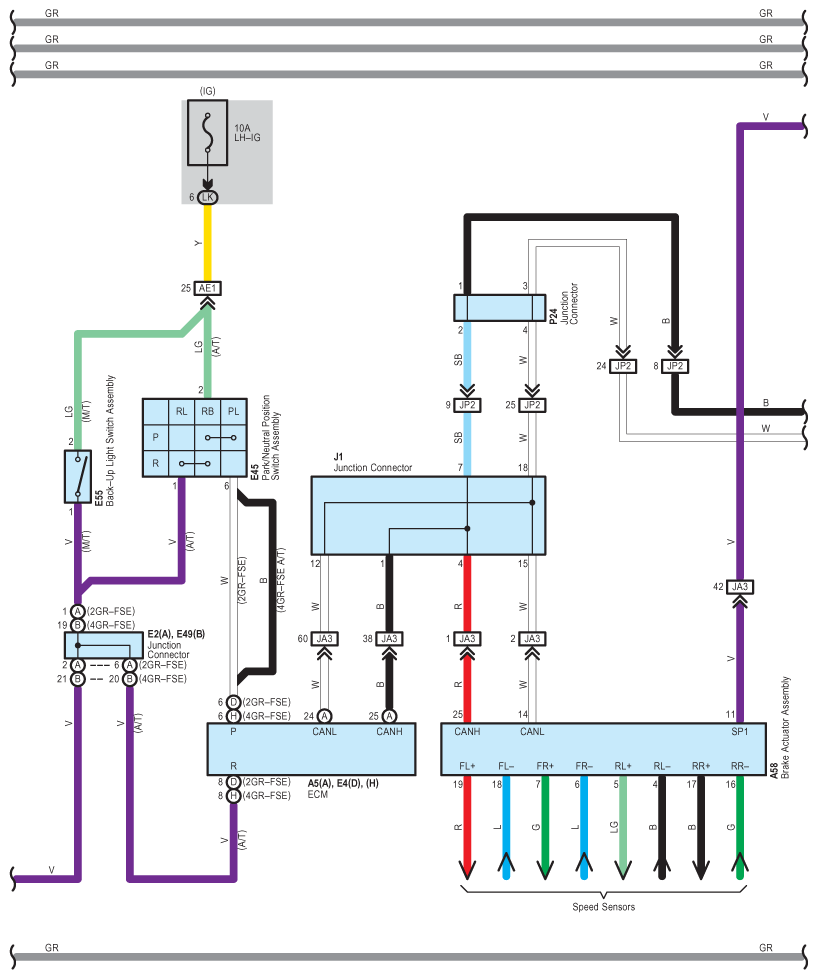

Fig 8: Remote Control Mirror (W/ Seat Position Memory) - Wiring Diagram (8 Of 8)
