OEM System Circuits: Taillight: Notes

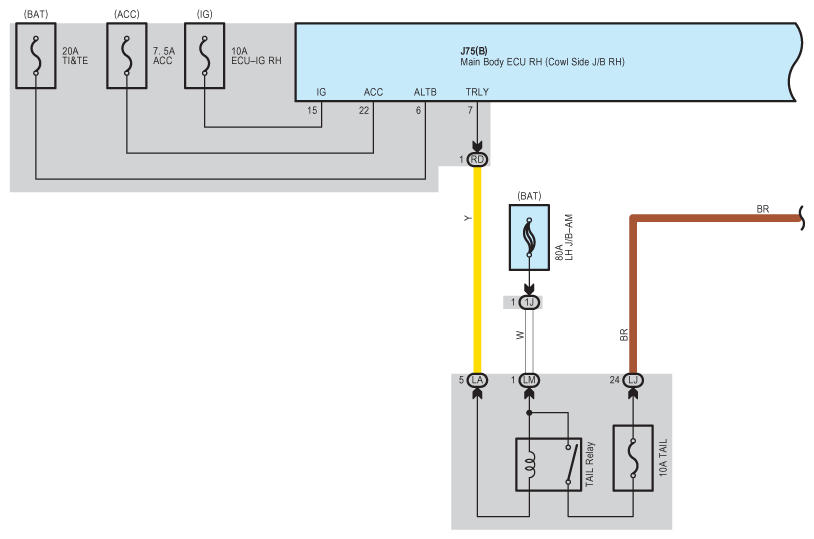

Fig 1: Taillight - Wiring Diagram (1 Of 8)

G08938659

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

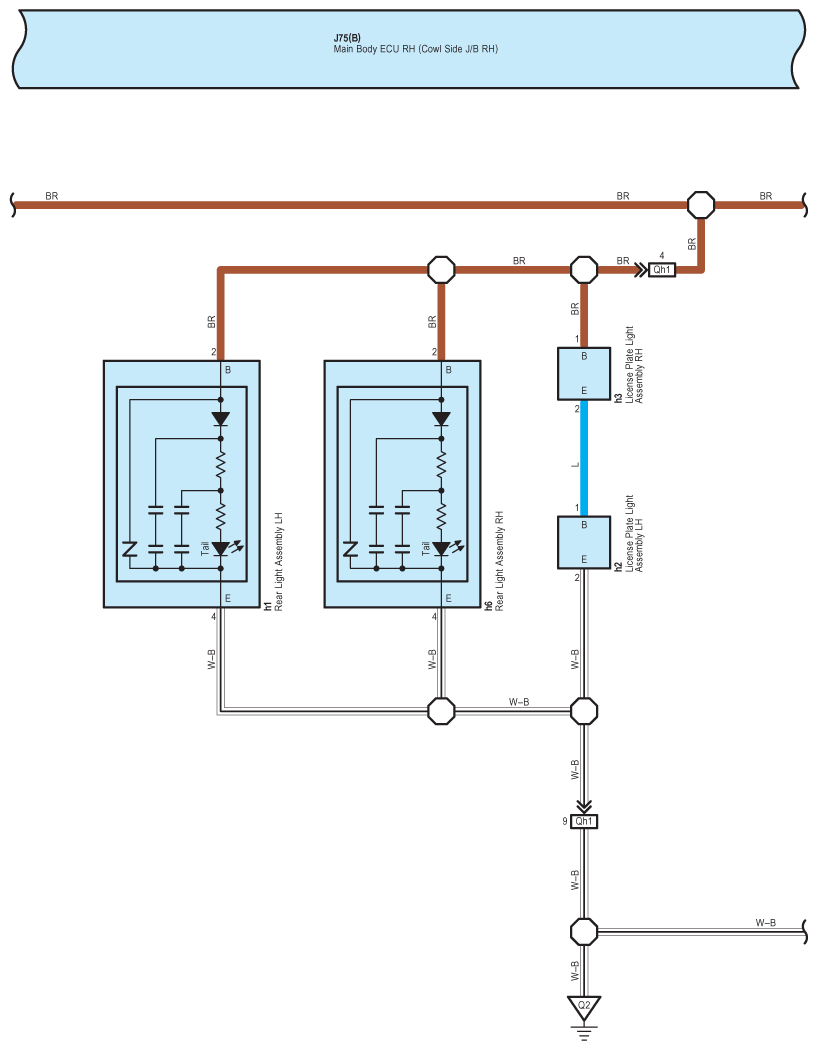

Fig 2: Taillight - Wiring Diagram (2 Of 8)

G08938660

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

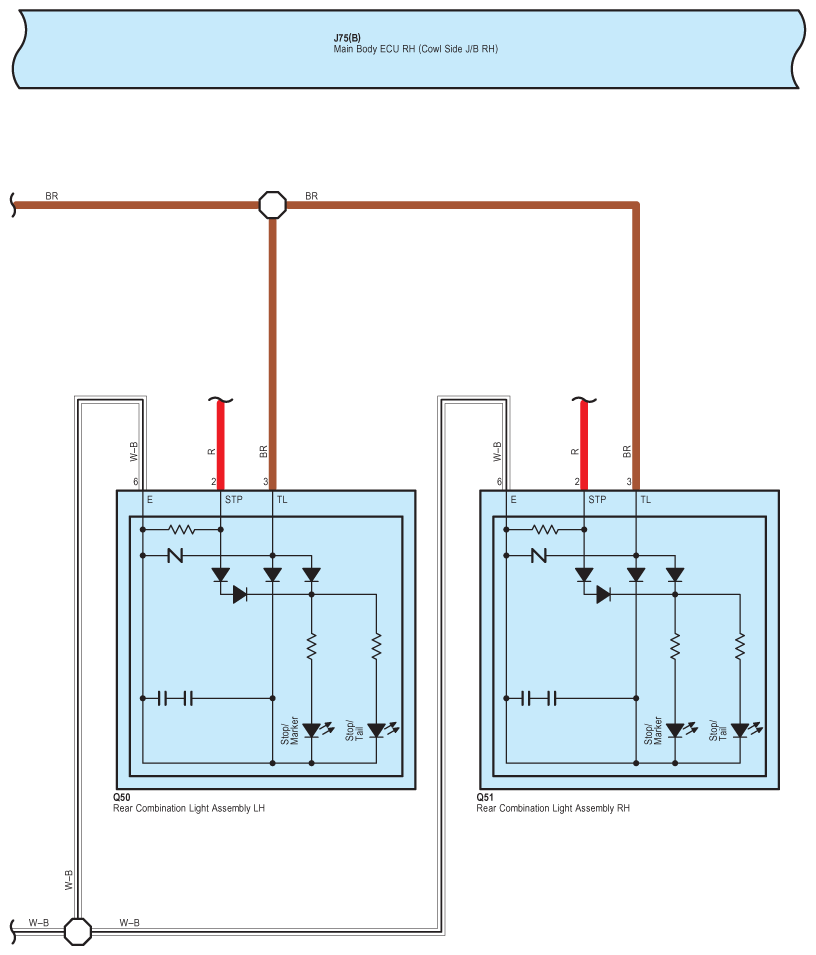

Fig 3: Taillight - Wiring Diagram (3 Of 8)

G08938661

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

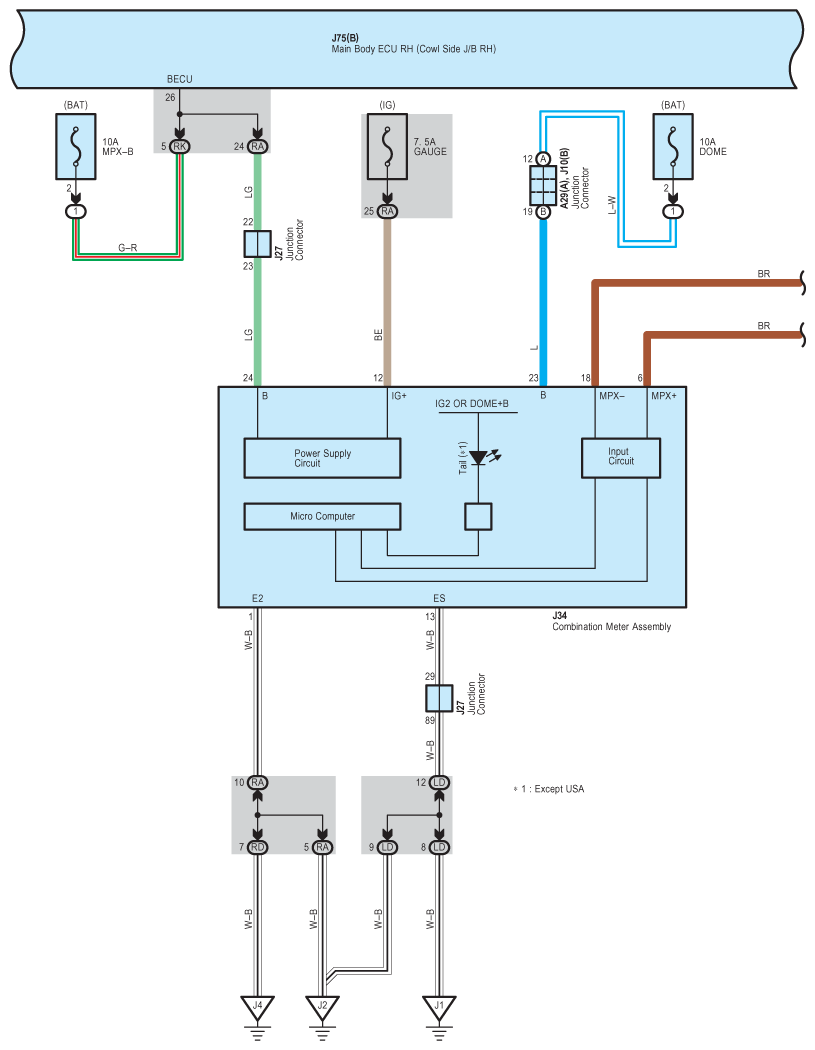

Fig 4: Taillight - Wiring Diagram (4 Of 8)

G08938662

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Taillight - Wiring Diagram (5 Of 8)

G08938663

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

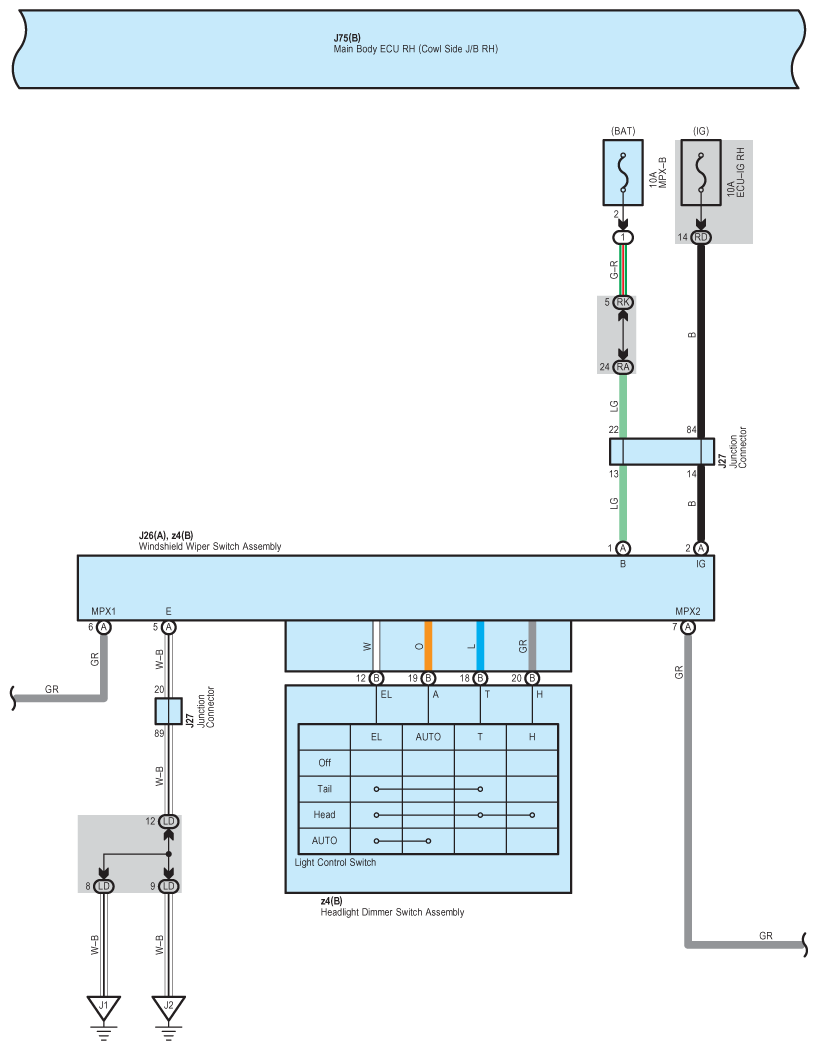

Fig 6: Taillight - Wiring Diagram (6 Of 8)

G08938664

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

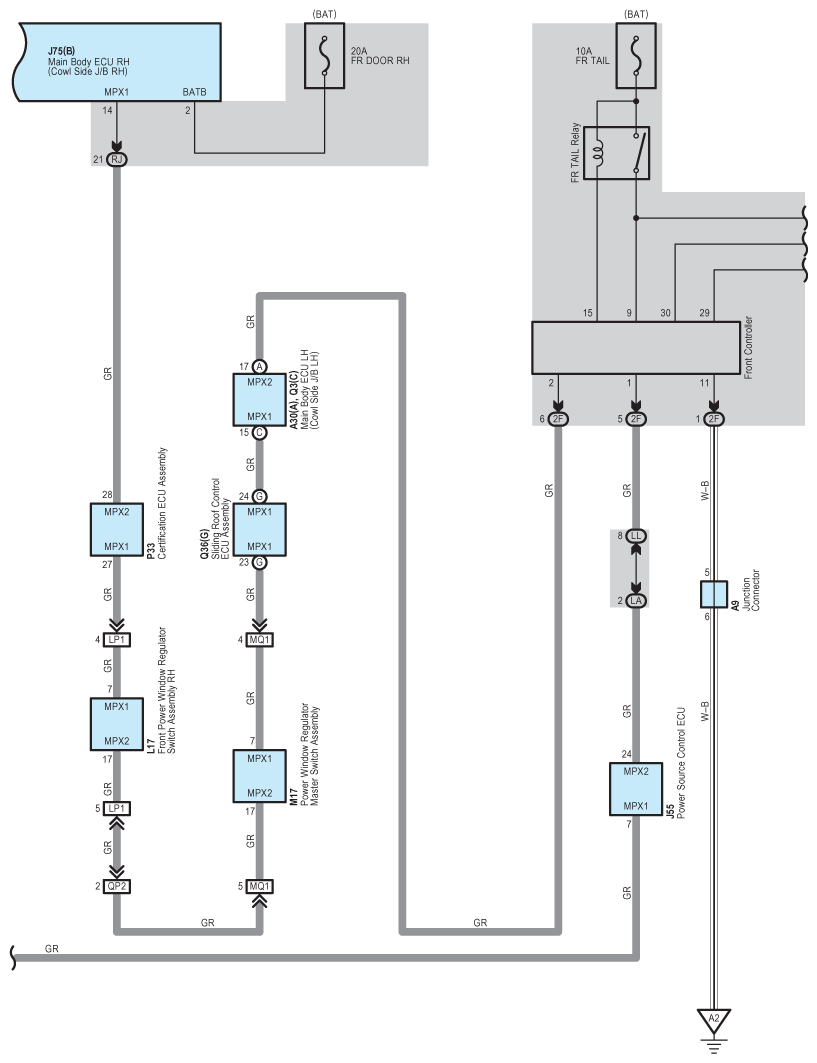

Fig 7: Taillight - Wiring Diagram (7 Of 8)

G08938665

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

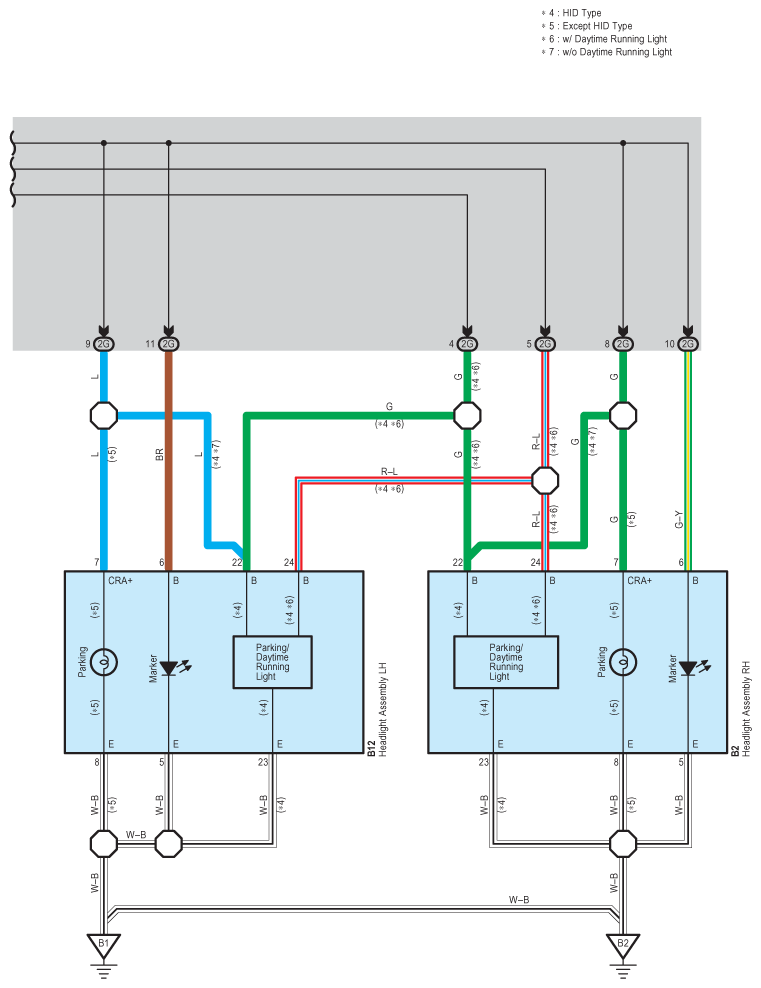

Fig 8: Taillight - Wiring Diagram (8 Of 8)

G08938666

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
