Injector Driver: Removal: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
REMOVE V-BANK COVER SUB-ASSEMBLY . Refer to REMOVAL - Step 2
REMOVE INJECTOR DRIVER
1. Disconnect the 8 injector driver connectors.

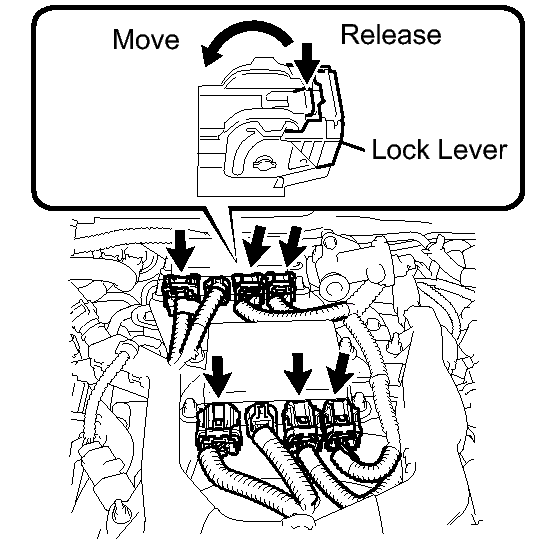

  Fig 1: Locating Injector Driver Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Disconnect the 6 connectors with wire harness locks and the 2 connectors without wire harness locks from the 2 injector drivers.
    HINT:

    To release each connector lock, push the claw downward ("Release" in the illustration) and move the lock lever ("Move" in the illustration).
2. Remove the 8 nuts and 2 injector drivers from the intake air surge tank assembly.

  Fig 2: Locating Injector Drivers Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Be careful not to drop or strike the injector drivers.
