Engine Coolant Temperature Sensor: Removal: Removal

  1. REMOVE V-BANK COVER SUB-ASSEMBLY  . Refer to REMOVAL - Step 2
  2. REMOVE COOL AIR INTAKE DUCT SEAL  . Refer to REMOVAL - Step 3
  3. REMOVE AIR CLEANER CAP SUB-ASSEMBLY  See step  4
  4. REMOVE ENGINE UNDER COVER
  5. DRAIN ENGINE COOLANT  . Refer to REPLACEMENT - Step 3
  6. REMOVE E.F.I. ENGINE COOLANT TEMPERATURE SENSOR
    1. Disconnect the E.F.I. engine coolant temperature sensor connector.

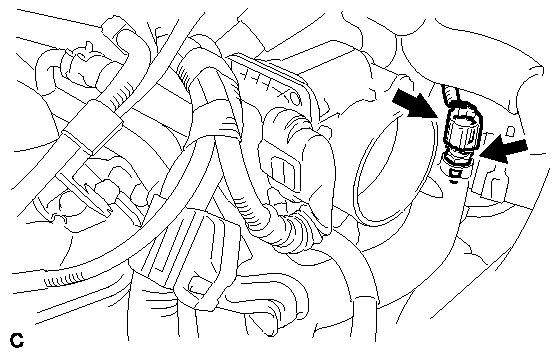

      Fig 1: Locating EFI Engine Coolant Temperature Sensor Connector
      GTY148775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the E.F.I. engine coolant temperature sensor.
    3. Remove the gasket from the engine coolant temperature sensor.
