Steering Angle Sensor: Installation: Installation

  1. INSTALL STEERING ANGLE SENSOR
    1. Align the locating pins, engage the 6 claws and install the steering angle sensor to the spiral cable.

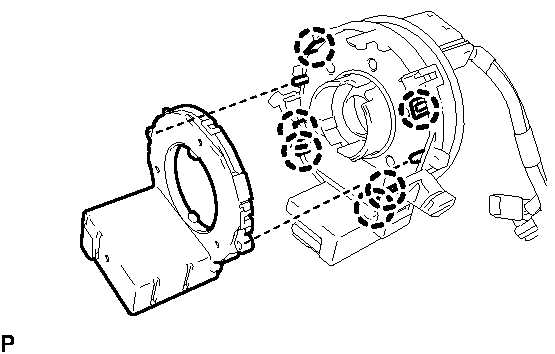

      Fig 1: Identifying Steering Angle Sensor & Claws
      GTY128360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL SPIRAL CABLE WITH STEERING ANGLE SENSOR  . Refer to INSTALLATION - Step 2
  3. INSTALL STEERING COLUMN COVER  . Refer to INSTALLATION - Step 11
  4. ADJUST SPIRAL CABLE  . Refer to INSTALLATION - Step 4
  5. INSTALL STEERING WHEEL ASSEMBLY  . Refer to INSTALLATION - Step 10
  6. INSTALL STEERING PAD  . Refer to INSTALLATION - Step 1
  7. INSTALL LOWER NO. 2 STEERING WHEEL COVER  . Refer to INSTALLATION - Step 3
  8. INSTALL LOWER NO. 3 STEERING WHEEL COVER  . Refer to INSTALLATION - Step 2
  9. INSPECT STEERING WHEEL CENTER POINT
    1. Inspect the steering wheel center point.
  10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  11. INSPECT STEERING PAD  . Refer to INSTALLATION - Step 5
  12. INSPECT SRS WARNING LIGHT

    HINT:

    Refer to DIAGNOSIS SYSTEM
