Air Conditioning: Notes

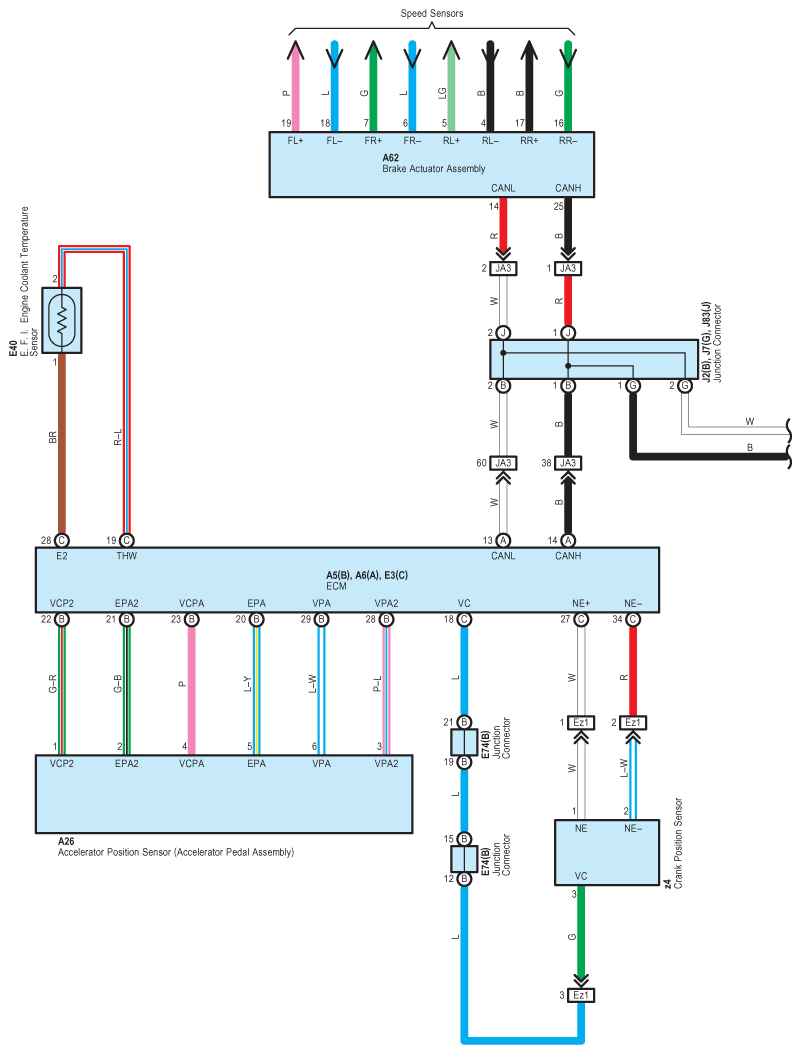

Fig 1: Air Conditioning - Wiring Diagram (1 Of 6)

G08939891

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

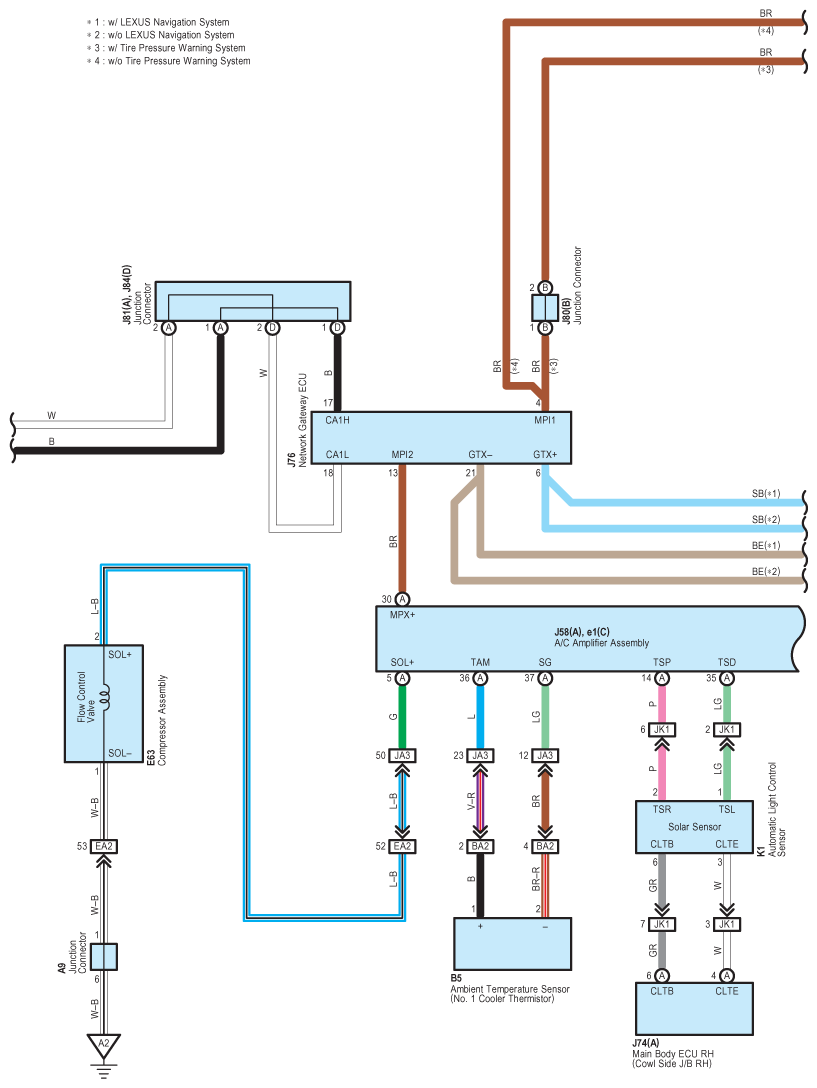

Fig 2: Air Conditioning - Wiring Diagram (2 Of 6)

G08939892

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

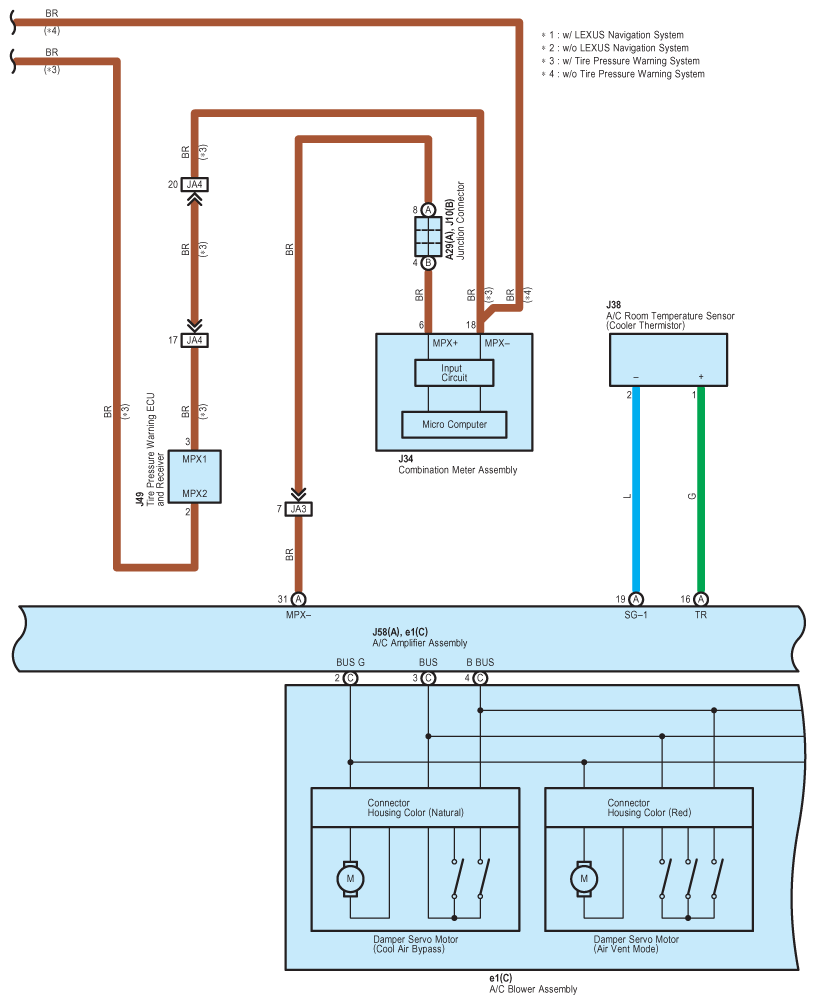

Fig 3: Air Conditioning - Wiring Diagram (3 Of 6)

G08939893

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

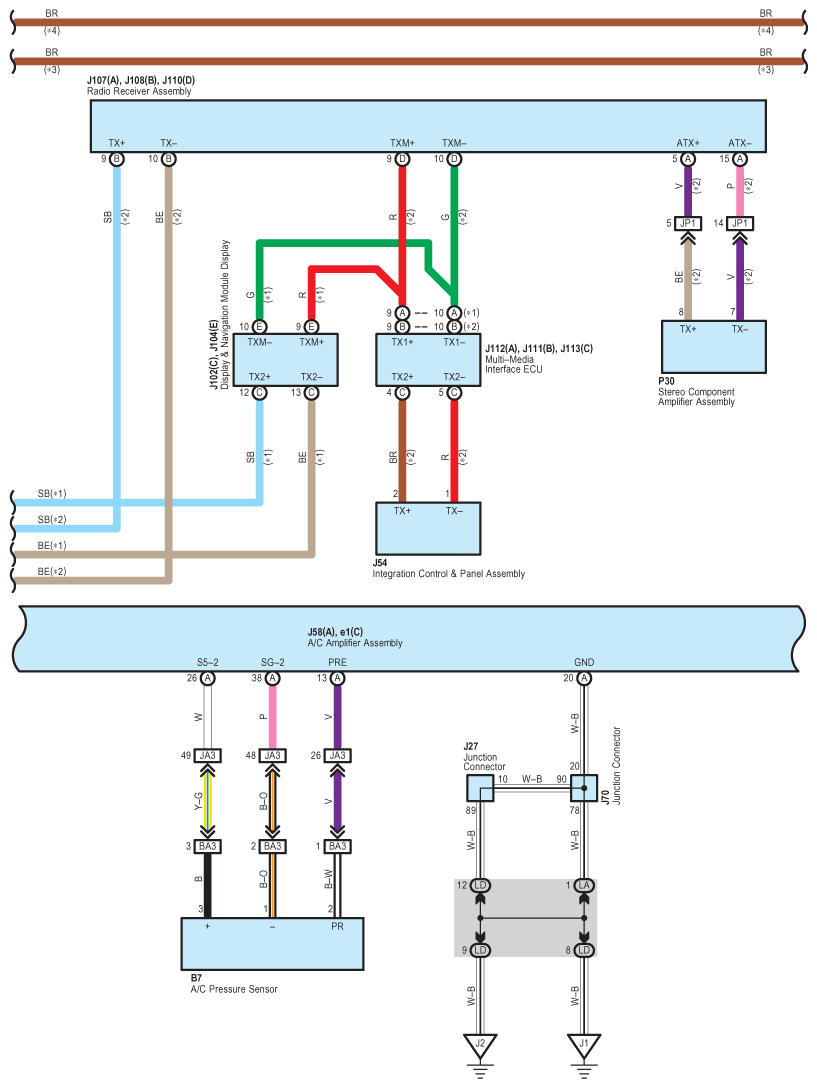

Fig 4: Air Conditioning - Wiring Diagram (4 Of 6)

G08939894

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

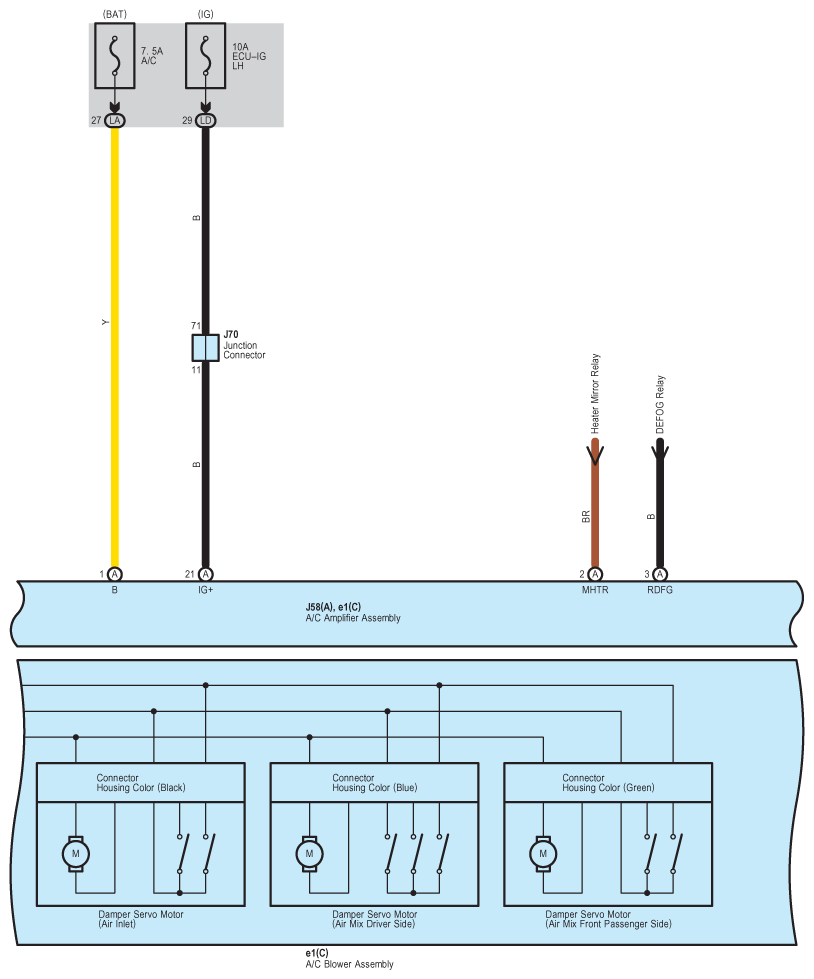

Fig 5: Air Conditioning - Wiring Diagram (5 Of 6)

G08939895

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

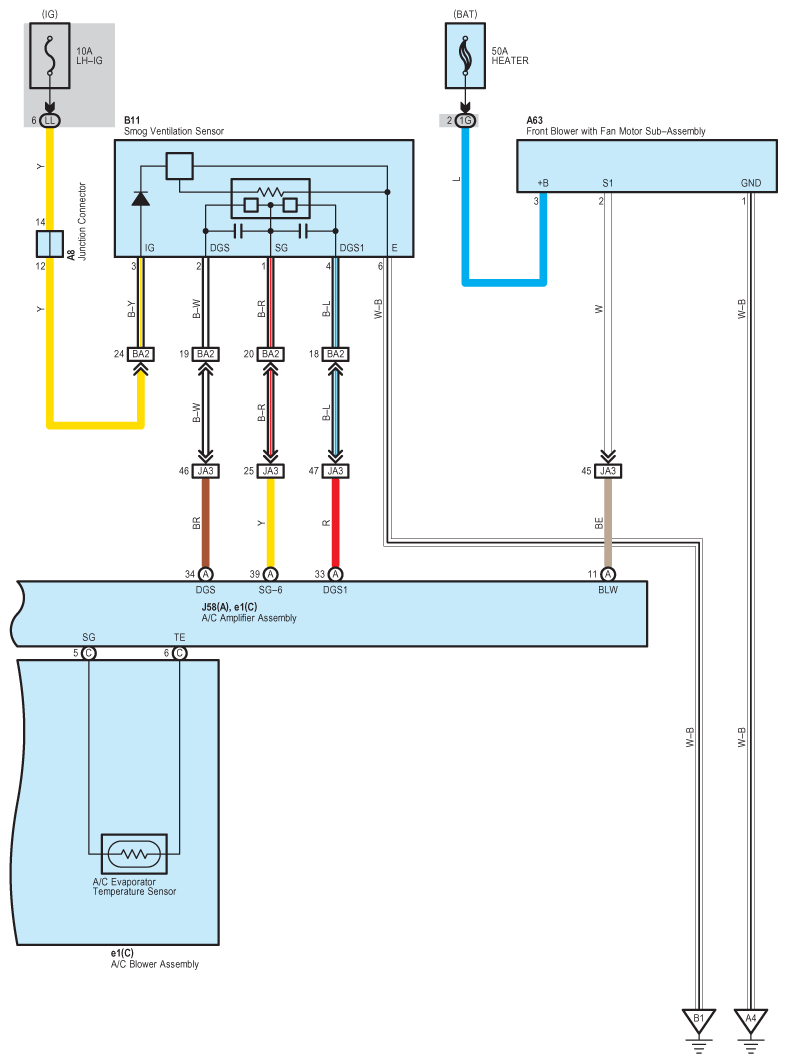

Fig 6: Air Conditioning - Wiring Diagram (6 Of 6)

G08939896

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
