Audio System (w/o LEXUS Navigation System): Notes

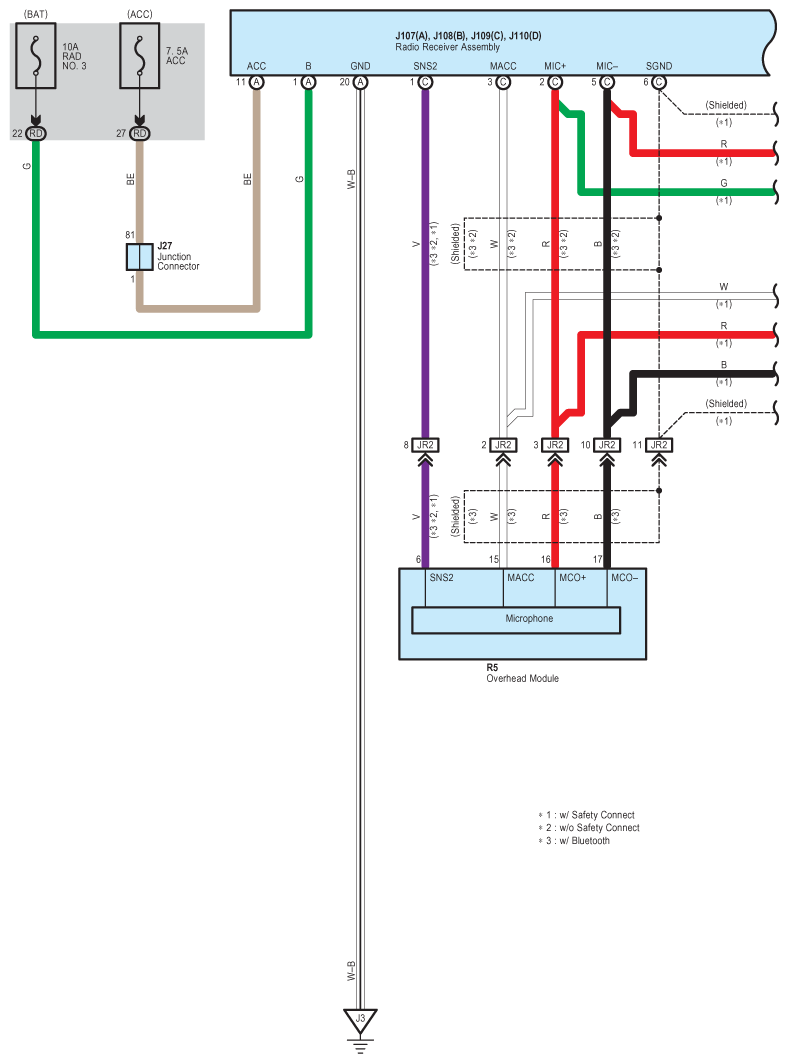

Fig 1: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (1 Of 9)
G08939870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

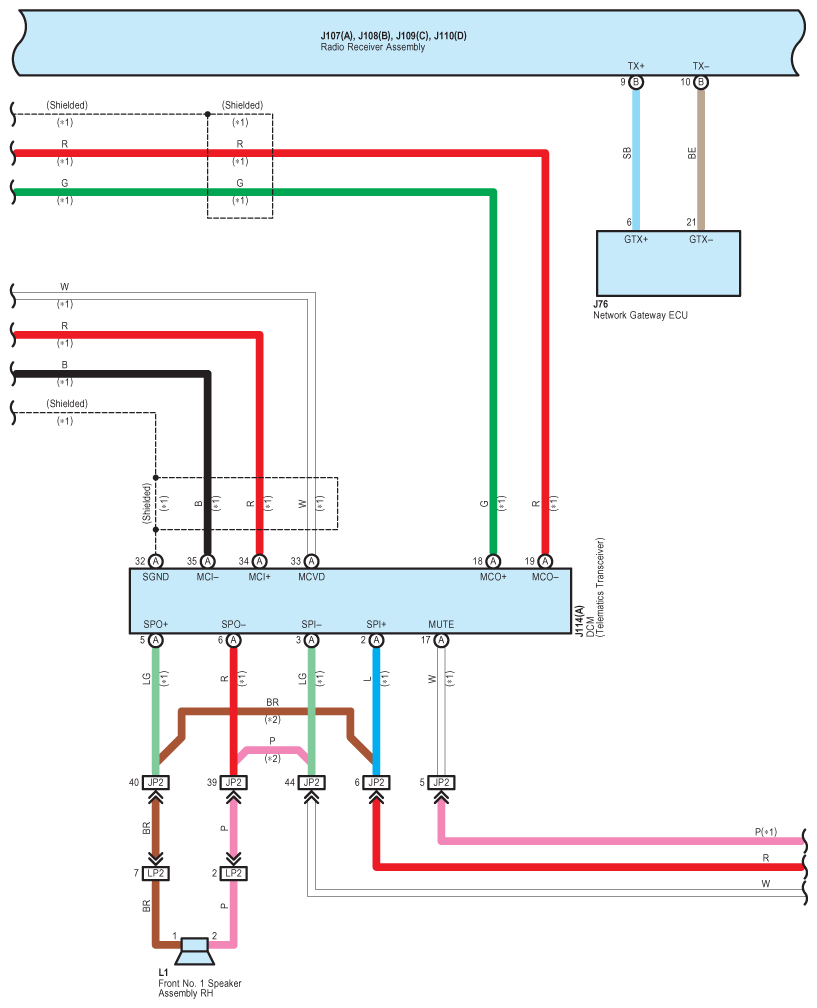

Fig 2: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (2 Of 9)
G08939871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

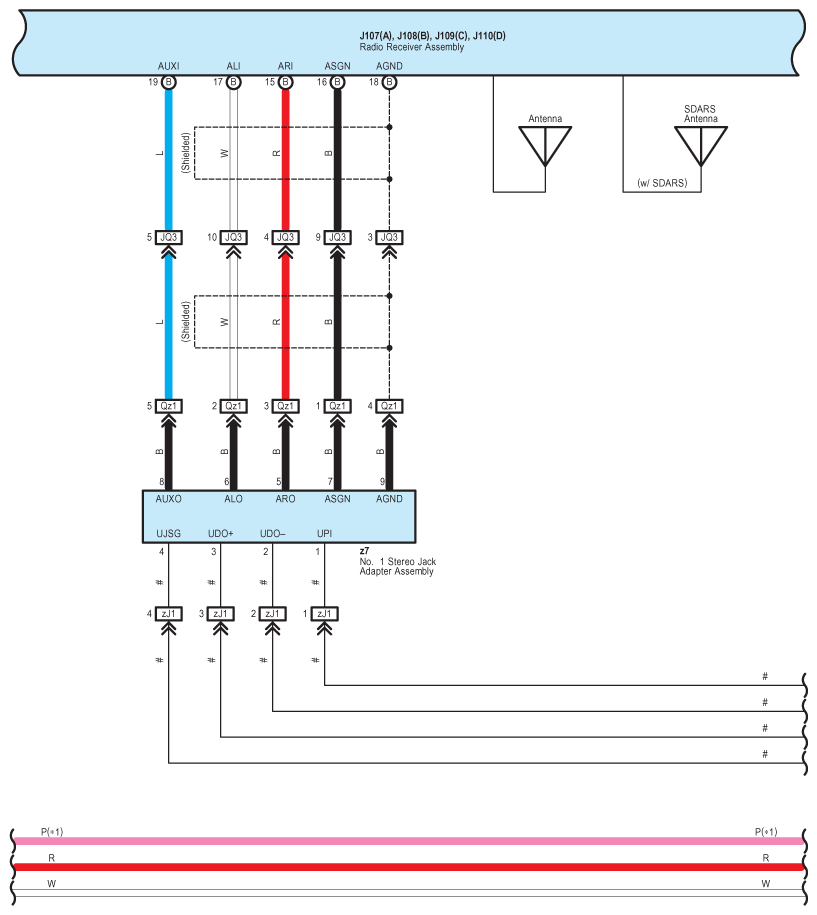

Fig 3: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (3 Of 9)
G08939872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

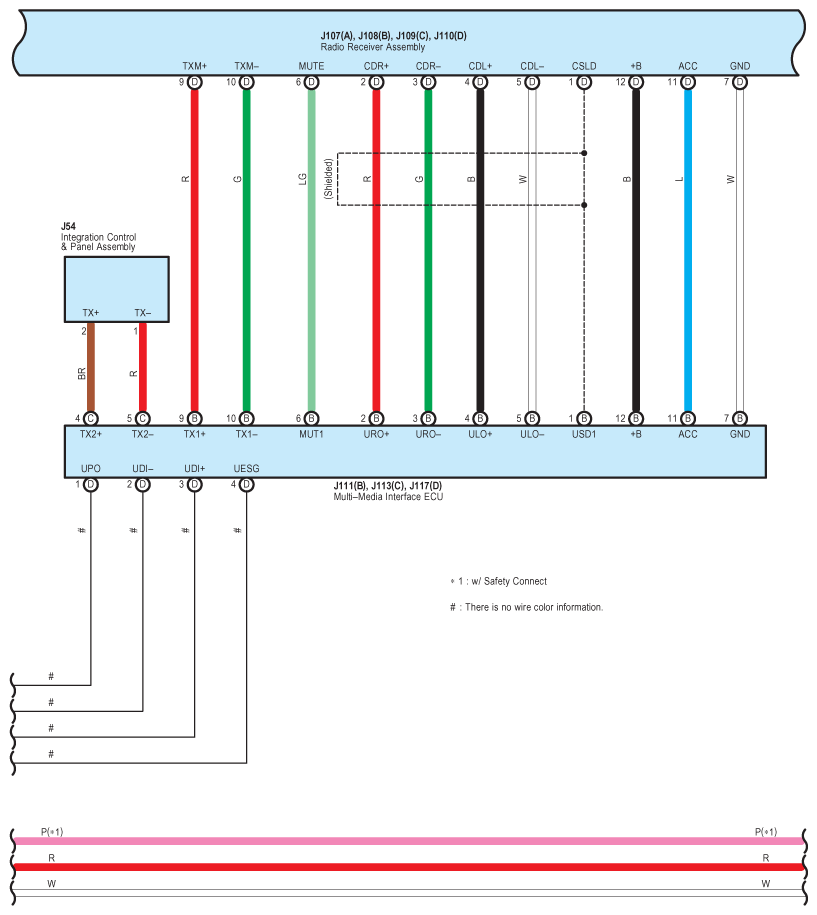

Fig 4: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (4 Of 9)
G08939873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

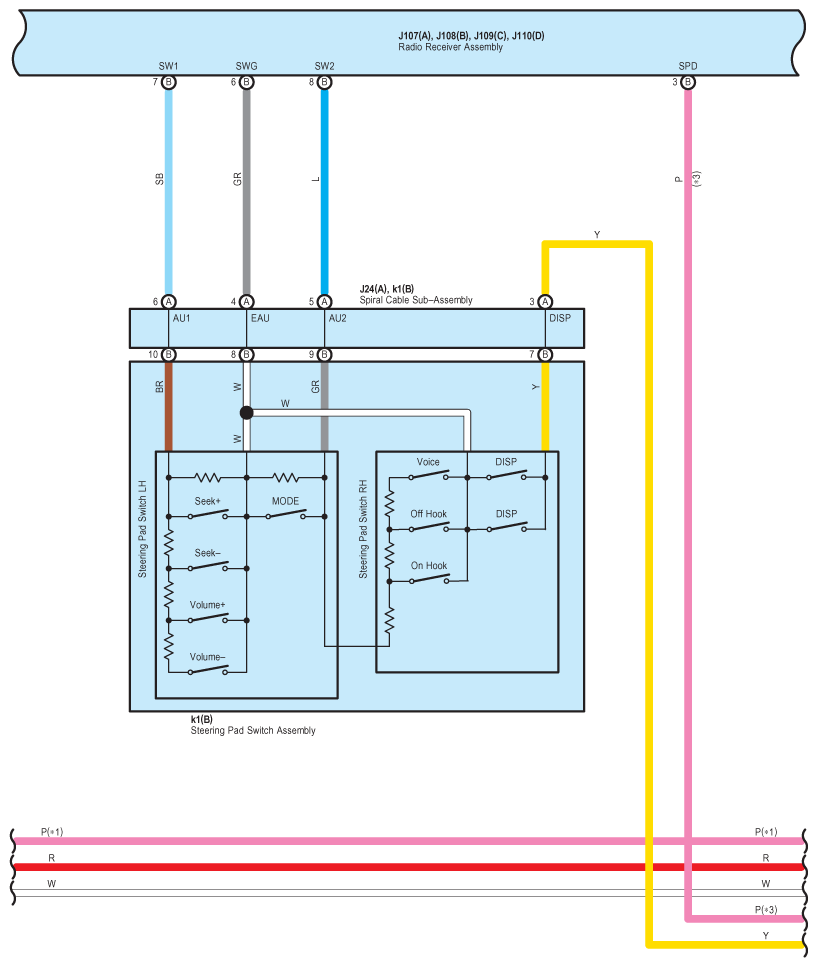

Fig 5: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (5 Of 9)
G08939874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

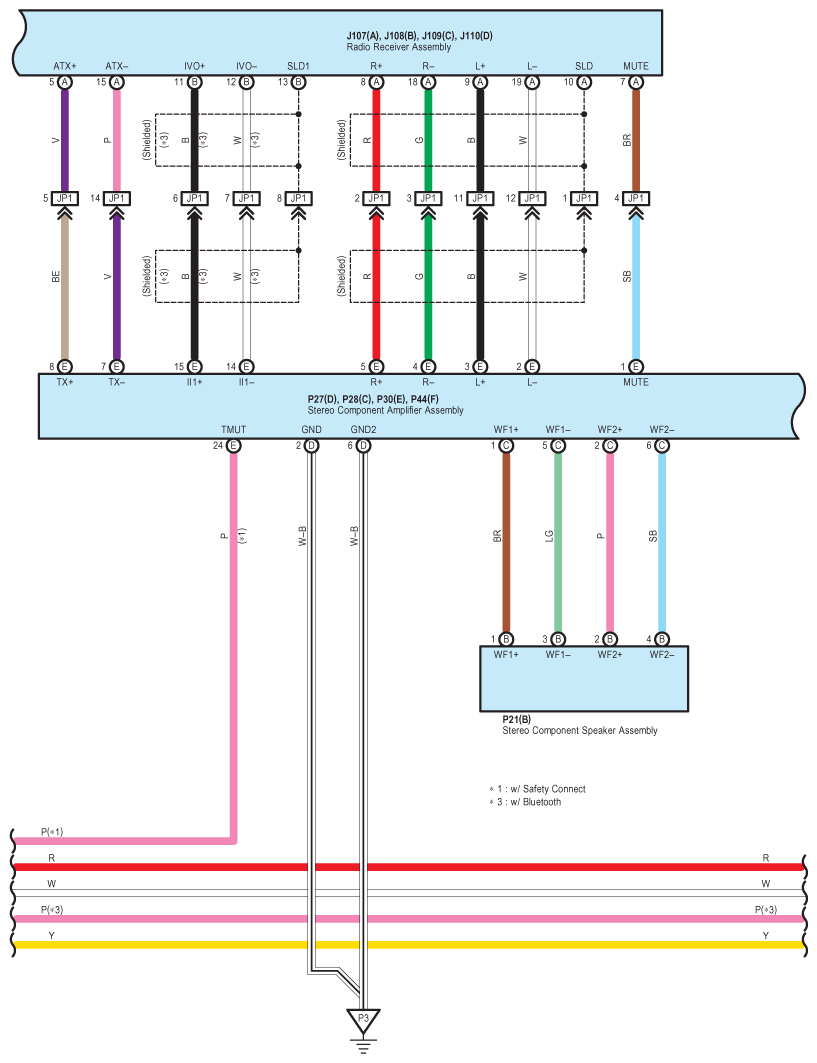

Fig 6: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (6 Of 9)
G08939875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

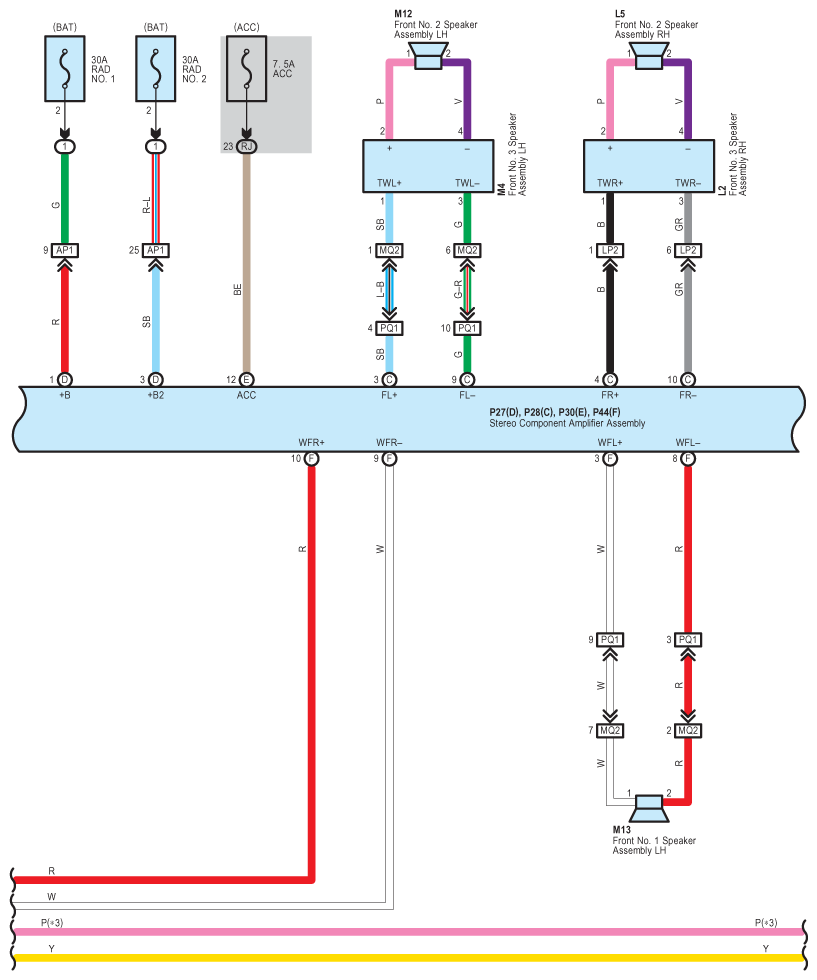

Fig 7: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (7 Of 9)
G08939876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

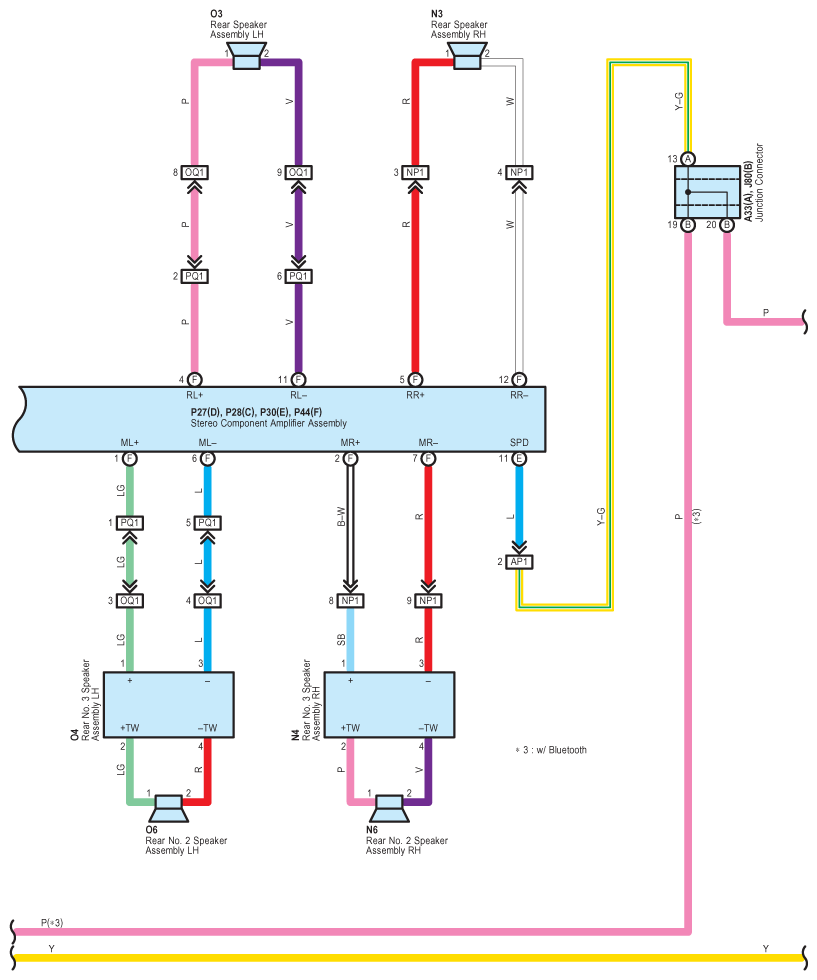

Fig 8: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (8 Of 9)
G08939877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

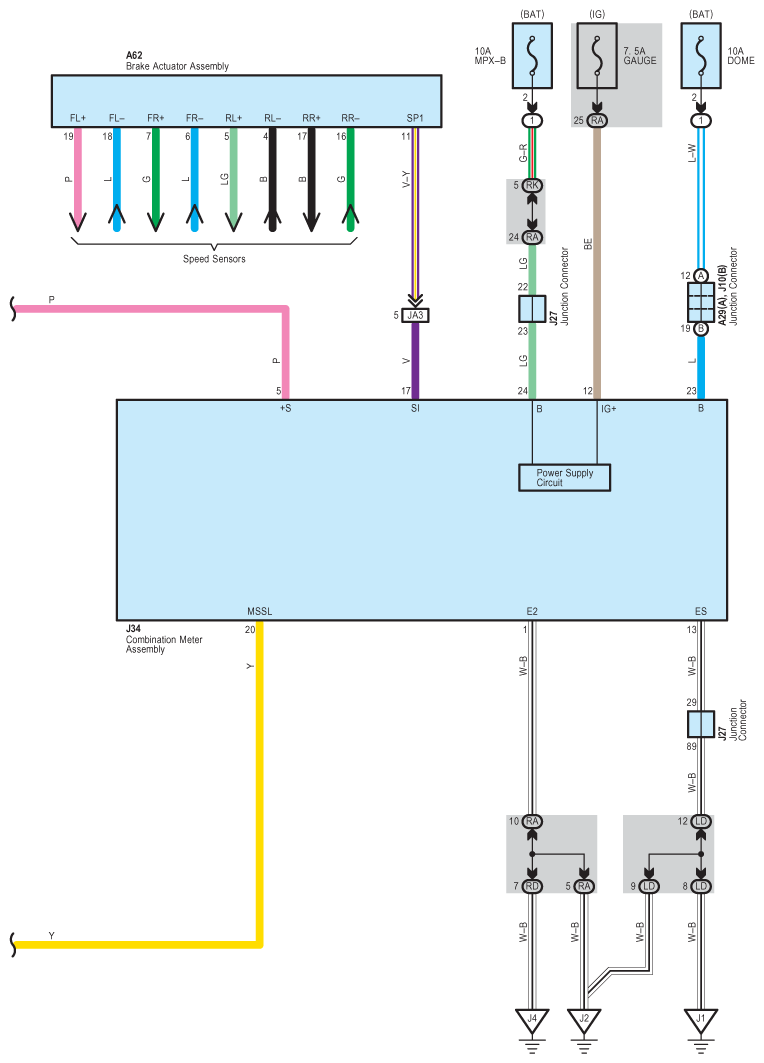

Fig 9: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (9 Of 9)
G08939878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
