Cruise Control: Notes

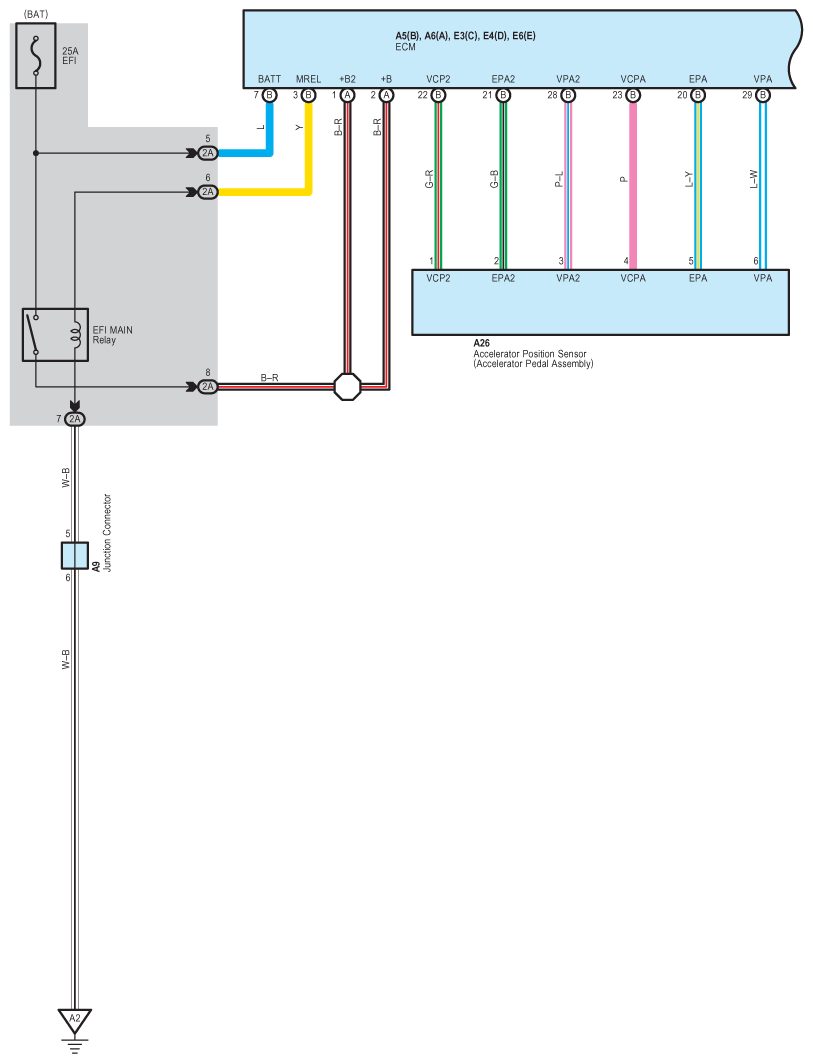

Fig 1: Cruise Control - Wiring Diagram (1 Of 10)

G08939759

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

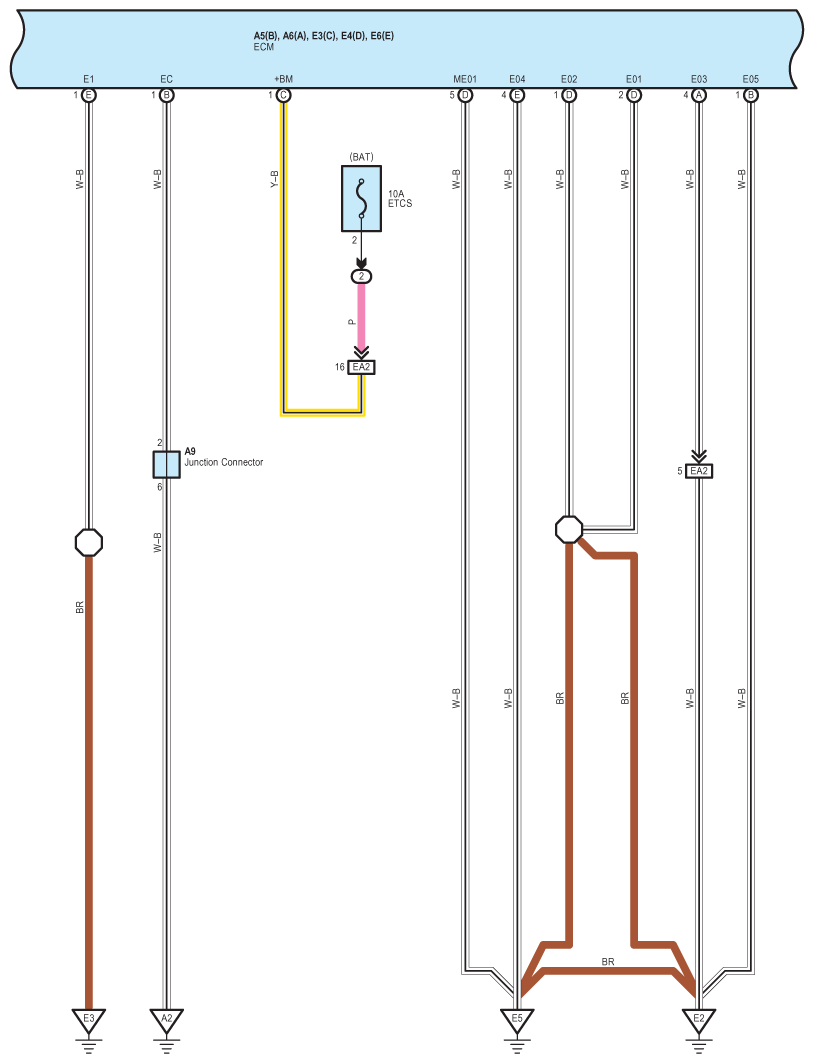

Fig 2: Cruise Control - Wiring Diagram (2 Of 10)

G08939760

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

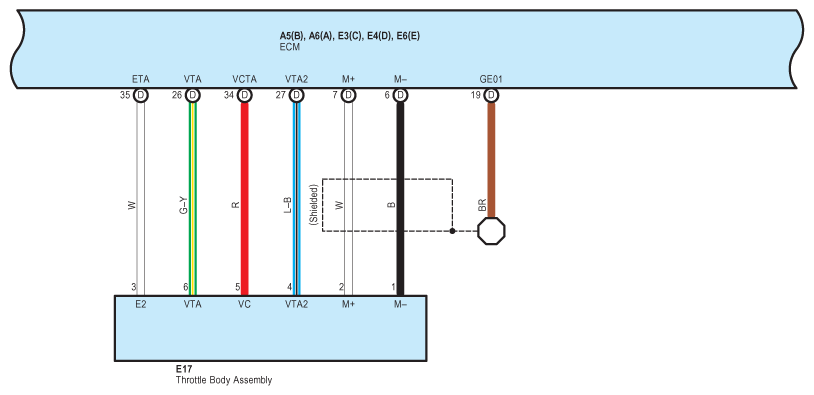

Fig 3: Cruise Control - Wiring Diagram (3 Of 10)

G08939761

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

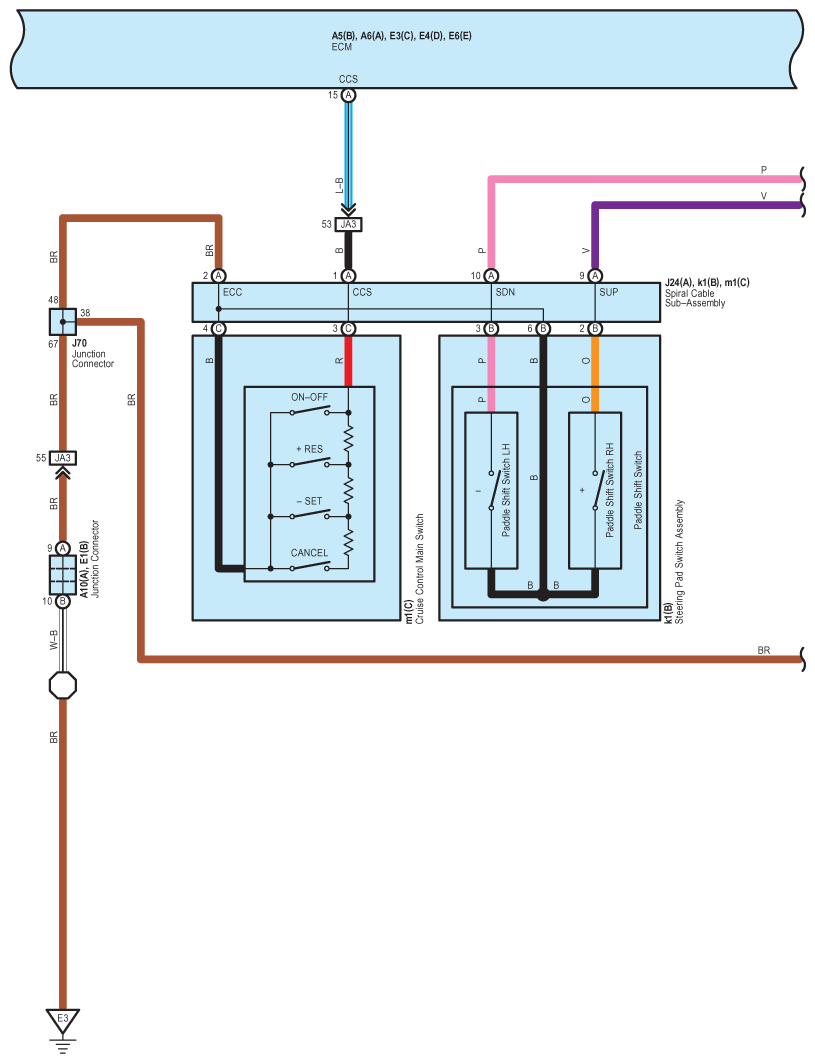

Fig 4: Cruise Control - Wiring Diagram (4 Of 10)

G08939762

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

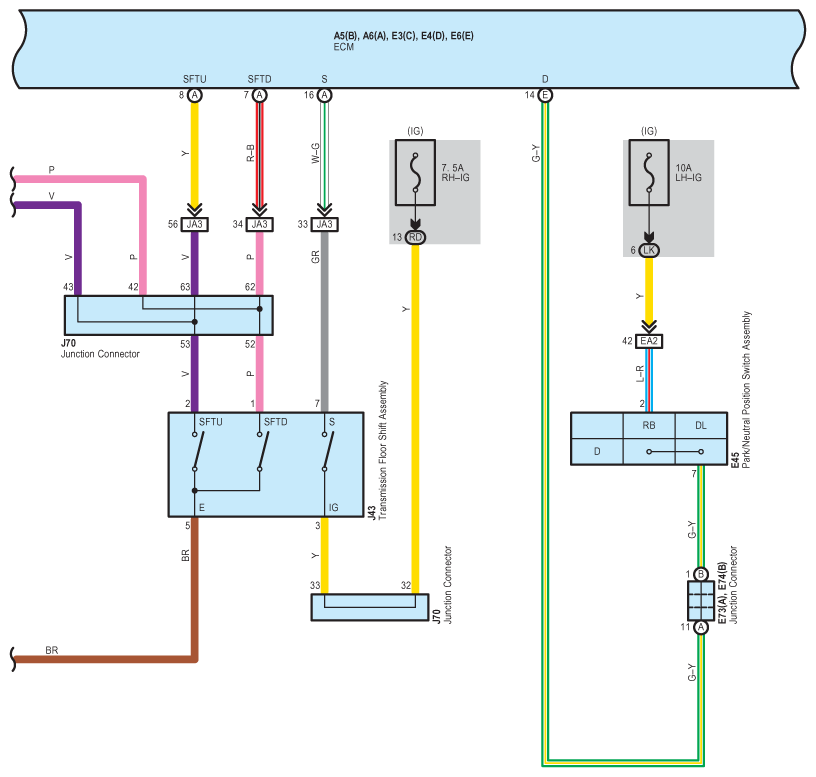

Fig 5: Cruise Control - Wiring Diagram (5 Of 10)

G08939763

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

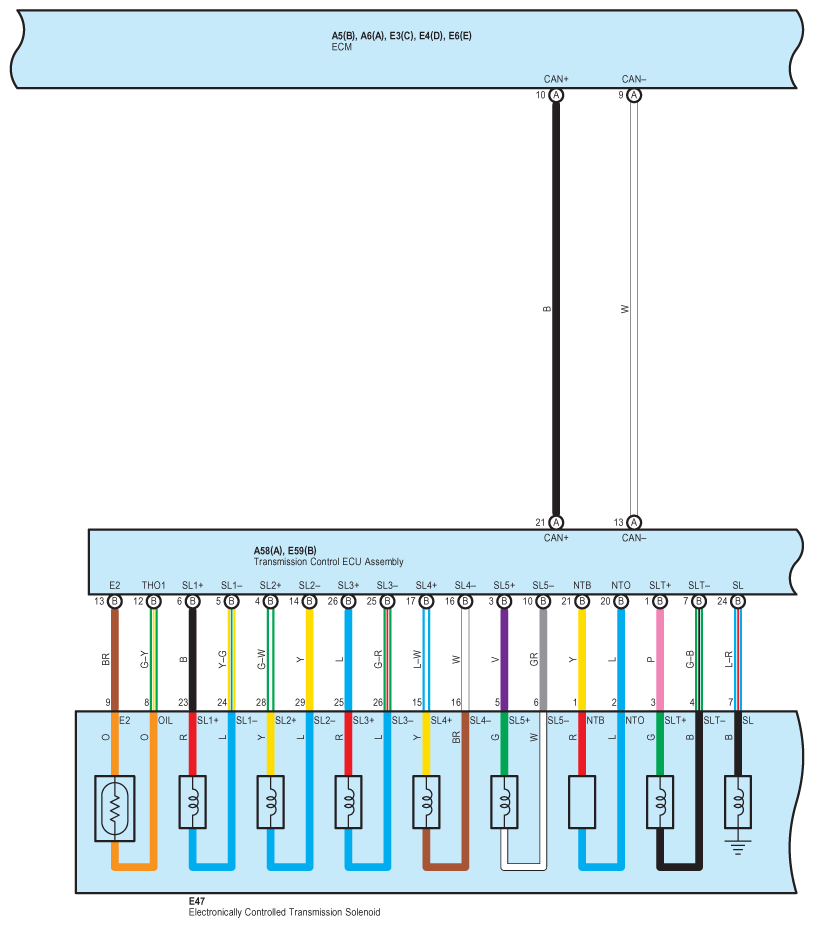

Fig 6: Cruise Control - Wiring Diagram (6 Of 10)

G08939764

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

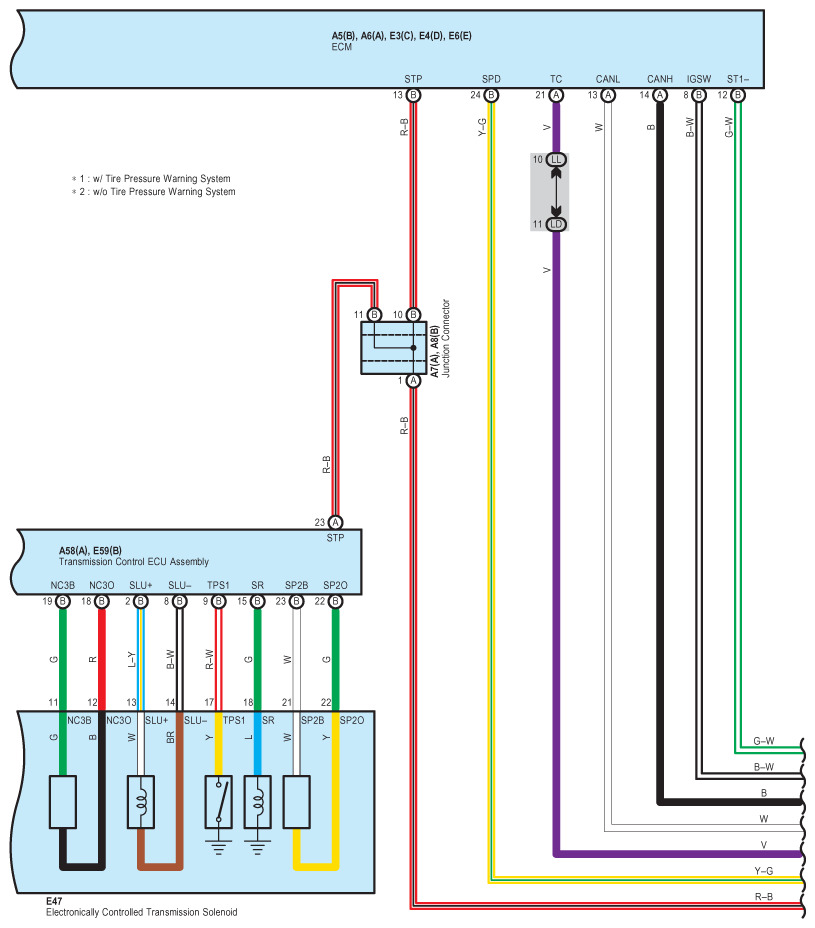

Fig 7: Cruise Control - Wiring Diagram (7 Of 10)

G08939765

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

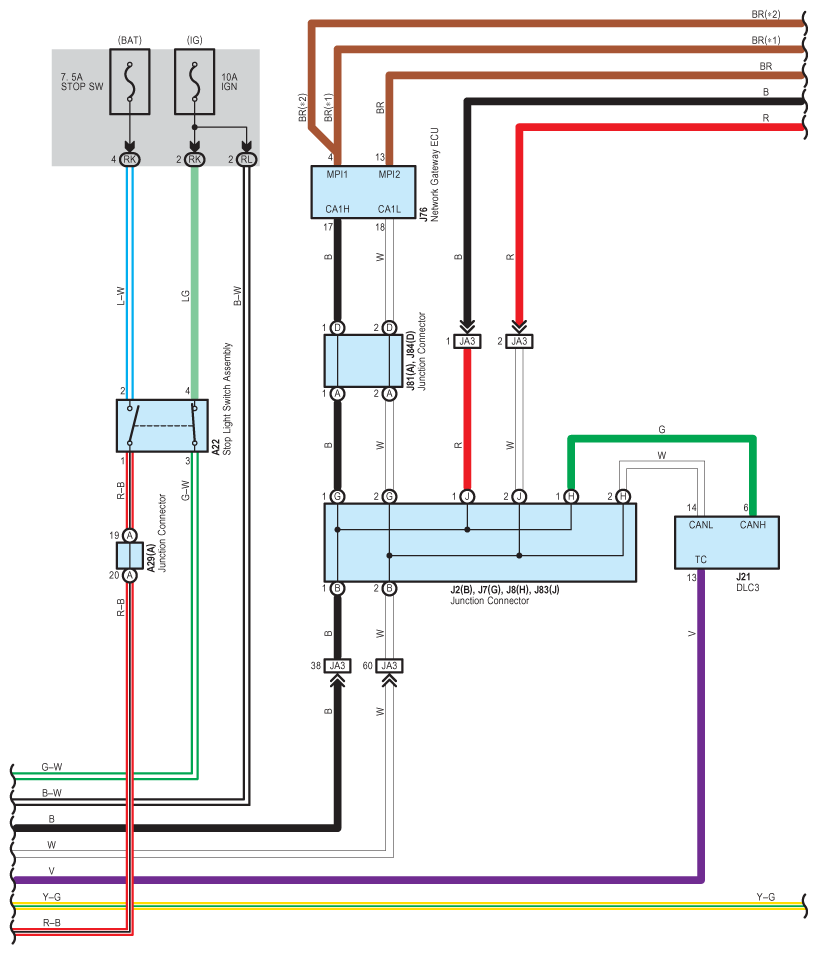

Fig 8: Cruise Control - Wiring Diagram (8 Of 10)

G08939766

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

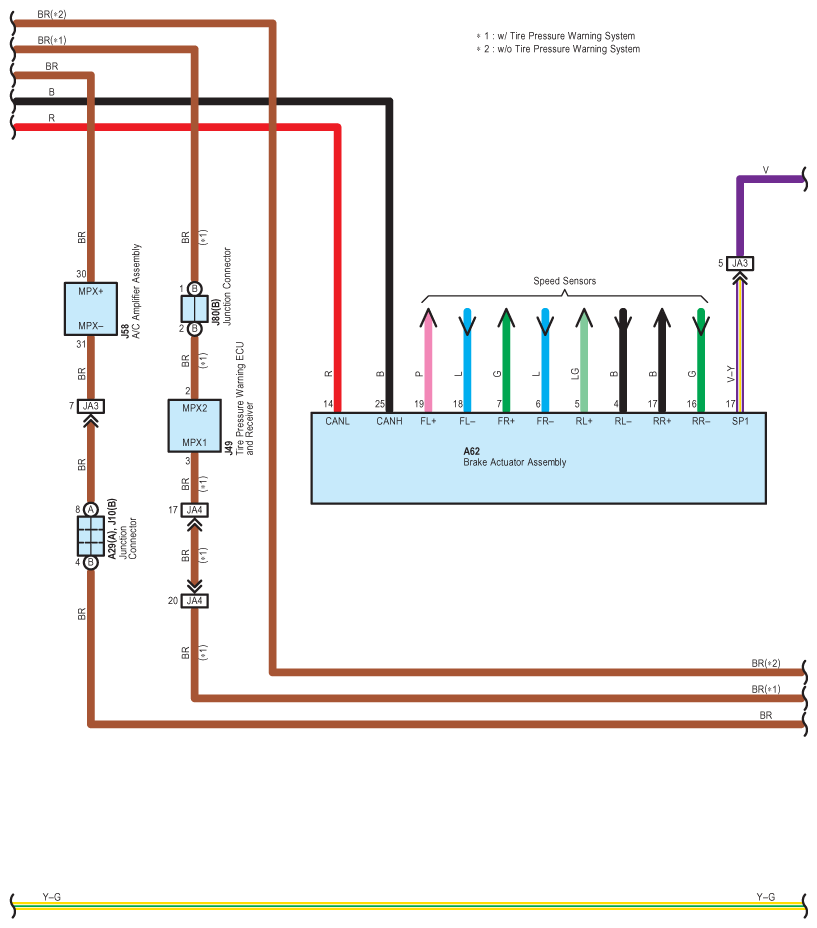

Fig 9: Cruise Control - Wiring Diagram (9 Of 10)

G08939767

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

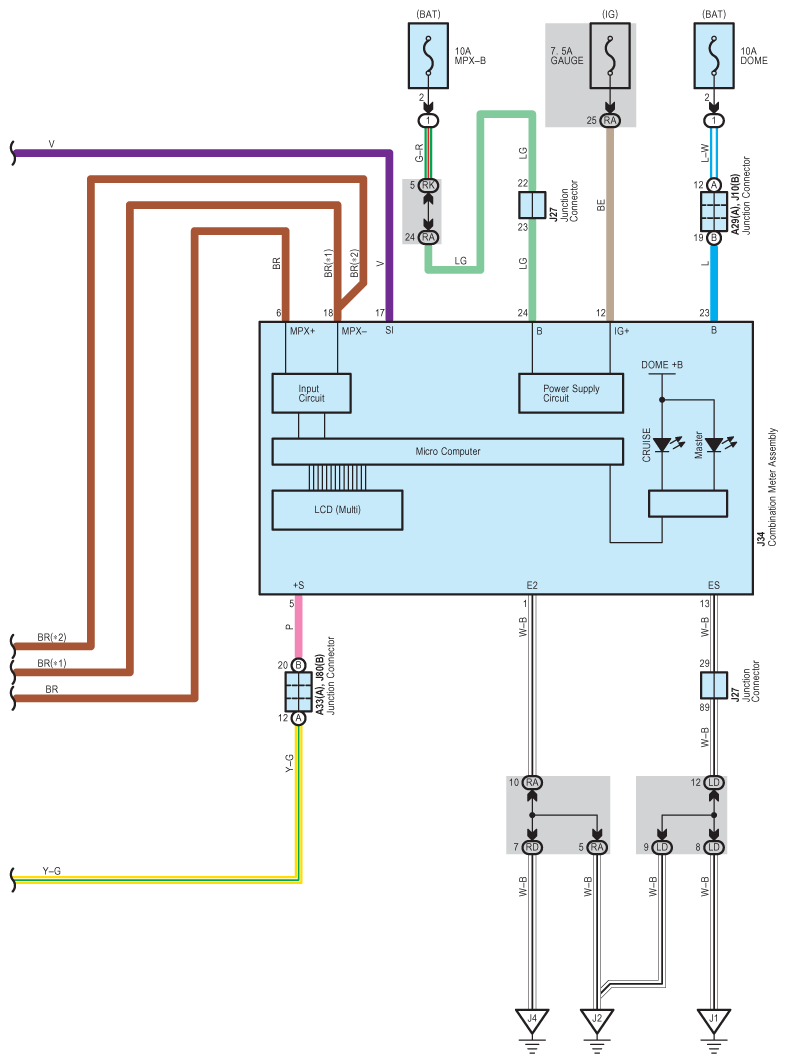

Fig 10: Cruise Control - Wiring Diagram (10 Of 10)

G08939768

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
