Dynamic Radar Cruise Control: Notes

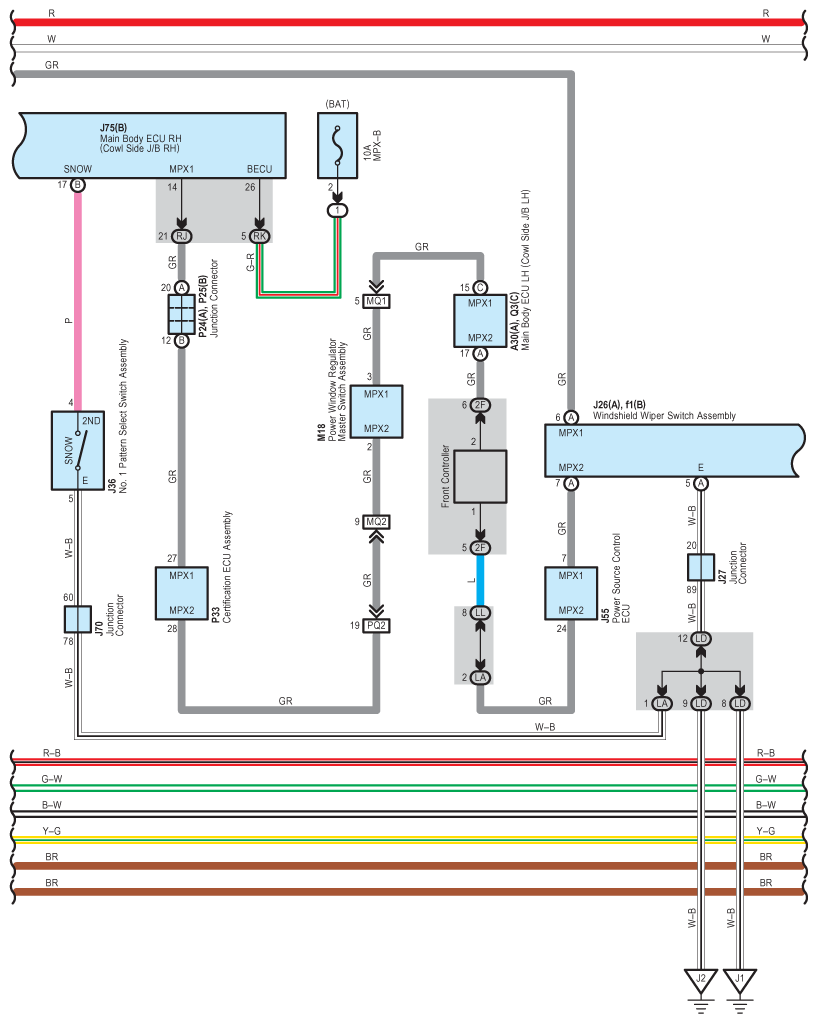

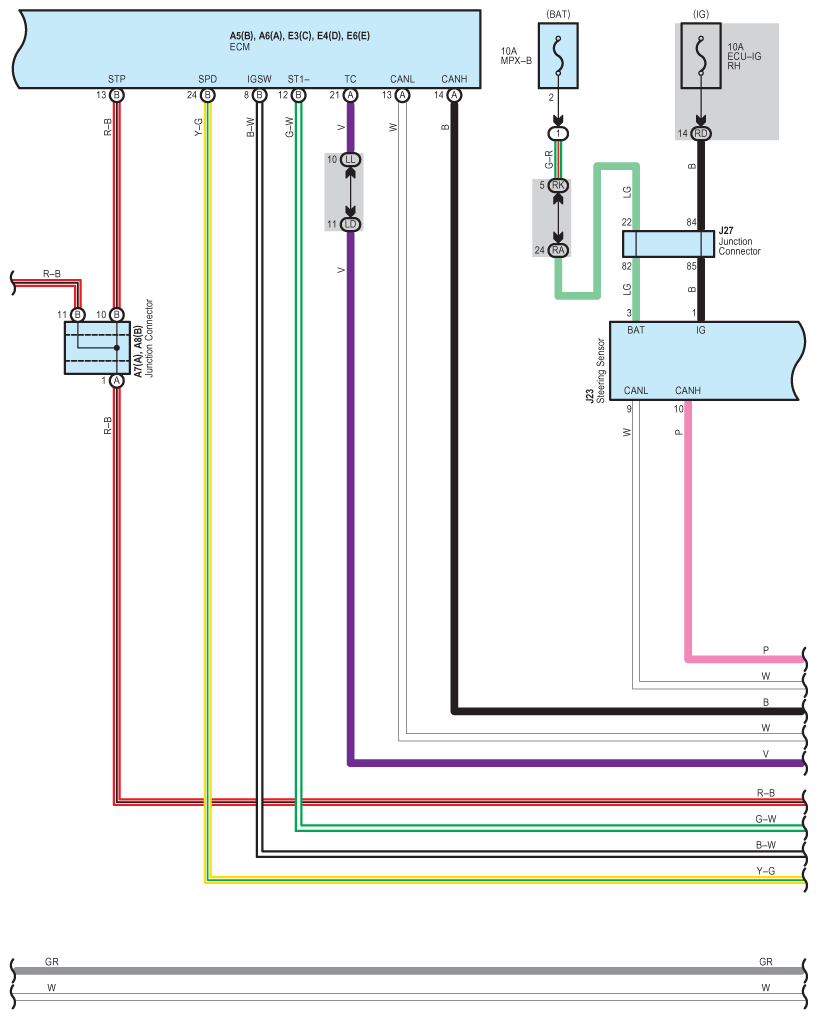

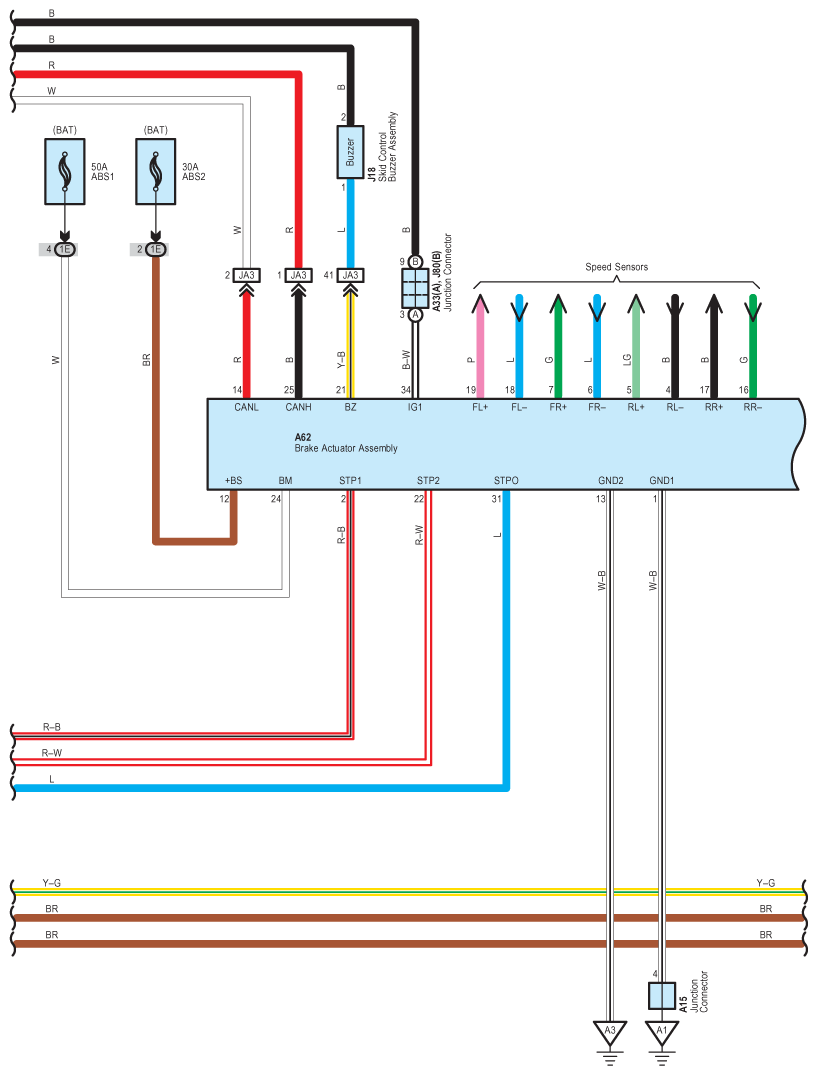

Fig 1: Dynamic Radar Cruise Control - Wiring Diagram (1 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

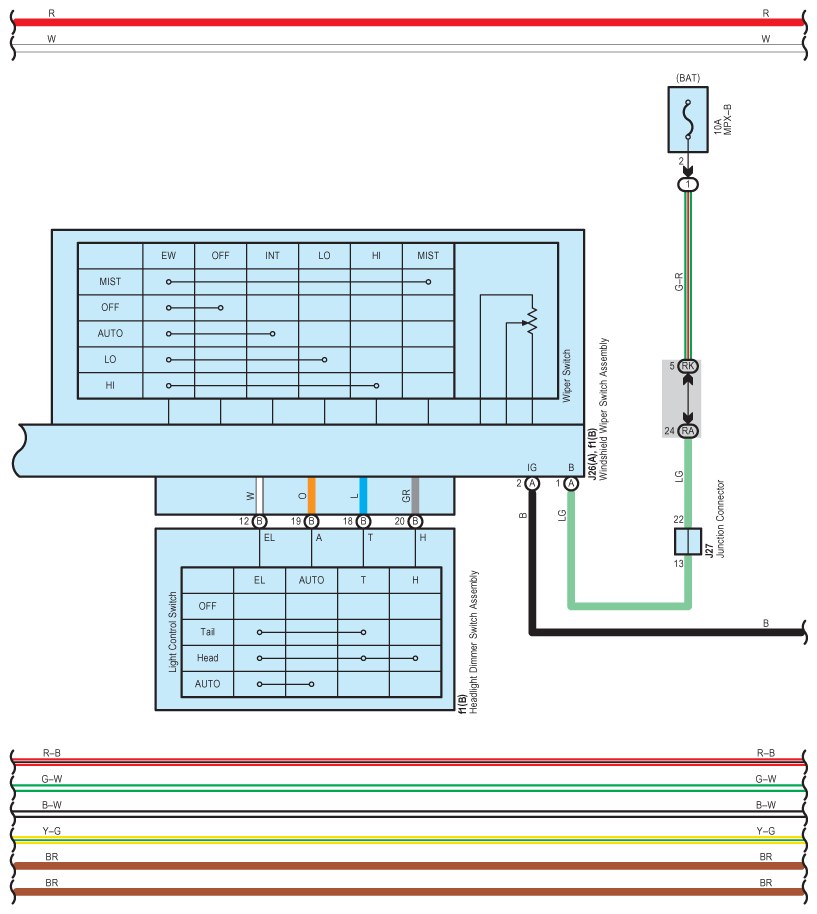

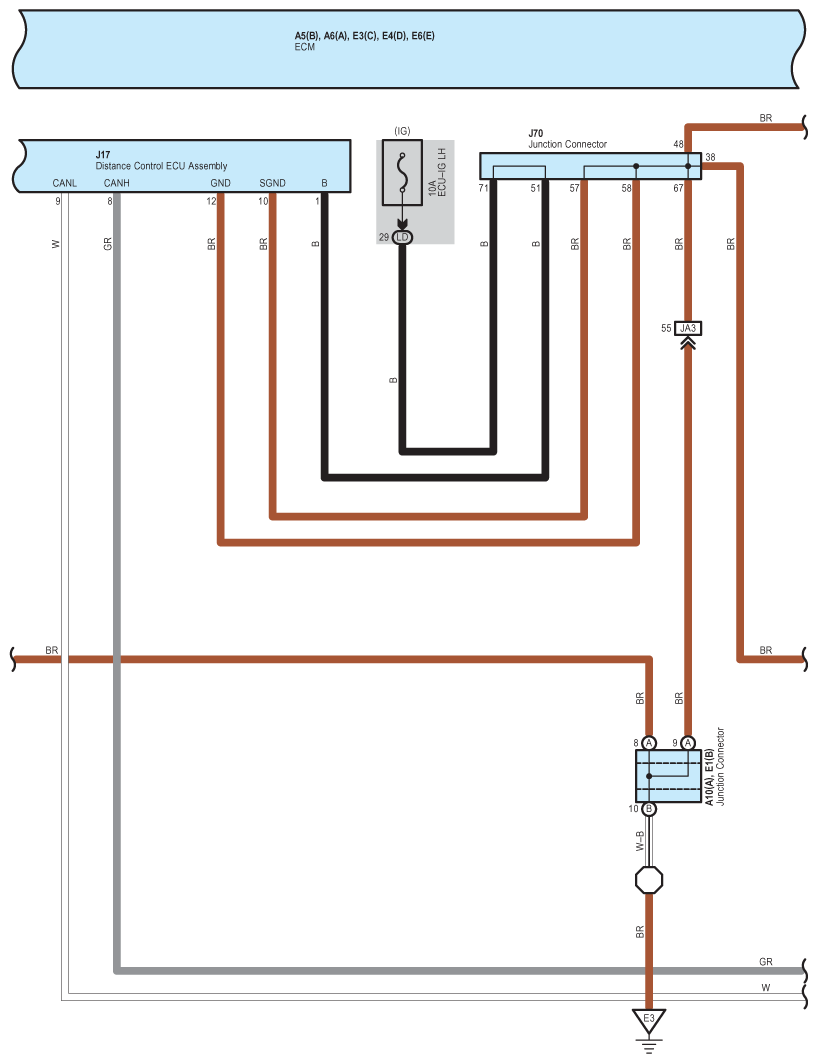

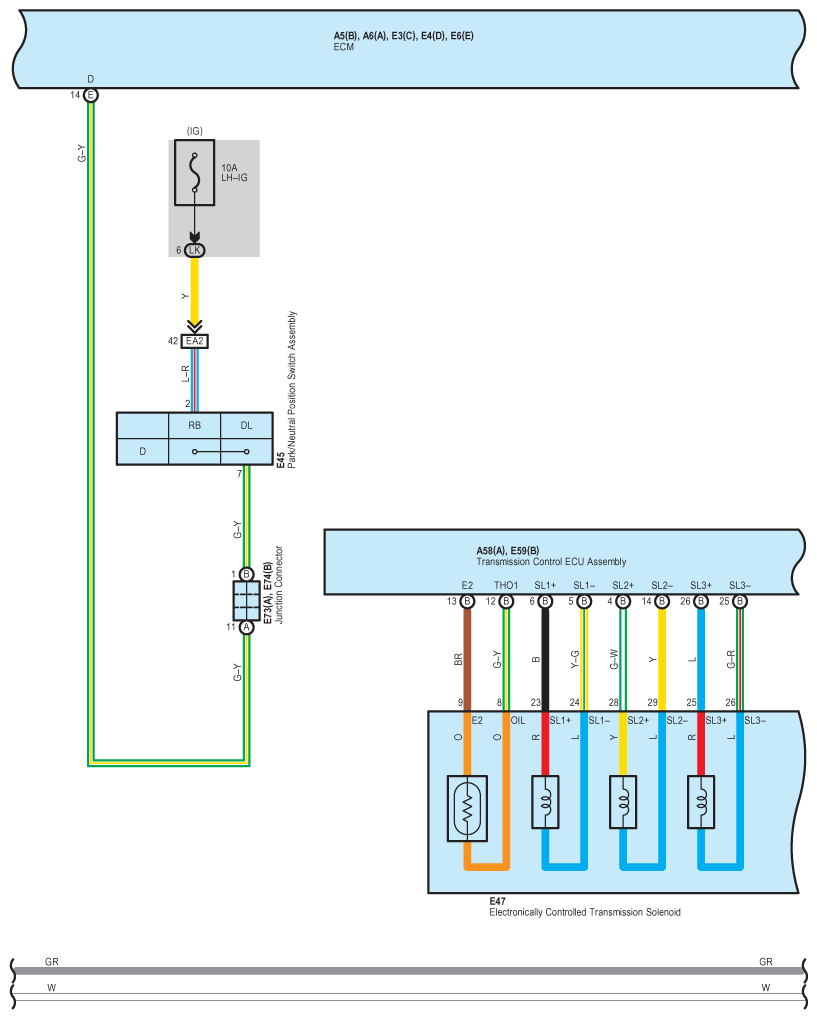

Fig 2: Dynamic Radar Cruise Control - Wiring Diagram (2 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

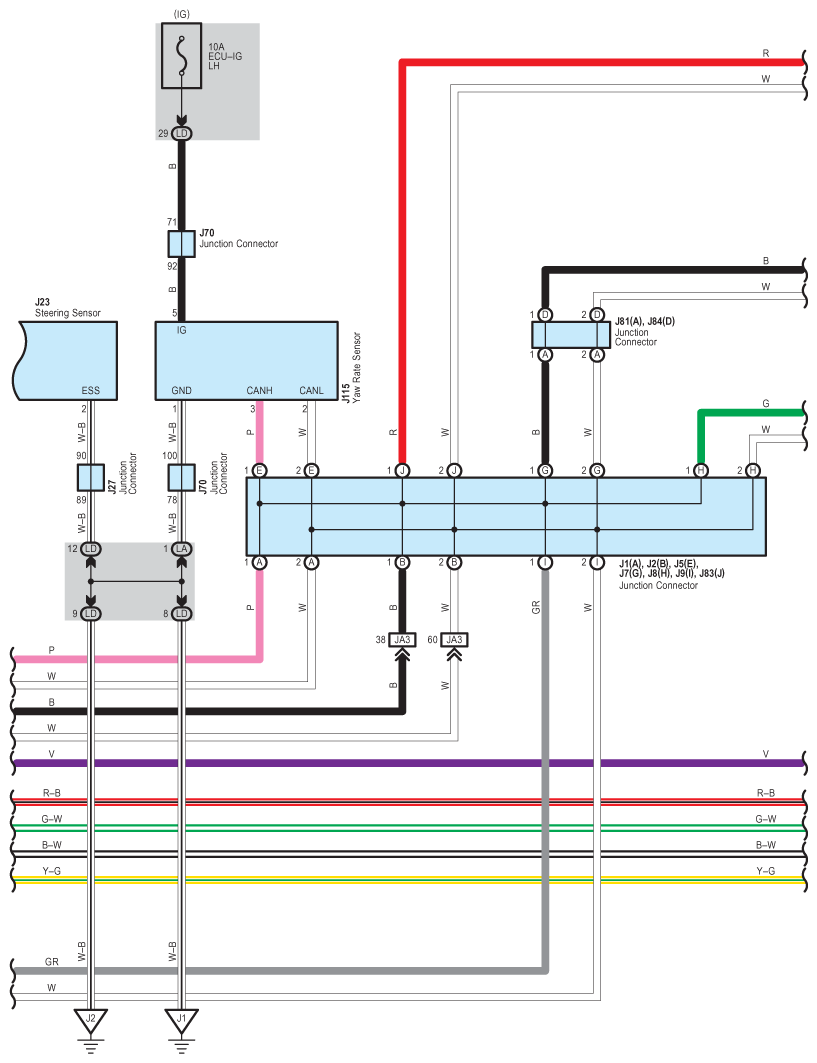

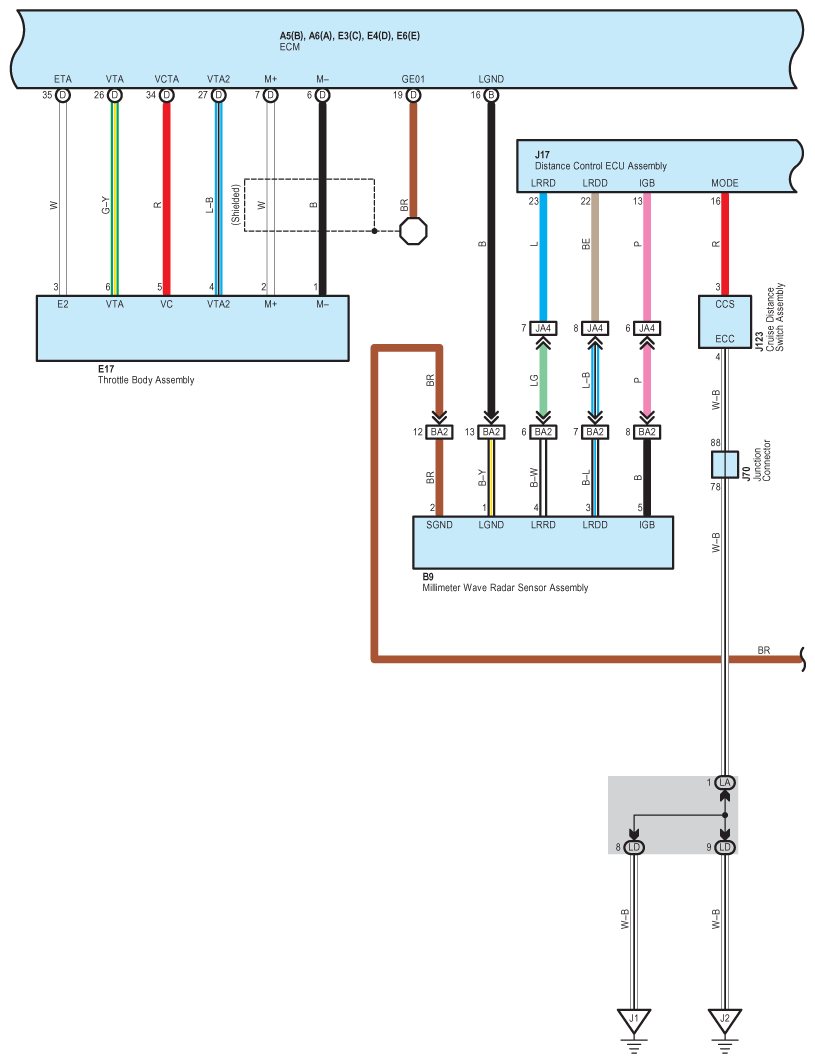

Fig 3: Dynamic Radar Cruise Control - Wiring Diagram (3 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

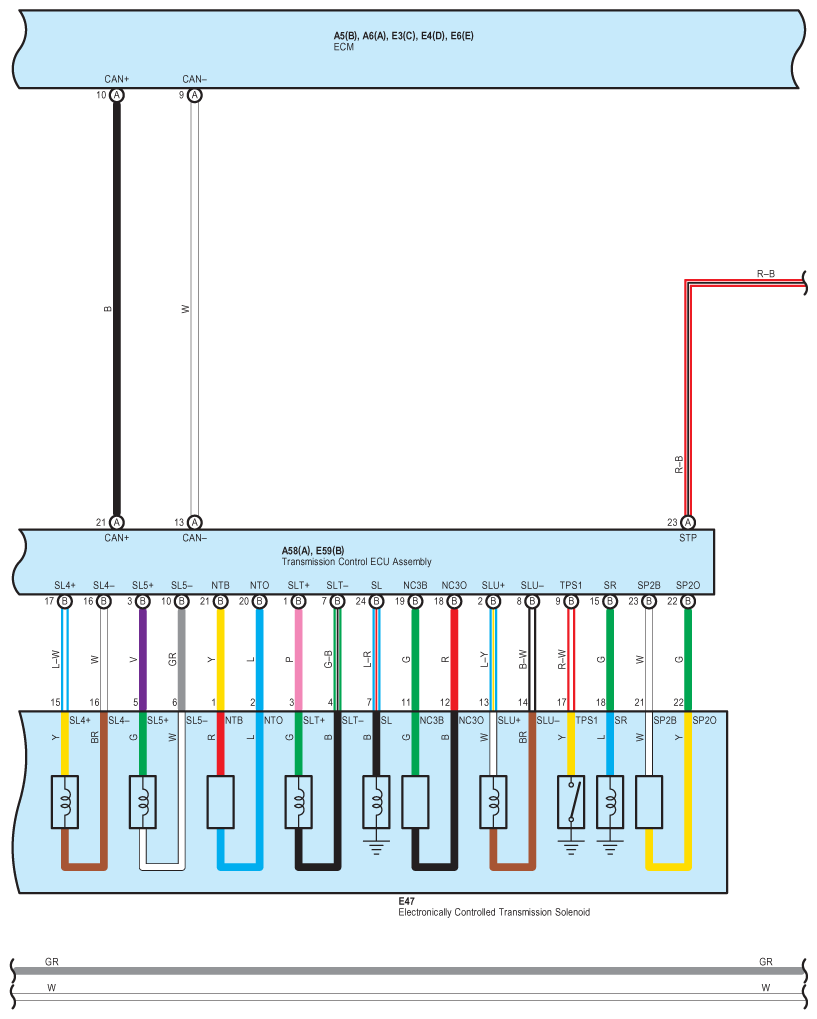

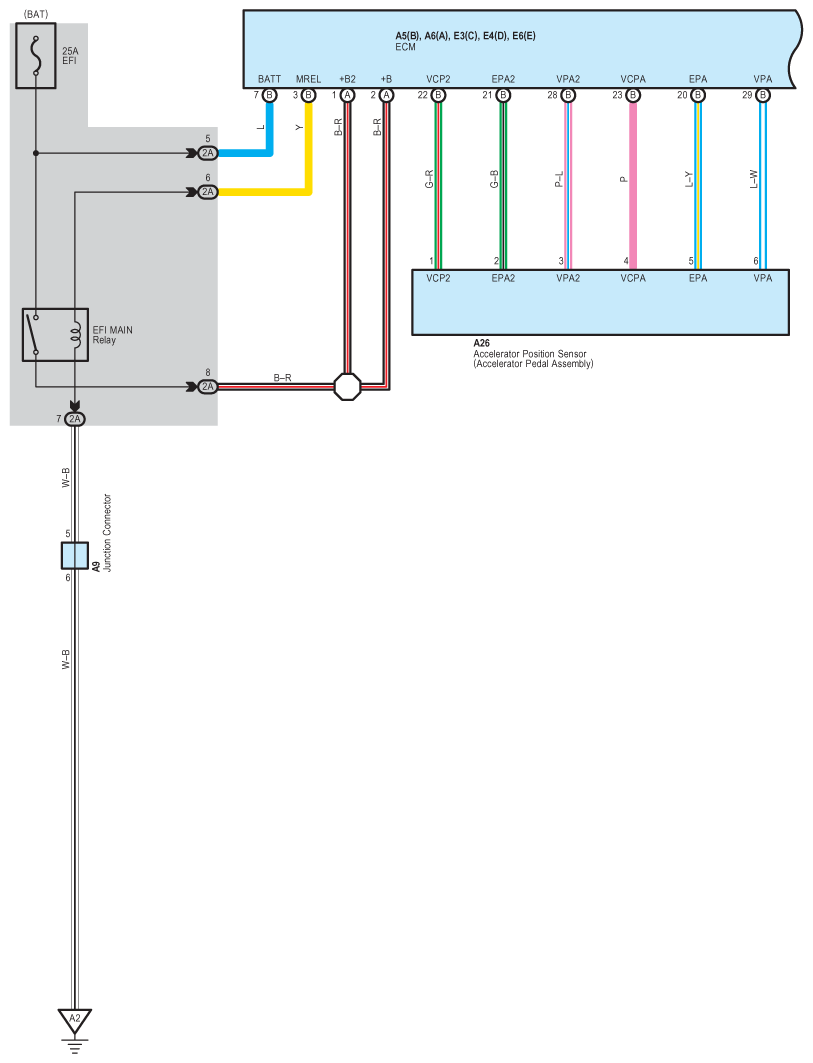

Fig 4: Dynamic Radar Cruise Control - Wiring Diagram (4 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

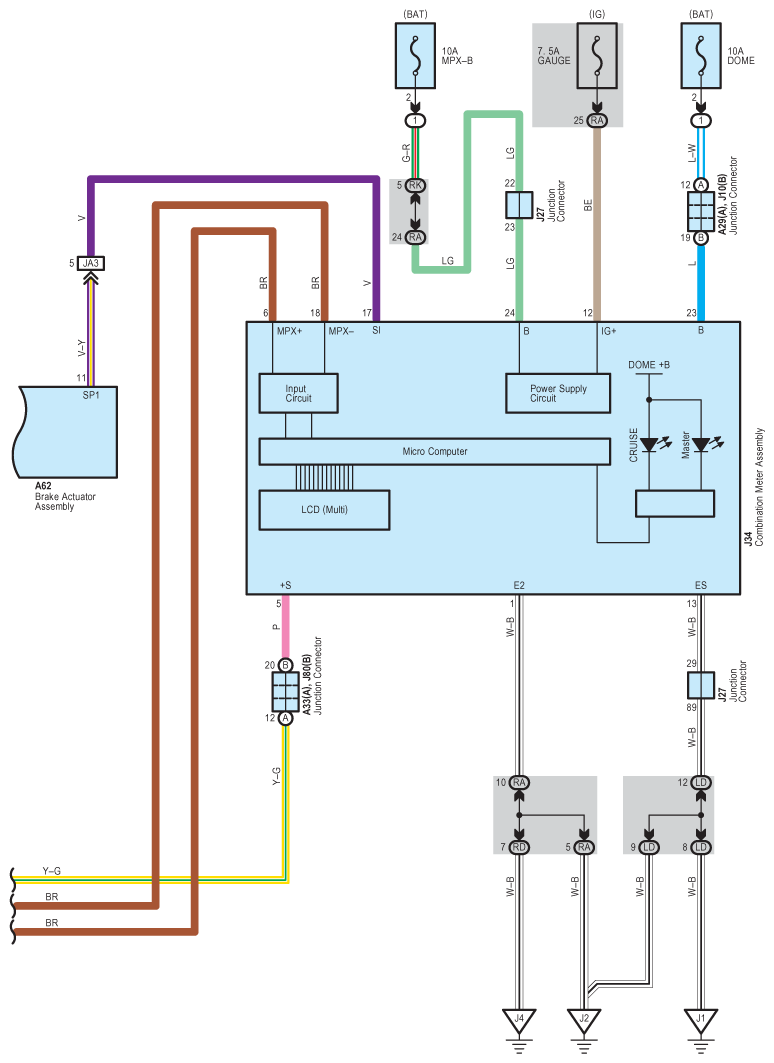

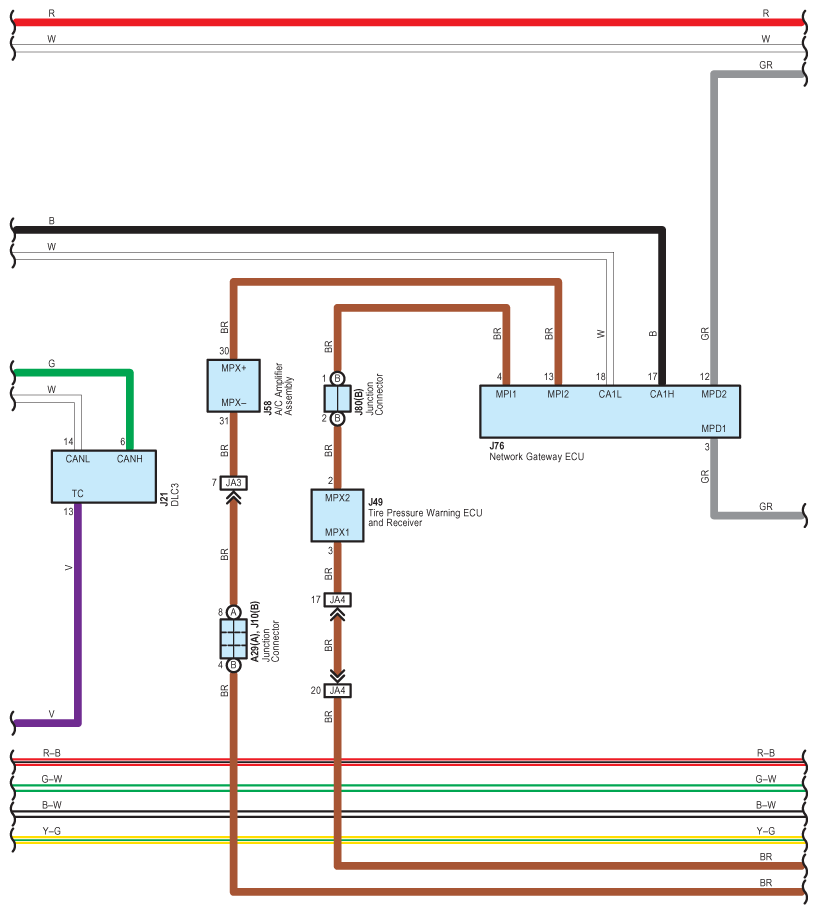

Fig 5: Dynamic Radar Cruise Control - Wiring Diagram (5 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

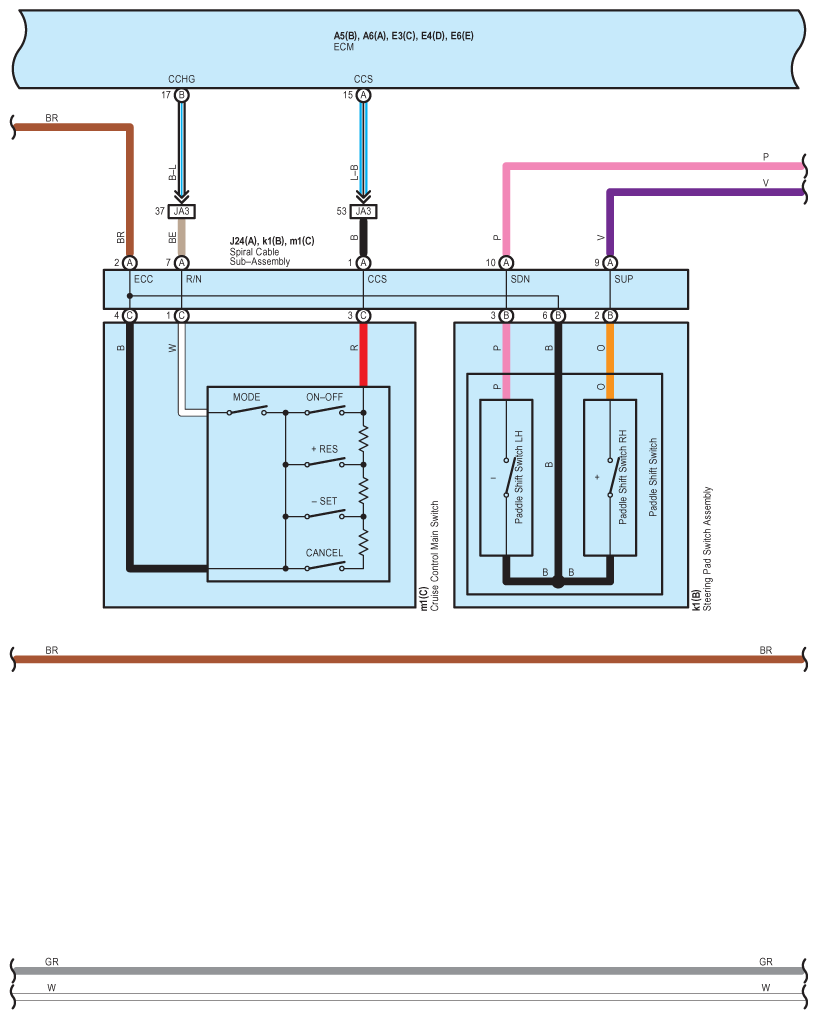

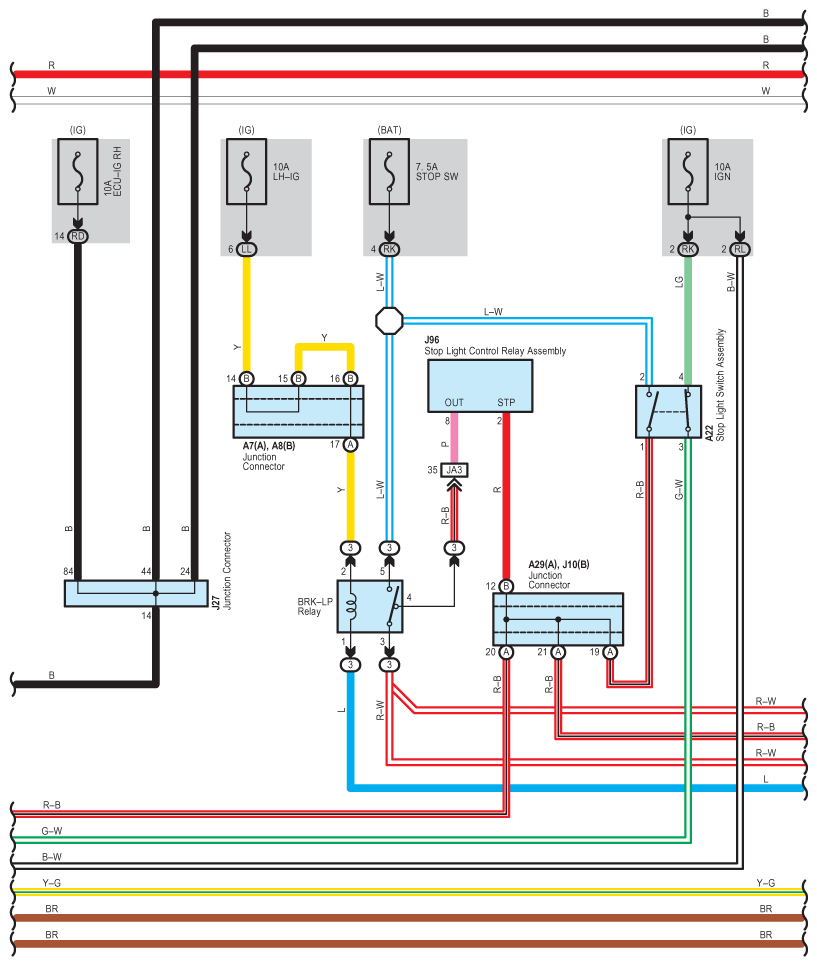

Fig 6: Dynamic Radar Cruise Control - Wiring Diagram (6 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

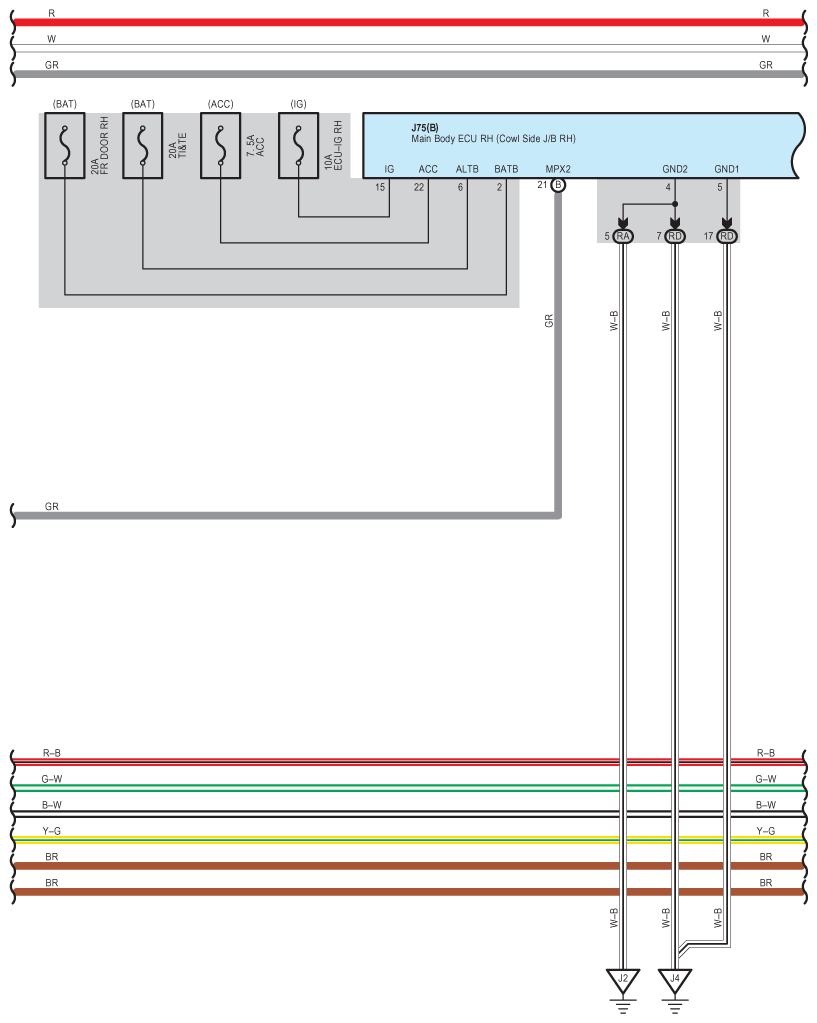

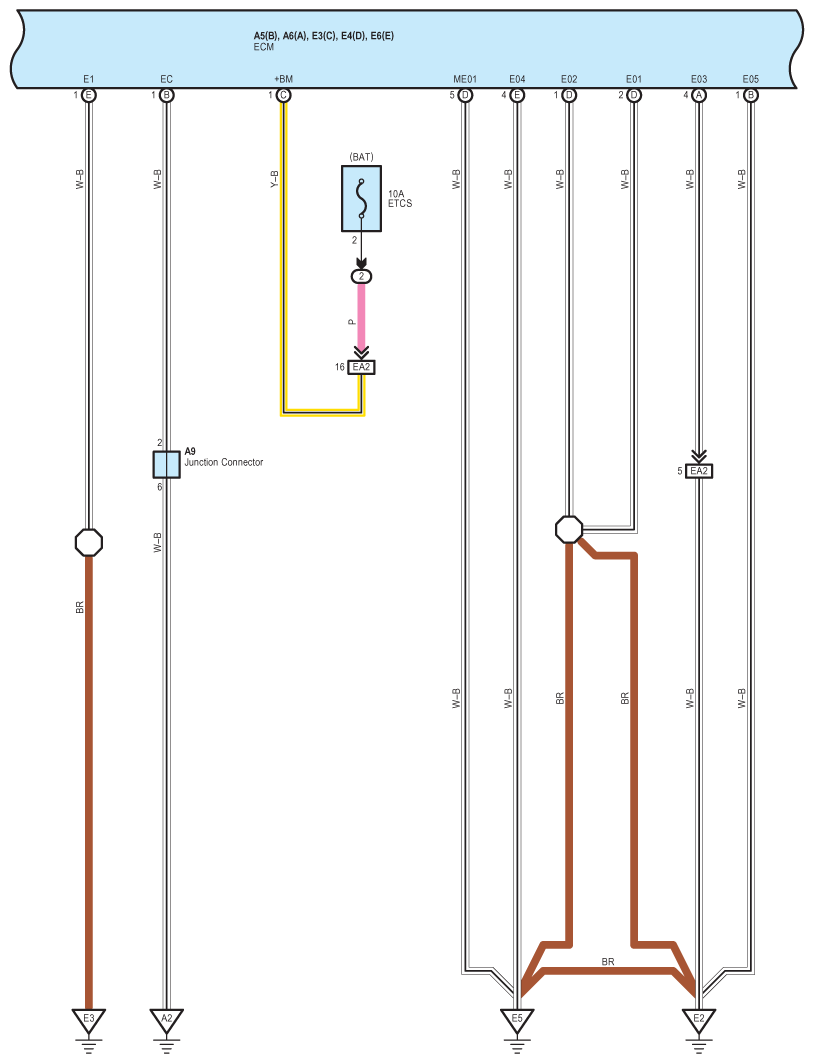

Fig 7: Dynamic Radar Cruise Control - Wiring Diagram (7 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

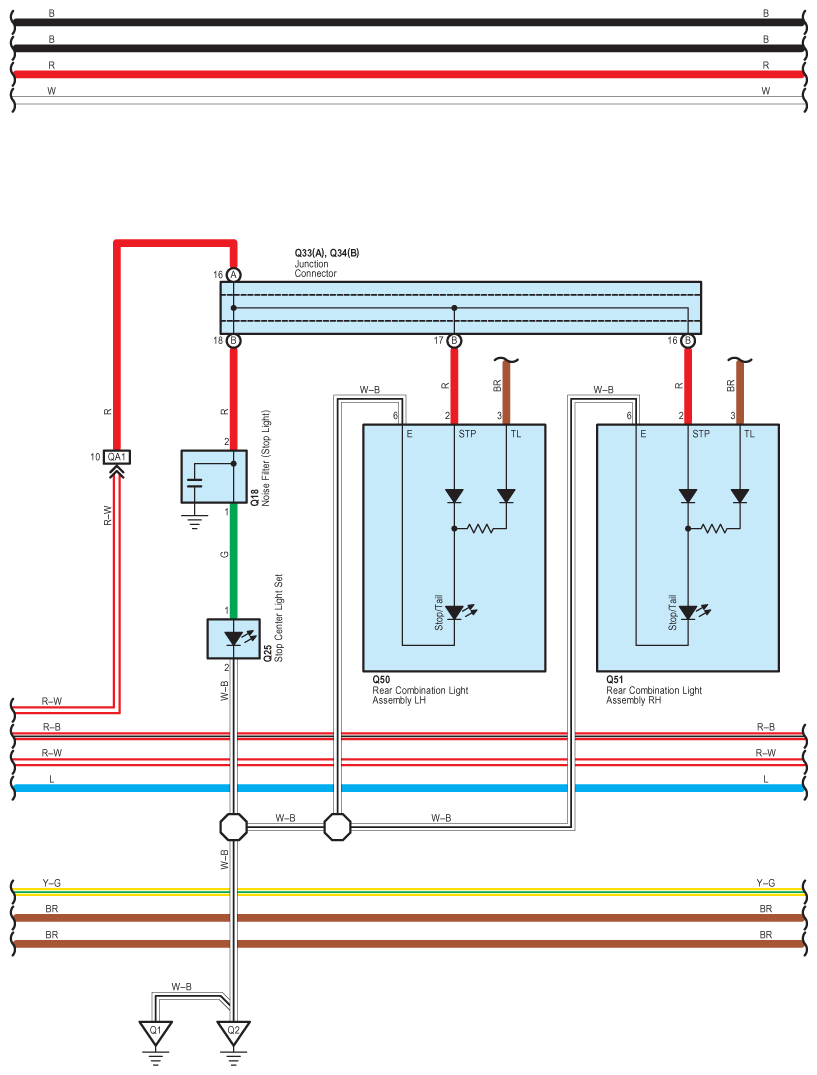

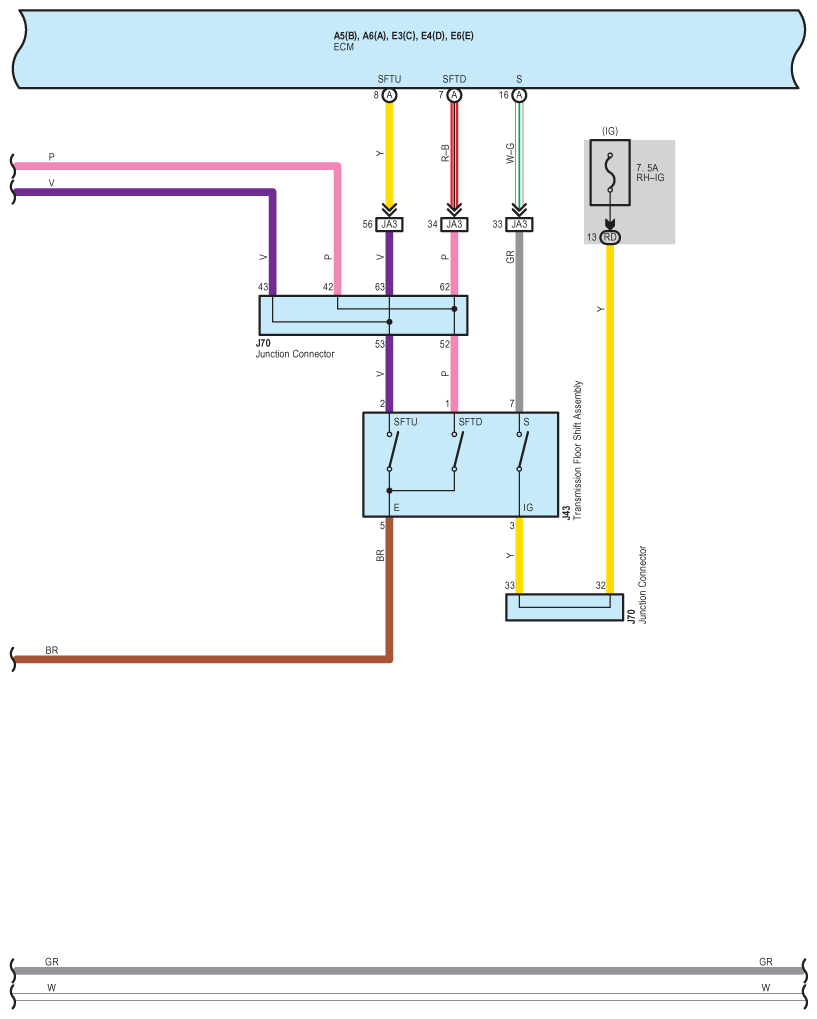

Fig 8: Dynamic Radar Cruise Control - Wiring Diagram (8 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Dynamic Radar Cruise Control - Wiring Diagram (9 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Dynamic Radar Cruise Control - Wiring Diagram (10 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Dynamic Radar Cruise Control - Wiring Diagram (11 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Dynamic Radar Cruise Control - Wiring Diagram (12 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Dynamic Radar Cruise Control - Wiring Diagram (13 Of 18)

Fig 14: Dynamic Radar Cruise Control - Wiring Diagram (14 Of 18)

Fig 15: Dynamic Radar Cruise Control - Wiring Diagram (15 Of 18)

Fig 16: Dynamic Radar Cruise Control - Wiring Diagram (16 Of 18)

Fig 17: Dynamic Radar Cruise Control - Wiring Diagram (17 Of 18)

Fig 18: Dynamic Radar Cruise Control - Wiring Diagram (18 Of 18)
