Front Window Deicer: Notes

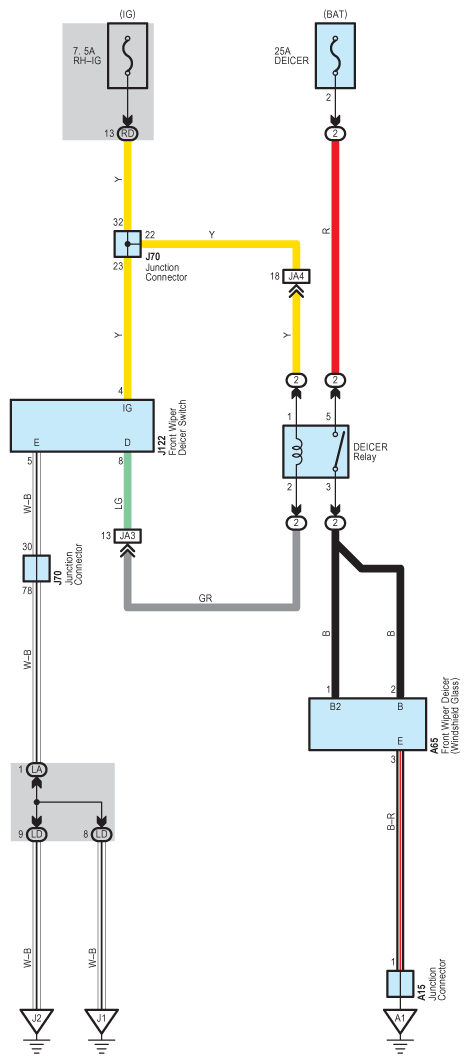

Fig 1: Front Window Deicer - Wiring Diagram
G08939840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
