Headlight Cleaner: Notes

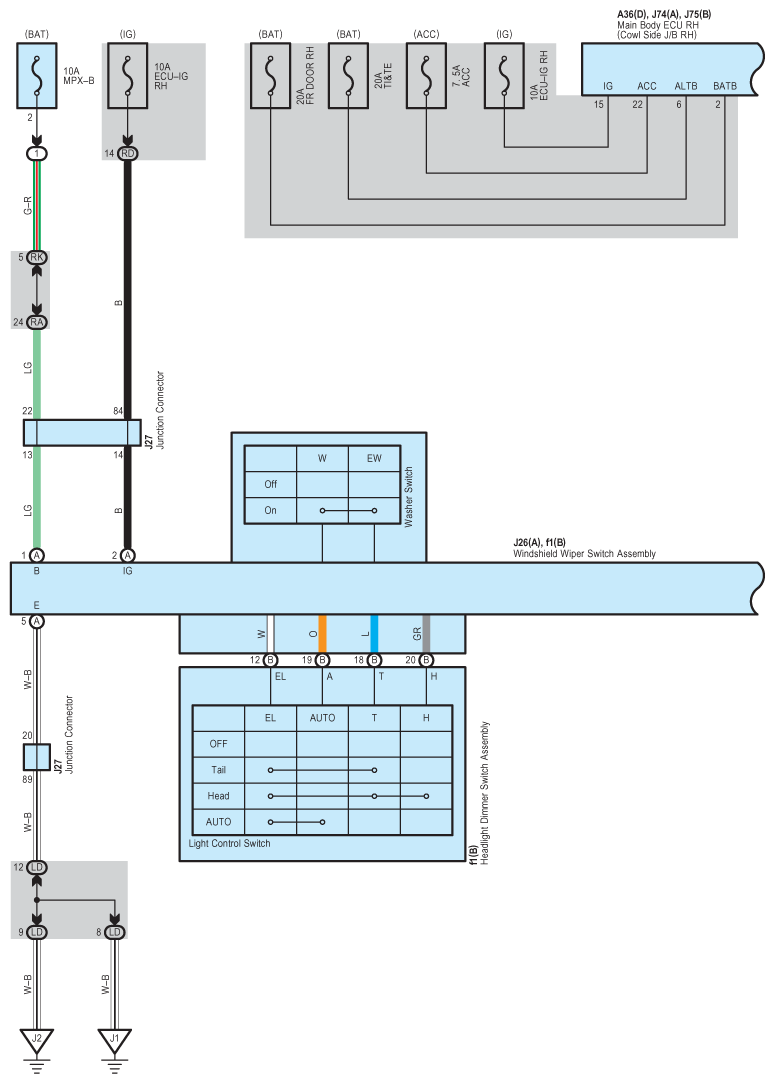

Fig 1: Headlight Cleaner - Wiring Diagram (1 Of 4)
G08939710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

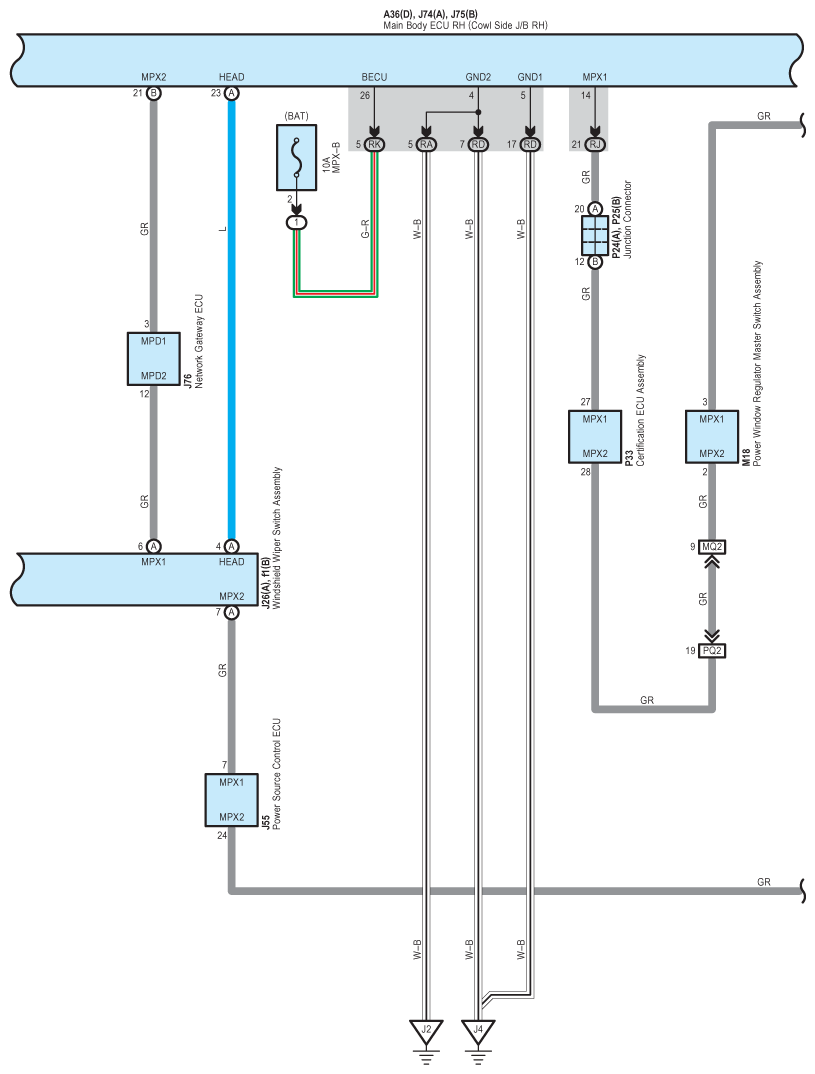

Fig 2: Headlight Cleaner - Wiring Diagram (2 Of 4)
G08939711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

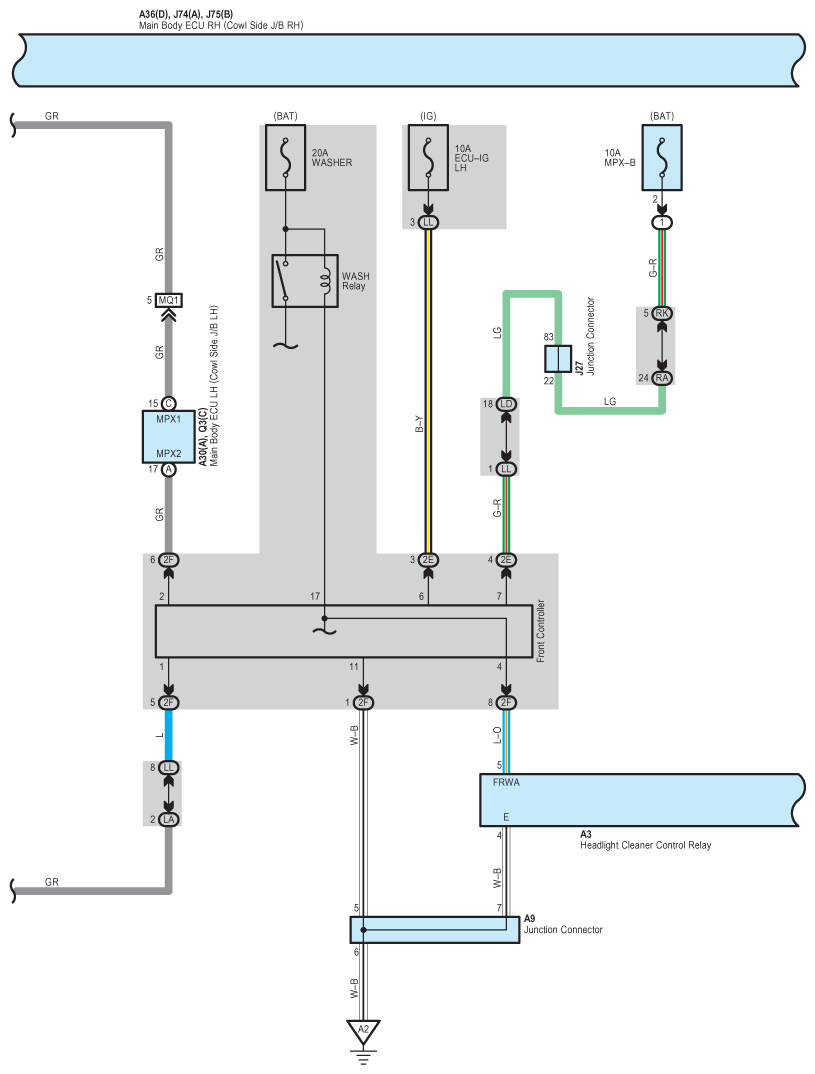

Fig 3: Headlight Cleaner - Wiring Diagram (3 Of 4)
G08939712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

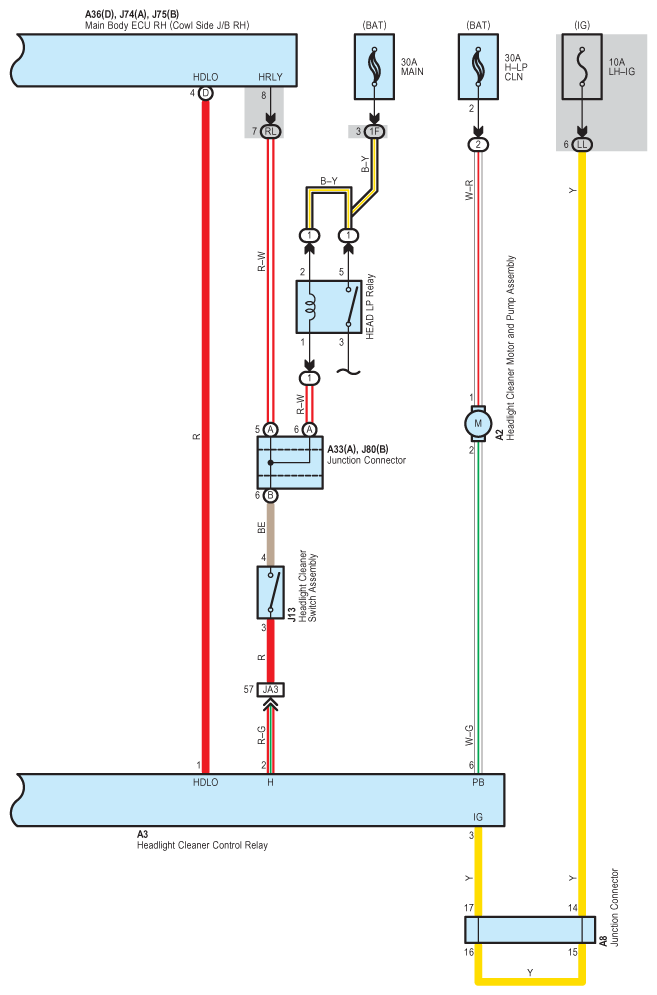

Fig 4: Headlight Cleaner - Wiring Diagram (4 Of 4)
G08939713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
