OEM System Circuits: Headlight: Notes

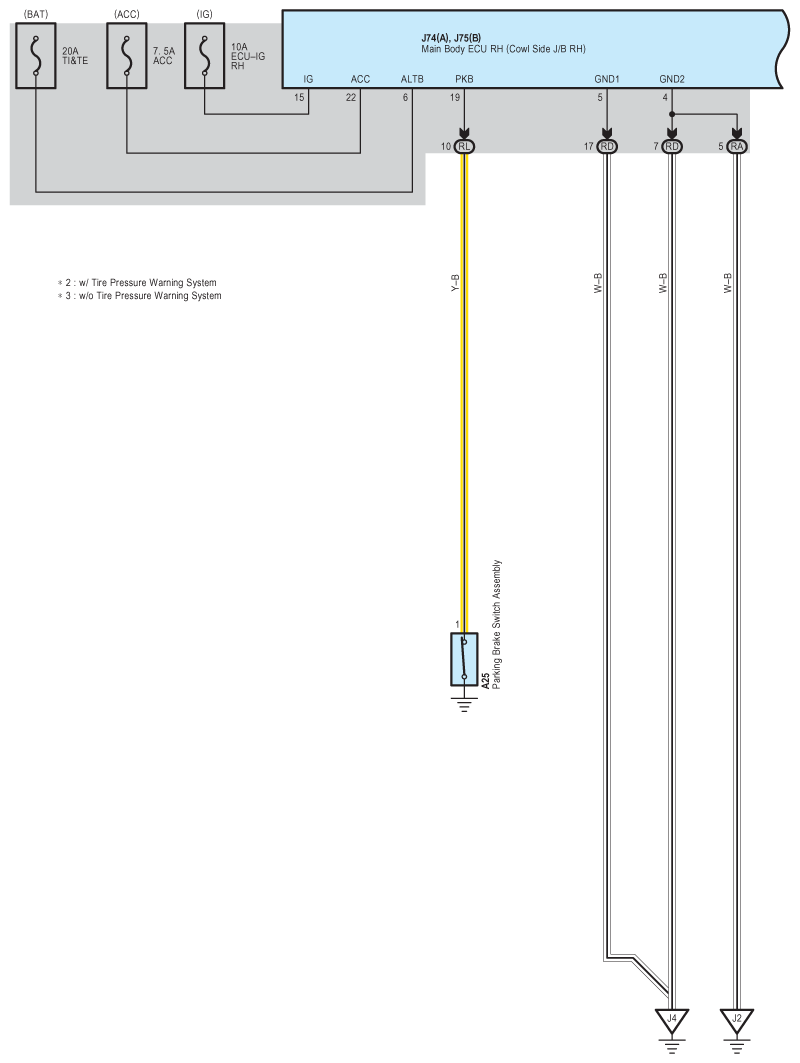

Fig 1: Headlight - Wiring Diagram (1 Of 7)

G08939653

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

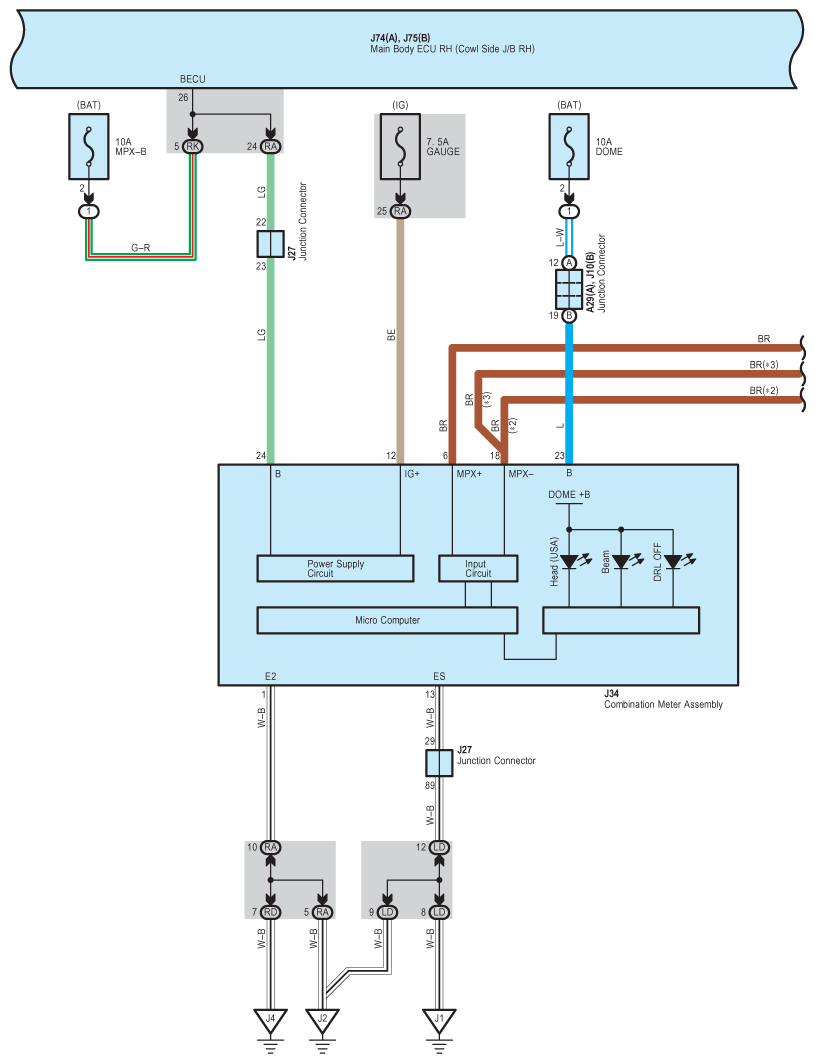

Fig 2: Headlight - Wiring Diagram (2 Of 7)

G08939654

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

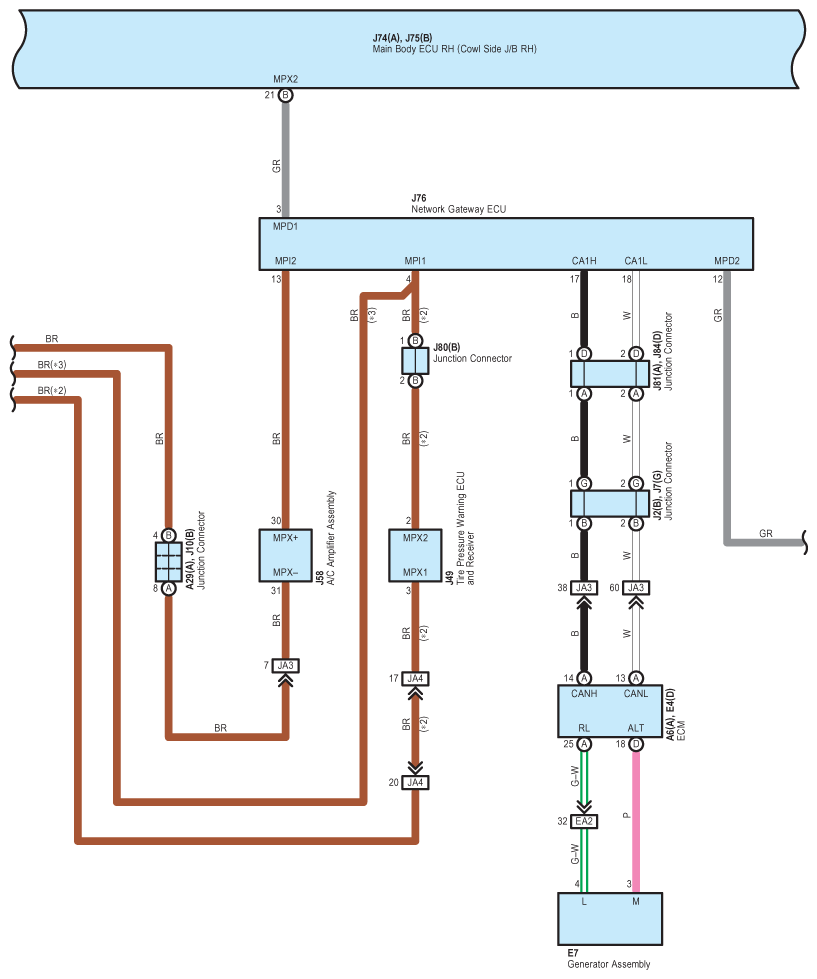

Fig 3: Headlight - Wiring Diagram (3 Of 7)

G08939655

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

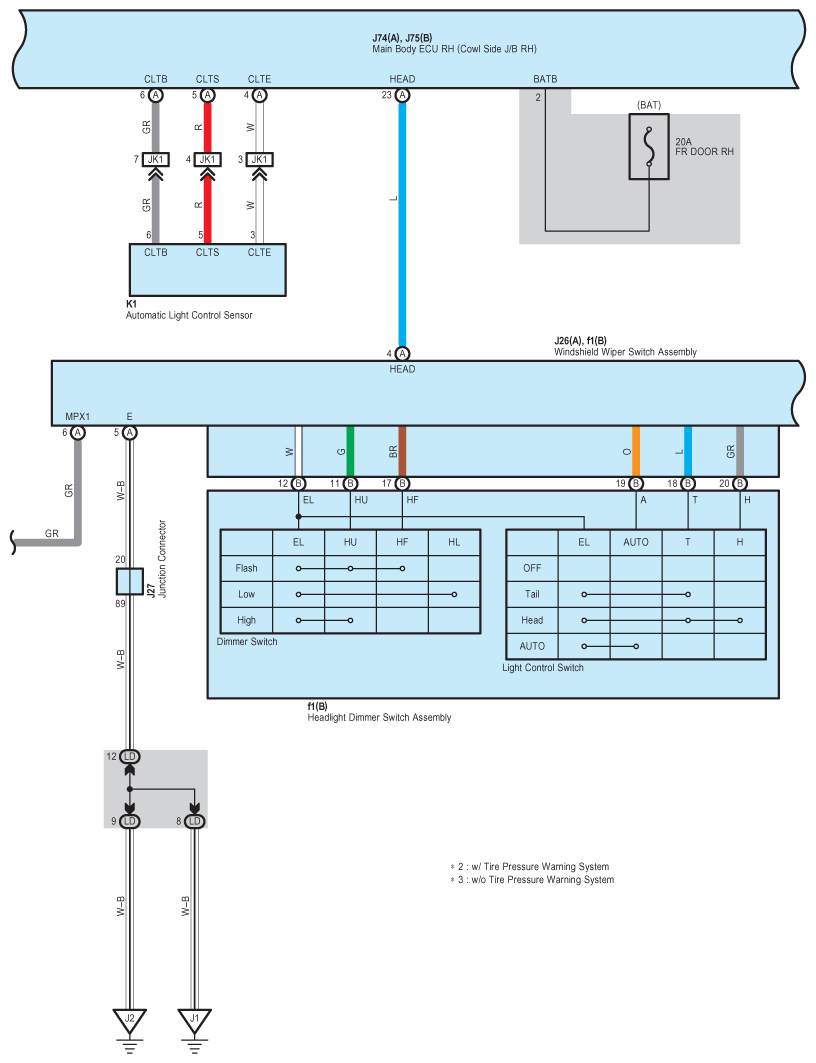

Fig 4: Headlight - Wiring Diagram (4 Of 7)

G08939656

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

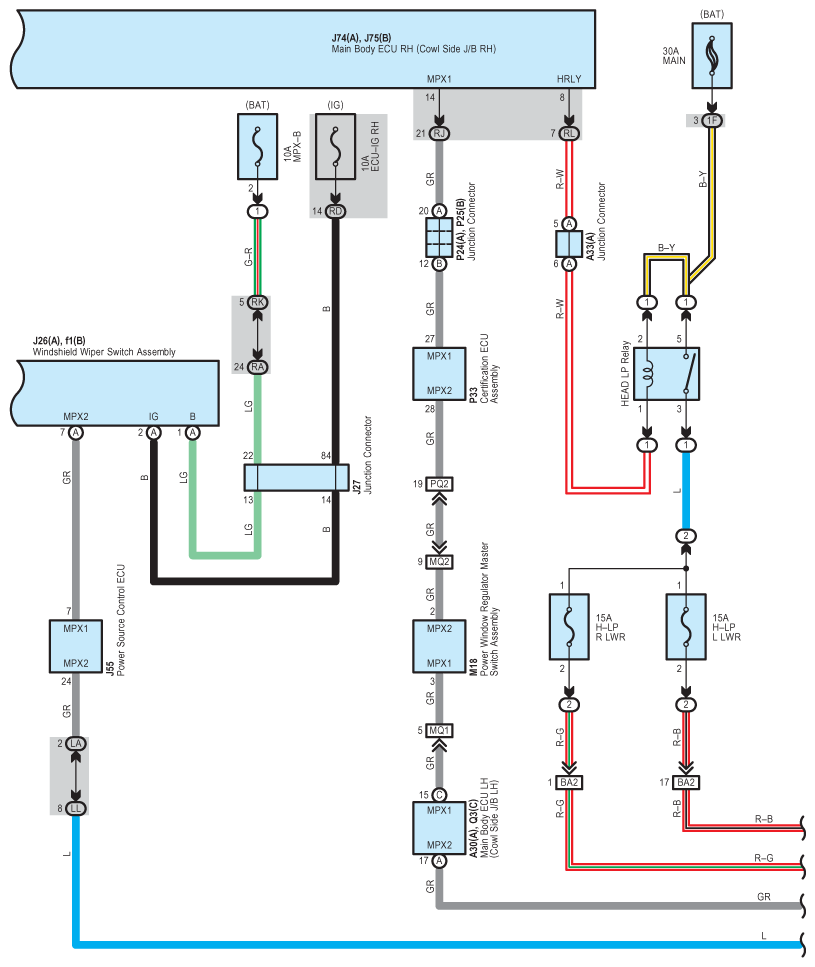

Fig 5: Headlight - Wiring Diagram (5 Of 7)

G08939657

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

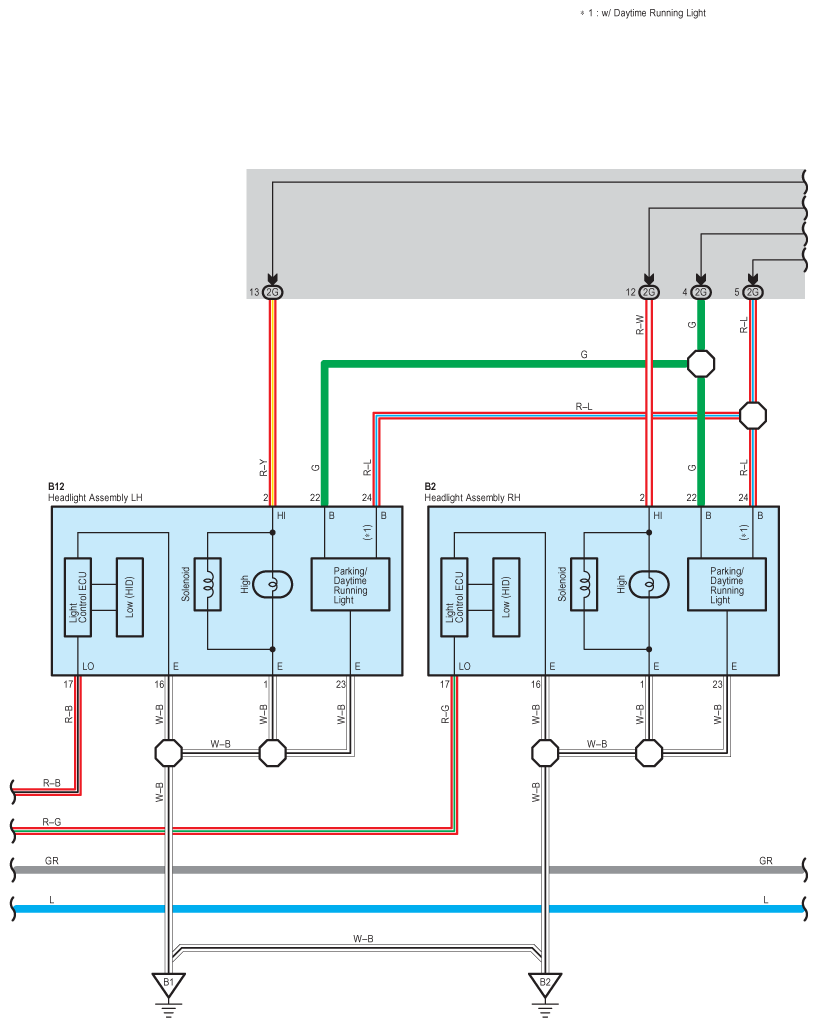

Fig 6: Headlight - Wiring Diagram (6 Of 7)

G08939658

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

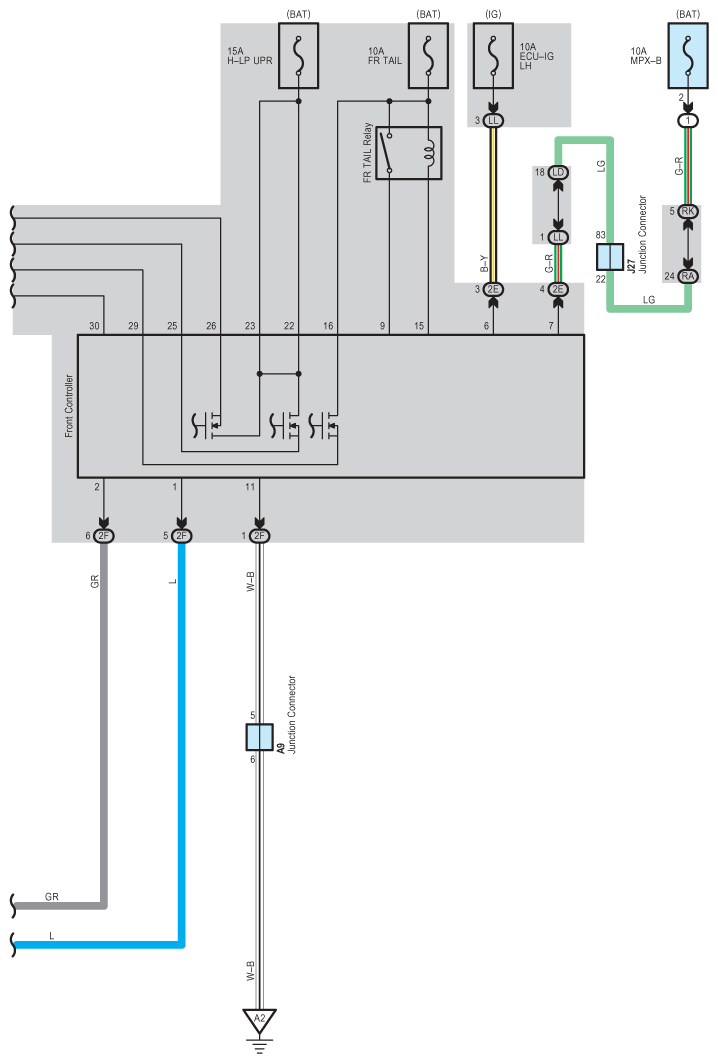

Fig 7: Headlight - Wiring Diagram (7 Of 7)

G08939659

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
