LEXUS ENFORM or Safety Connect: Notes

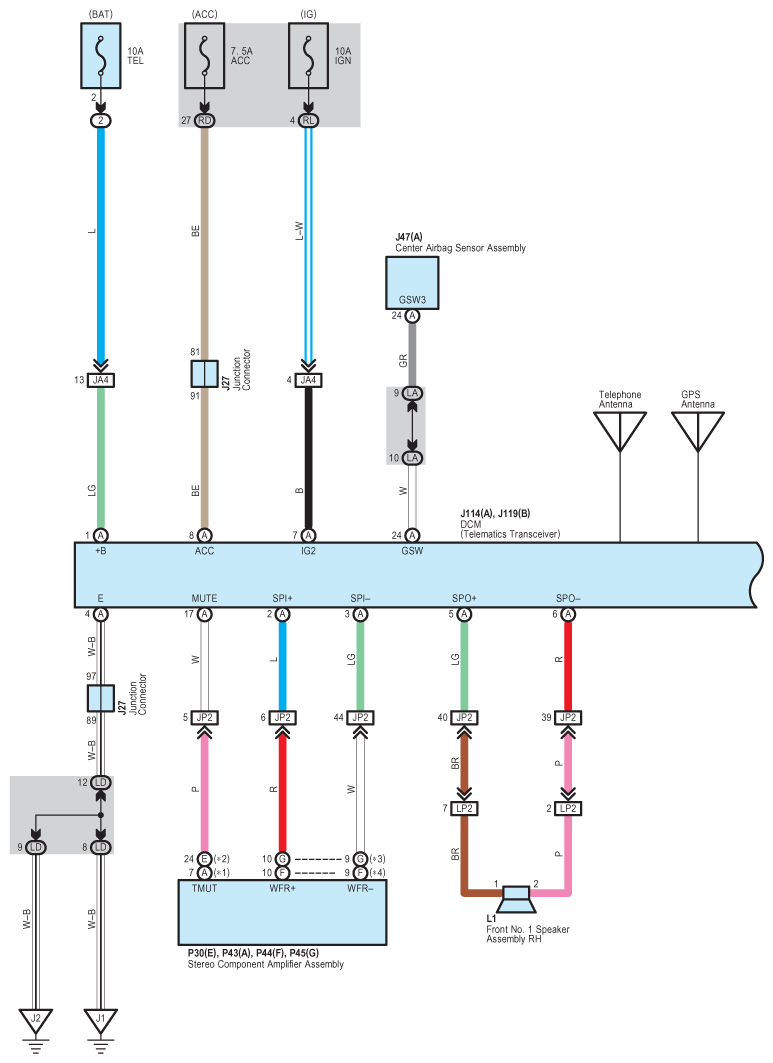

Fig 1: LEXUS ENFORM Or Safety Connect - Wiring Diagram (1 Of 4)
G08939849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

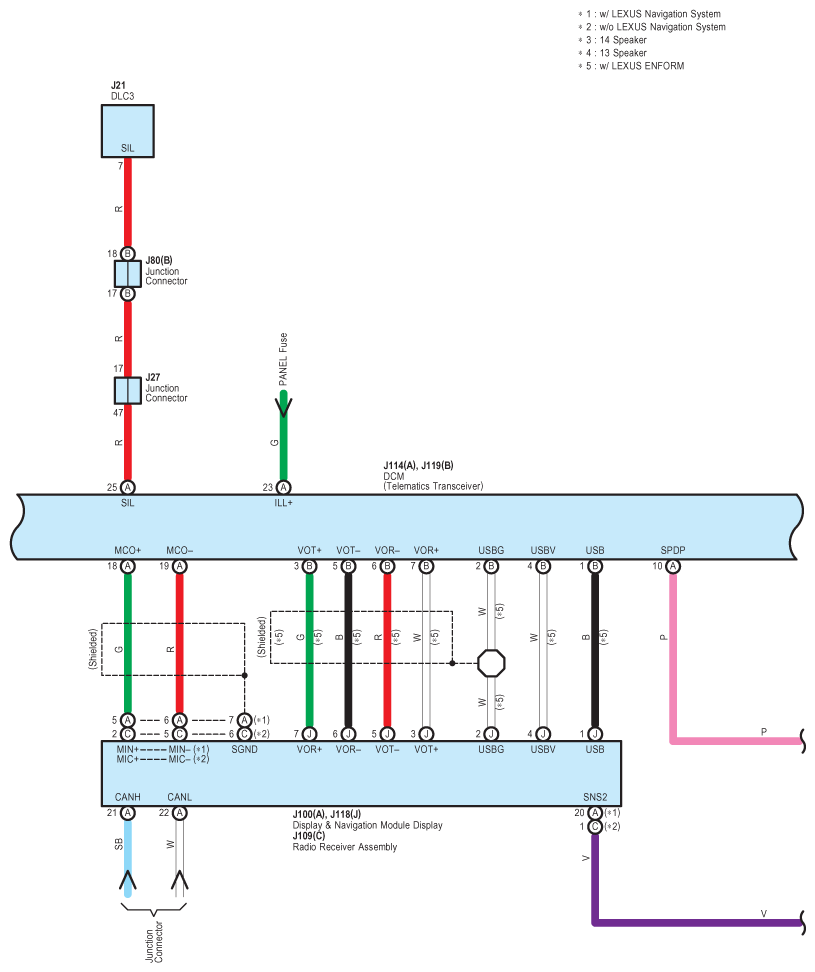

Fig 2: LEXUS ENFORM Or Safety Connect - Wiring Diagram (2 Of 4)
G08939850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

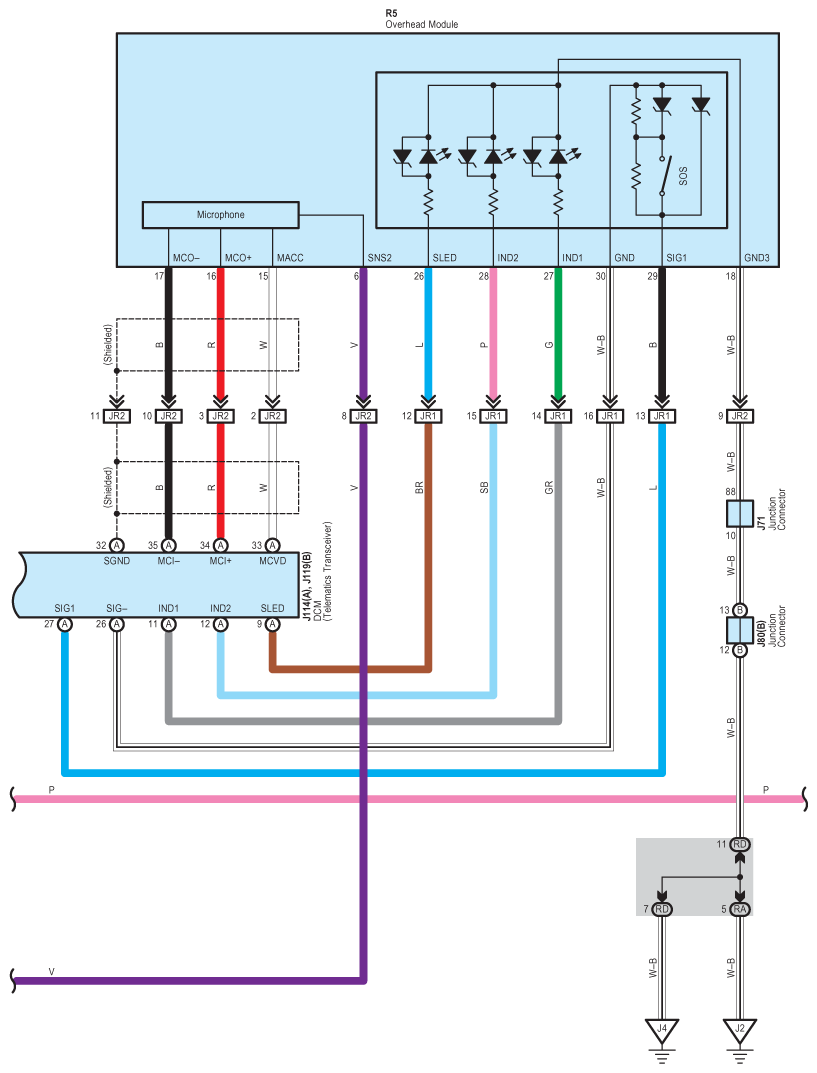

Fig 3: LEXUS ENFORM Or Safety Connect - Wiring Diagram (3 Of 4)
G08939851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

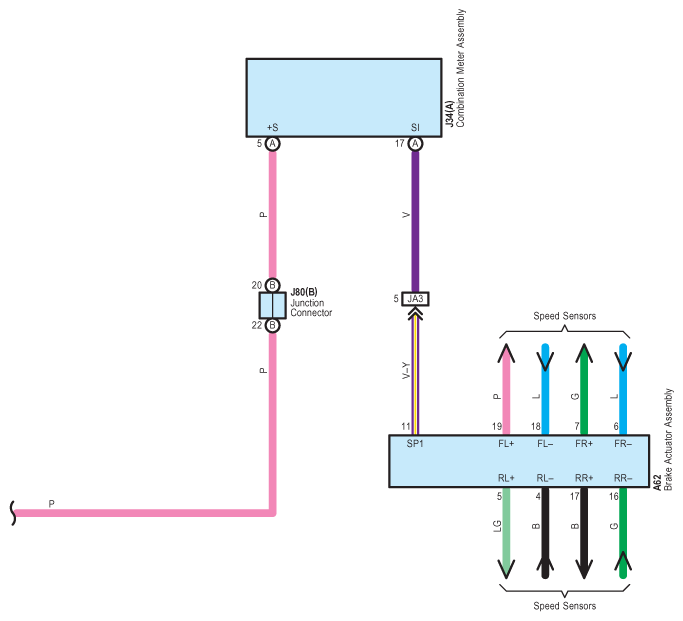

Fig 4: LEXUS ENFORM Or Safety Connect - Wiring Diagram (4 Of 4)
G08939852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
