Pre-Collision System: Notes

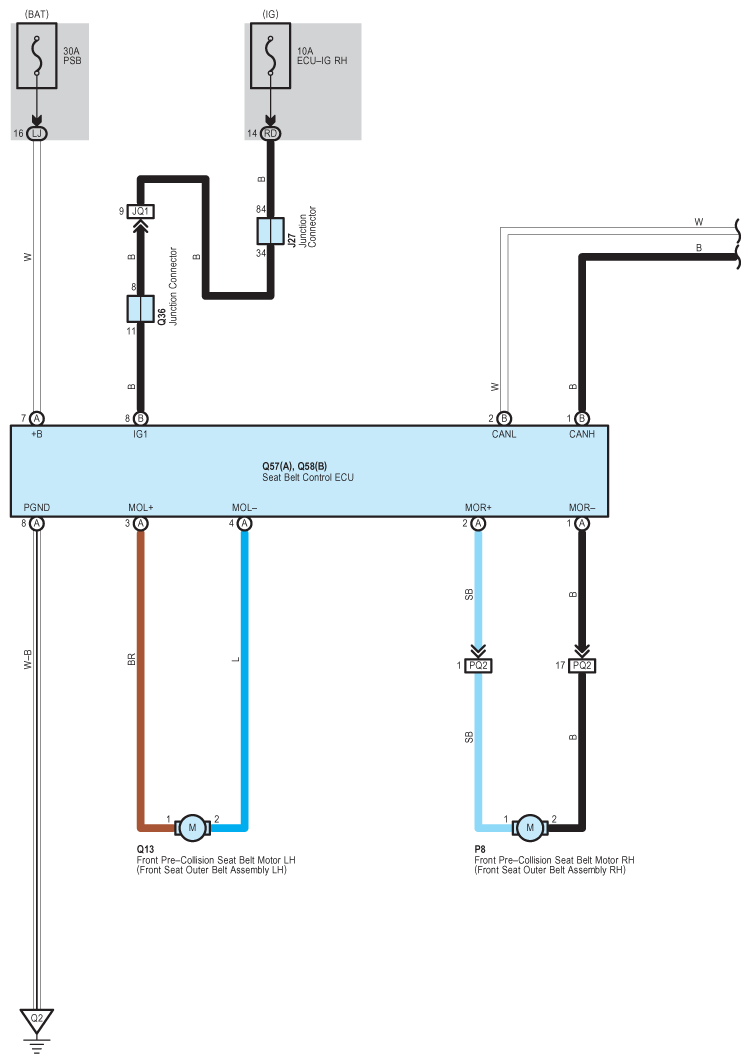

Fig 1: Pre-Collision System - Wiring Diagram (1 Of 4)
G08939789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

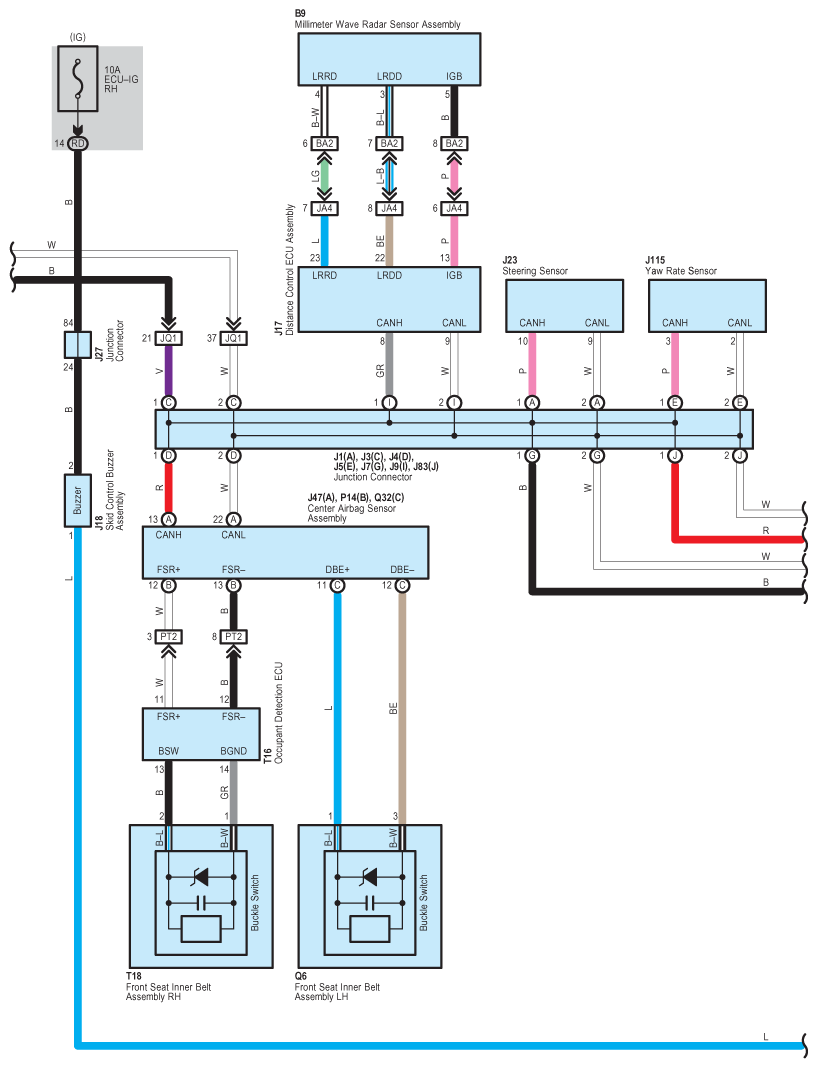

Fig 2: Pre-Collision System - Wiring Diagram (2 Of 4)
G08939790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

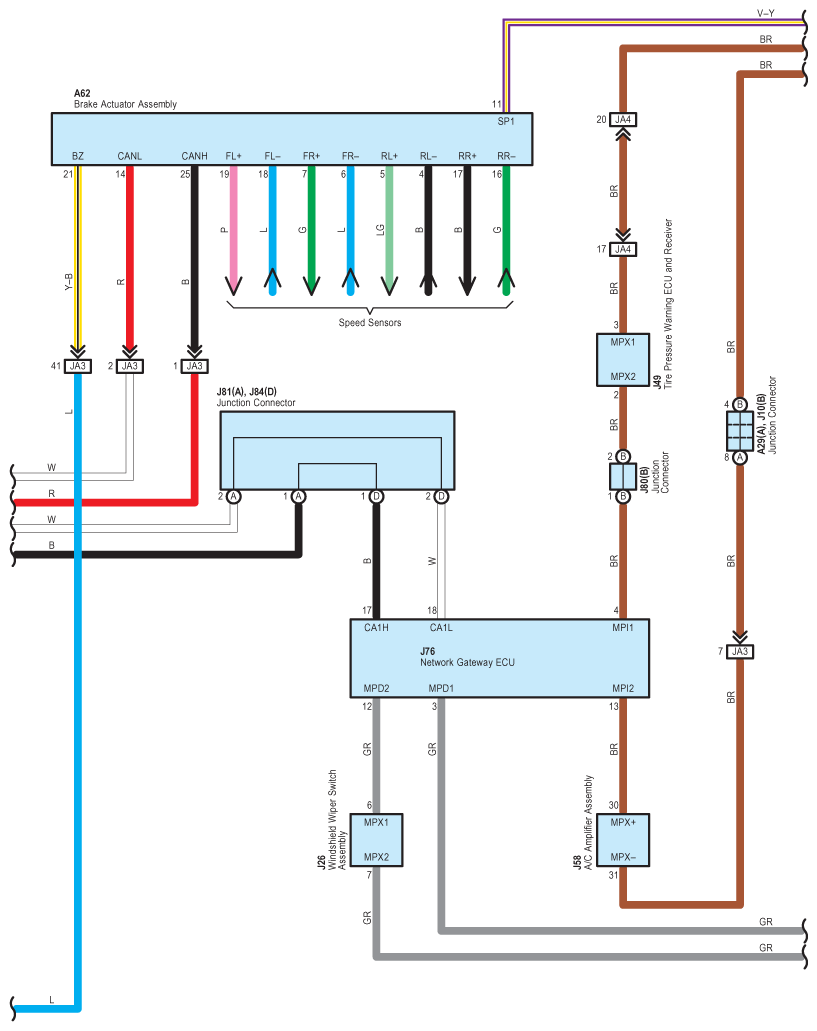

Fig 3: Pre-Collision System - Wiring Diagram (3 Of 4)
G08939791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

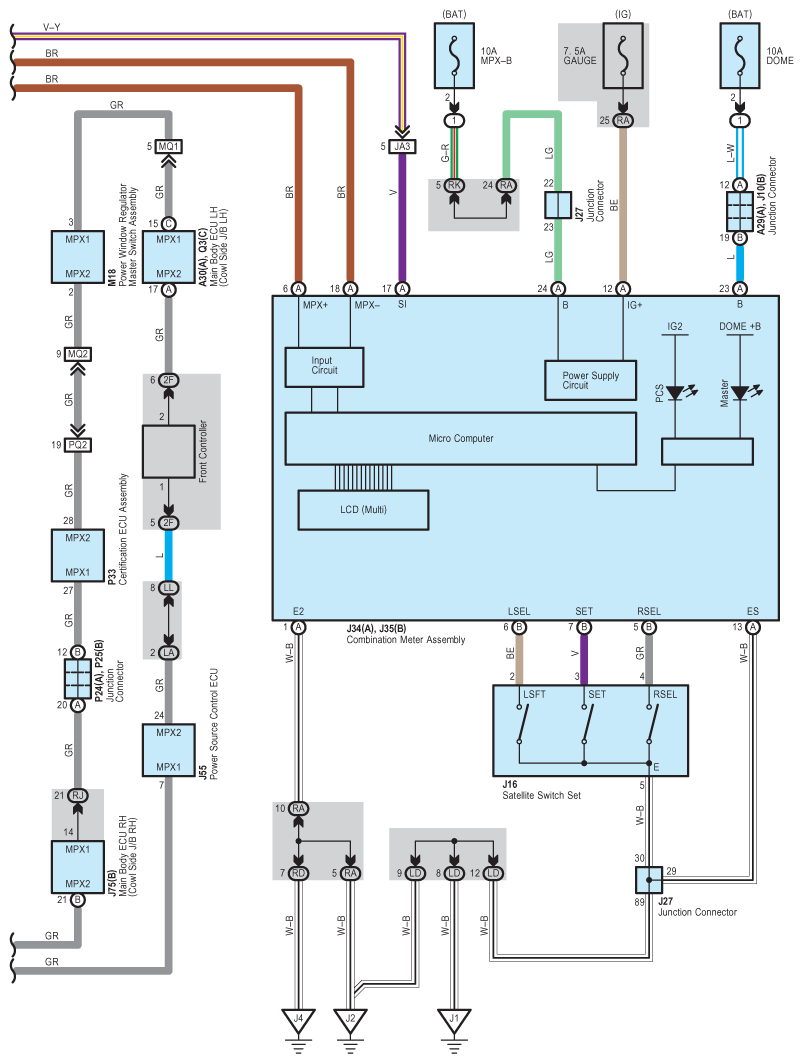

Fig 4: Pre-Collision System - Wiring Diagram (4 Of 4)
G08939792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
