Remote Control Mirror: Notes

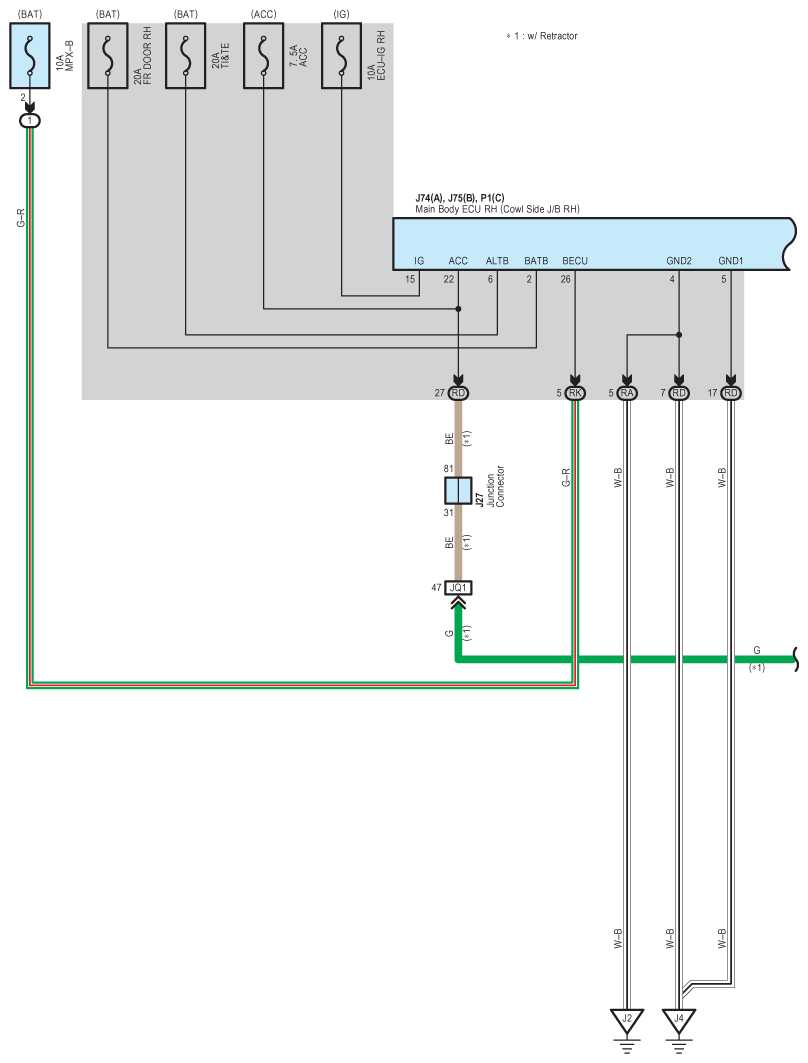

Fig 1: Remote Control Mirror - Wiring Diagram (1 Of 7)
G08939831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

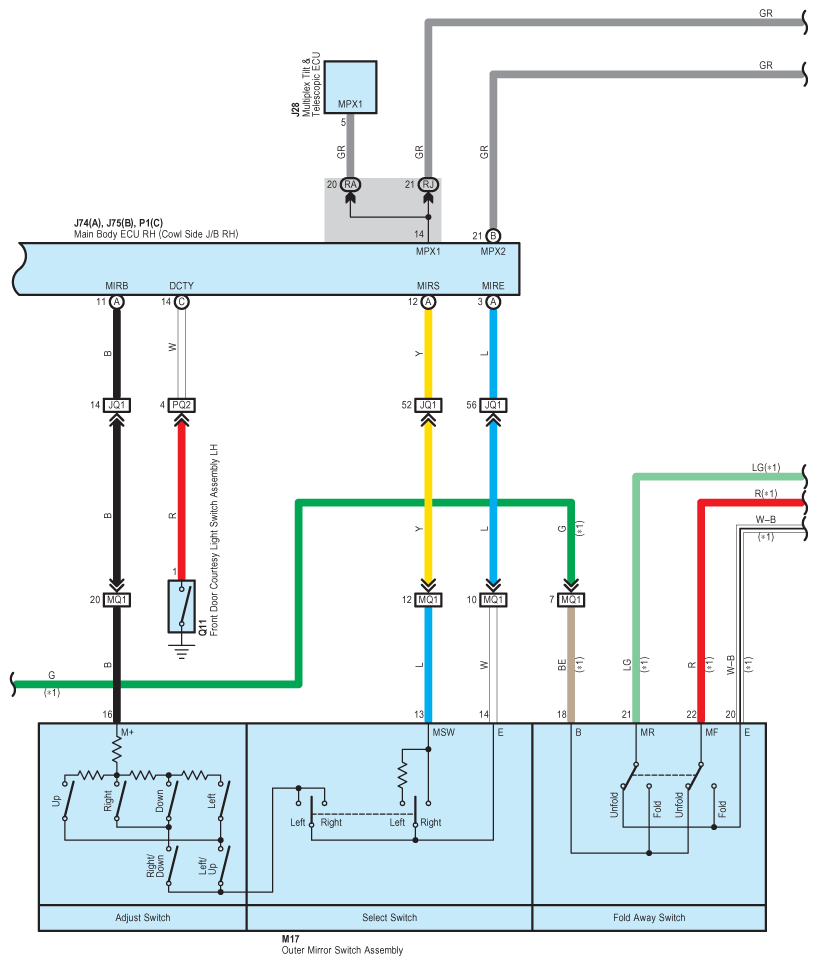

Fig 2: Remote Control Mirror - Wiring Diagram (2 Of 7)
G08939832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

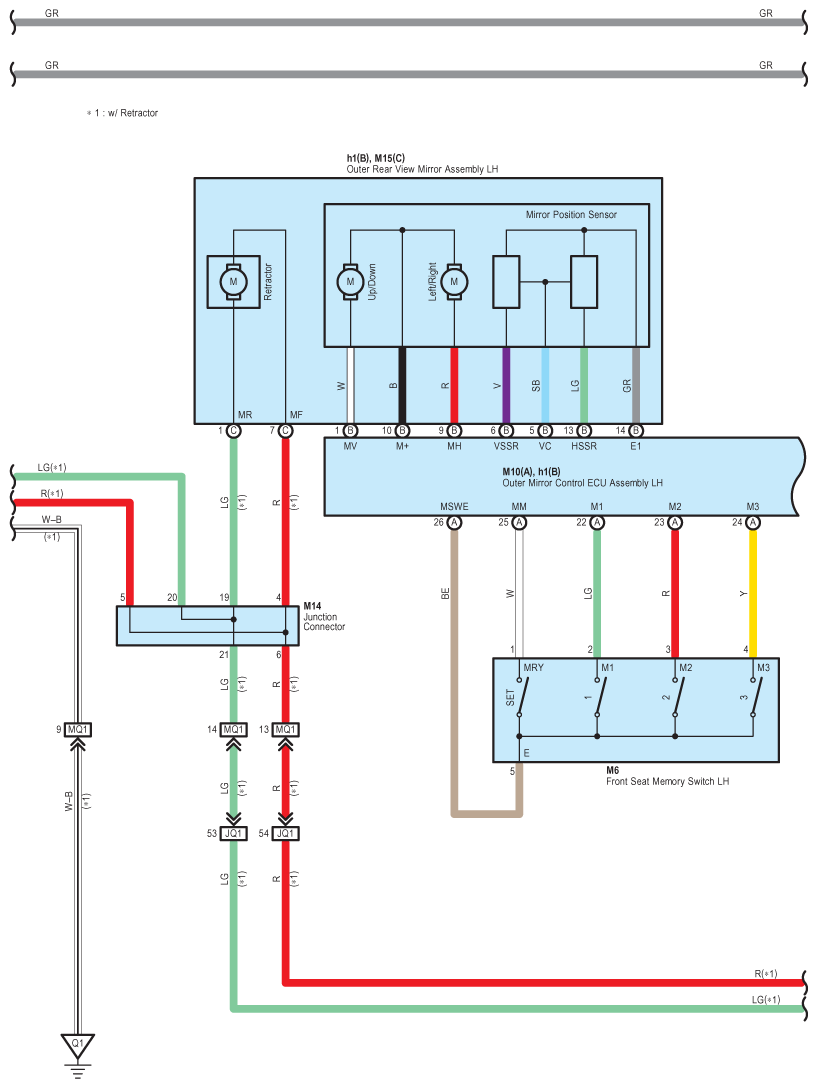

Fig 3: Remote Control Mirror - Wiring Diagram (3 Of 7)
G08939833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

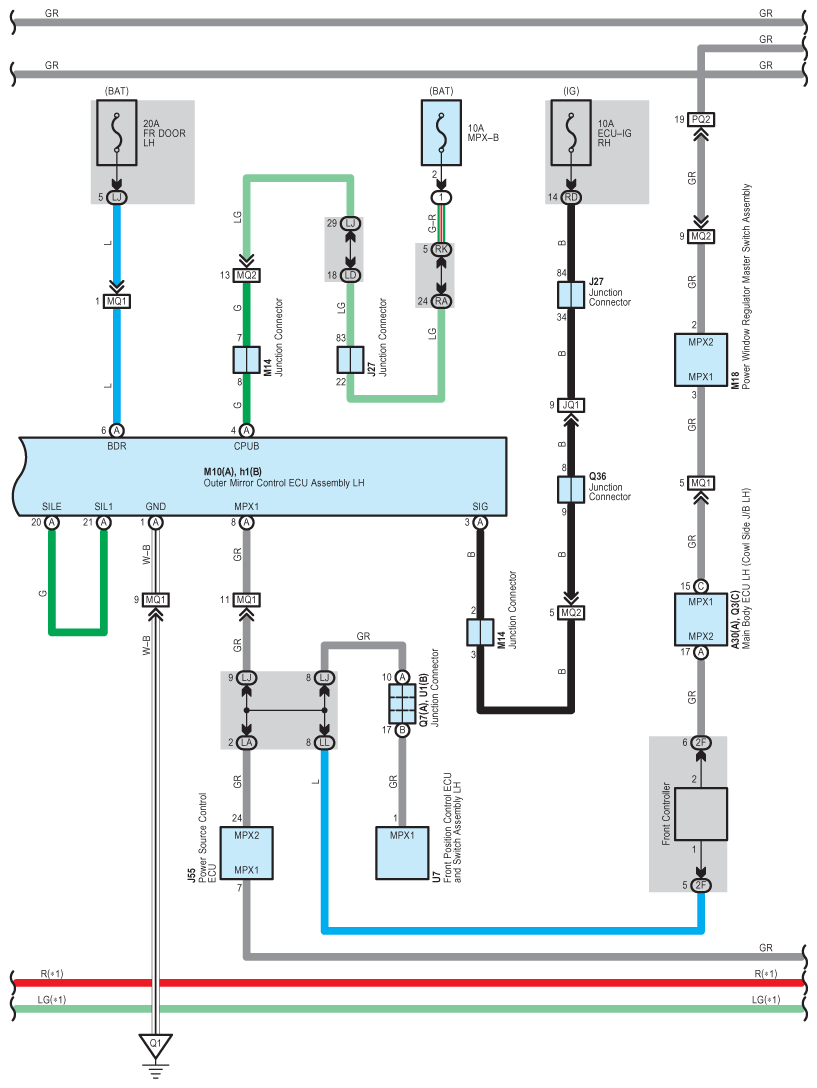

Fig 4: Remote Control Mirror - Wiring Diagram (4 Of 7)
G08939834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

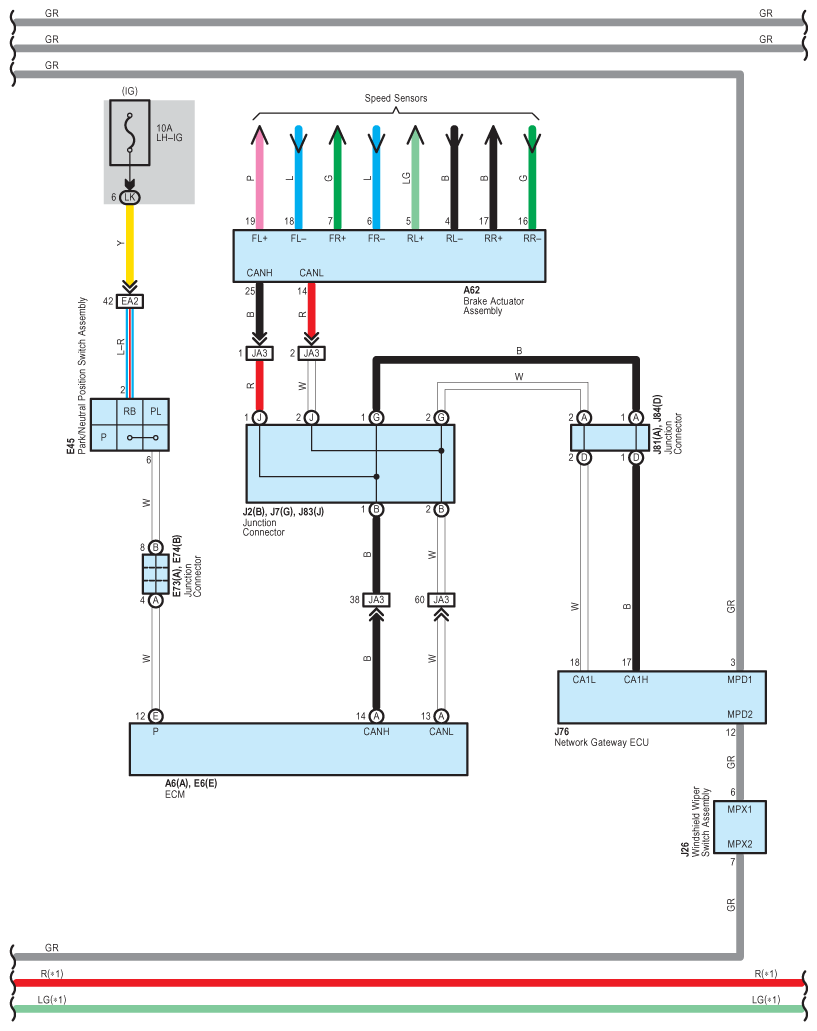

Fig 5: Remote Control Mirror - Wiring Diagram (5 Of 7)
G08939835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

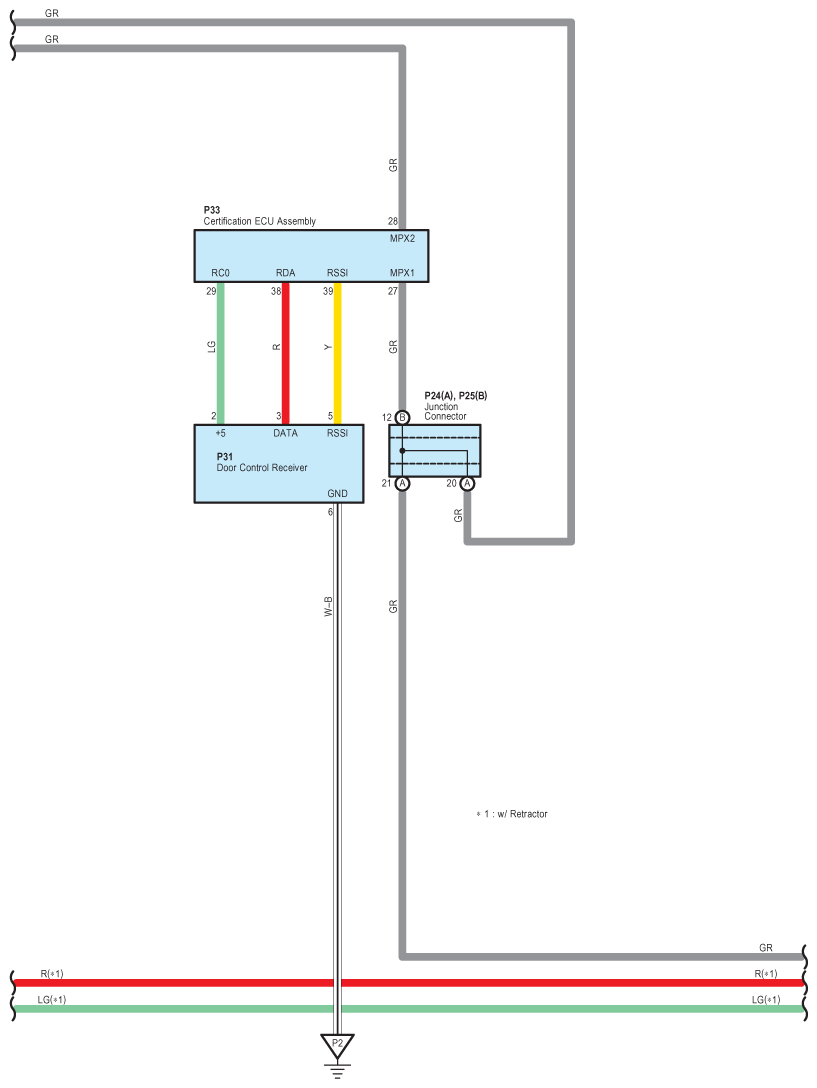

Fig 6: Remote Control Mirror - Wiring Diagram (6 Of 7)
G08939836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

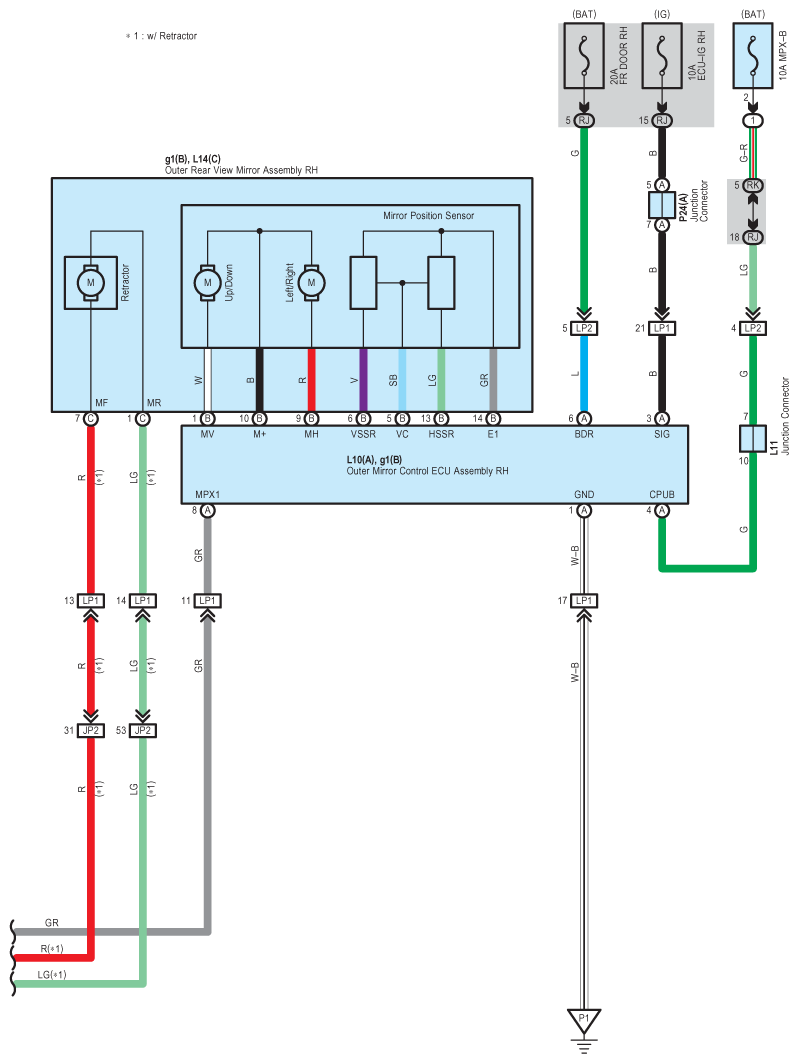

Fig 7: Remote Control Mirror - Wiring Diagram (7 Of 7)
G08939837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
