Seat Heater: Notes

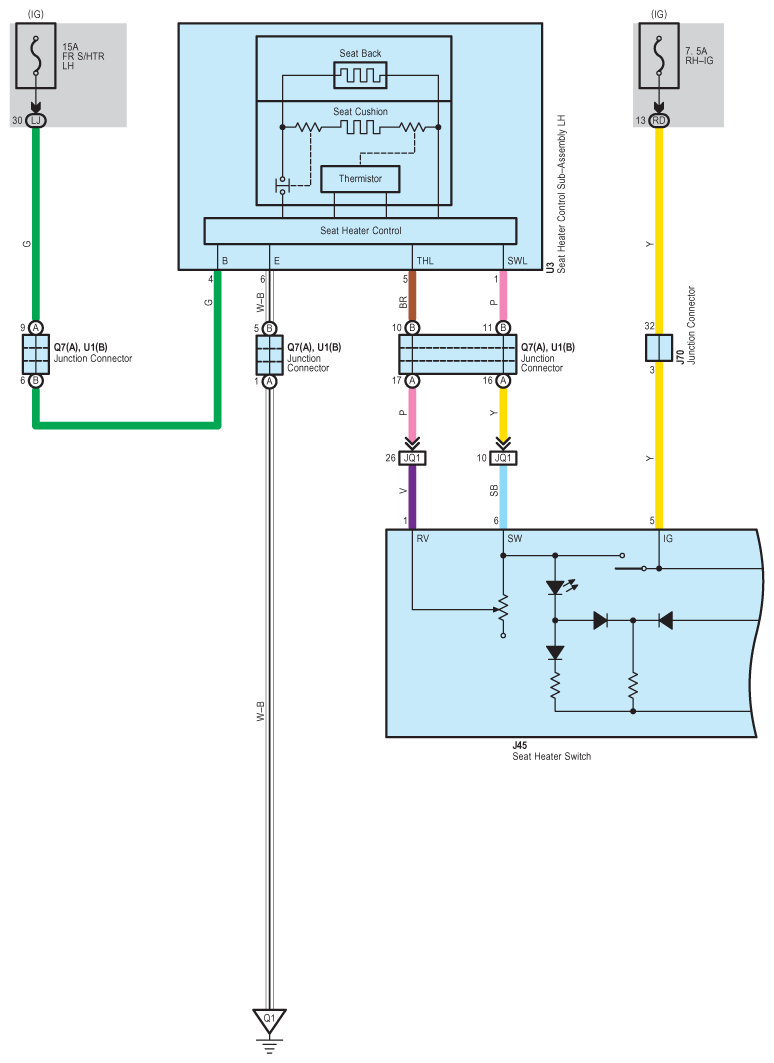

Fig 1: Seat Heater - Wiring Diagram (1 Of 2)
G08939824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

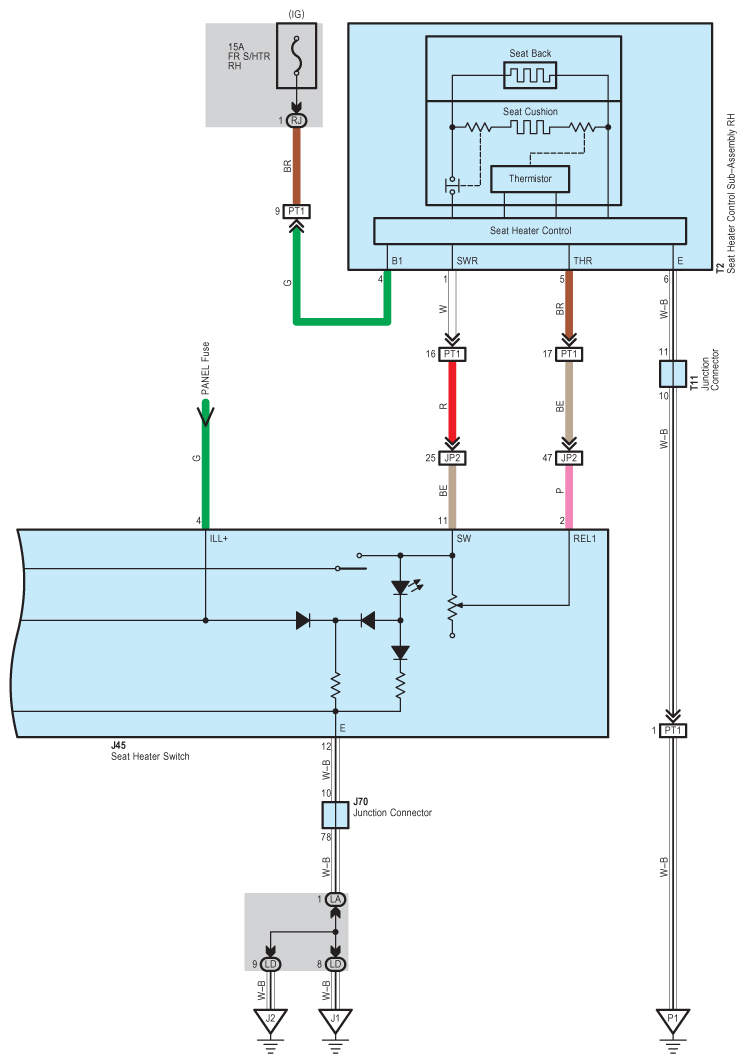

Fig 2: Seat Heater - Wiring Diagram (2 Of 2)
G08939825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
