Vehicle Dynamics Integrated Management: Notes

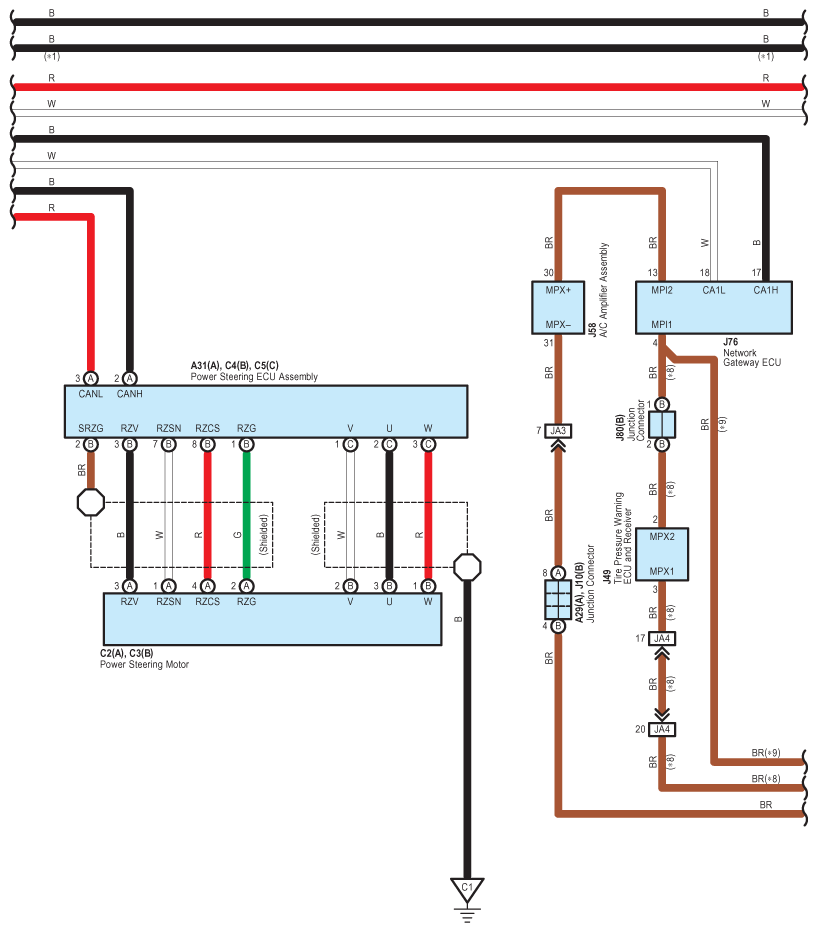

Fig 1: Vehicle Dynamics Integrated Management - Wiring Diagram (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

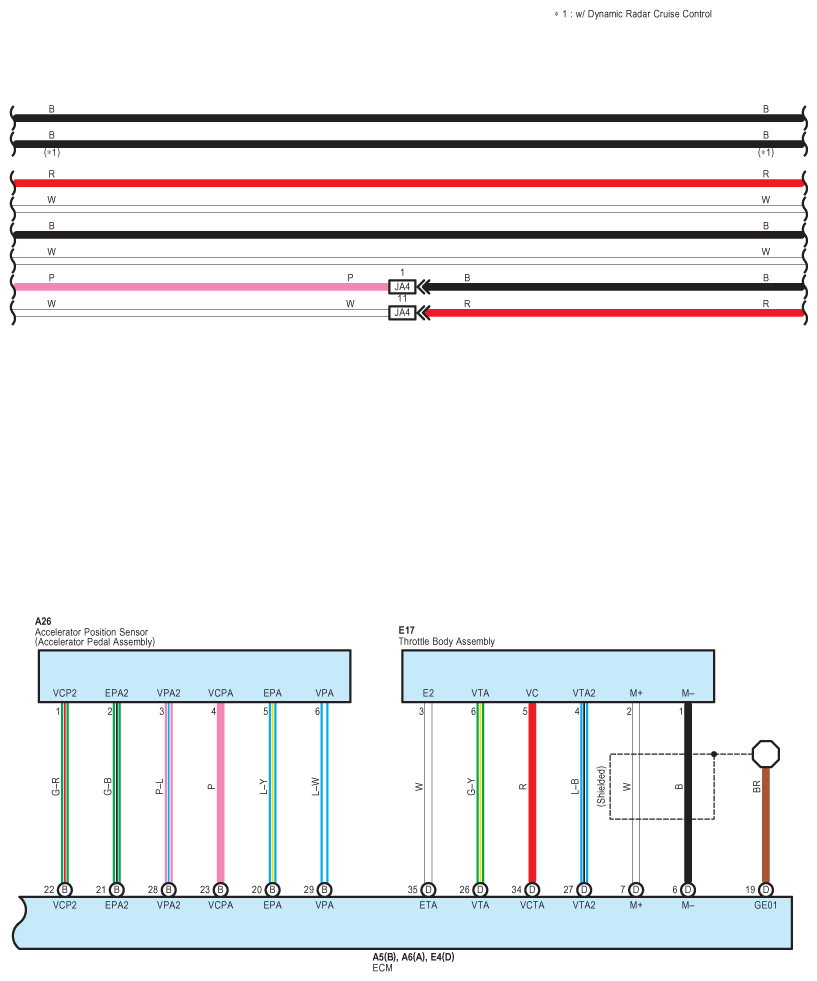

Fig 2: Vehicle Dynamics Integrated Management - Wiring Diagram (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

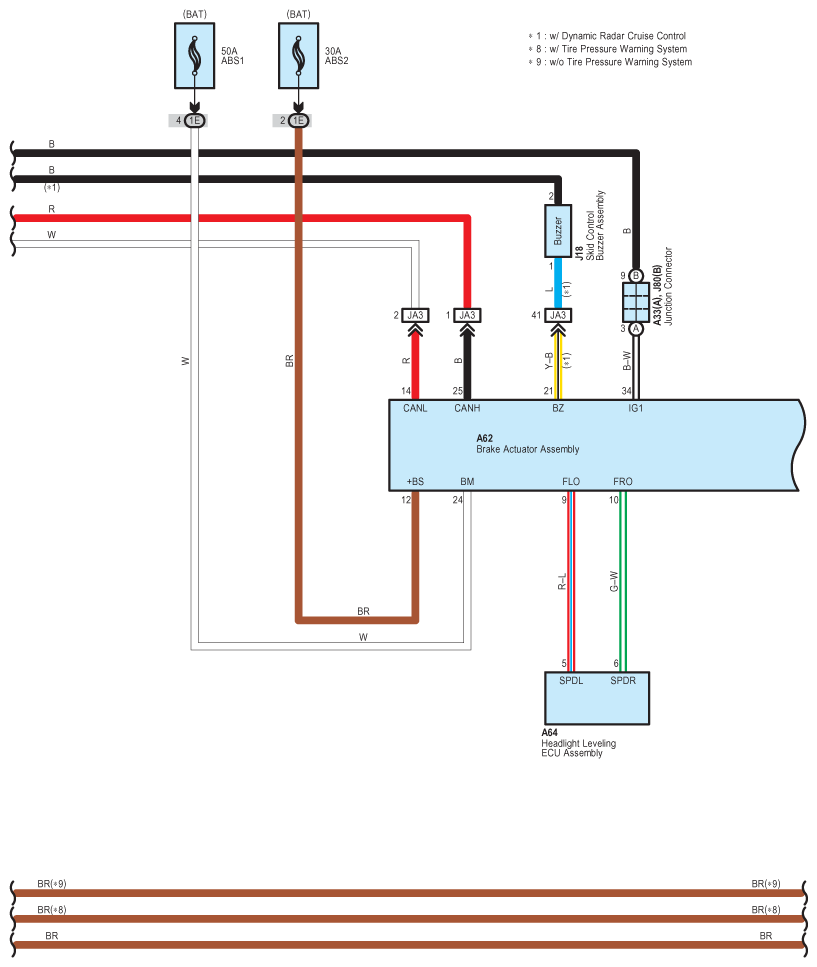

Fig 3: Vehicle Dynamics Integrated Management - Wiring Diagram (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

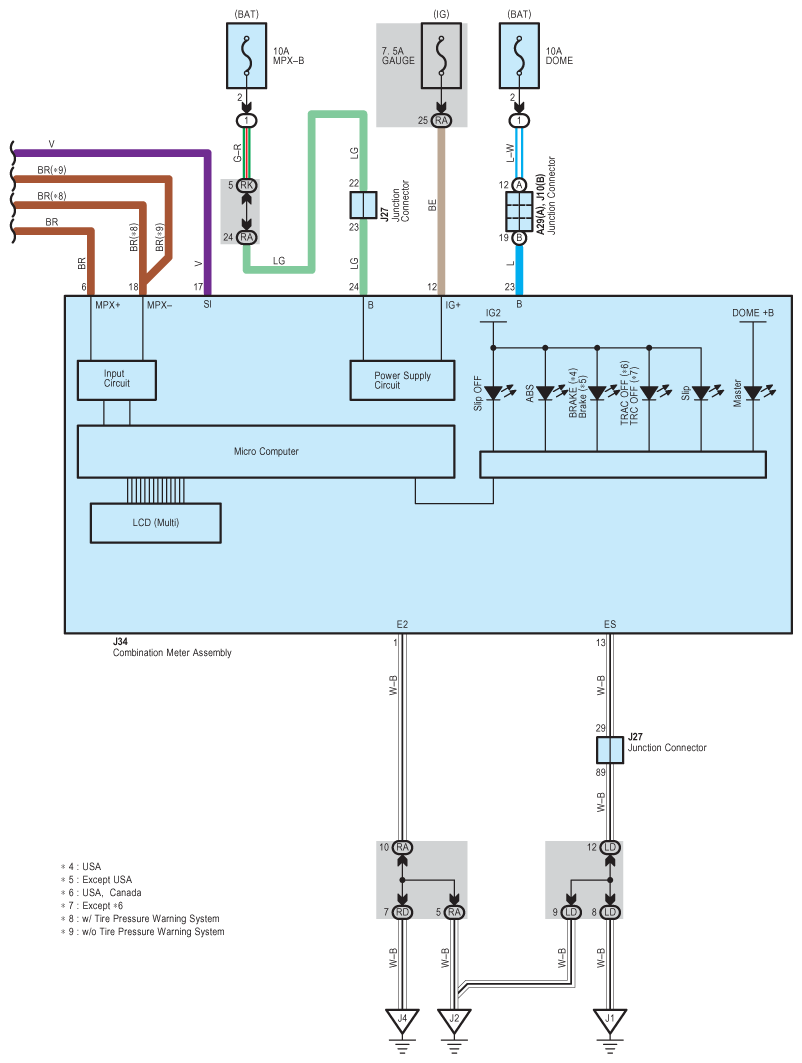

Fig 4: Vehicle Dynamics Integrated Management - Wiring Diagram (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

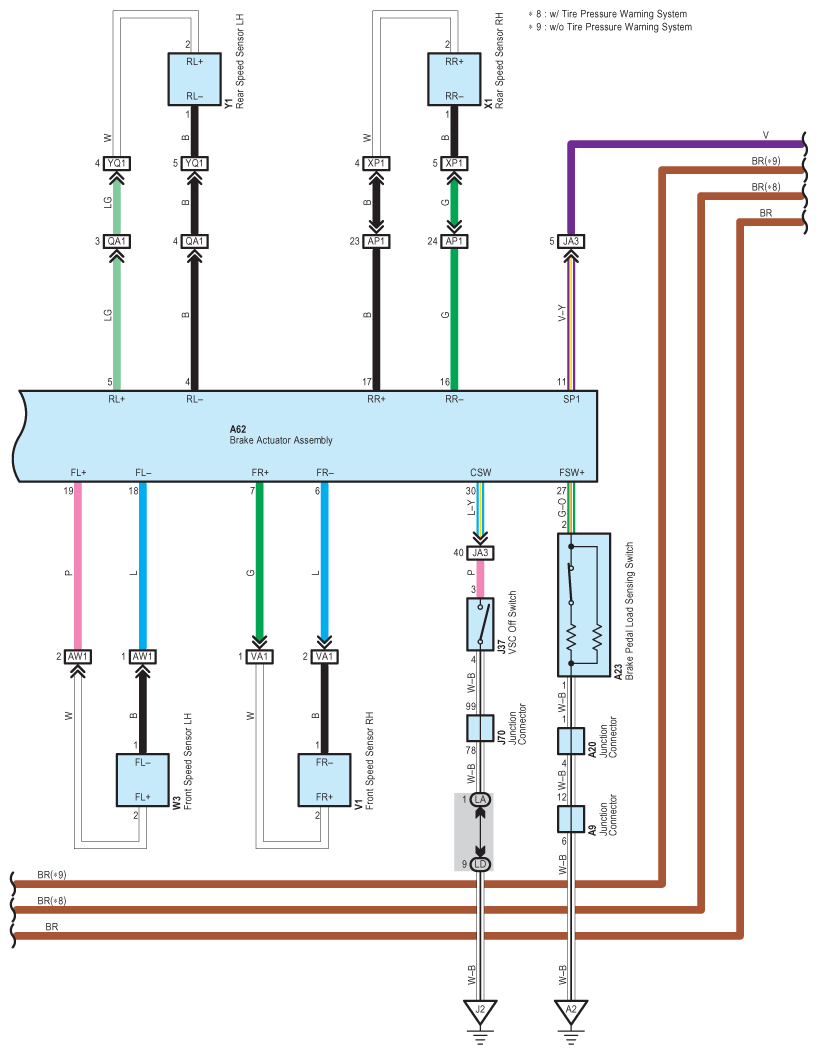

Fig 5: Vehicle Dynamics Integrated Management - Wiring Diagram (5 Of 7)

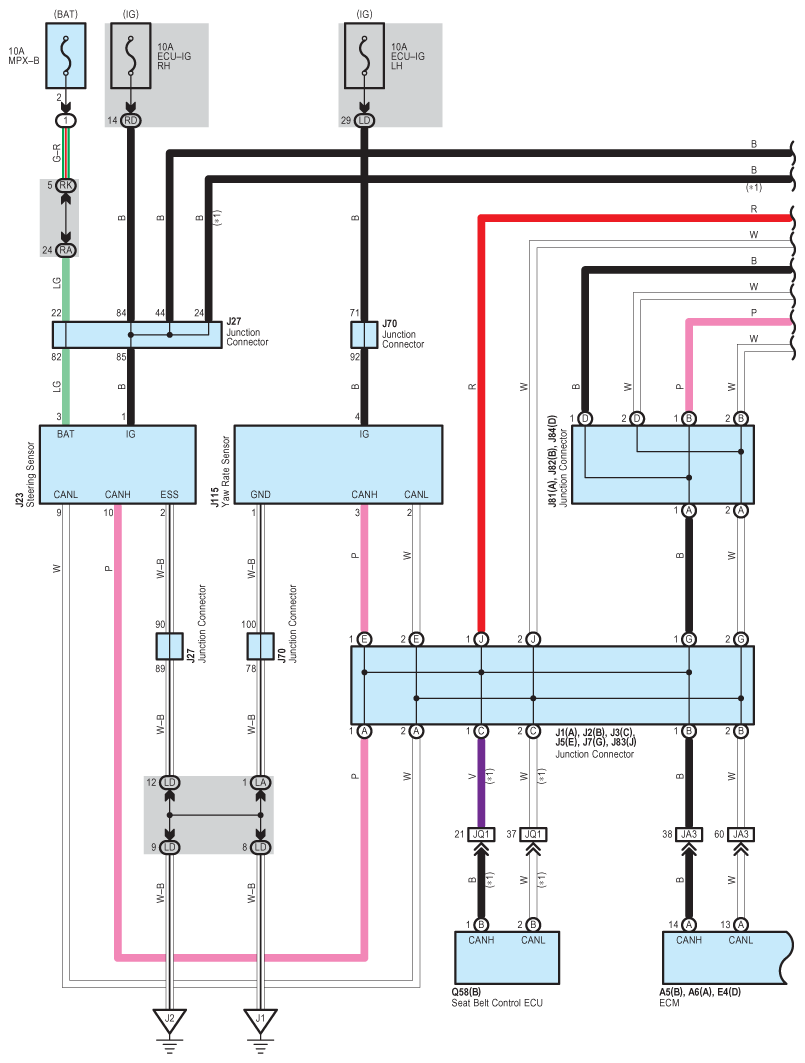

Fig 6: Vehicle Dynamics Integrated Management - Wiring Diagram (6 Of 7)

Fig 7: Vehicle Dynamics Integrated Management - Wiring Diagram (7 Of 7)
