Injector Driver: Installation: Installation

INSTALL INJECTOR DRIVER
NOTE:
- Be careful not to drop or strike the injector drivers.
- The injector drivers are grounded at the bolt and nut. To ensure that they are grounded, remove all oil and foreign matter from the installation areas of the injector drivers and engine before installing the injector drivers.
1. Install the 2 injector drivers to the intake air surge tank assembly with the 8 nuts.

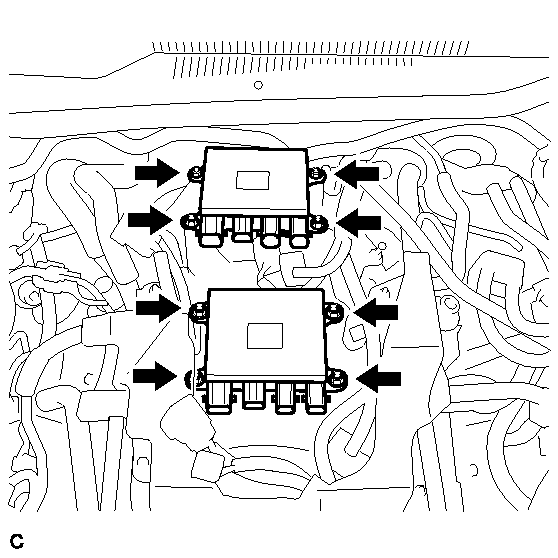

  Fig 1: Locating Injector Drivers Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)
2. Connect the 8 injector driver connectors.

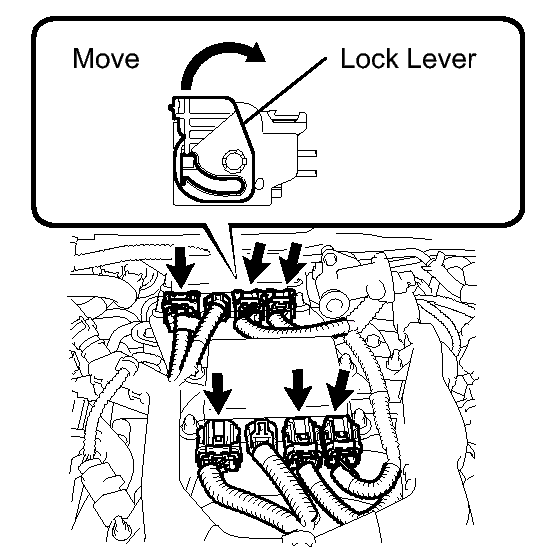

  Fig 2: Locating Connectors With Wire Harness Locks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Connect the 6 connectors with wire harness locks and the 2 connectors without wire harness locks to the 2 injector drivers.
    NOTE:
    Connect the connectors securely.

    HINT:

    Move the lock lever in the direction indicated by the arrow to lock the connectors.
INSTALL V-BANK COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 95
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
