Injector Driver: Components: Illustration

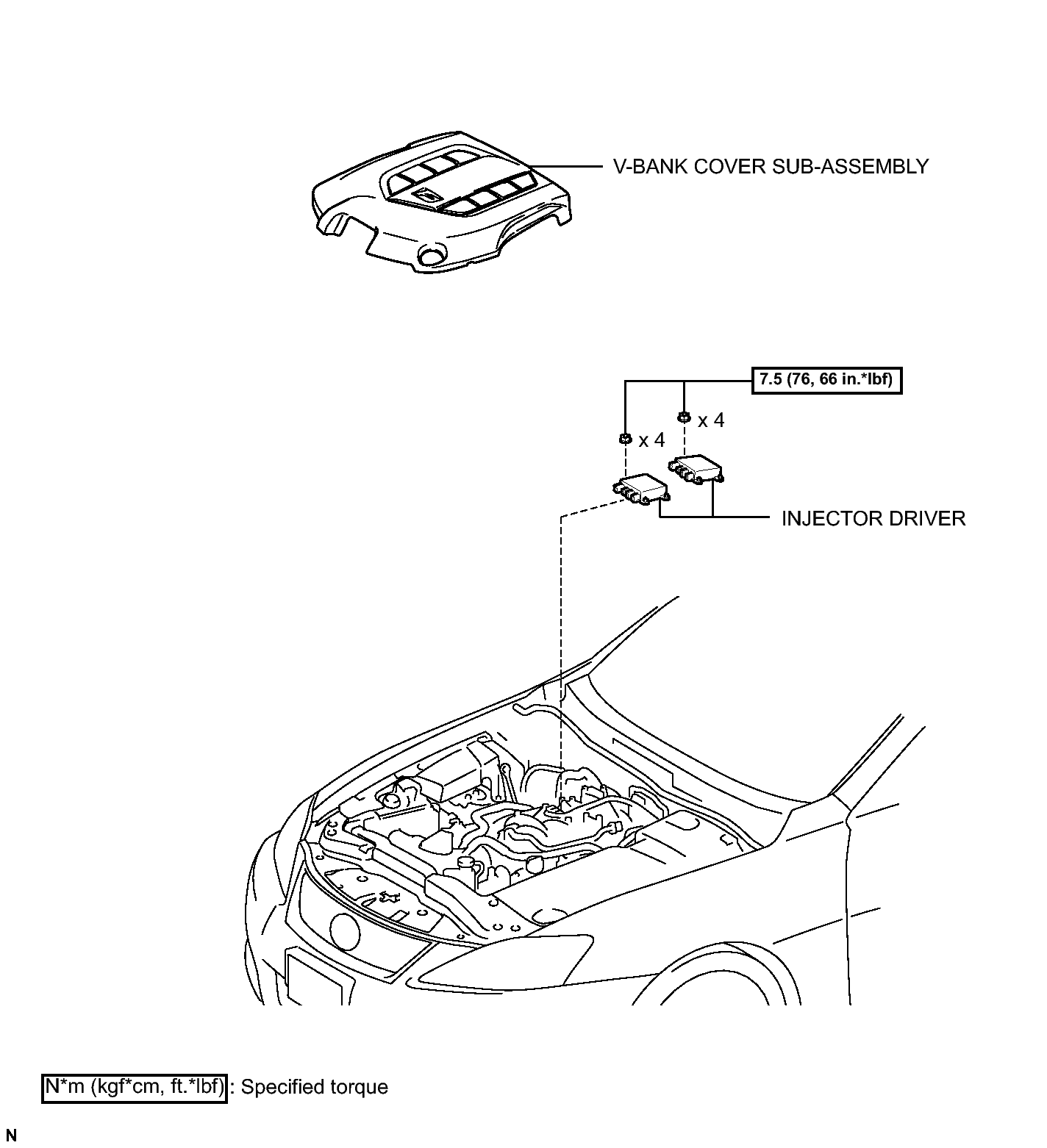

Fig 1: Identifying Injector Driver Replacement Components With Torque Specifications
GTY131779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
