Accelerator Pedal: Removal: Removal

  1. REMOVE ACCELERATOR PEDAL ASSEMBLY
    1. Disconnect the accelerator pedal sensor connector.

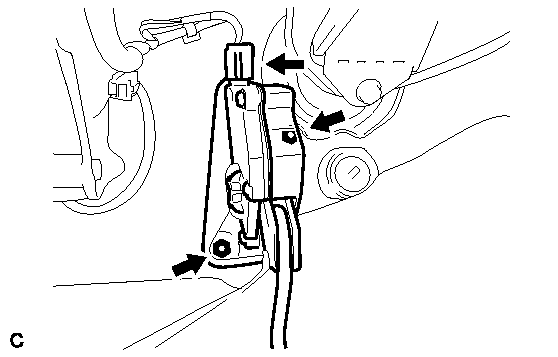

      Fig 1: Location of Accelerator Pedal Nuts
      GTY146738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts and accelerator pedal.
      NOTE:
      • Avoid physical shocks to the accelerator pedal.
      • Do not disassemble the accelerator pedal assembly.
