Camshaft Position Sensor: Removal: Removal

REMOVE V-BANK COVER SUB-ASSEMBLY . Refer to REMOVAL - Step 2
REMOVE CAMSHAFT POSITION SENSOR
1. Disconnect the camshaft position sensor connector.

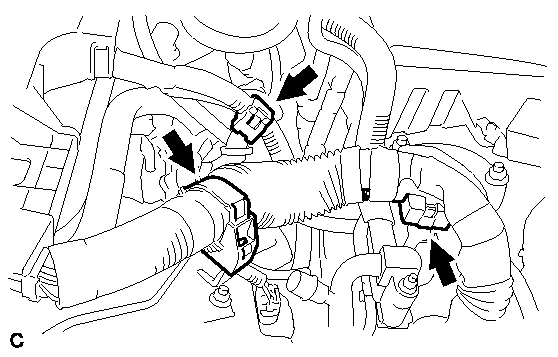

  Fig 1: Locating Camshaft Position Sensor, Bolt, & Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt and camshaft position sensor.
REMOVE VVT SENSOR (for Bank 1)
1. Separate the 3 wire harness clamps.

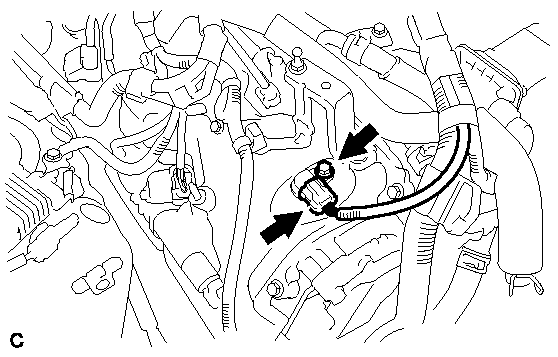

  Fig 2: Locating Wire Harness Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the VVT sensor connectors.

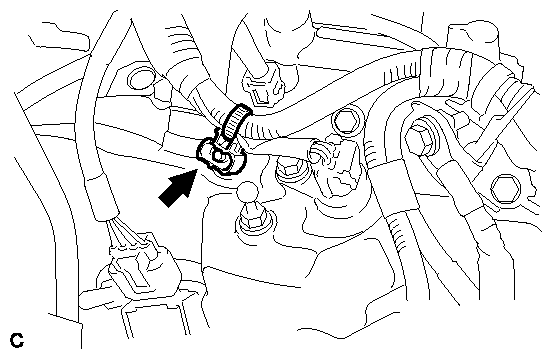

  Fig 3: Locating VVT Sensors, Connectors, & Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 bolts and 2 VVT sensors.
REMOVE VVT SENSOR (for Bank 2)
1. Separate the wire harness clamp.

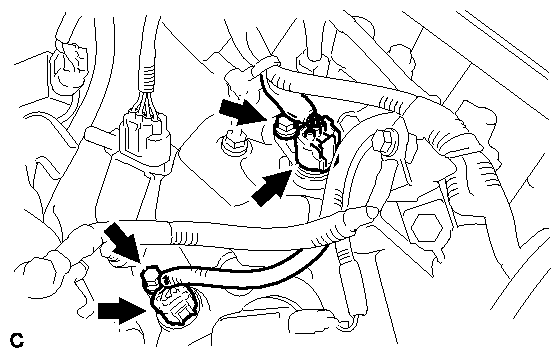

  Fig 4: Locating Wire Harness Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the VVT sensor connectors.

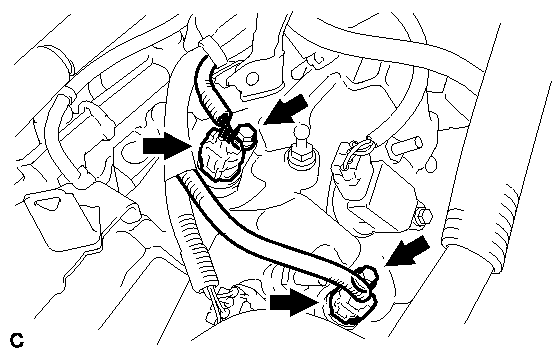

  Fig 5: Locating VVT Sensors, Connectors, & Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 bolts and 2 VVT sensors.
