Mass Air Flow Meter: Removal: Removal

  1. REMOVE V-BANK COVER SUB-ASSEMBLY  . Refer to REMOVAL - Step 2
  2. REMOVE COOL AIR INTAKE DUCT SEAL  . Refer to REMOVAL - Step 3
  3. REMOVE ENGINE ROOM SIDE COVER RH  . Refer to REMOVAL - Step 5
  4. REMOVE MASS AIR FLOW METER
    1. Disconnect the mass air flow meter connector.

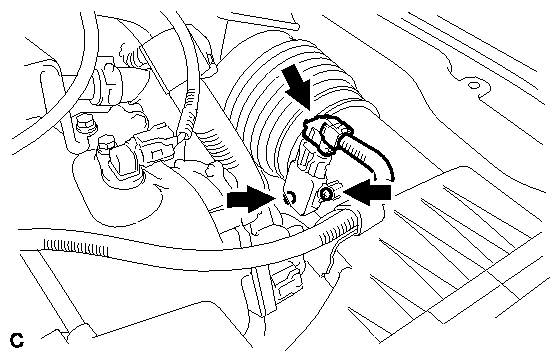

      Fig 1: Locating Mass Air Flow Meter, Screws, & Connector
      GTY148744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and mass air flow meter.
