Integration Relay: Installation: Installation

INSTALL INTEGRATION NO. 1 RELAY
1. Connect the 3 connectors.
2. Attach the integration relay to the engine room relay block.

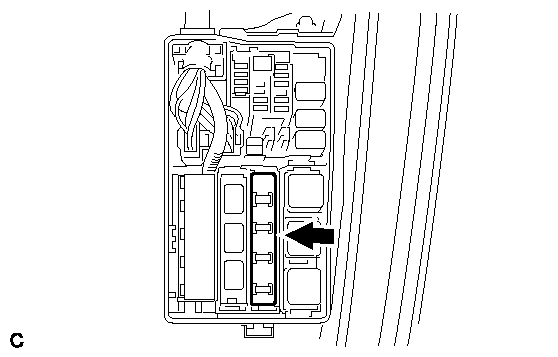

  Fig 1: Locating Integration Relay
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 RELAY BLOCK COVER
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
