Transmission Wire: Components: Illustration

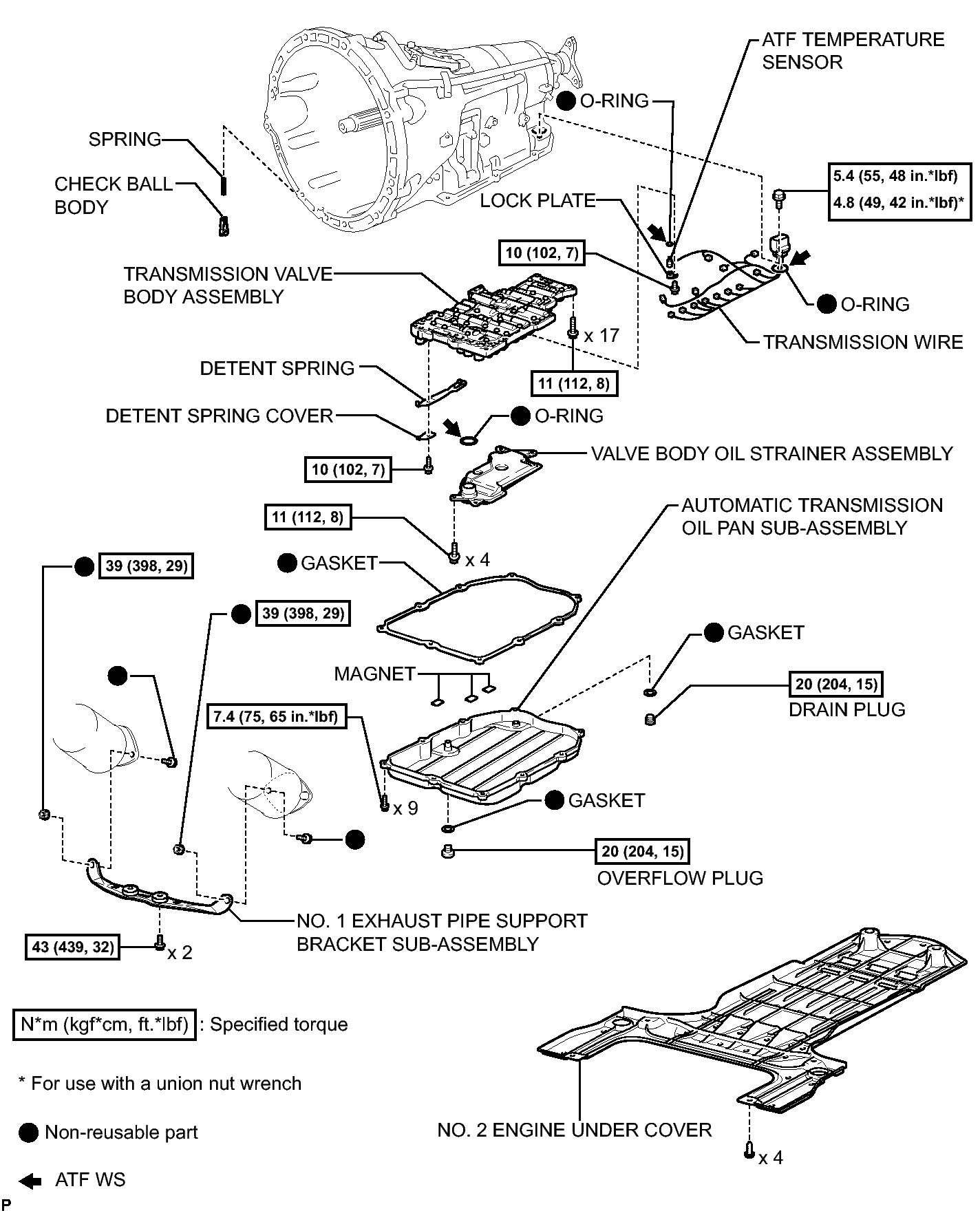

Fig 1: Identifying Transmission Wire Replacement Components with Torque Specifications
GTY108952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
