Cruise Control: Notes

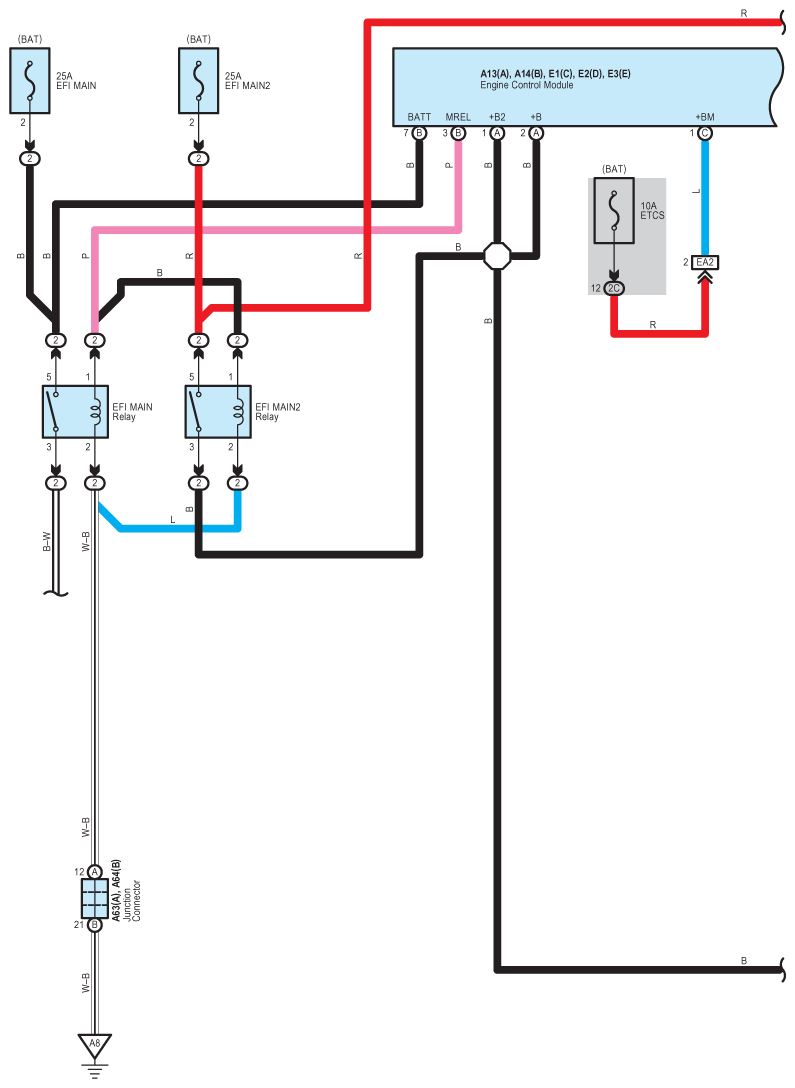

Fig 1: Cruise Control - Wiring Diagram (1 Of 10)

G08940761

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

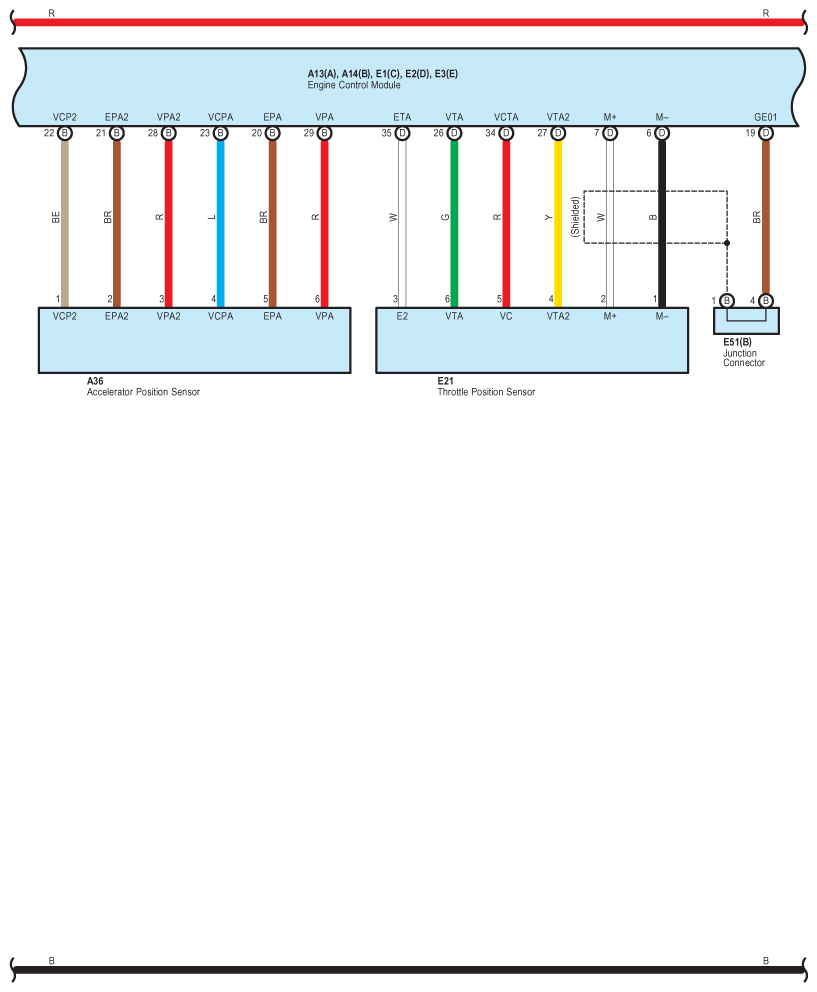

Fig 2: Cruise Control - Wiring Diagram (2 Of 10)

G08940762

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

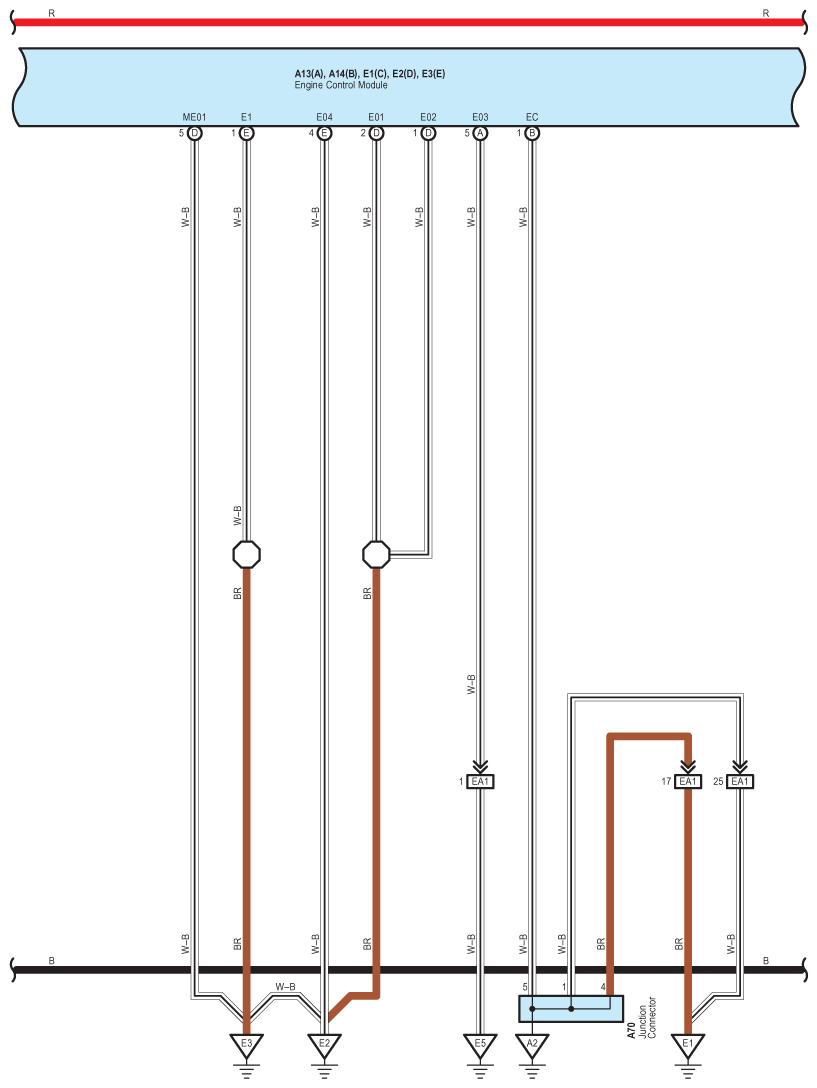

Fig 3: Cruise Control - Wiring Diagram (3 Of 10)

G08940763

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

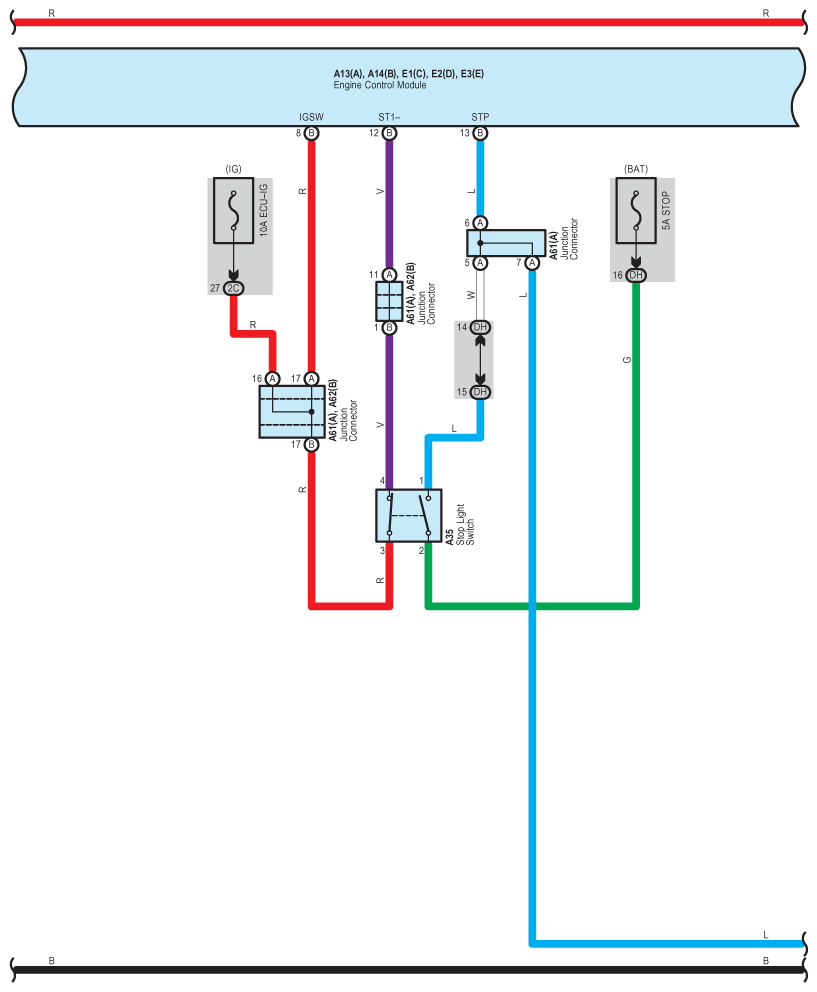

Fig 4: Cruise Control - Wiring Diagram (4 Of 10)

G08940764

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

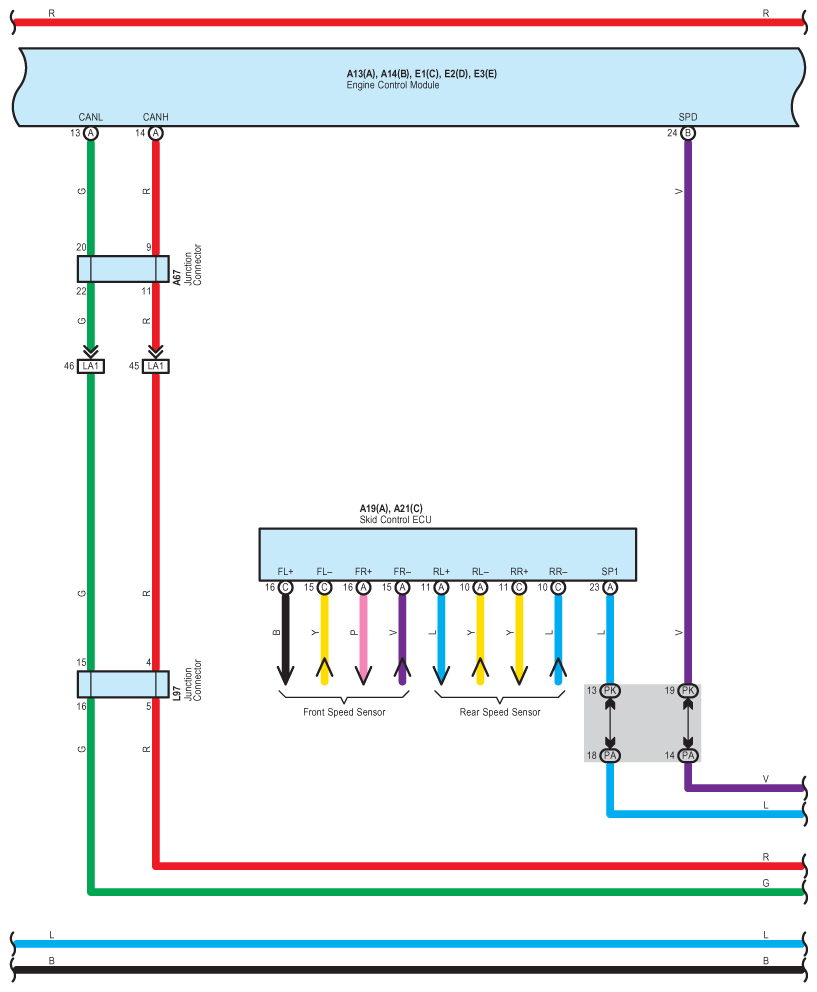

Fig 5: Cruise Control - Wiring Diagram (5 Of 10)

G08940765

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

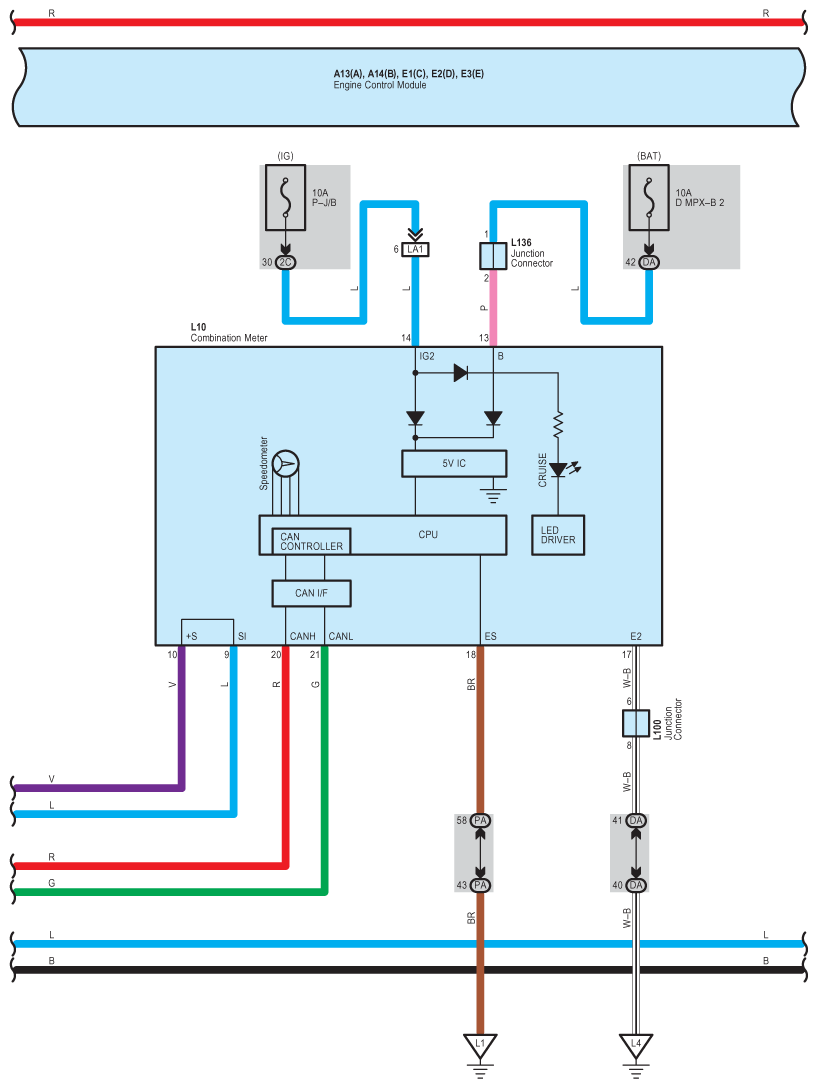

Fig 6: Cruise Control - Wiring Diagram (6 Of 10)

G08940766

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

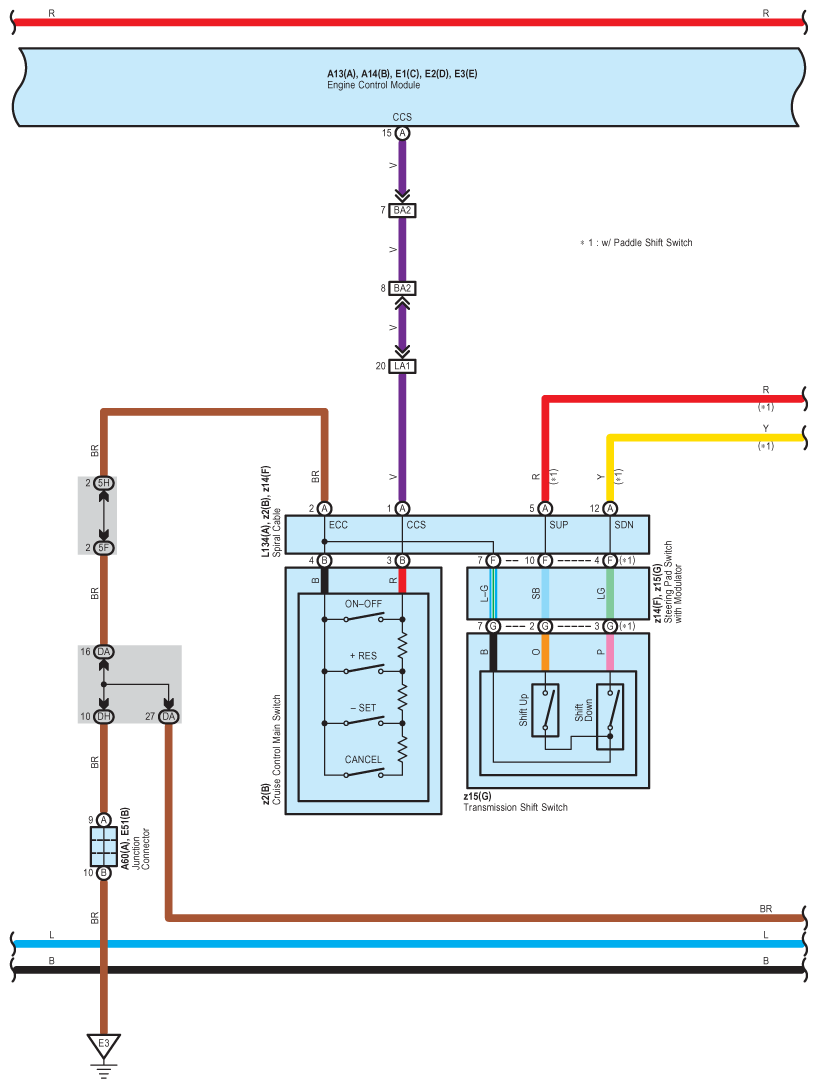

Fig 7: Cruise Control - Wiring Diagram (7 Of 10)

G08940767

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

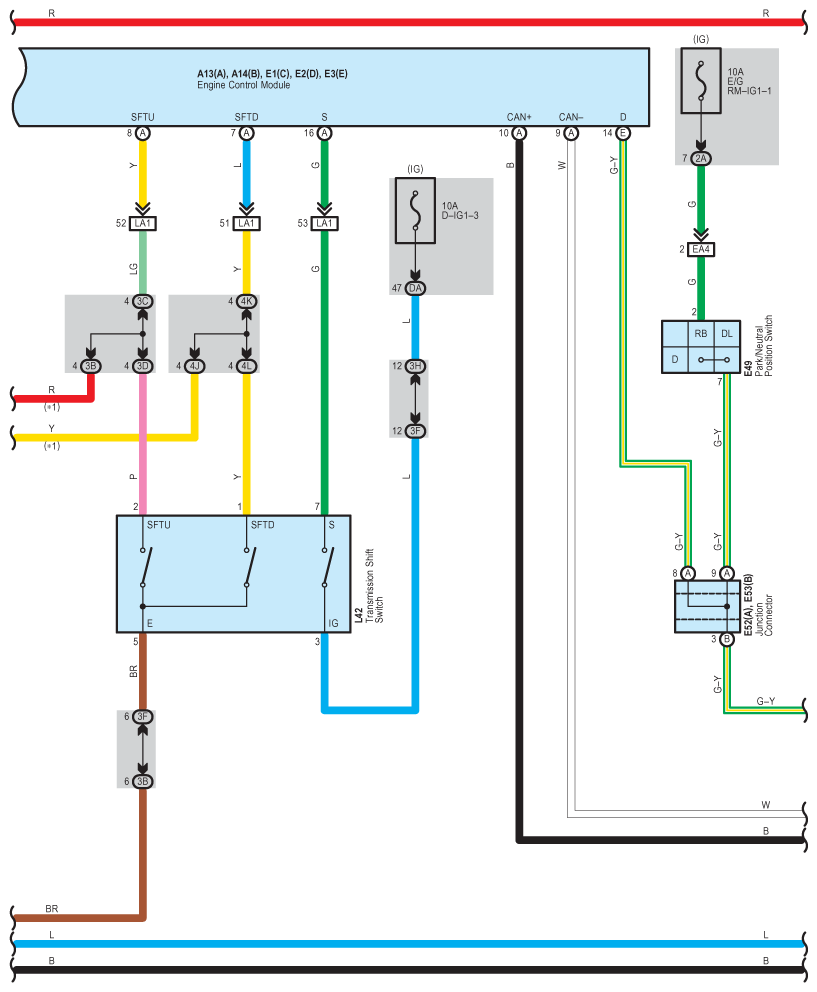

Fig 8: Cruise Control - Wiring Diagram (8 Of 10)

G08940768

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

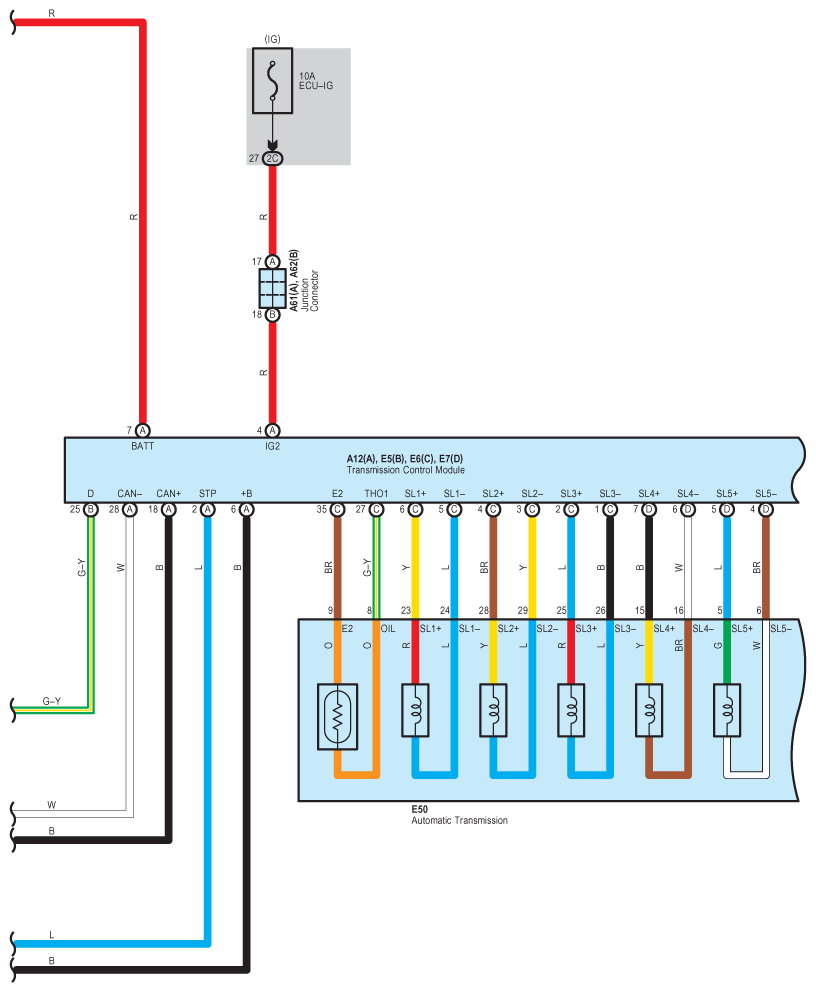

Fig 9: Cruise Control - Wiring Diagram (9 Of 10)

G08940769

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

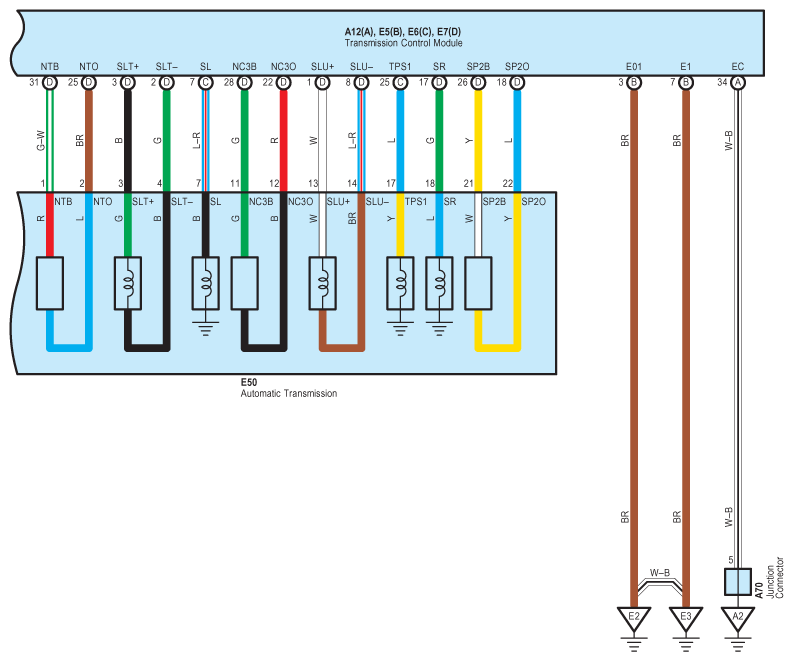

Fig 10: Cruise Control - Wiring Diagram (10 Of 10)

G08940770

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
