Electric Power Control System: Notes

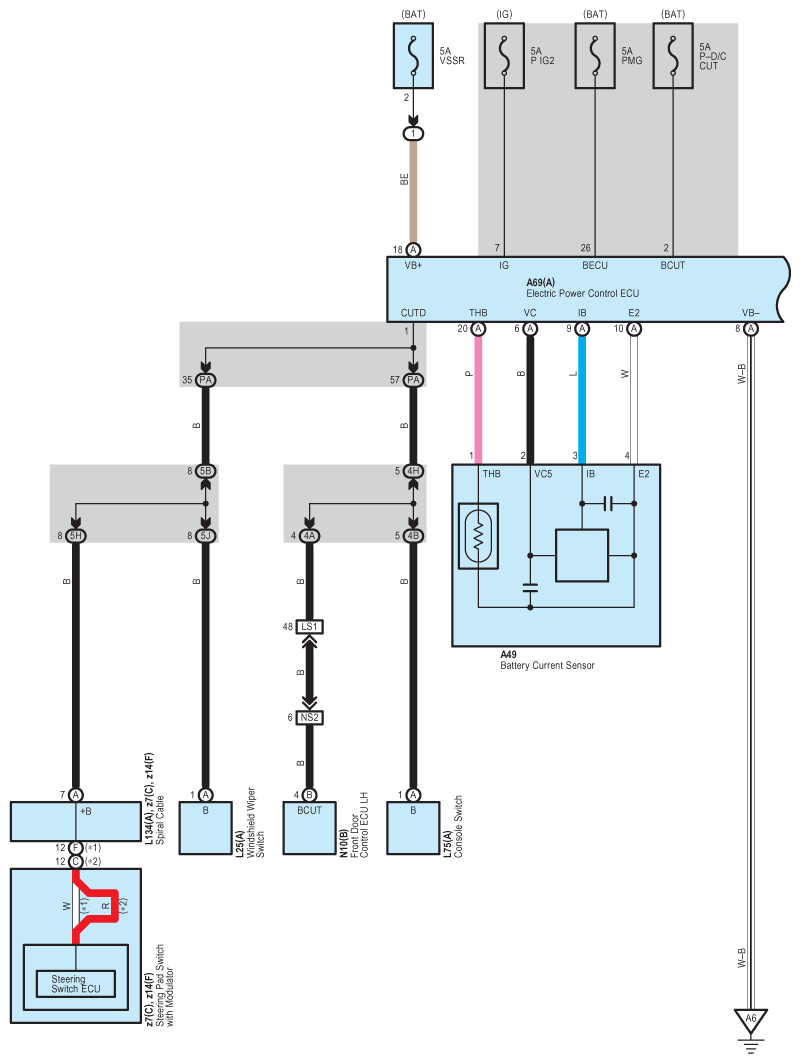

Fig 1: Electric Power Control System - Wiring Diagram (1 Of 2)
G08940624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

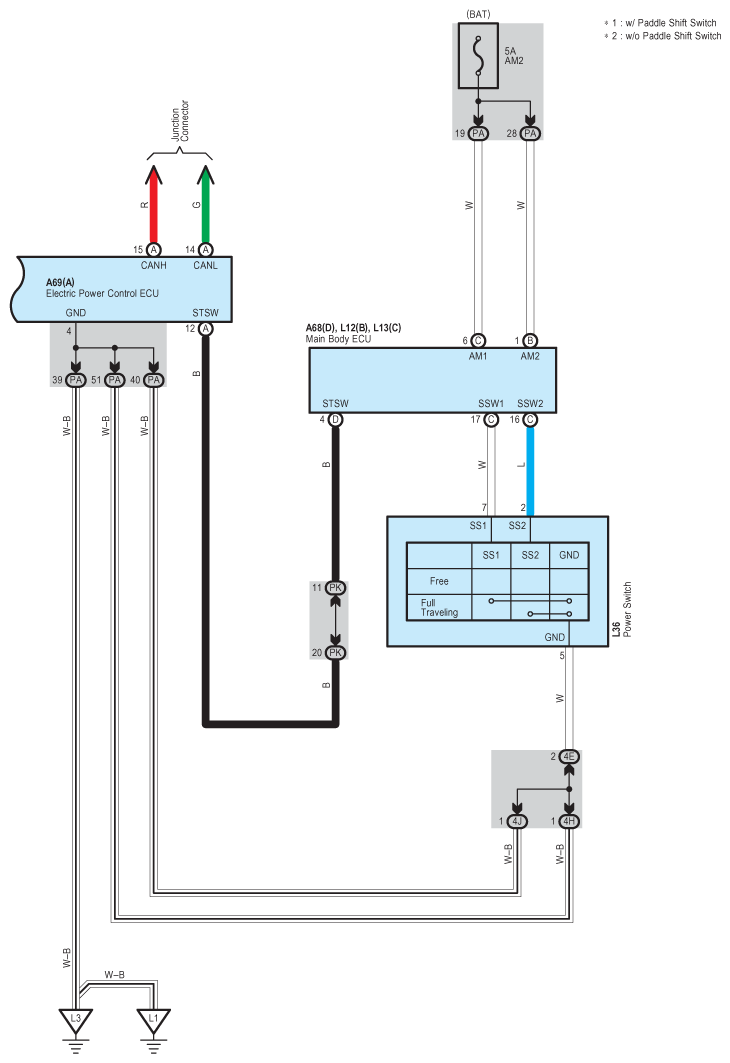

Fig 2: Electric Power Control System - Wiring Diagram (2 Of 2)
G08940625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
