Engine Control: Notes

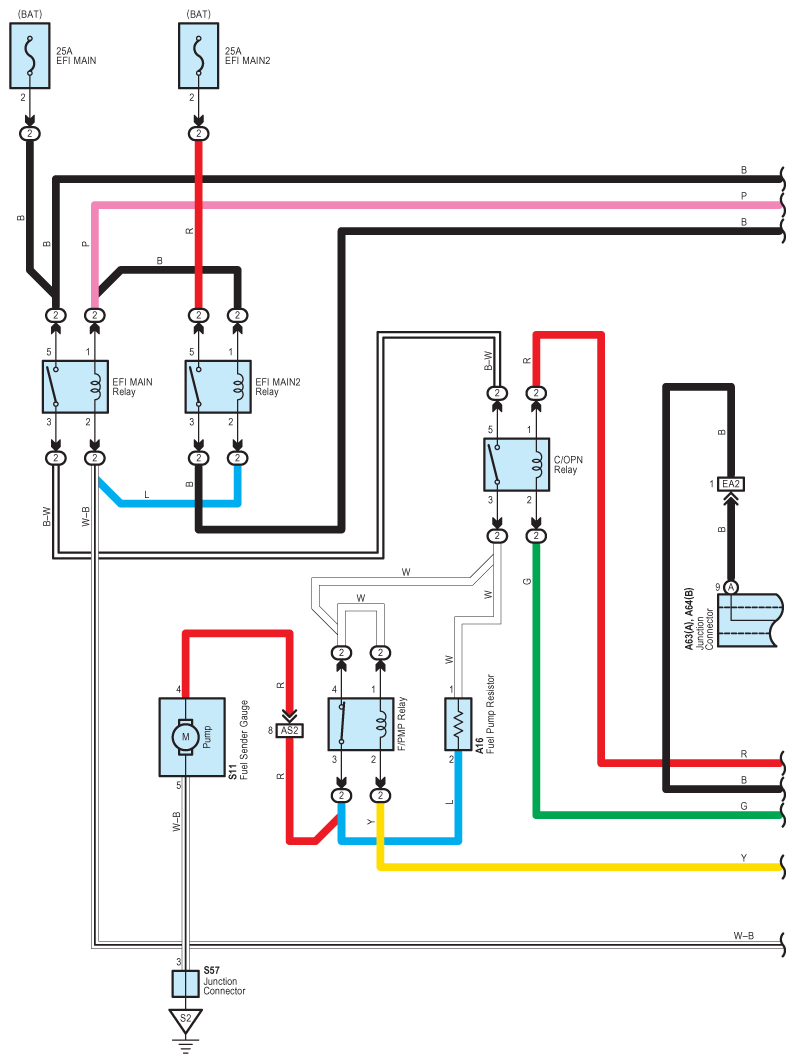

Fig 1: Engine Control - Wiring Diagram (1 Of 25)

G08940585

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

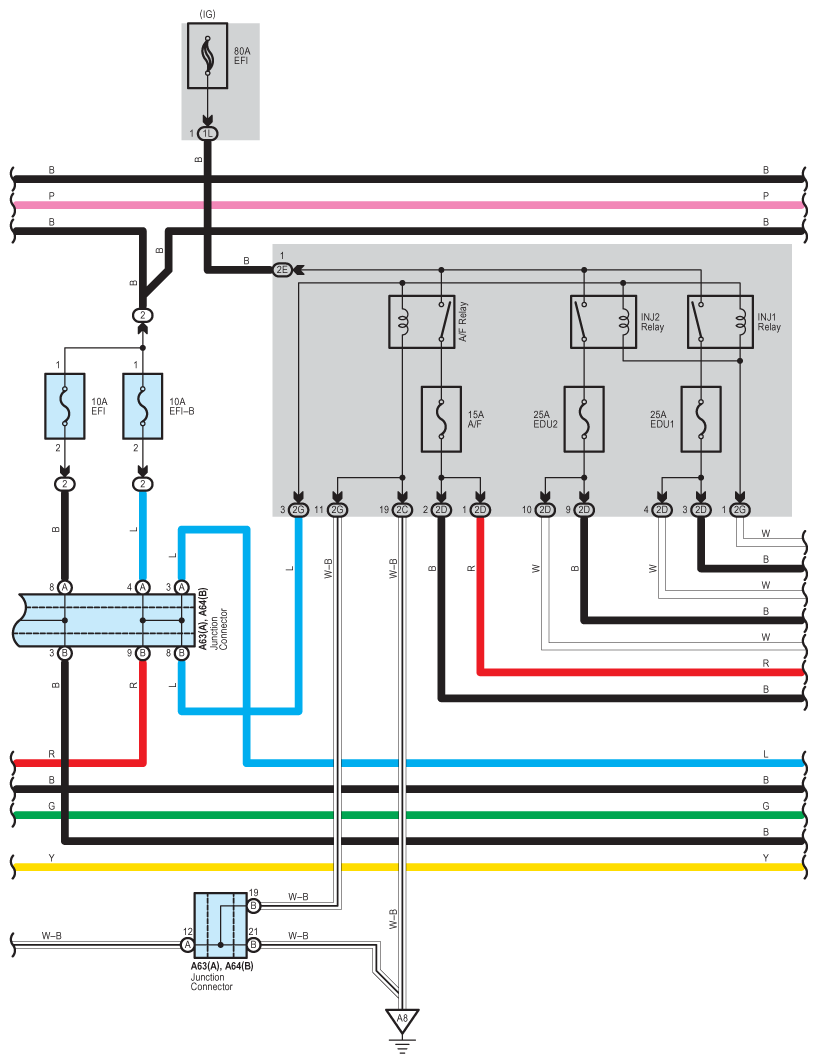

Fig 2: Engine Control - Wiring Diagram (2 Of 25)

G08940586

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

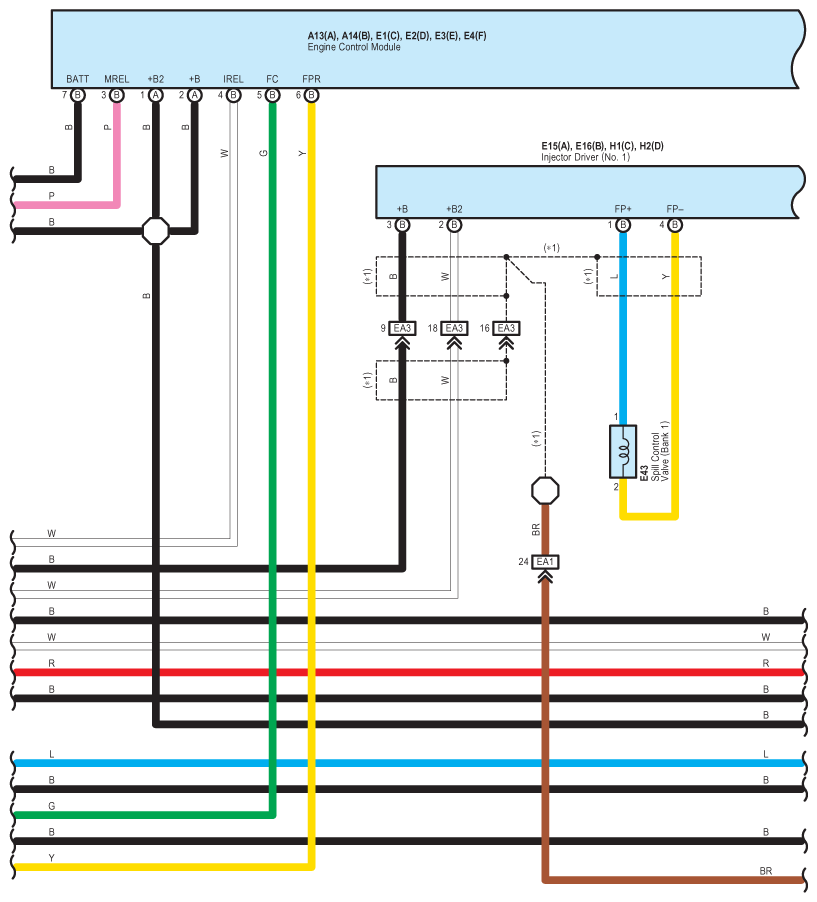

Fig 3: Engine Control - Wiring Diagram (3 Of 25)

G08940587

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

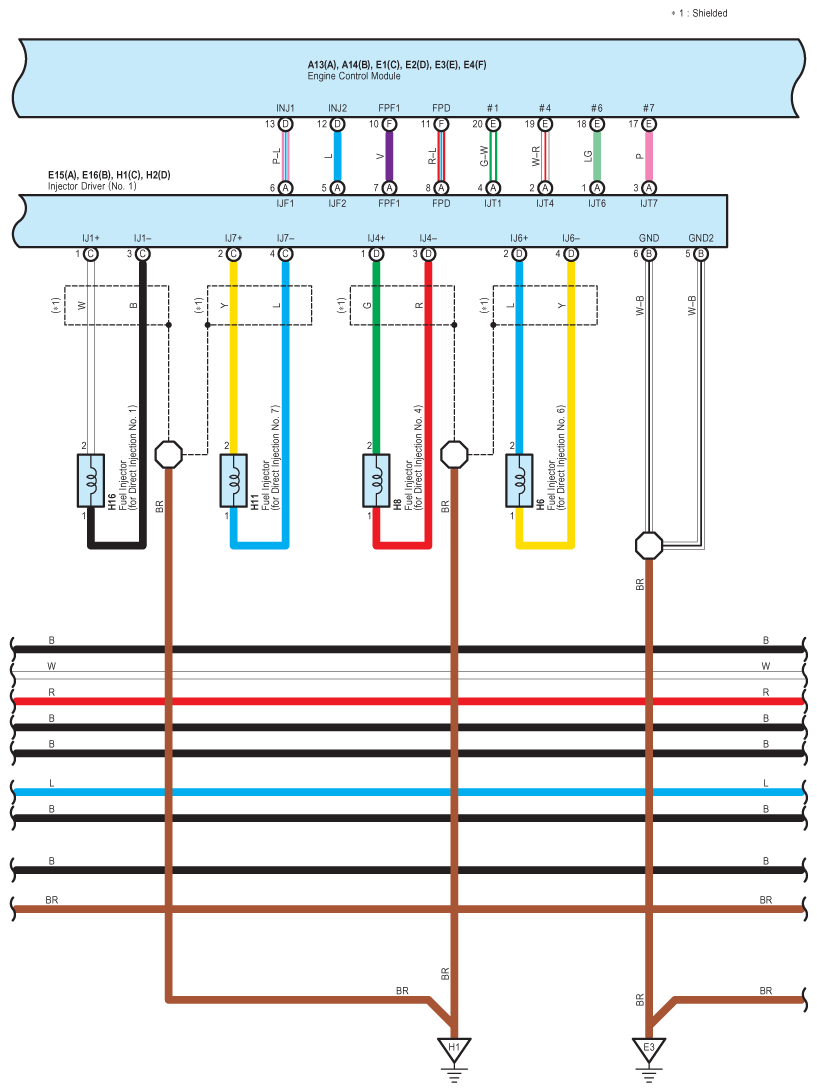

Fig 4: Engine Control - Wiring Diagram (4 Of 25)

G08940588

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

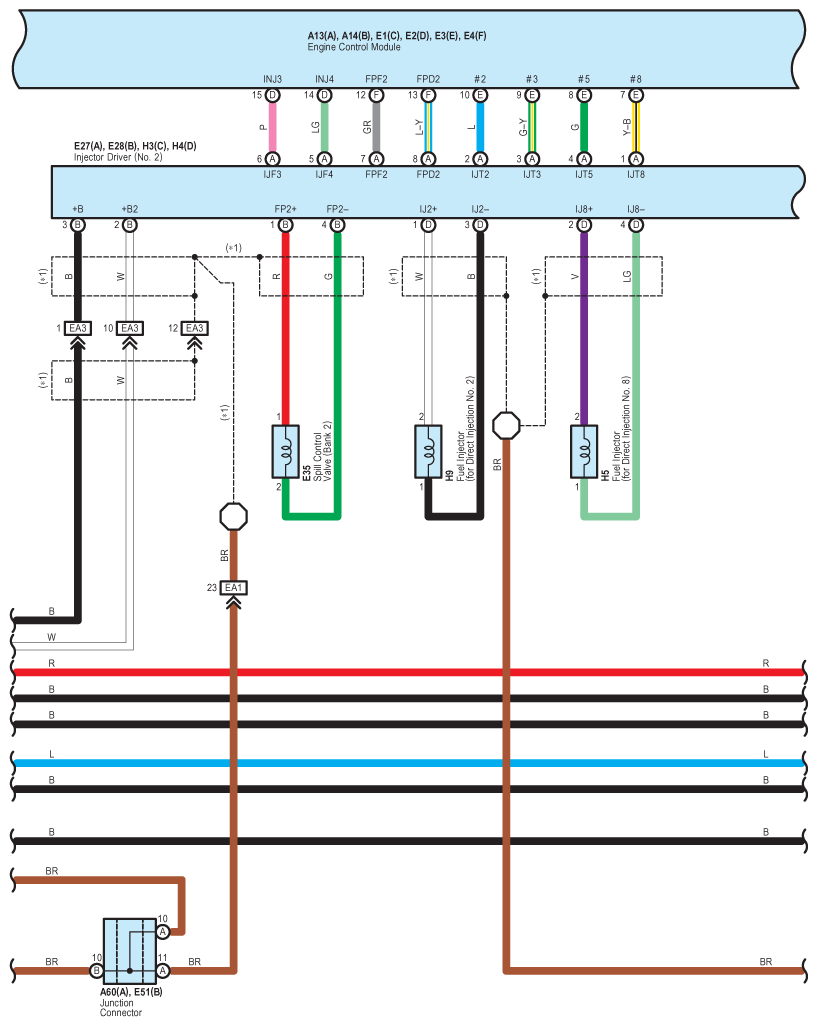

Fig 5: Engine Control - Wiring Diagram (5 Of 25)

G08940589

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

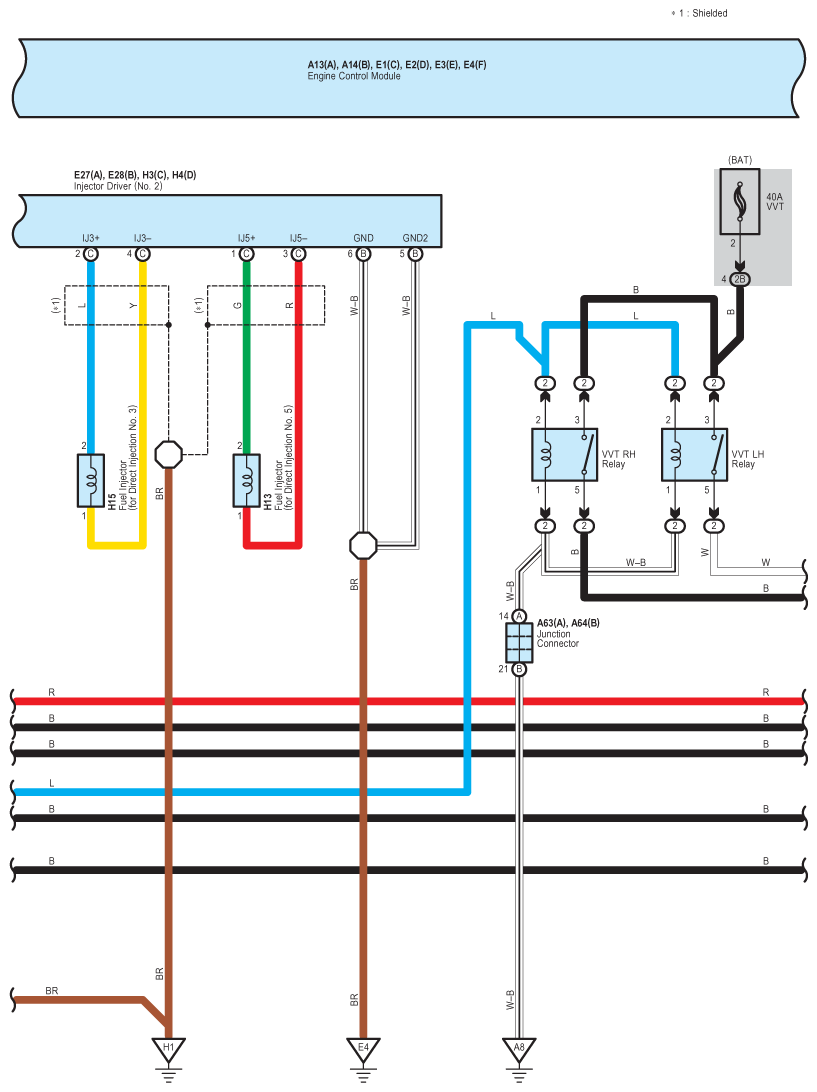

Fig 6: Engine Control - Wiring Diagram (6 Of 25)

G08940590

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

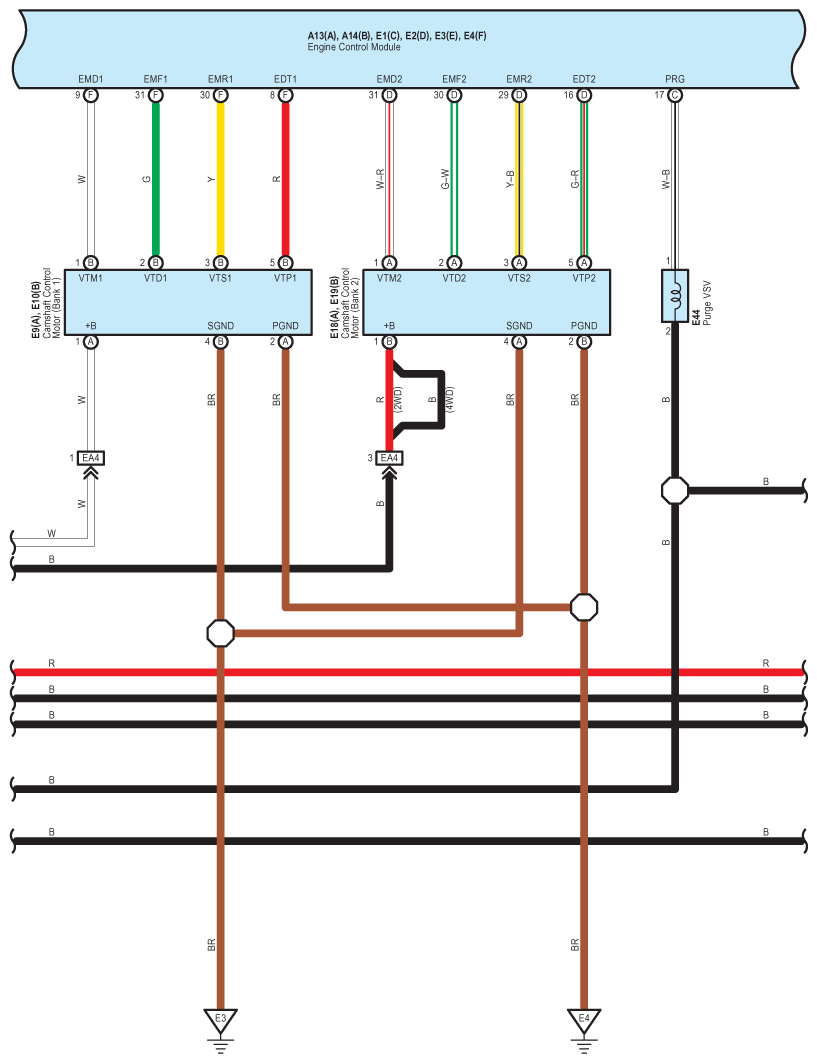

Fig 7: Engine Control - Wiring Diagram (7 Of 25)

G08940591

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

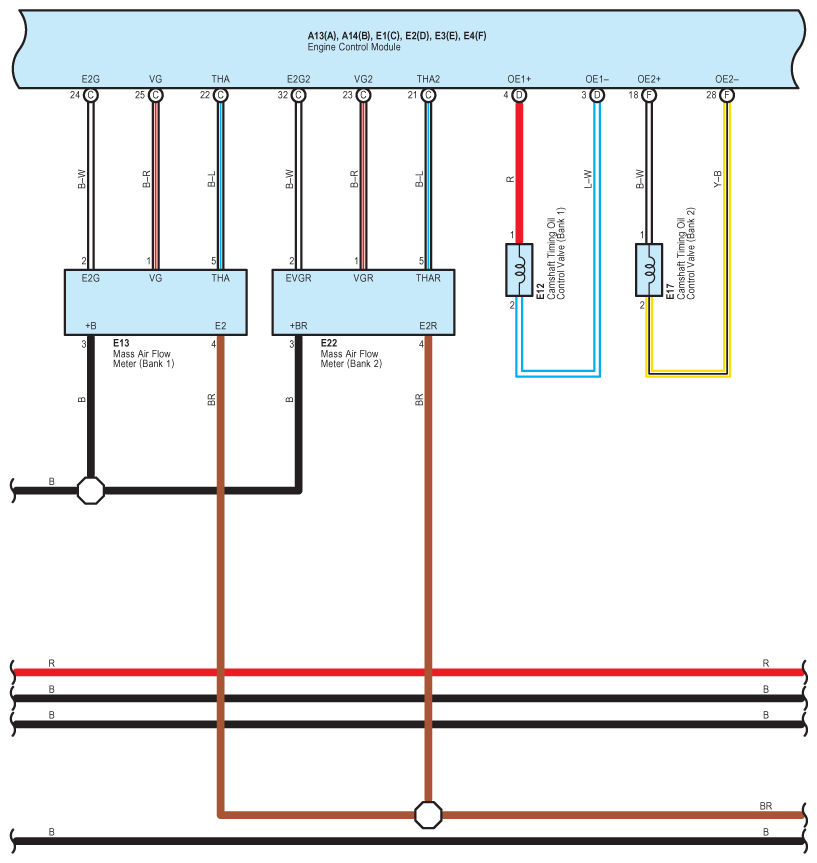

Fig 8: Engine Control - Wiring Diagram (8 Of 25)

G08940592

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

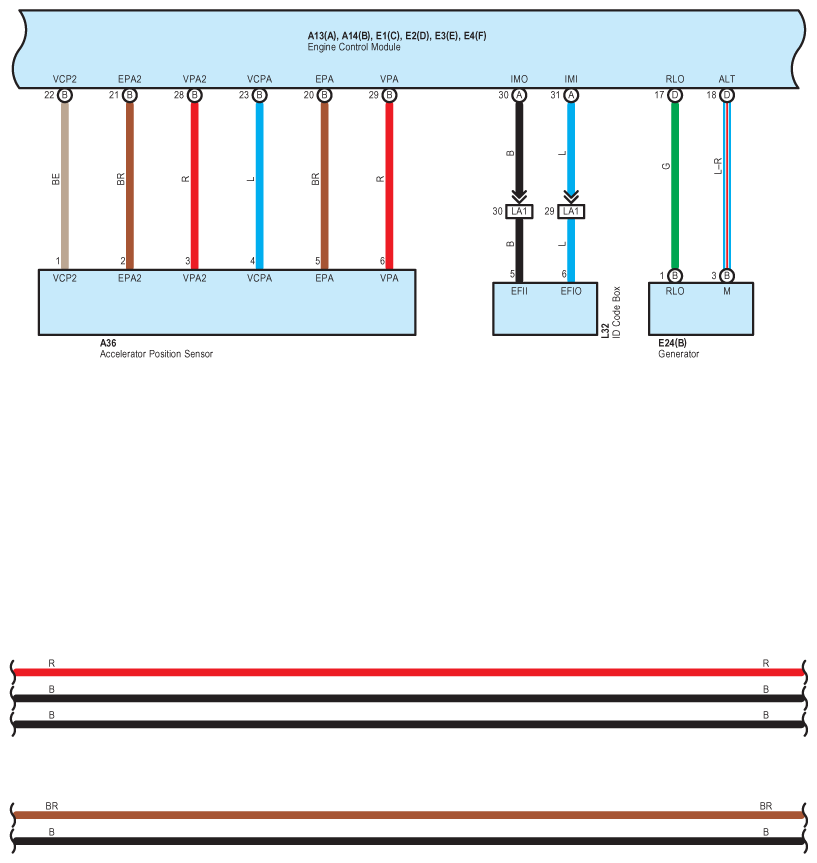

Fig 9: Engine Control - Wiring Diagram (9 Of 25)

G08940593

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

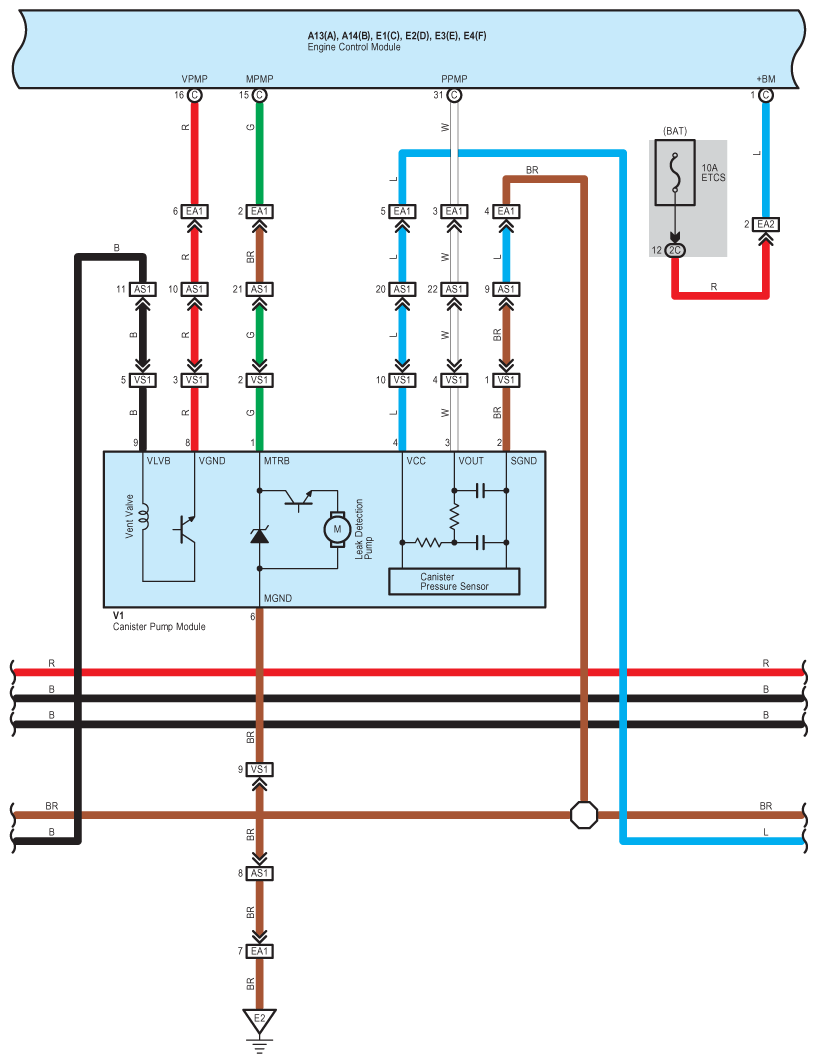

Fig 10: Engine Control - Wiring Diagram (10 Of 25)

G08940594

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

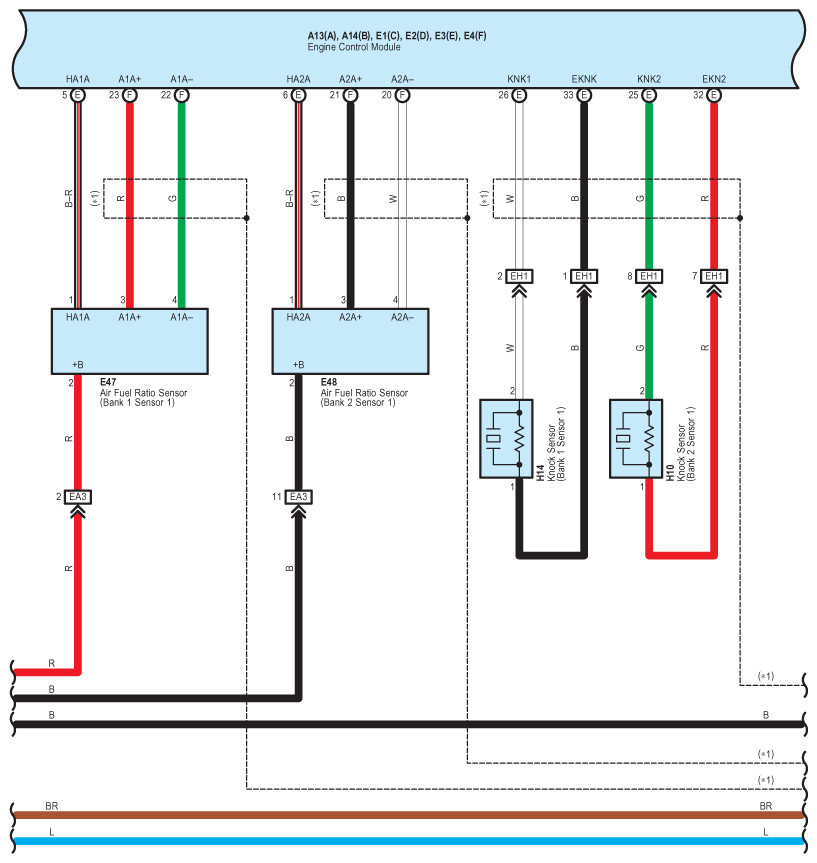

Fig 11: Engine Control - Wiring Diagram (11 Of 25)

G08940595

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

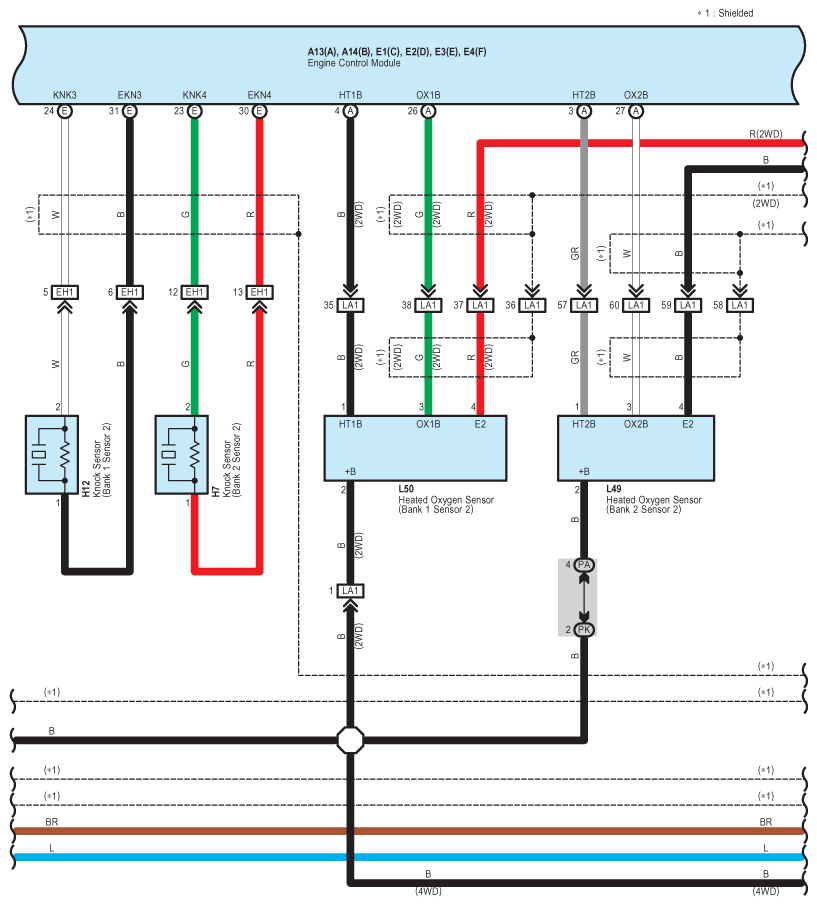

Fig 12: Engine Control - Wiring Diagram (12 Of 25)

G08940596

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

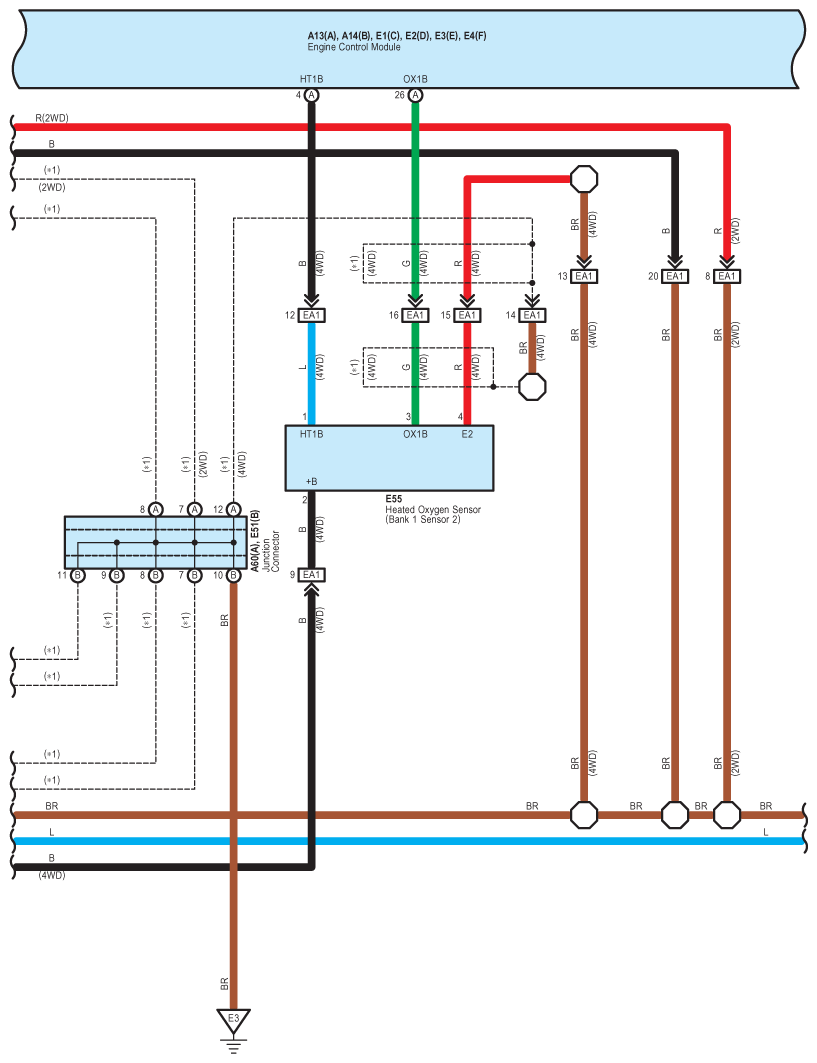

Fig 13: Engine Control - Wiring Diagram (13 Of 25)

G08940597

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

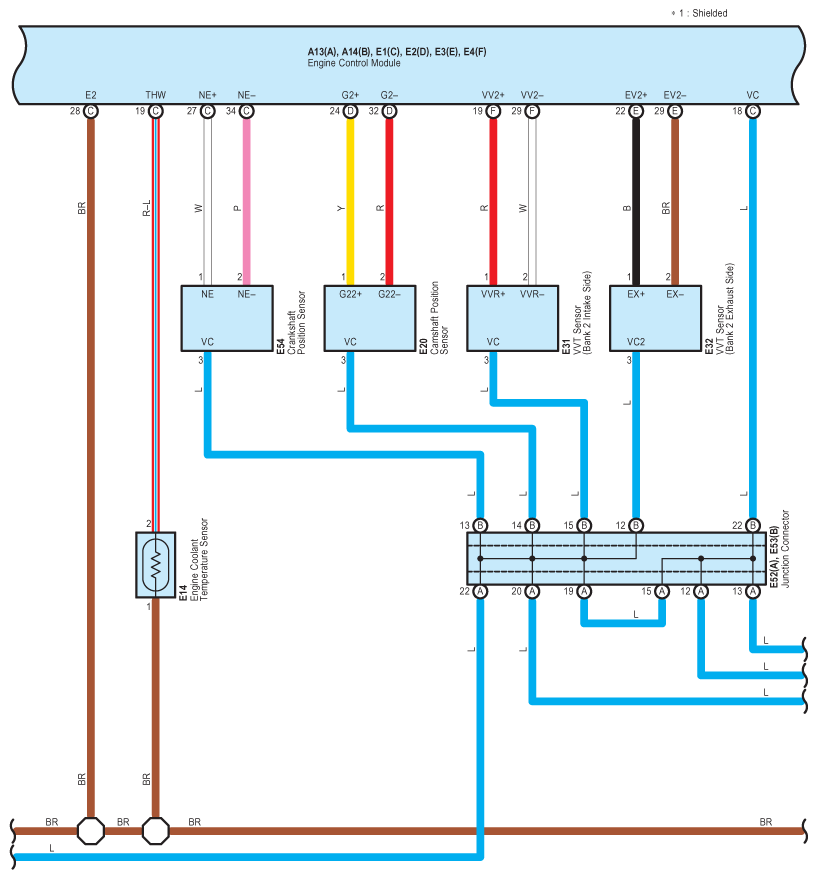

Fig 14: Engine Control - Wiring Diagram (14 Of 25)

G08940598

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

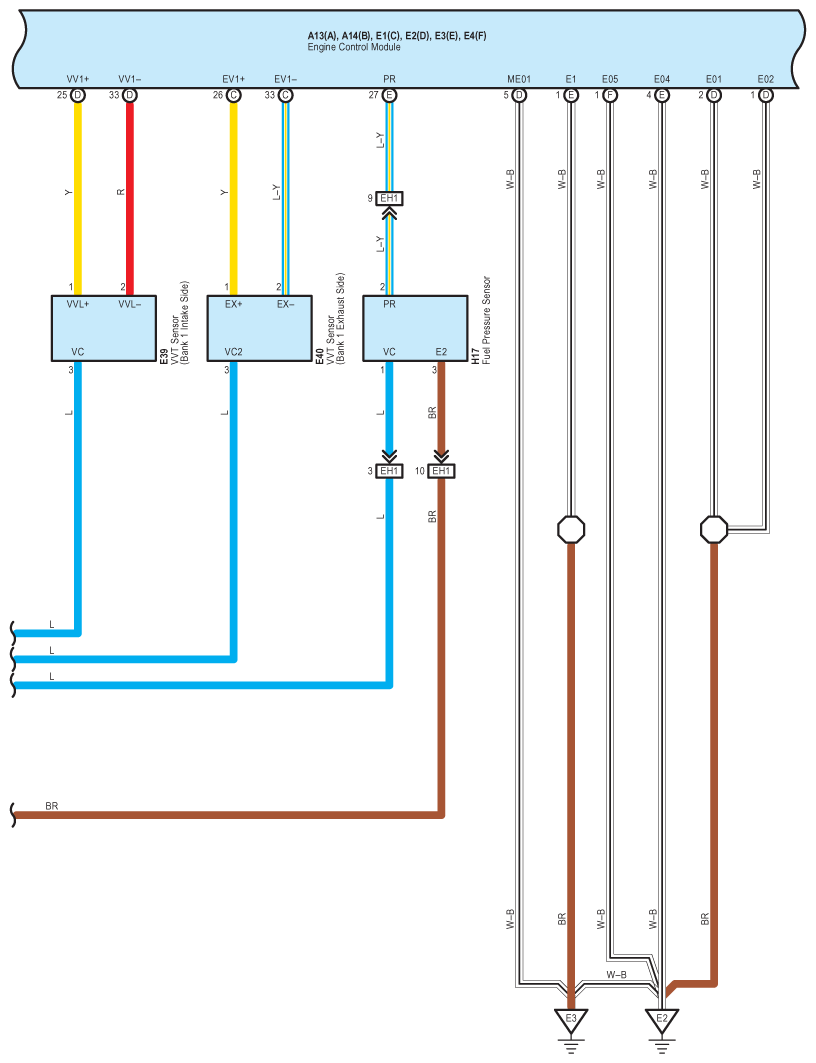

Fig 15: Engine Control - Wiring Diagram (15 Of 25)

G08940599

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

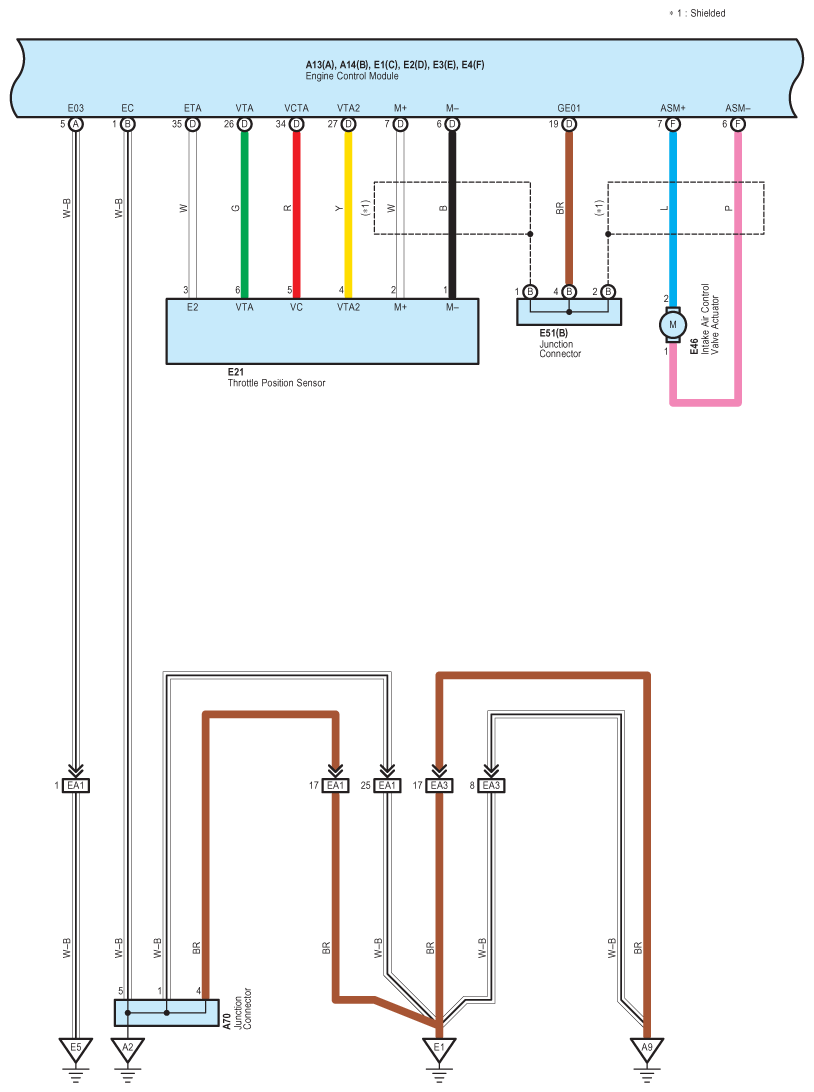

Fig 16: Engine Control - Wiring Diagram (16 Of 25)

G08940600

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

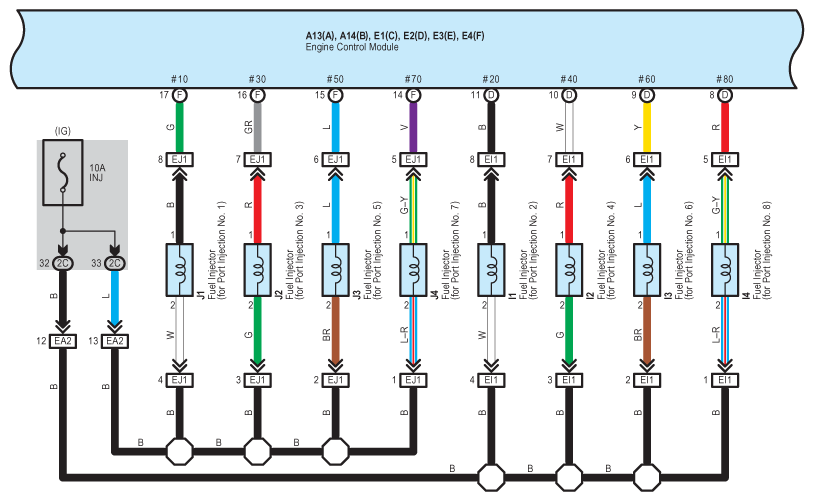

Fig 17: Engine Control - Wiring Diagram (17 Of 25)

G08940601

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

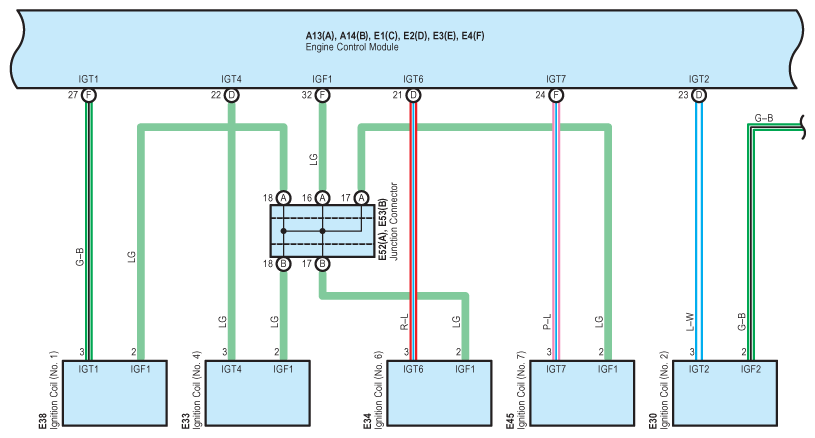

Fig 18: Engine Control - Wiring Diagram (18 Of 25)

G08940602

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

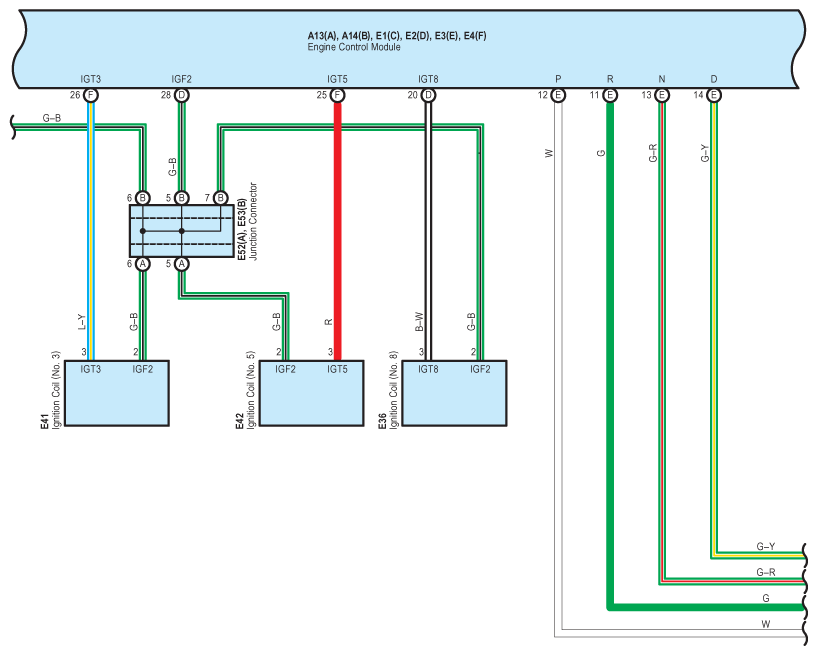

Fig 19: Engine Control - Wiring Diagram (19 Of 25)

G08940603

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

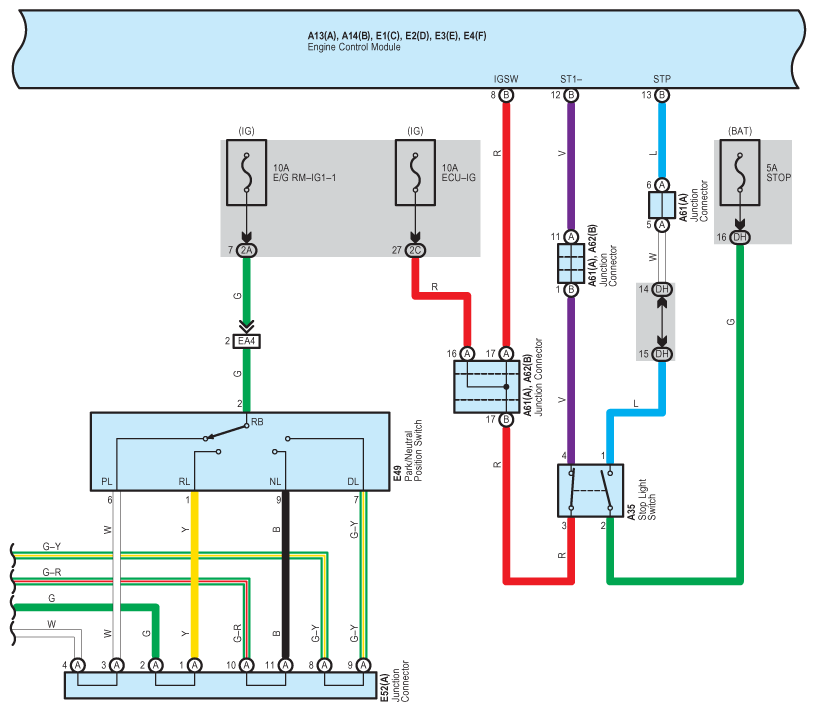

Fig 20: Engine Control - Wiring Diagram (20 Of 25)

G08940604

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

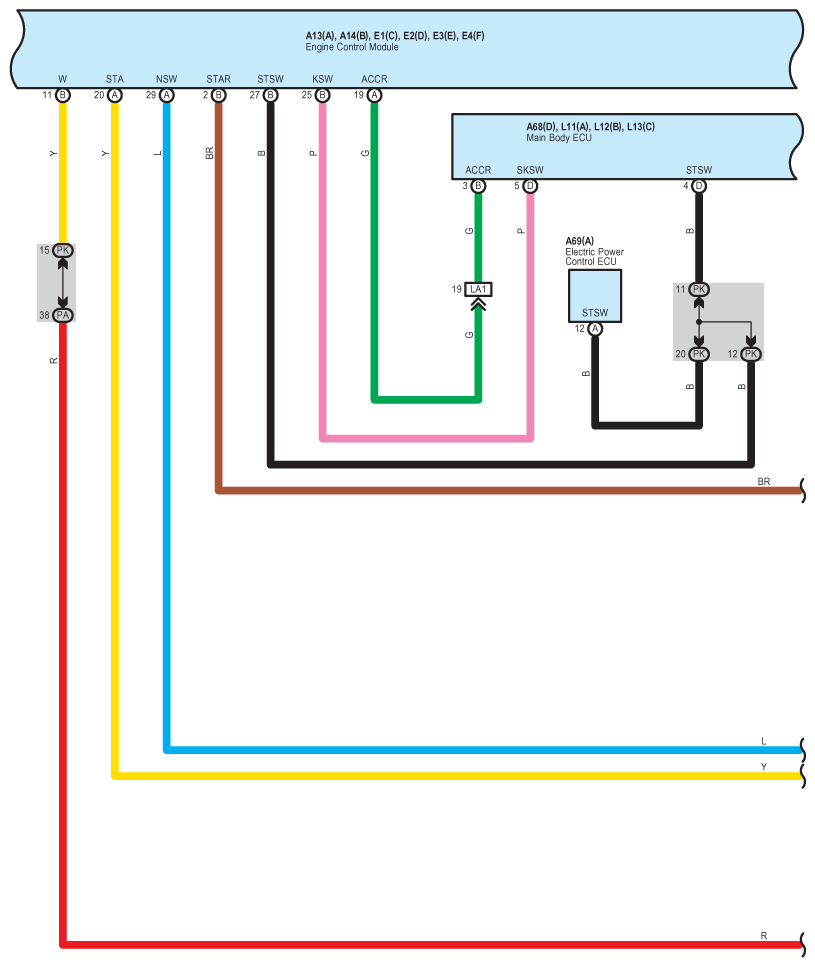

Fig 21: Engine Control - Wiring Diagram (21 Of 25)

G08940605

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

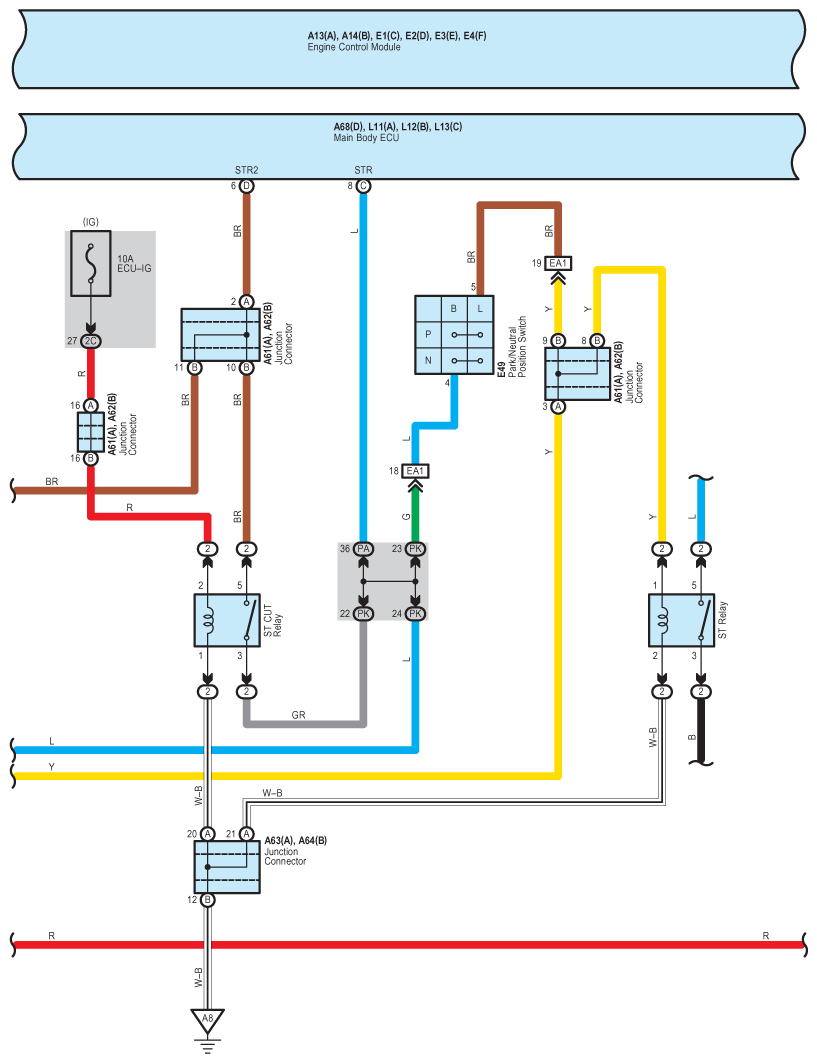

Fig 22: Engine Control - Wiring Diagram (22 Of 25)

G08940606

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

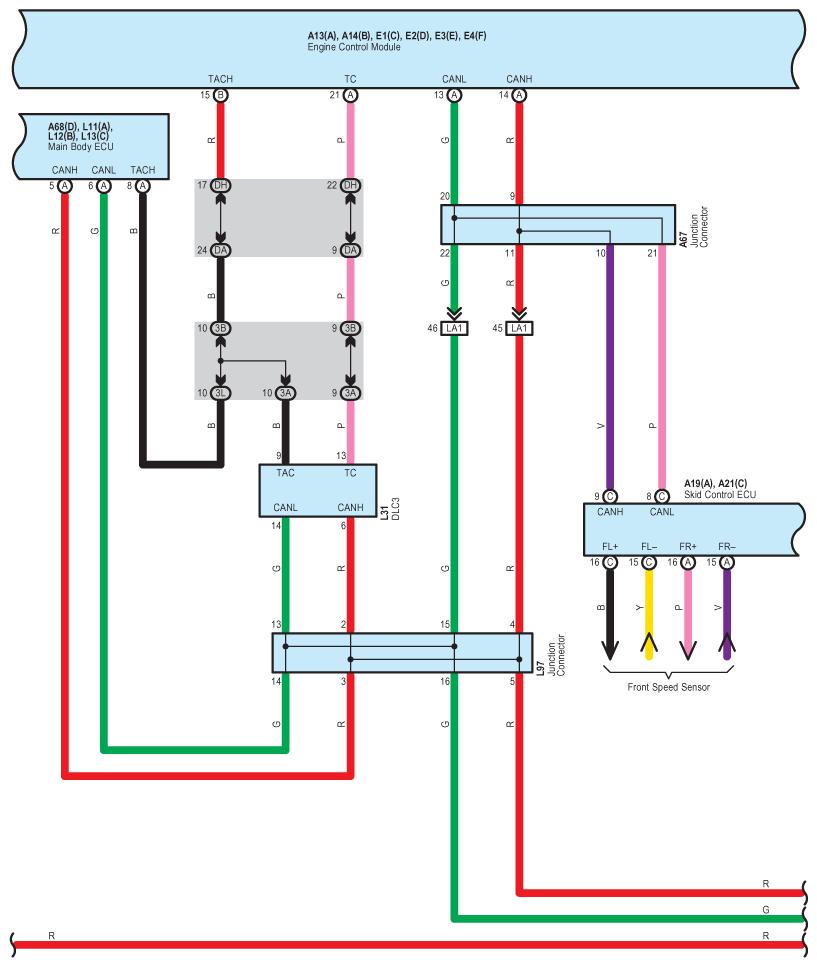

Fig 23: Engine Control - Wiring Diagram (23 Of 25)

G08940607

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

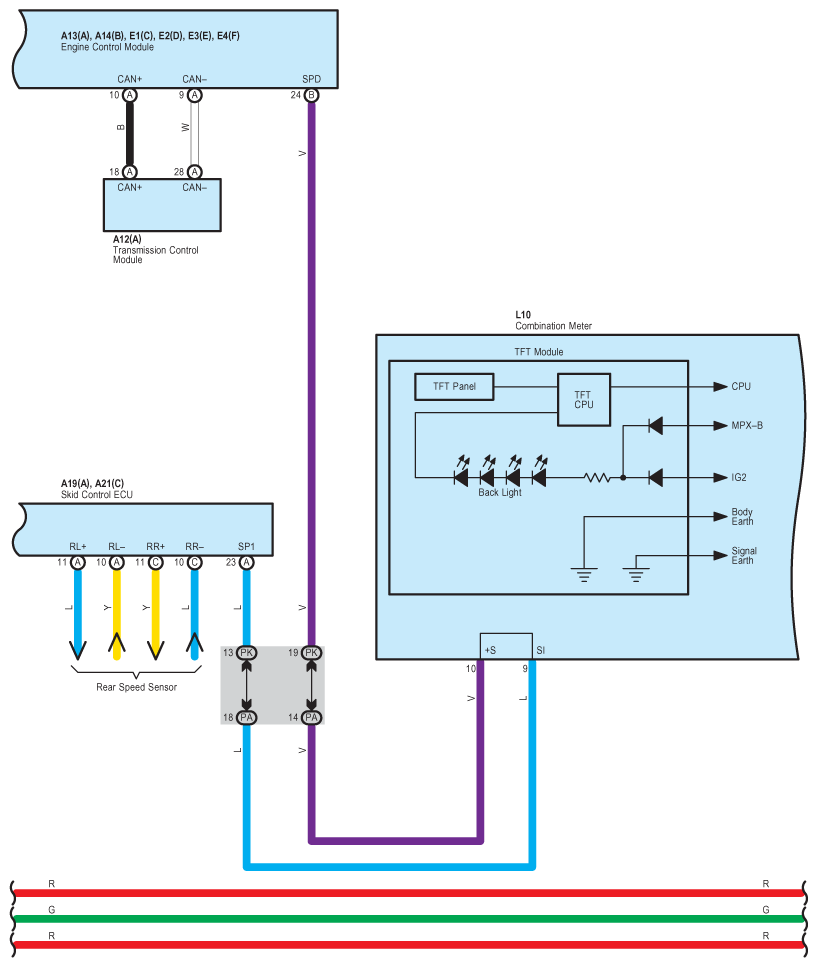

Fig 24: Engine Control - Wiring Diagram (24 Of 25)

G08940608

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

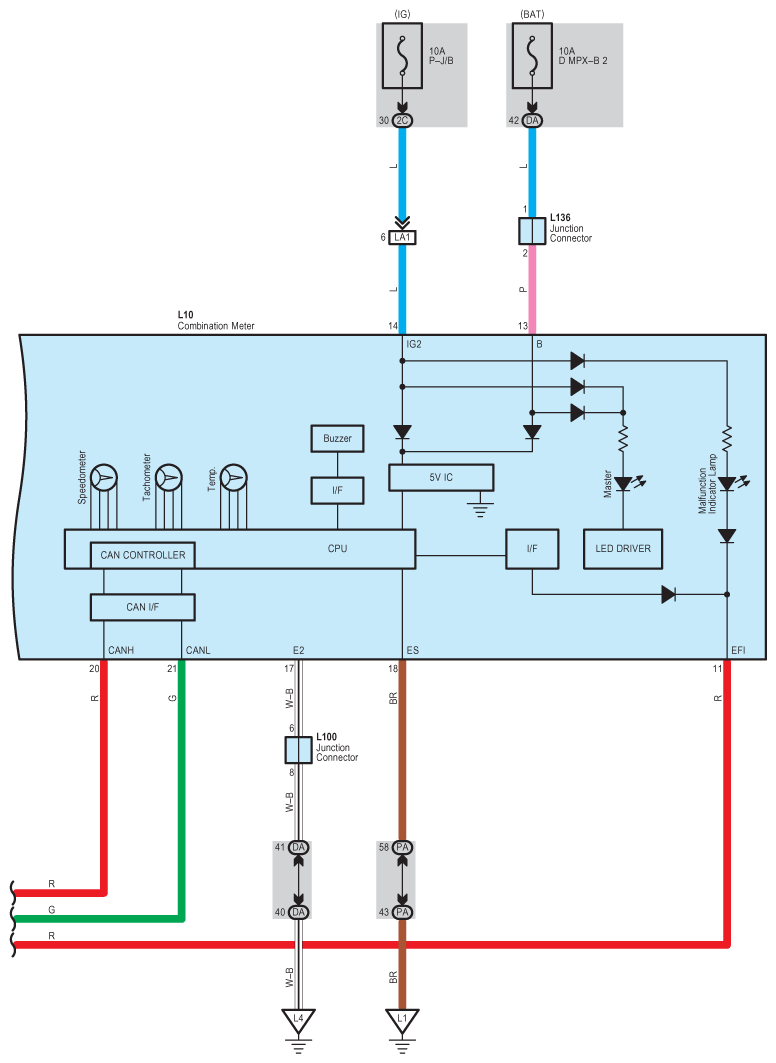

Fig 25: Engine Control - Wiring Diagram (25 Of 25)

G08940609

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
