Fog Light: Notes

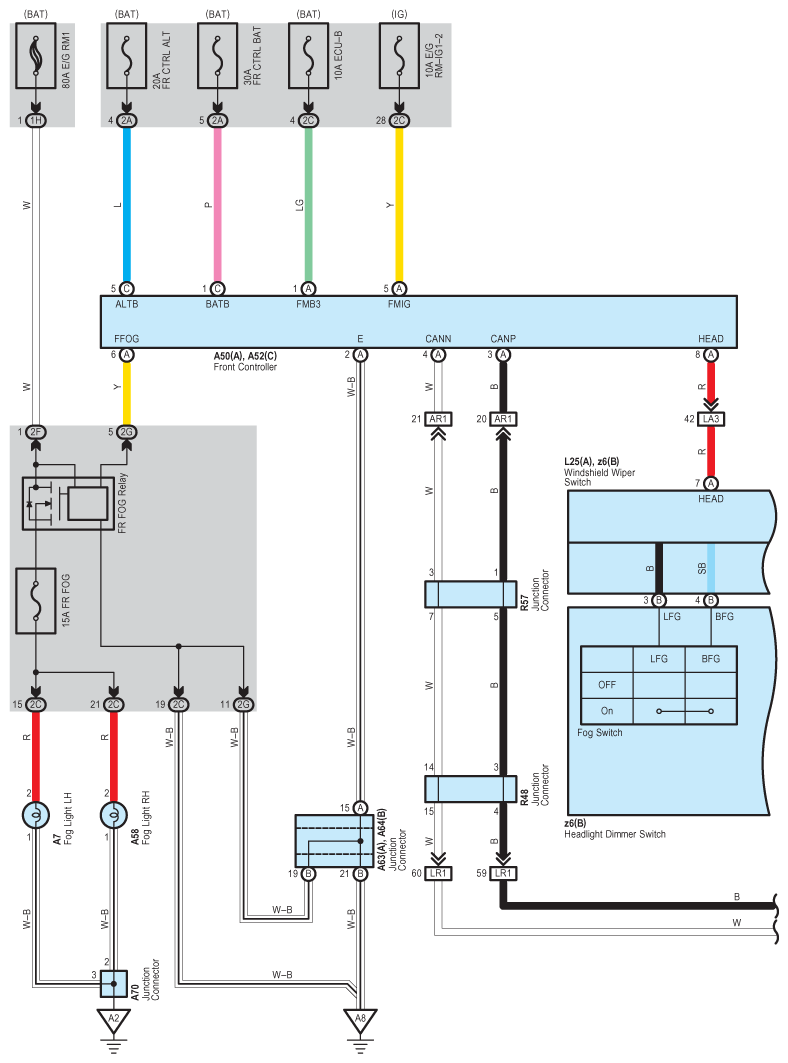

Fig 1: Fog Light - Wiring Diagram (1 Of 3)
G08940674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Fog Light - Wiring Diagram (2 Of 3)
G08940675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

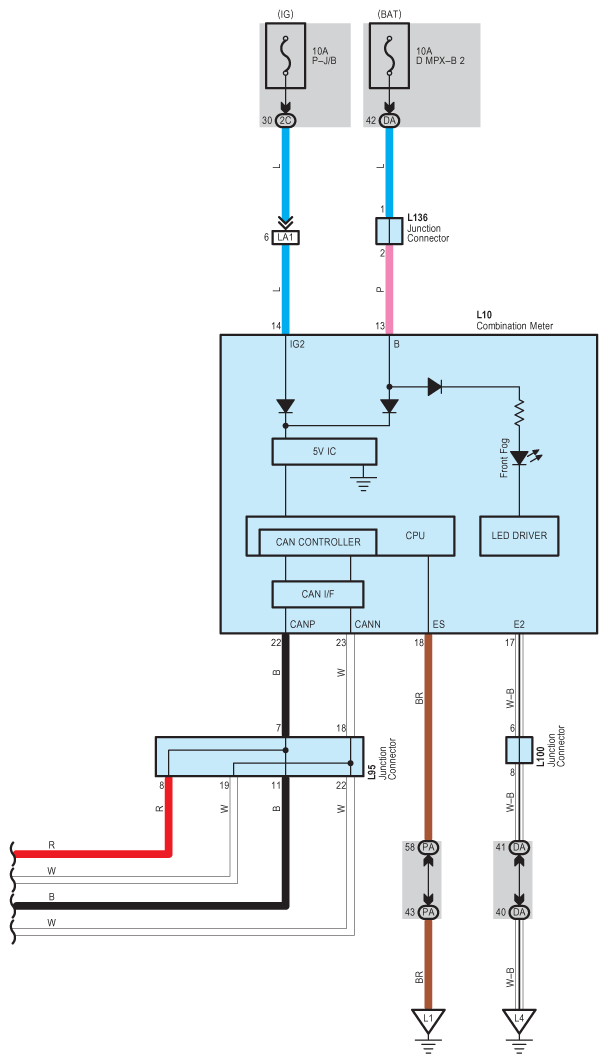

Fig 3: Fog Light - Wiring Diagram (3 Of 3)
G08940676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
