OEM System Circuits: Headlight: Notes

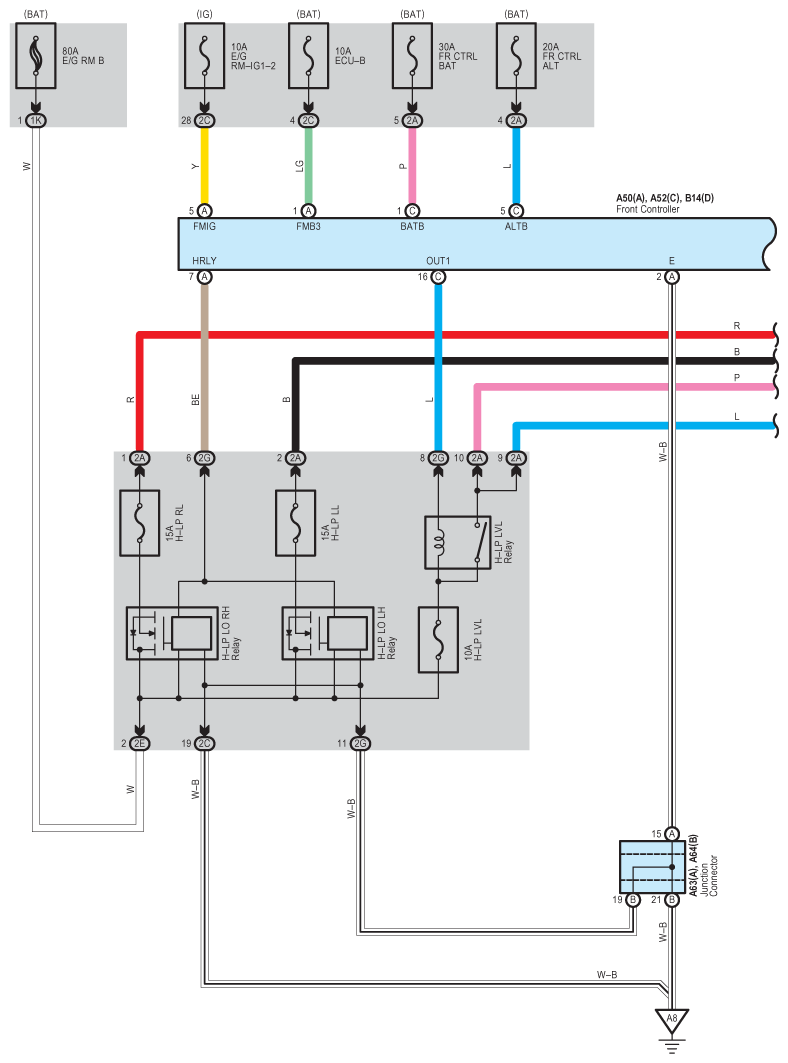

Fig 1: Headlight - Wiring Diagram (1 Of 9)

G08940626

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

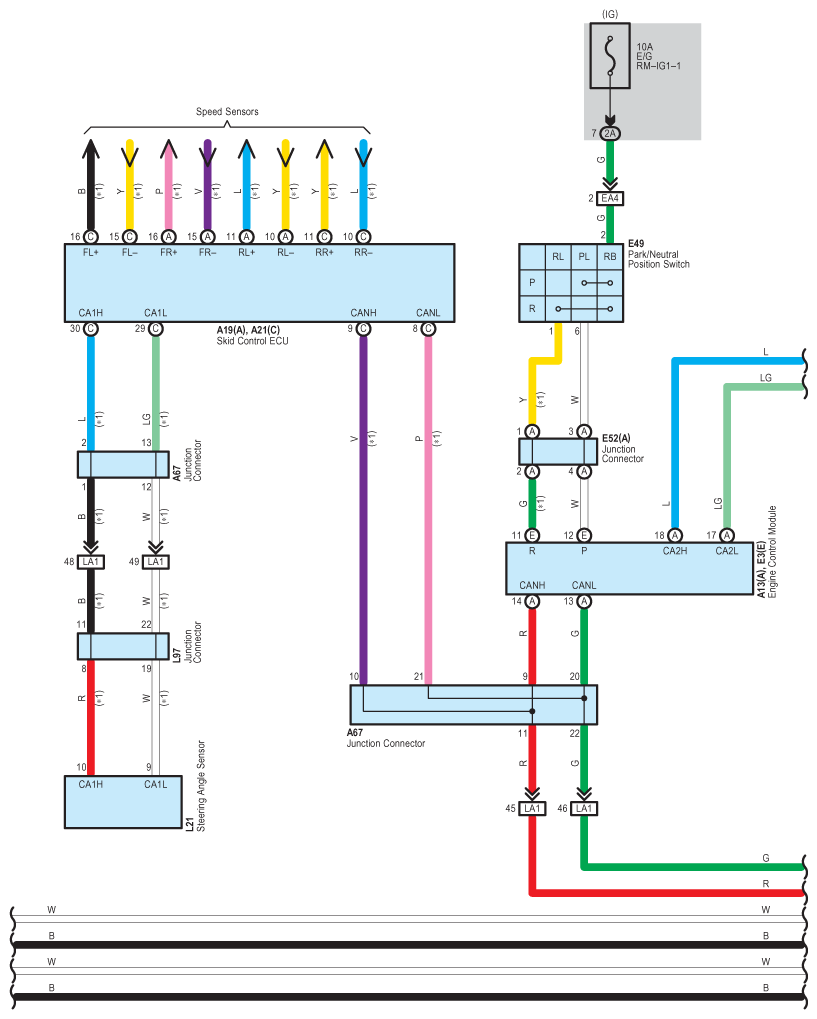

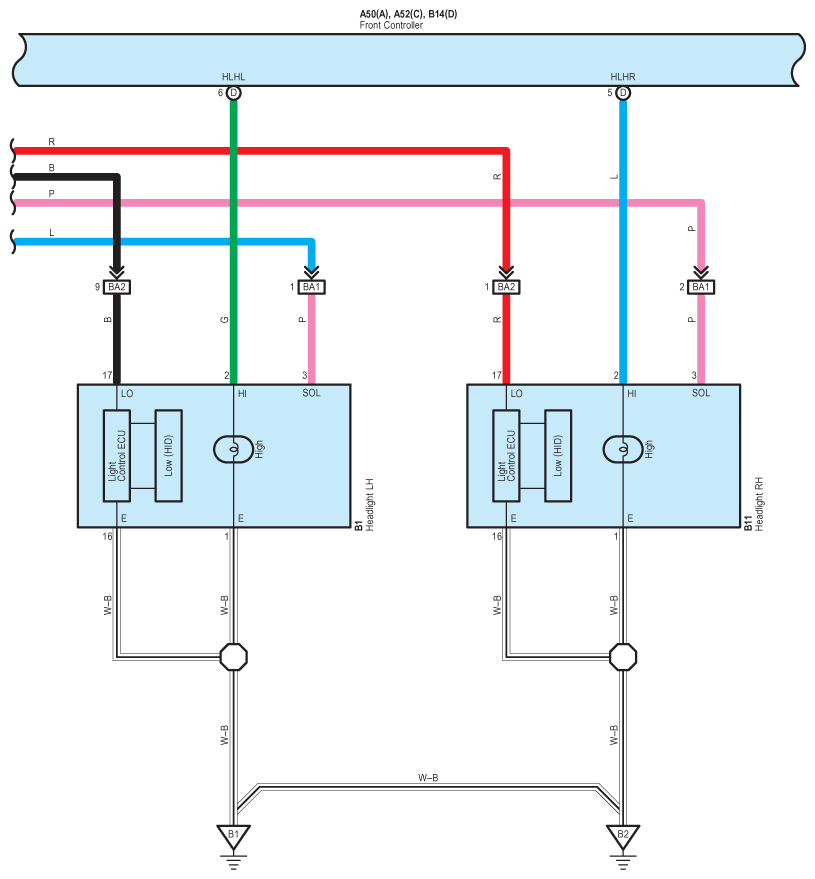

Fig 2: Headlight - Wiring Diagram (2 Of 9)

G08940627

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

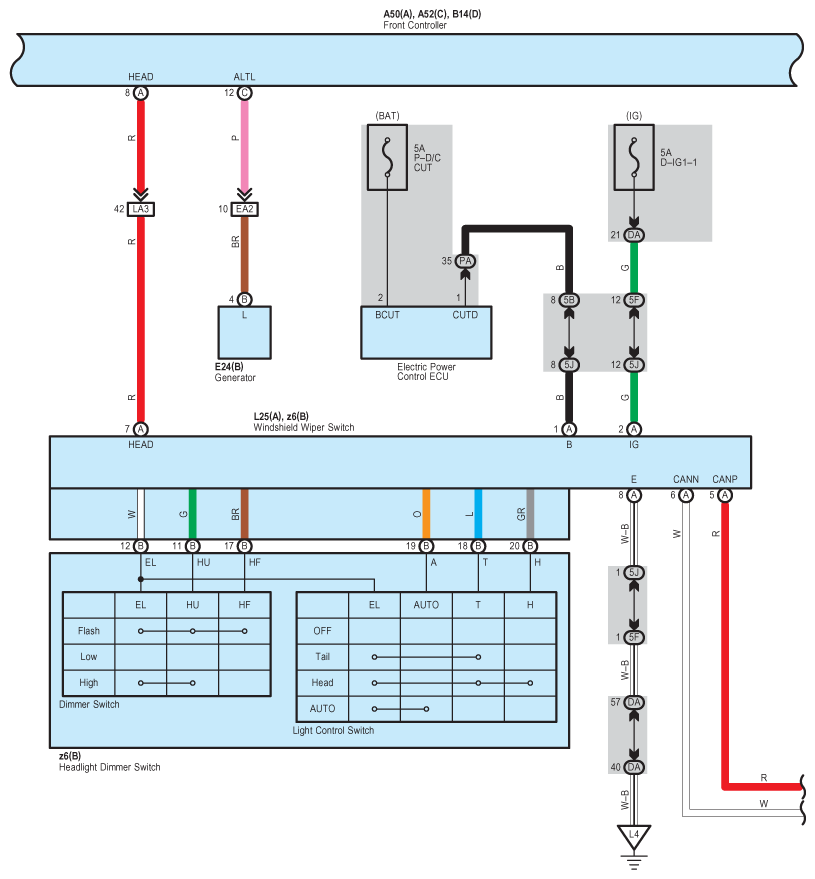

Fig 3: Headlight - Wiring Diagram (3 Of 9)

G08940628

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

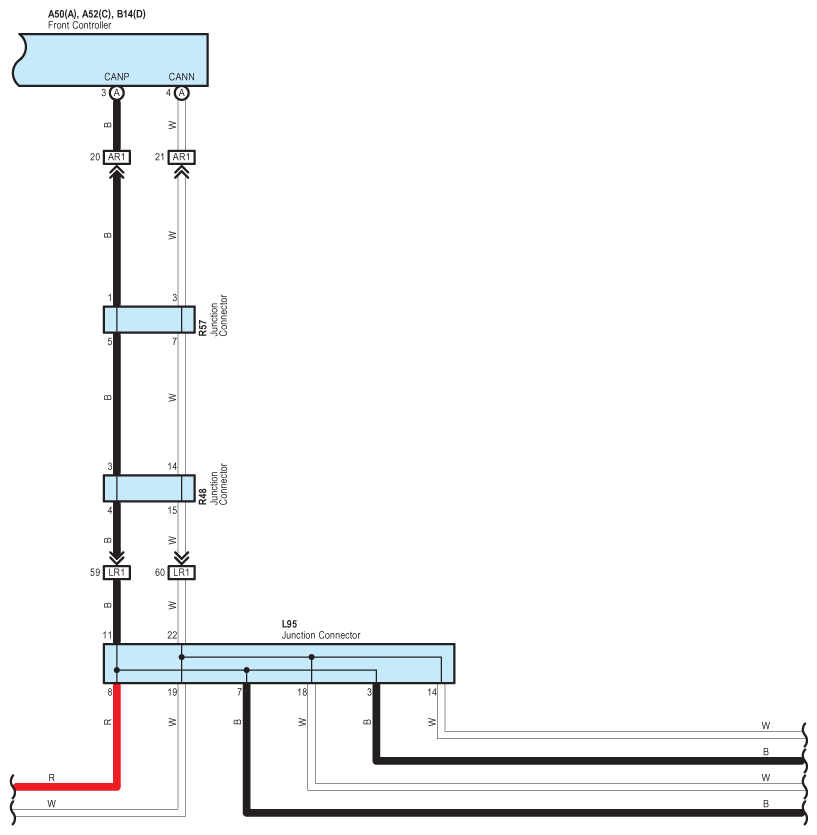

Fig 4: Headlight - Wiring Diagram (4 Of 9)

G08940629

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Headlight - Wiring Diagram (5 Of 9)

G08940630

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

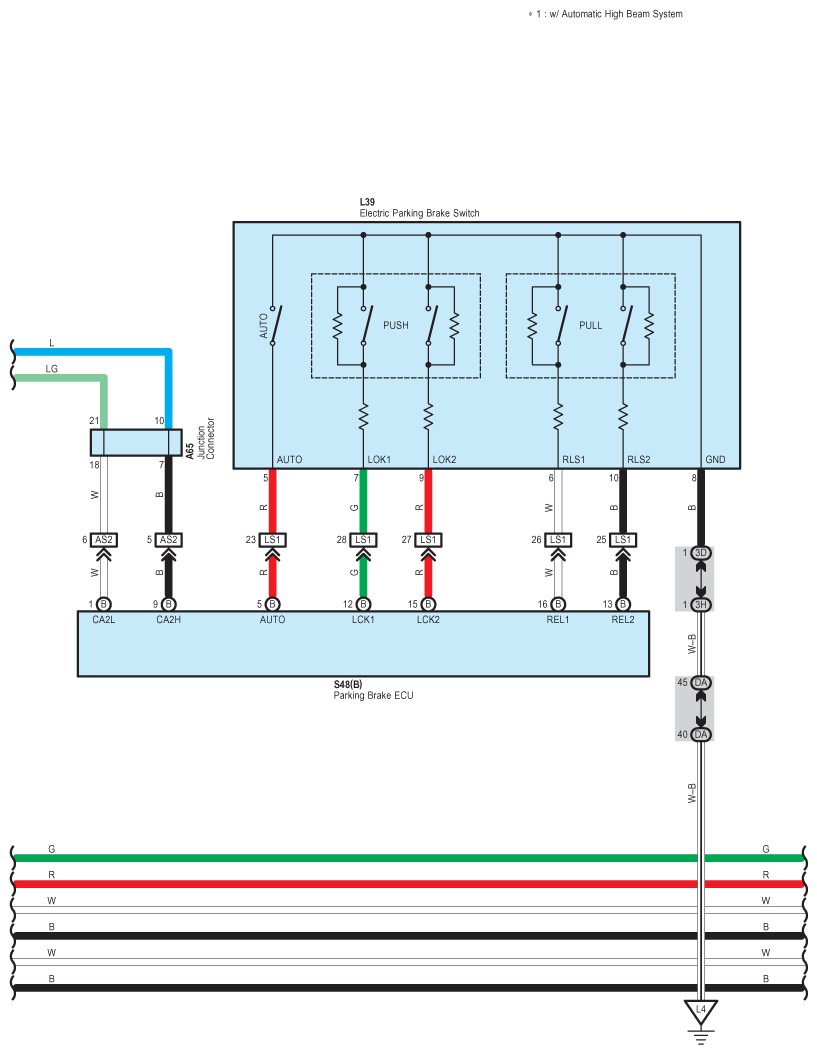

Fig 6: Headlight - Wiring Diagram (6 Of 9)

G08940631

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

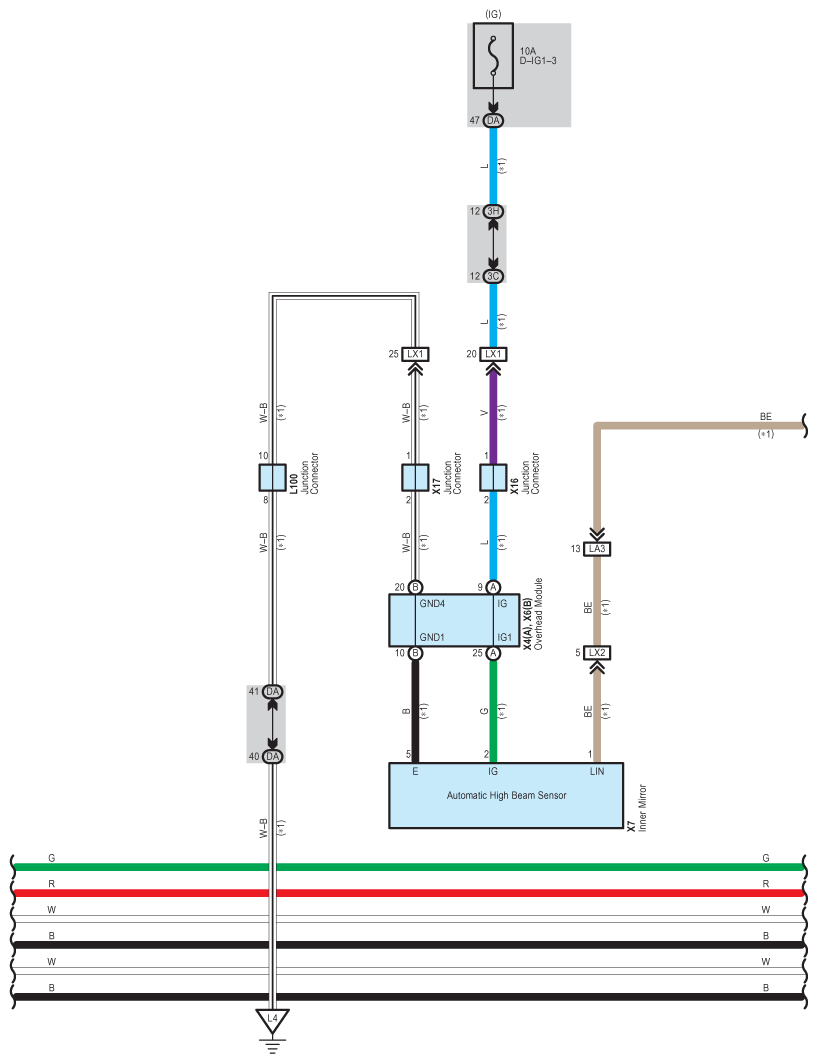

Fig 7: Headlight - Wiring Diagram (7 Of 9)

G08940632

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

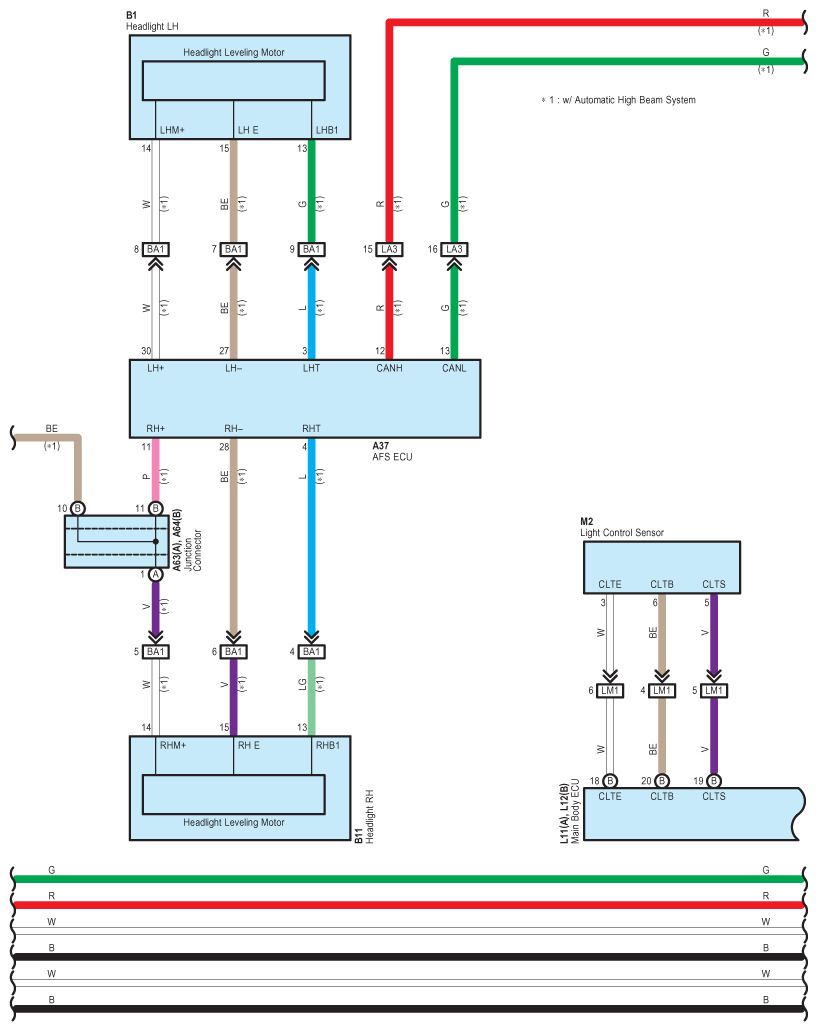

Fig 8: Headlight - Wiring Diagram (8 Of 9)

G08940633

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

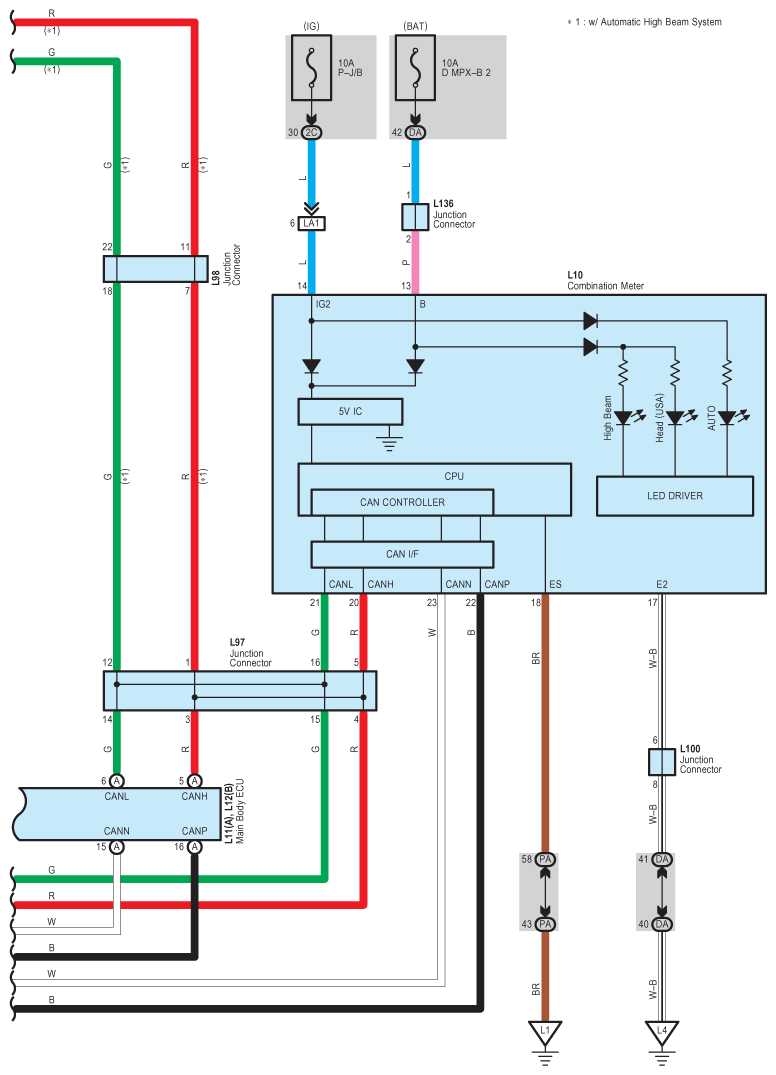

Fig 9: Headlight - Wiring Diagram (9 Of 9)

G08940634

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
