Heated Steering Wheel System: Notes

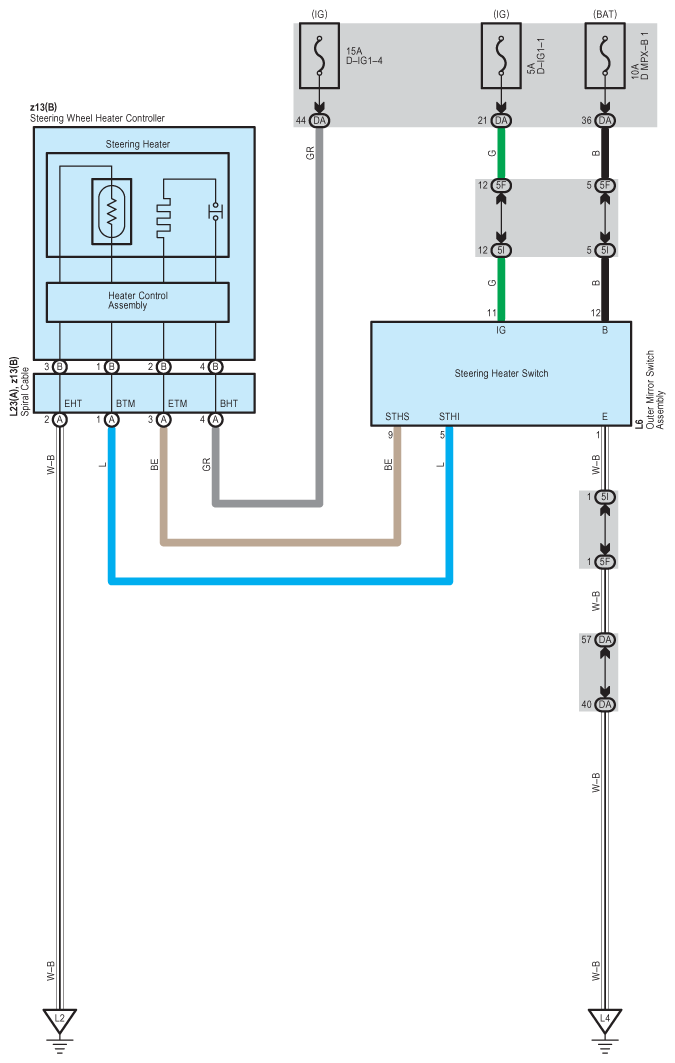

Fig 1: Heated Steering Wheel System - Wiring Diagram
G08940928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
