OEM System Circuits: Ignition: Notes

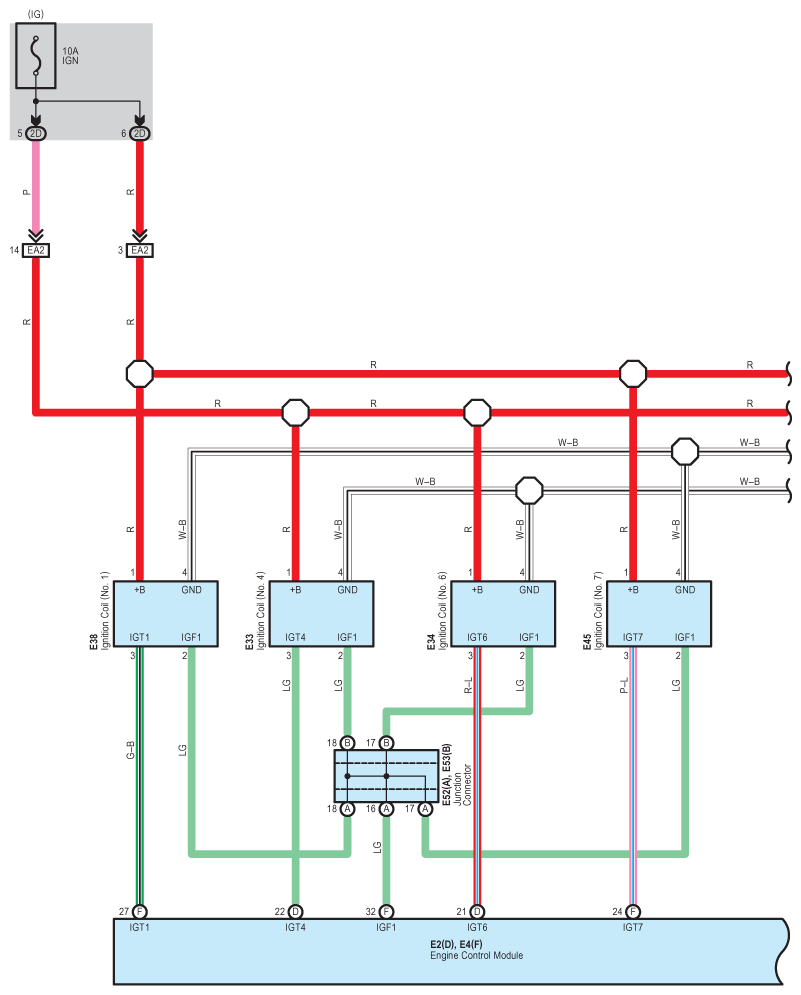

Fig 1: Ignition - Wiring Diagram (1 Of 2)
G08940580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

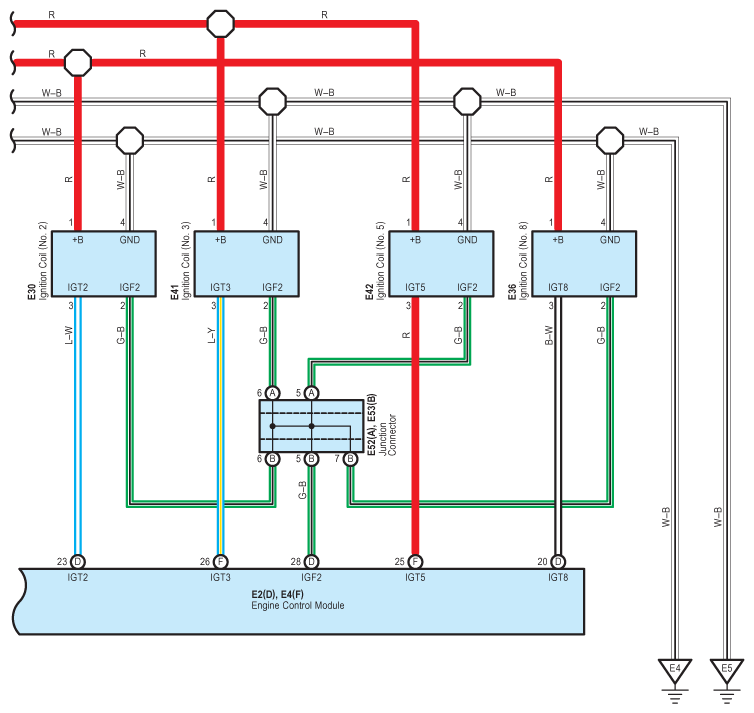

Fig 2: Ignition - Wiring Diagram (2 Of 2)
G08940581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
