OEM System Circuits: Illumination: Notes

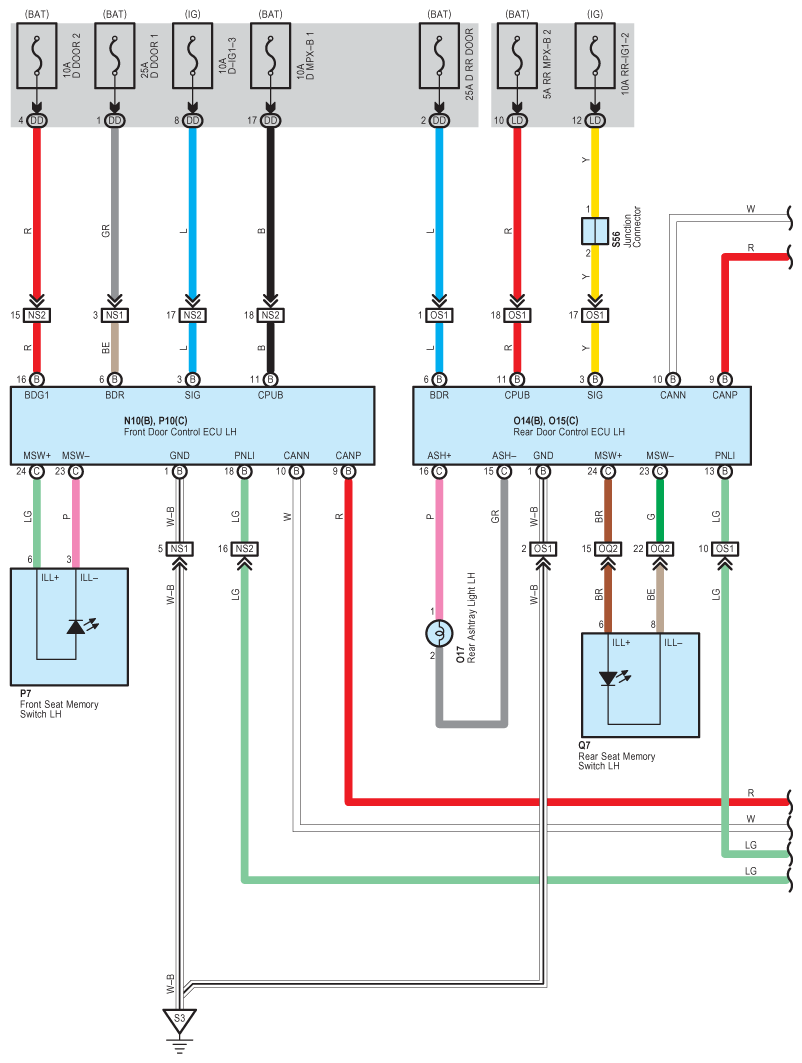

Fig 1: Illumination - Wiring Diagram (1 Of 16)

G08940649

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

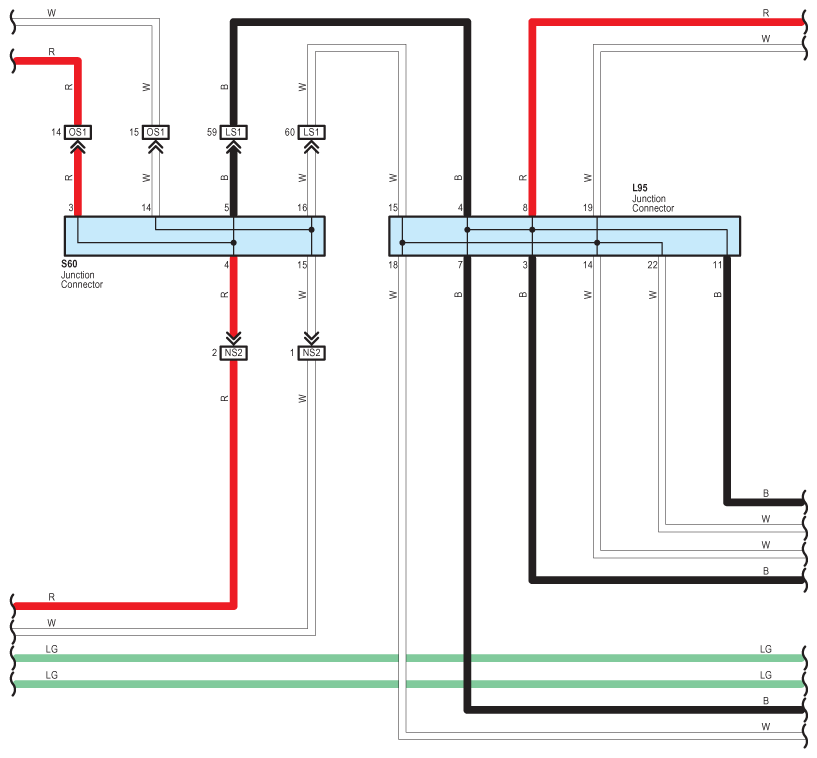

Fig 2: Illumination - Wiring Diagram (2 Of 16)

G08940650

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

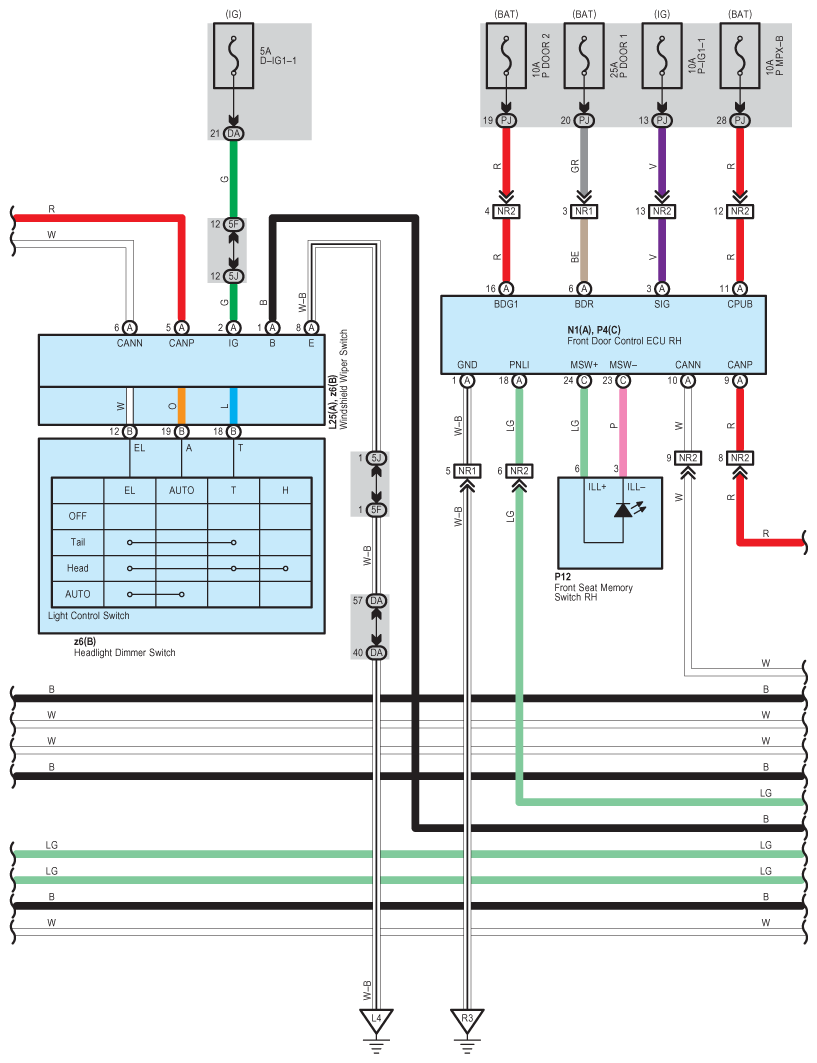

Fig 3: Illumination - Wiring Diagram (3 Of 16)

G08940651

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

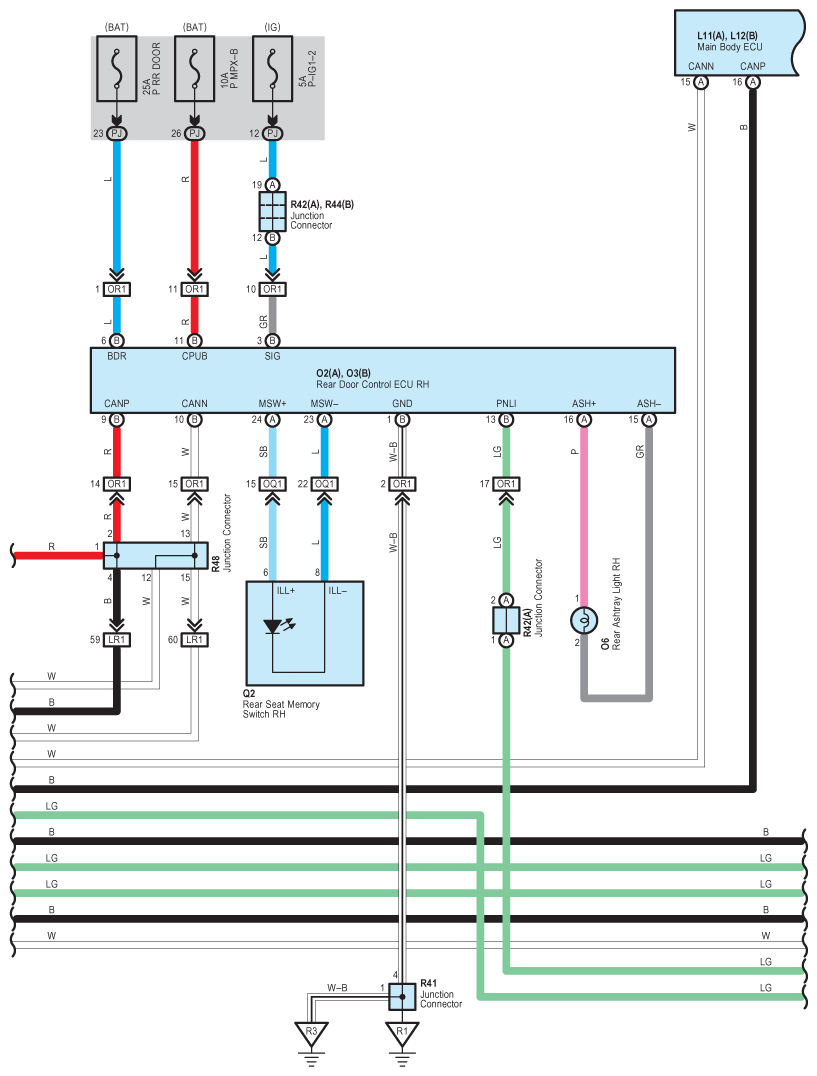

Fig 4: Illumination - Wiring Diagram (4 Of 16)

G08940652

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

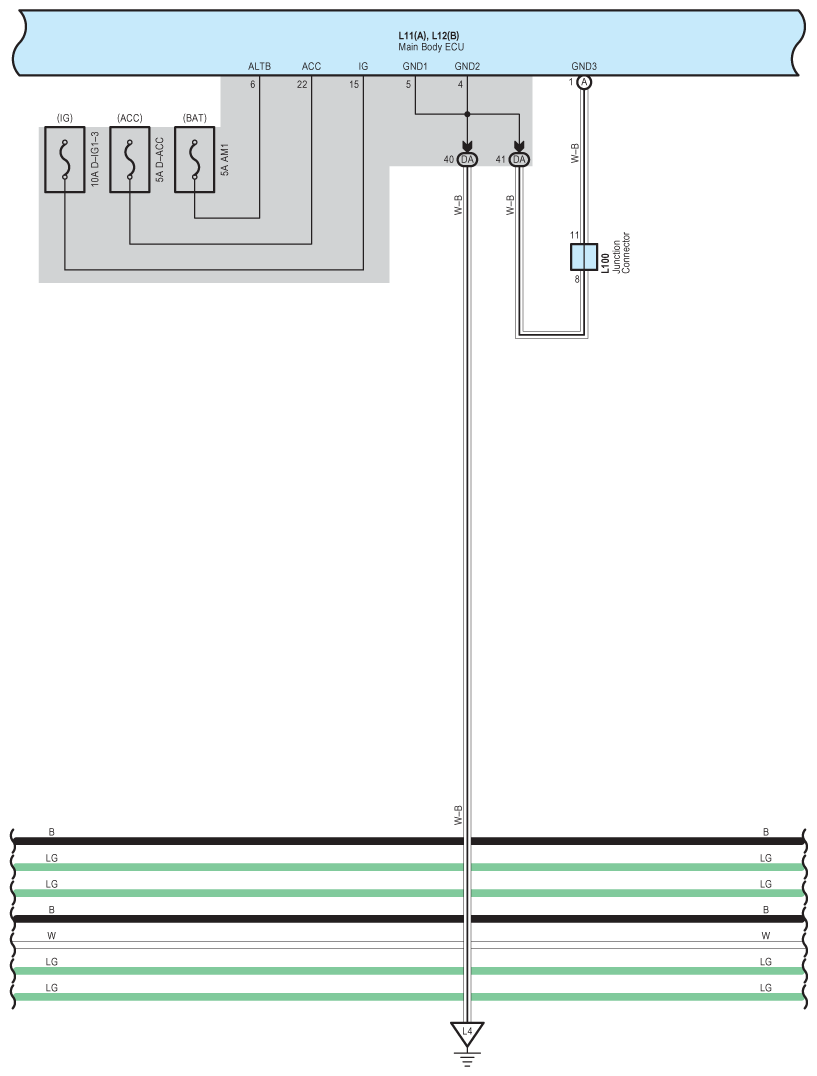

Fig 5: Illumination - Wiring Diagram (5 Of 16)

G08940653

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

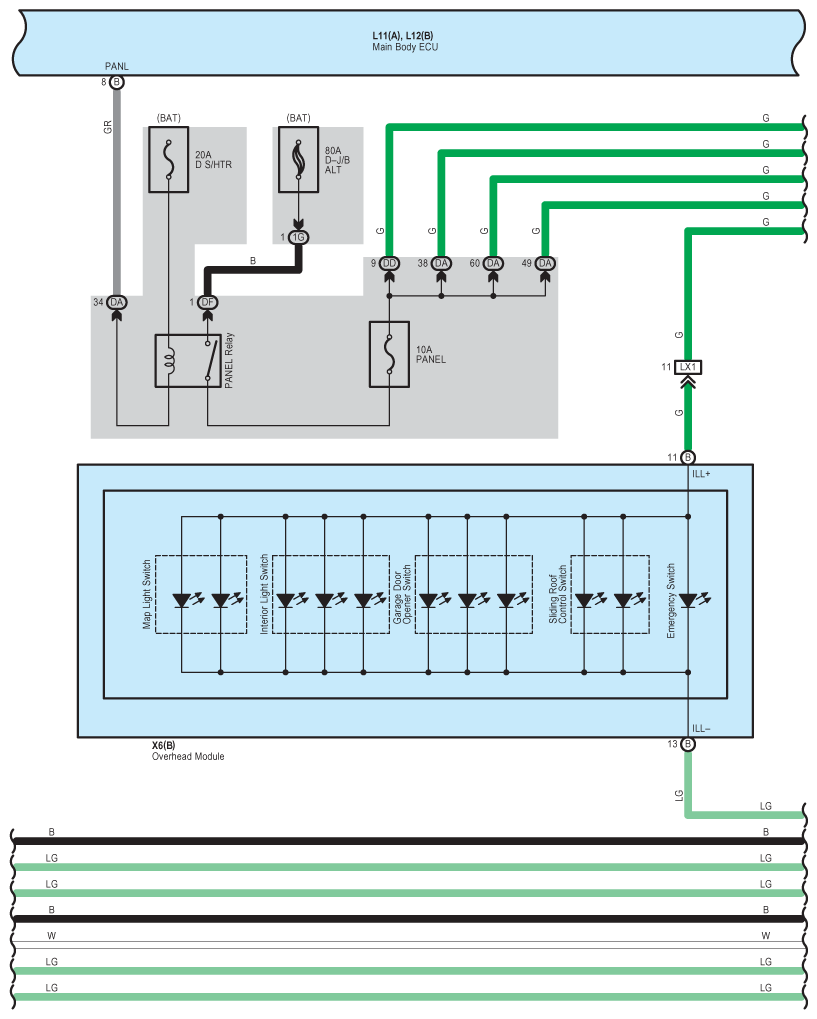

Fig 6: Illumination - Wiring Diagram (6 Of 16)

G08940654

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

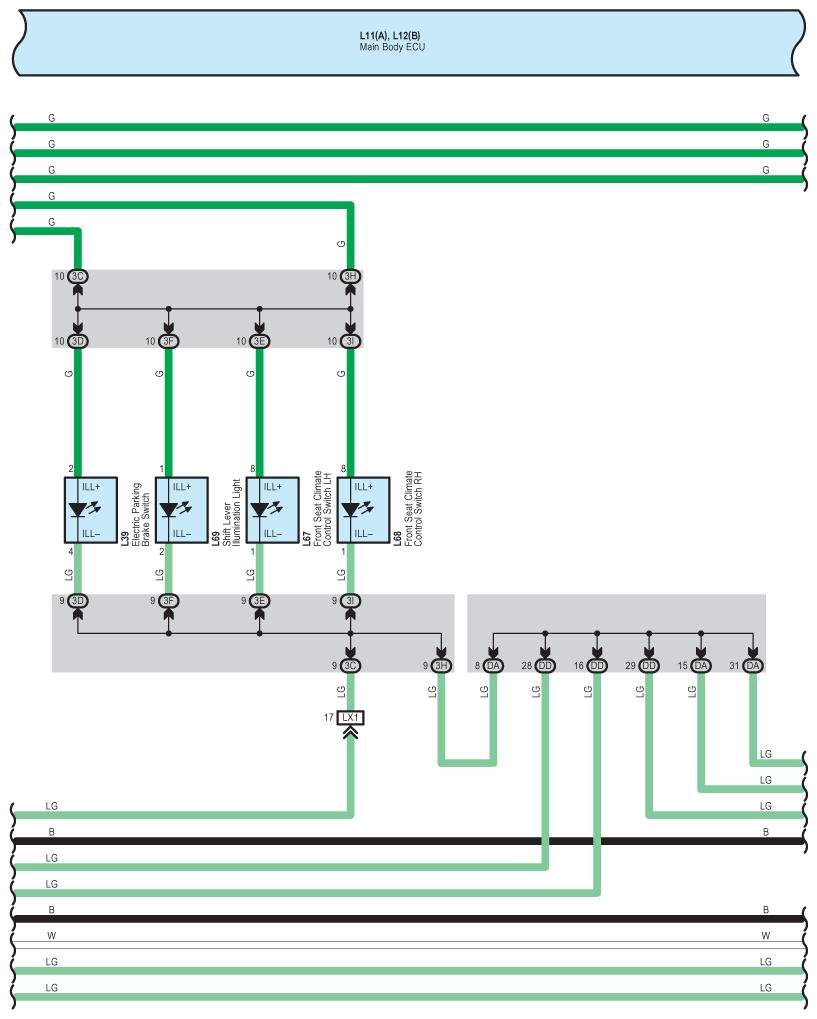

Fig 7: Illumination - Wiring Diagram (7 Of 16)

G08940655

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

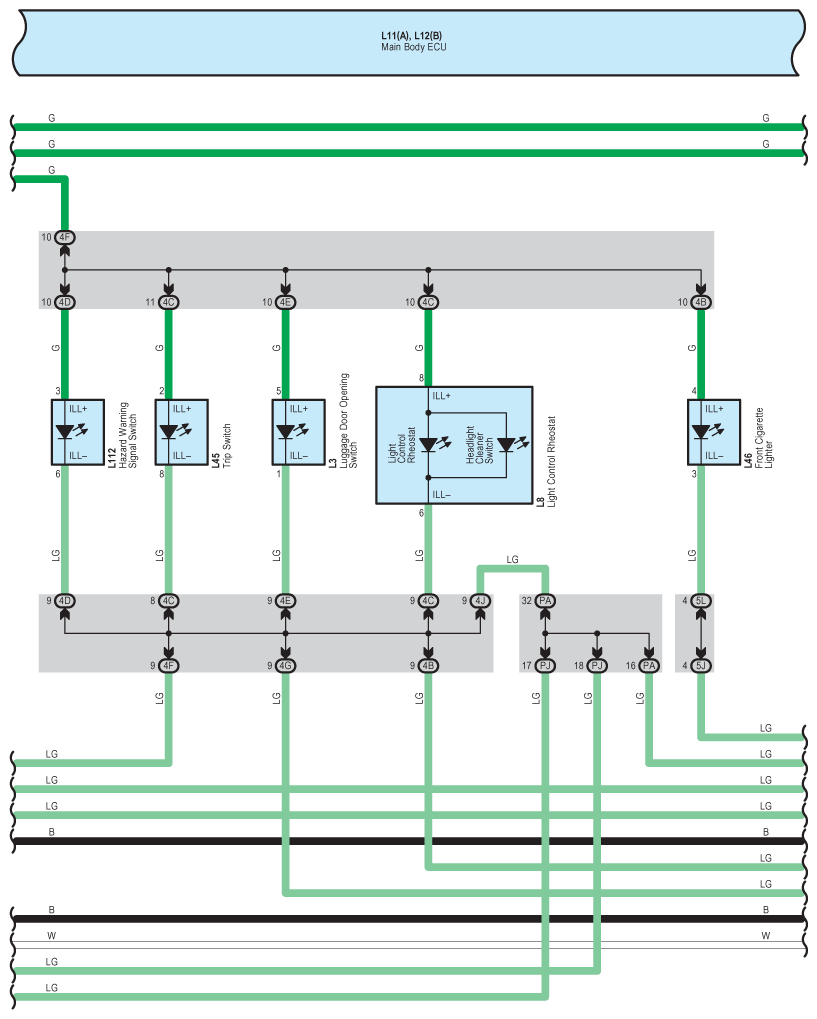

Fig 8: Illumination - Wiring Diagram (8 Of 16)

G08940656

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

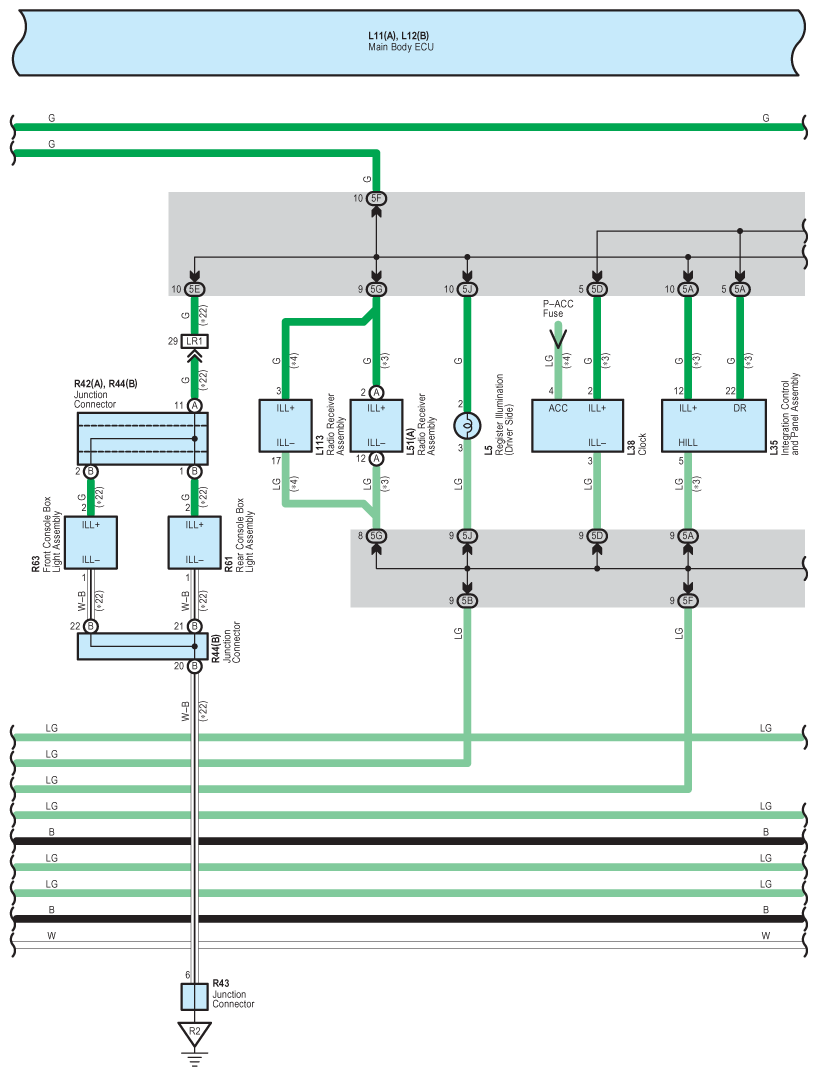

Fig 9: Illumination - Wiring Diagram (9 Of 16)

G08940657

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

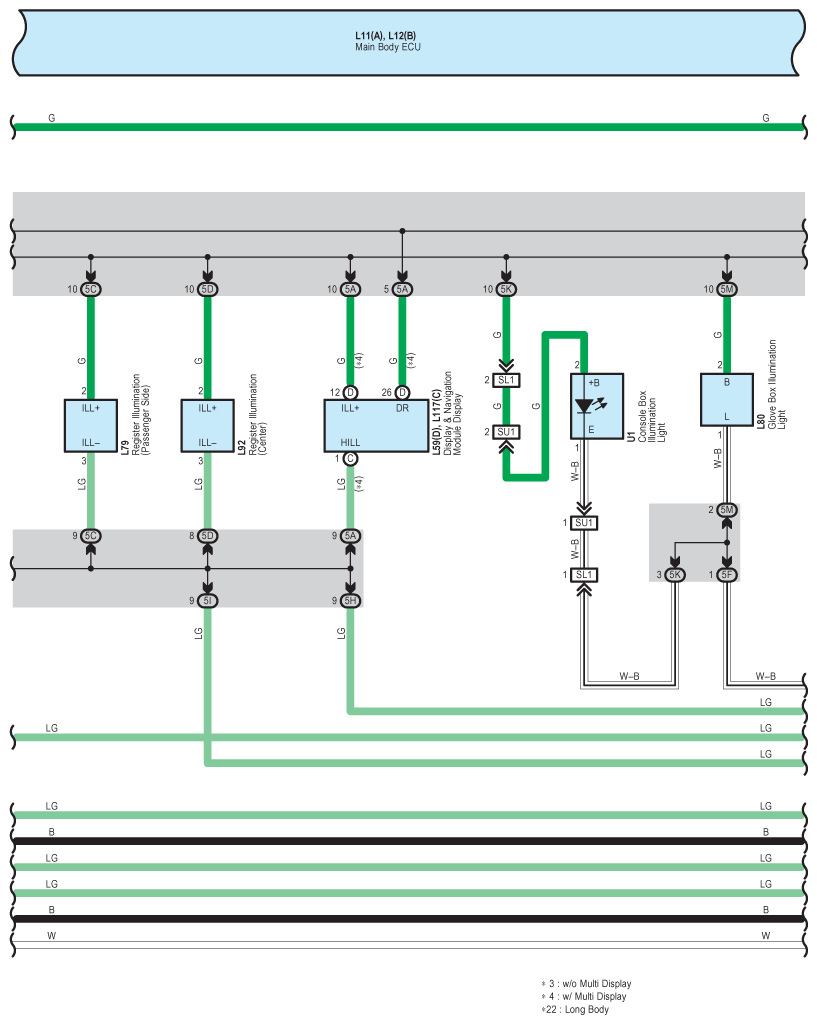

Fig 10: Illumination - Wiring Diagram (10 Of 16)

G08940658

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

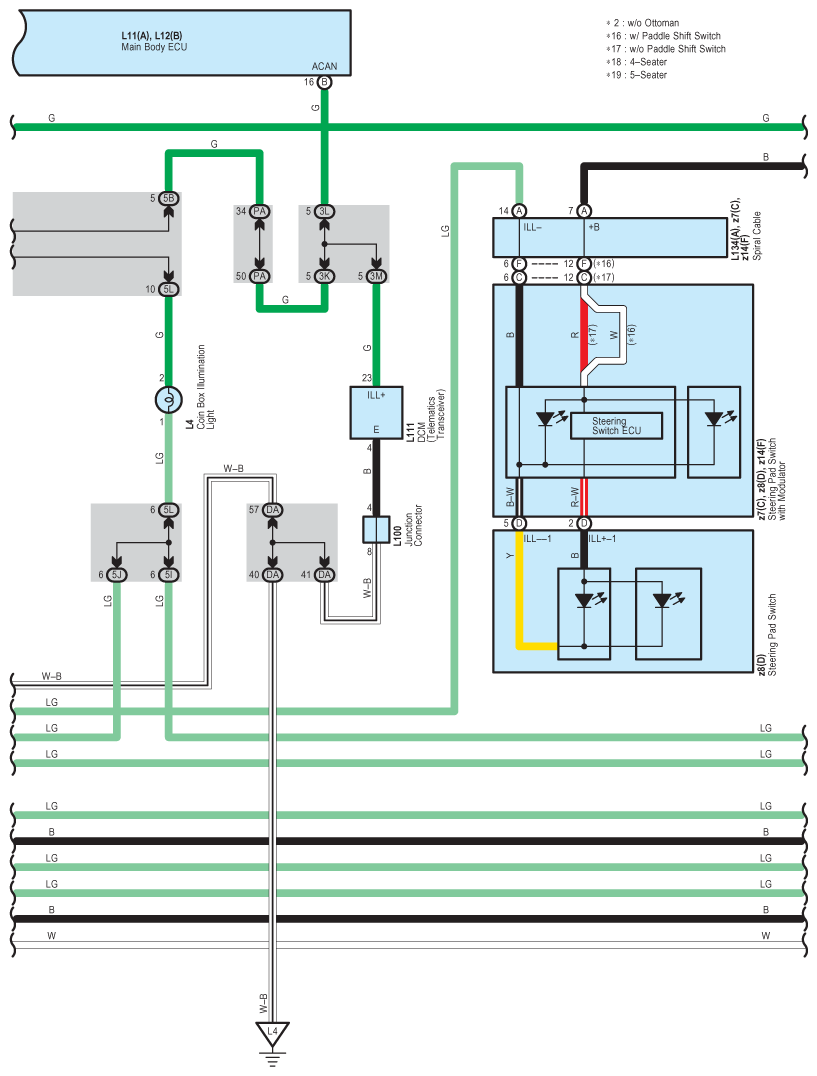

Fig 11: Illumination - Wiring Diagram (11 Of 16)

G08940659

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

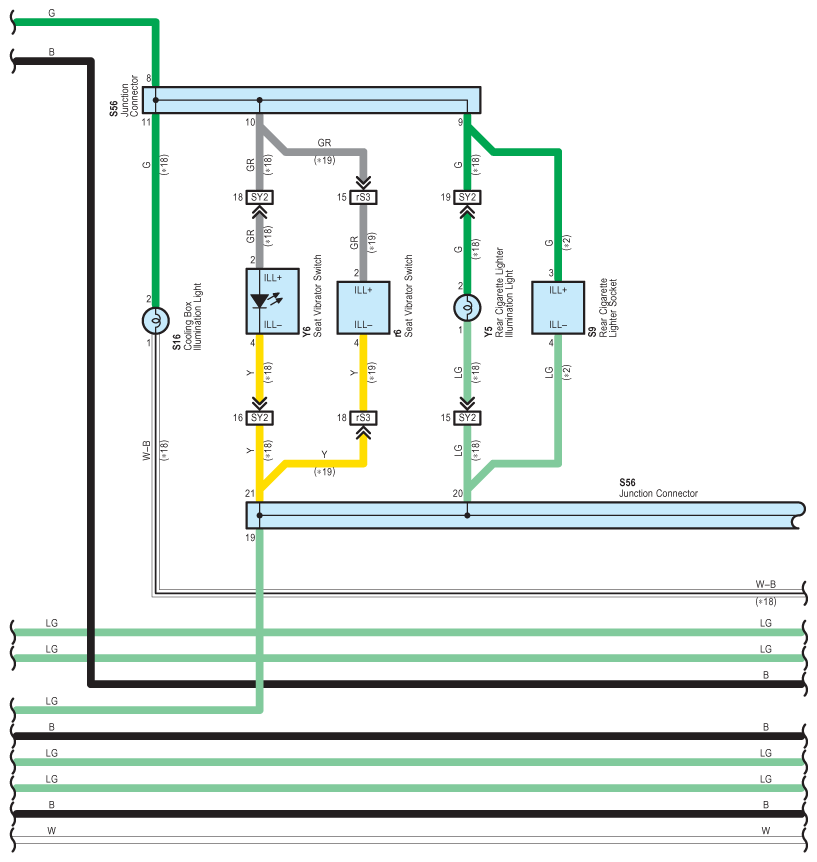

Fig 12: Illumination - Wiring Diagram (12 Of 16)

G08940660

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

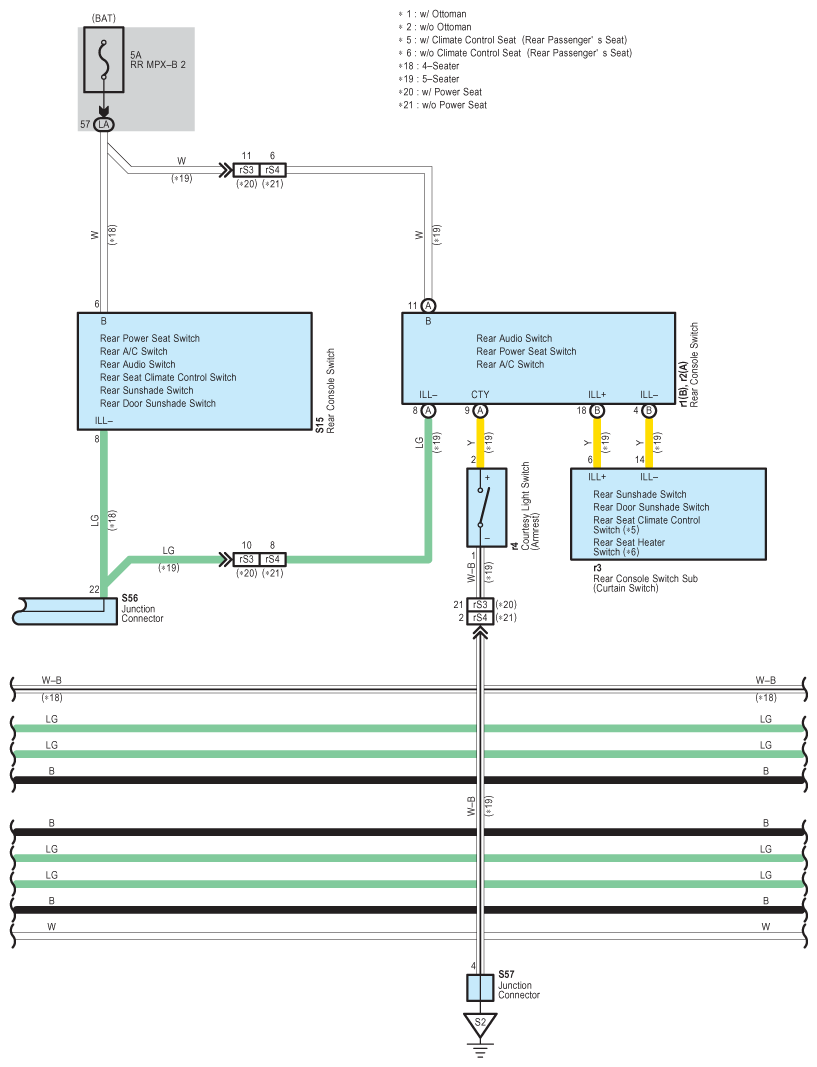

Fig 13: Illumination - Wiring Diagram (13 Of 16)

G08940661

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

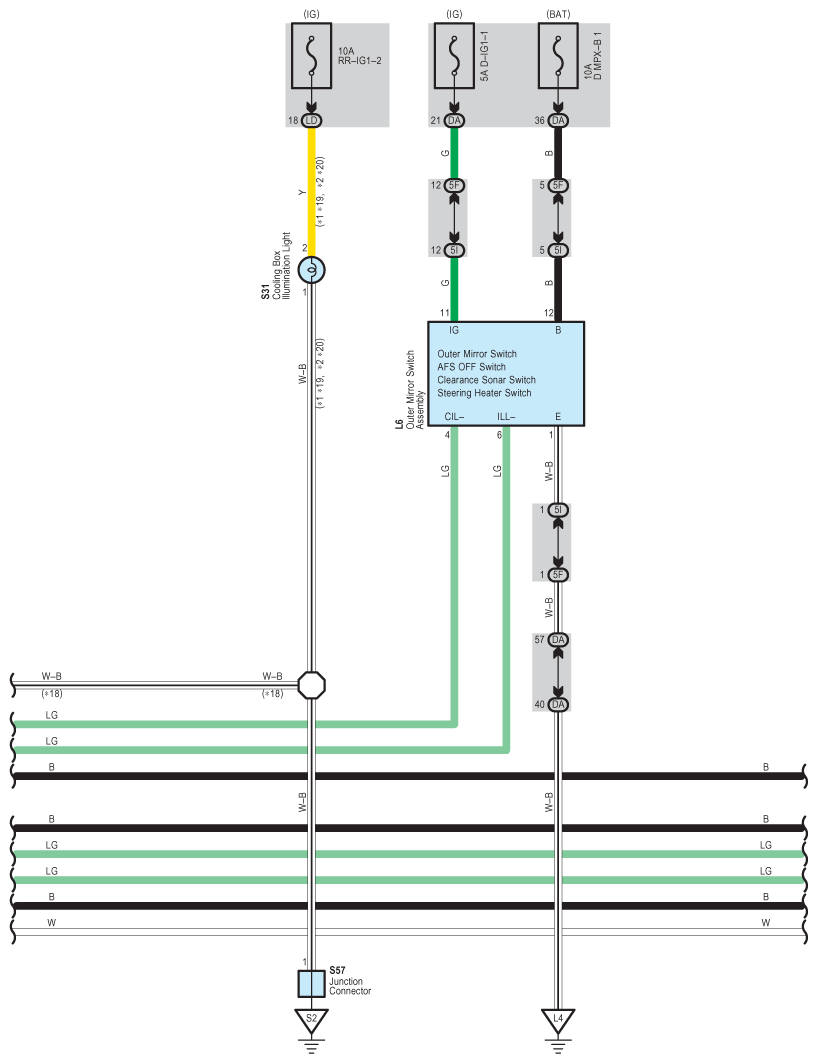

Fig 14: Illumination - Wiring Diagram (14 Of 16)

G08940662

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

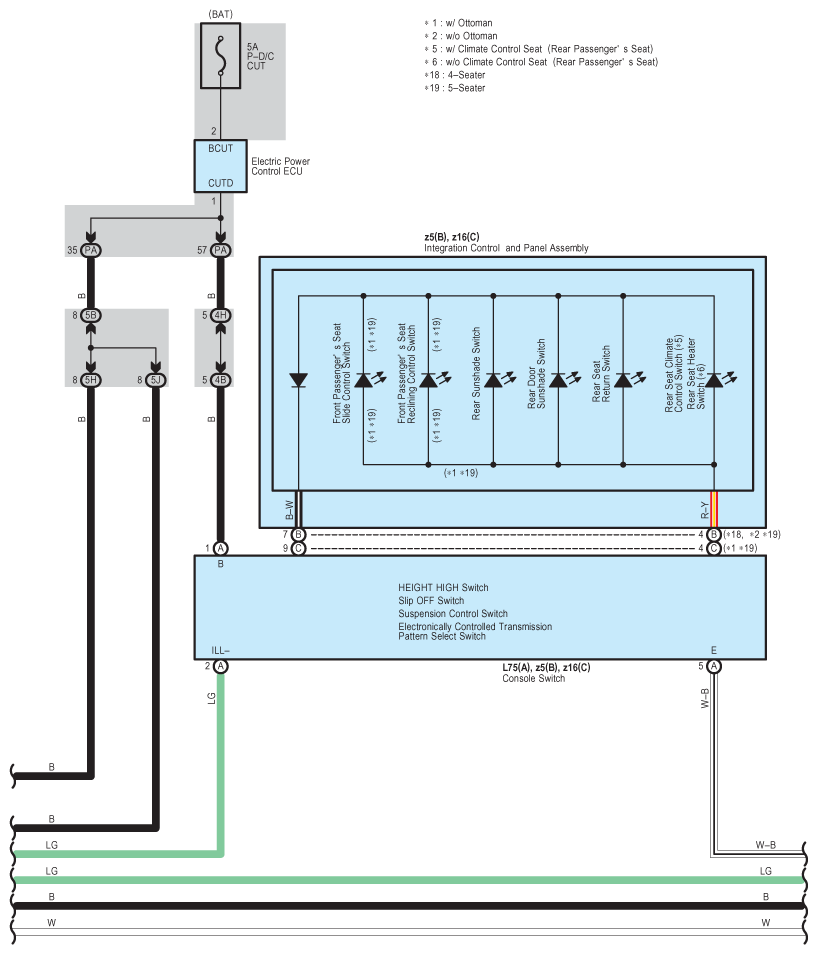

Fig 15: Illumination - Wiring Diagram (15 Of 16)

G08940663

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

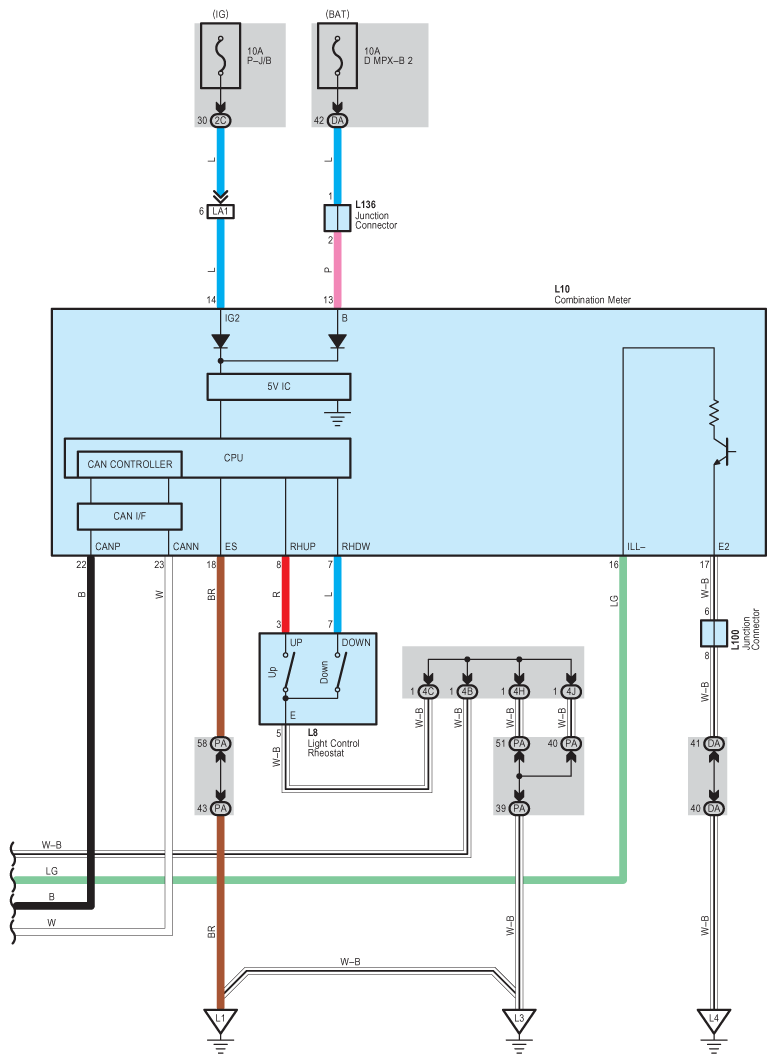

Fig 16: Illumination - Wiring Diagram (16 Of 16)

G08940664

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
