Pre-Collision System: Notes

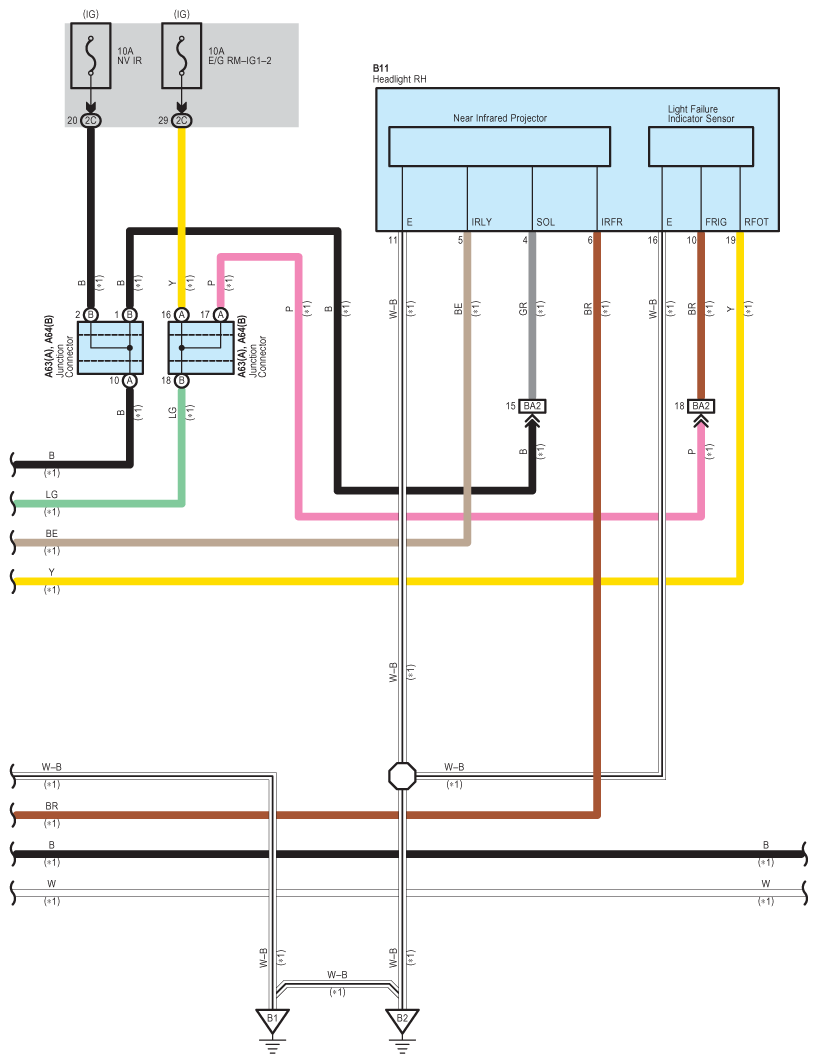

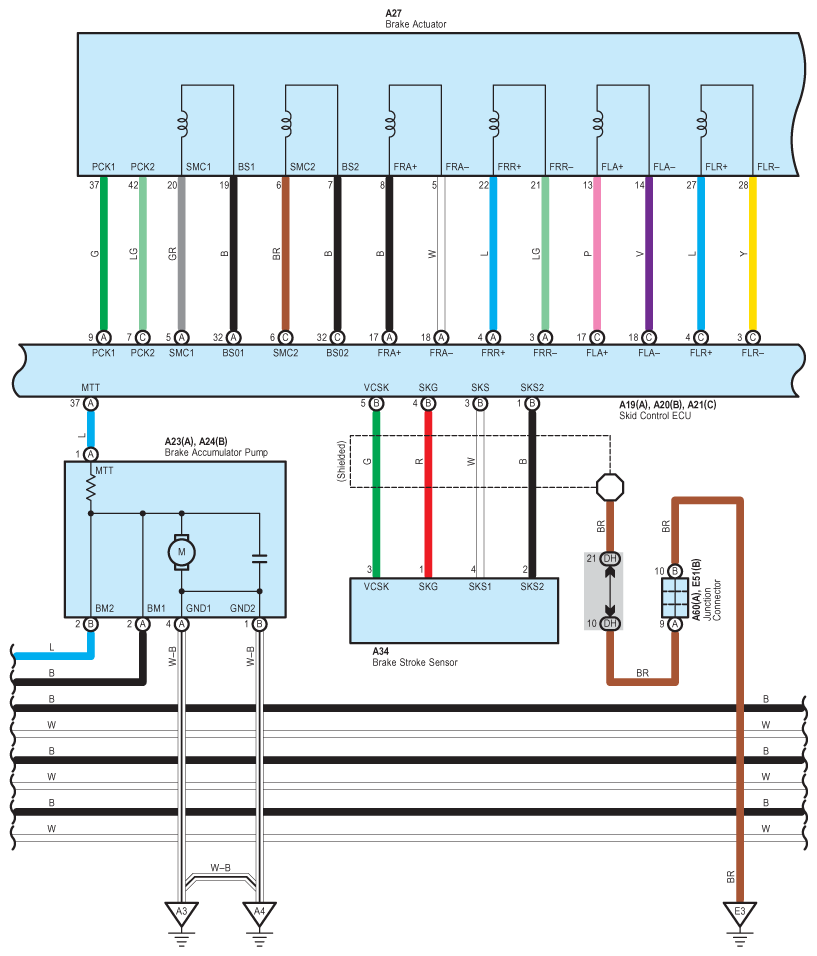

Fig 1: Pre-Collision System - Wiring Diagram (1 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

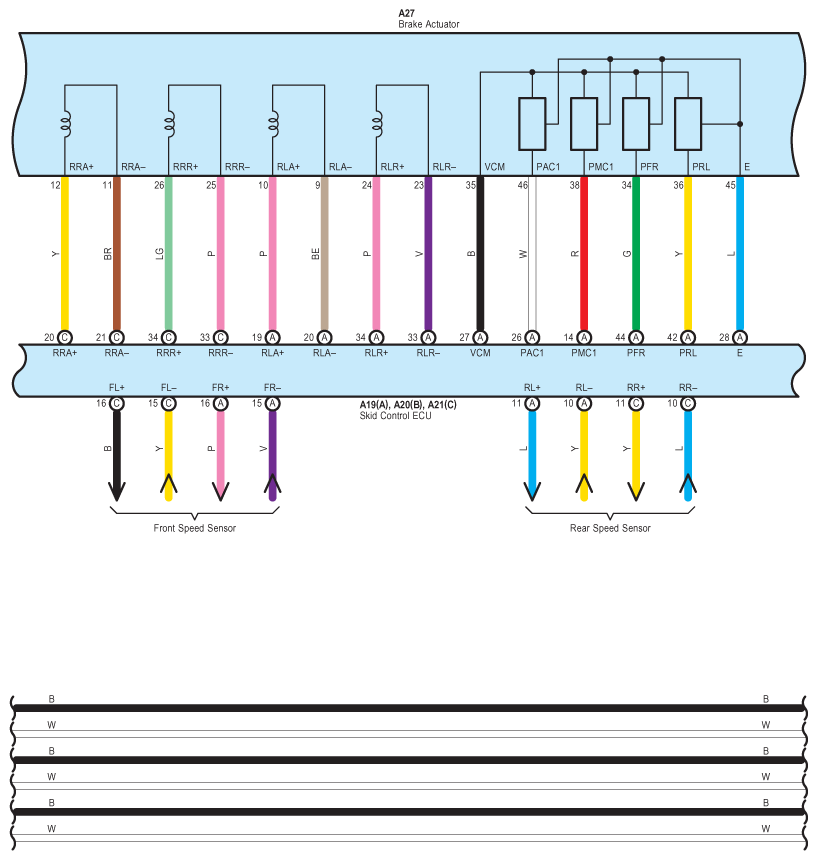

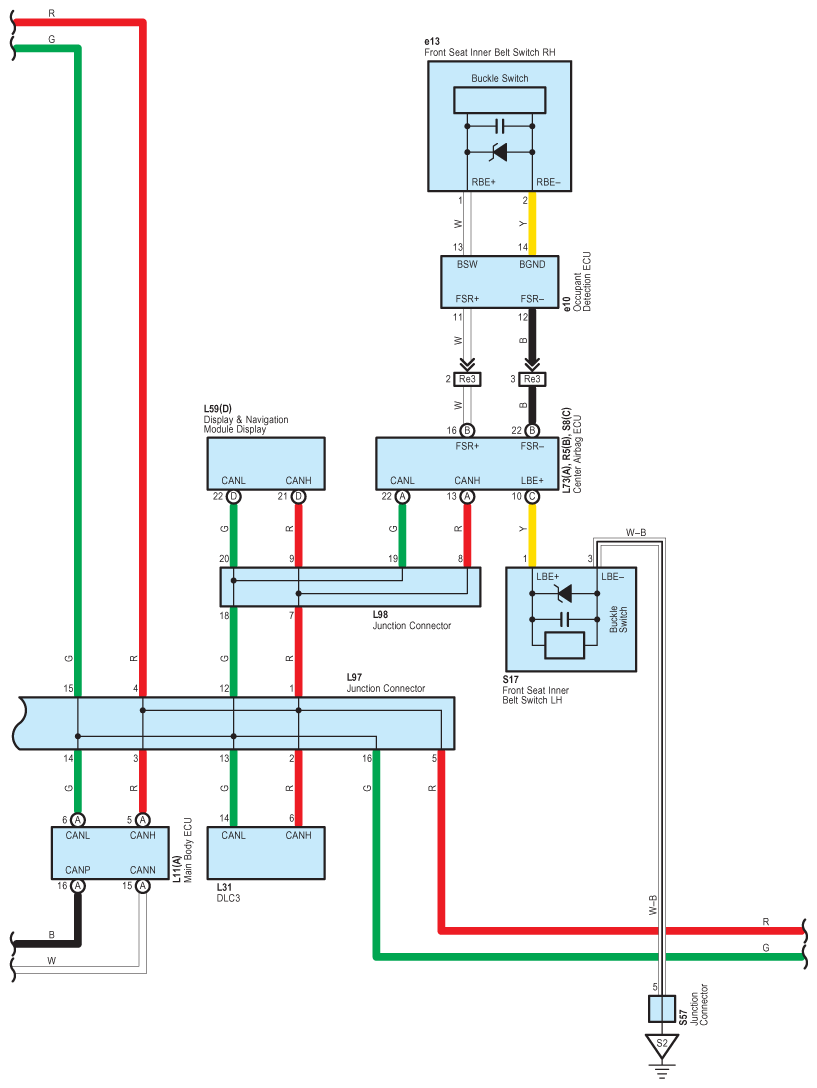

Fig 2: Pre-Collision System - Wiring Diagram (2 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

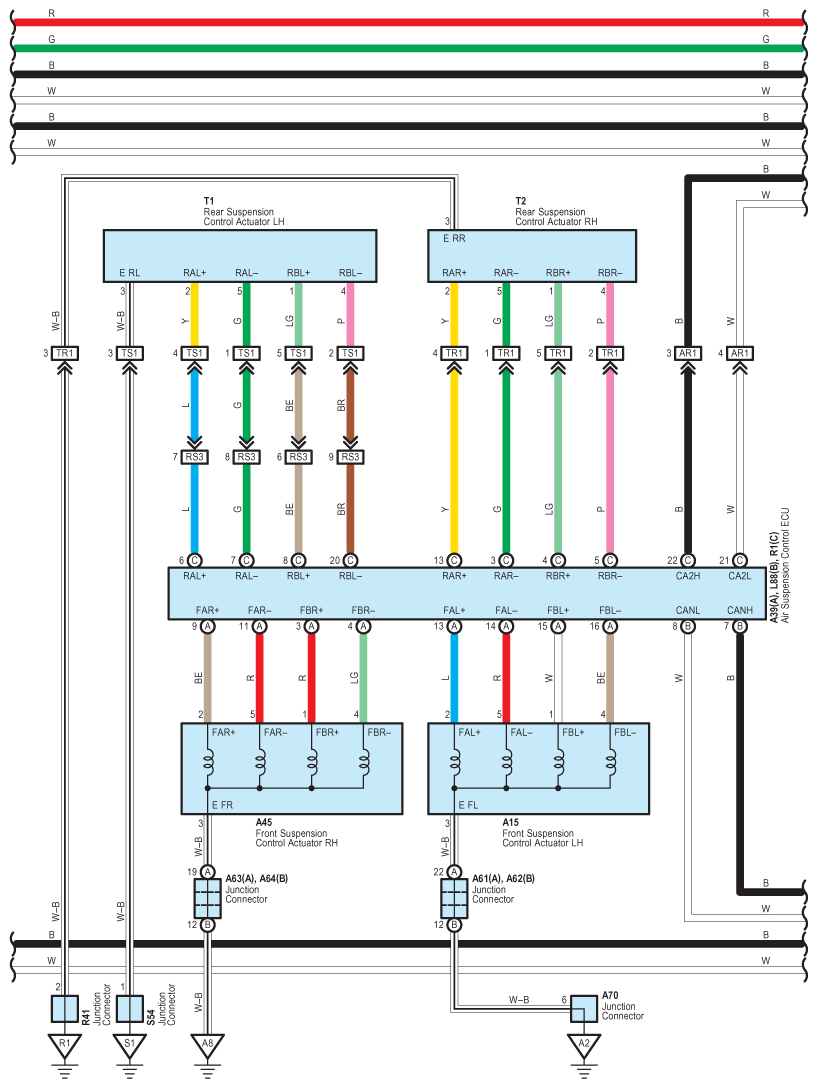

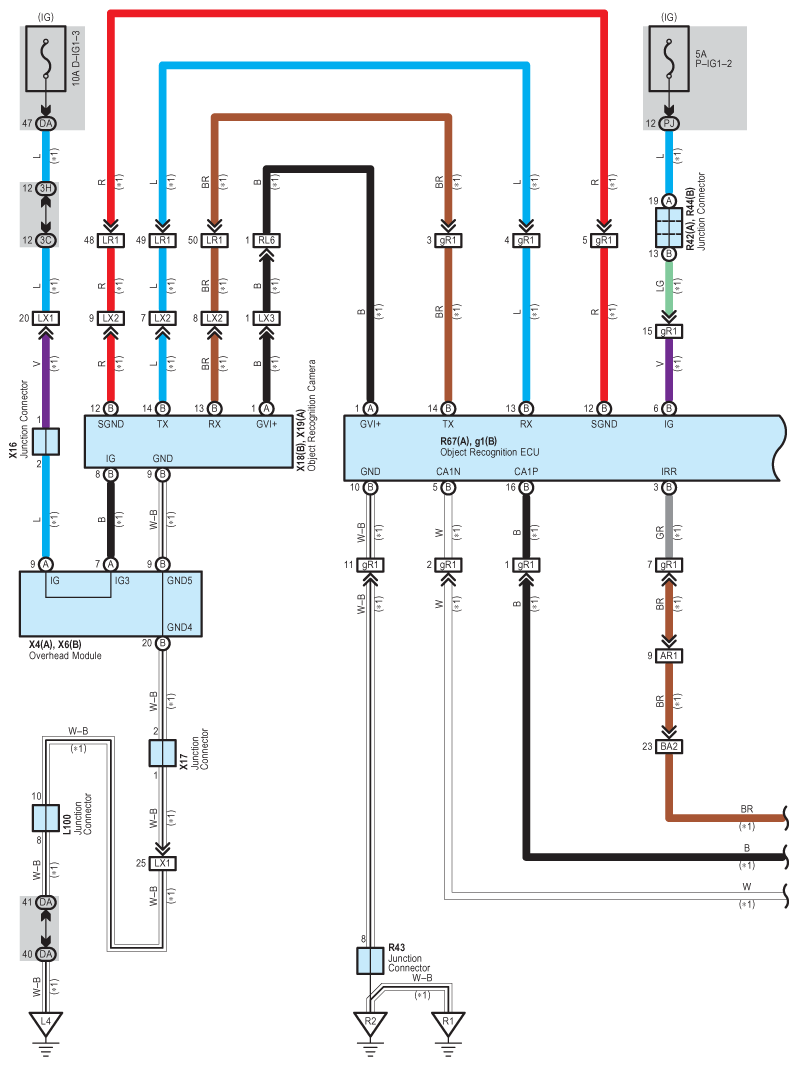

Fig 3: Pre-Collision System - Wiring Diagram (3 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

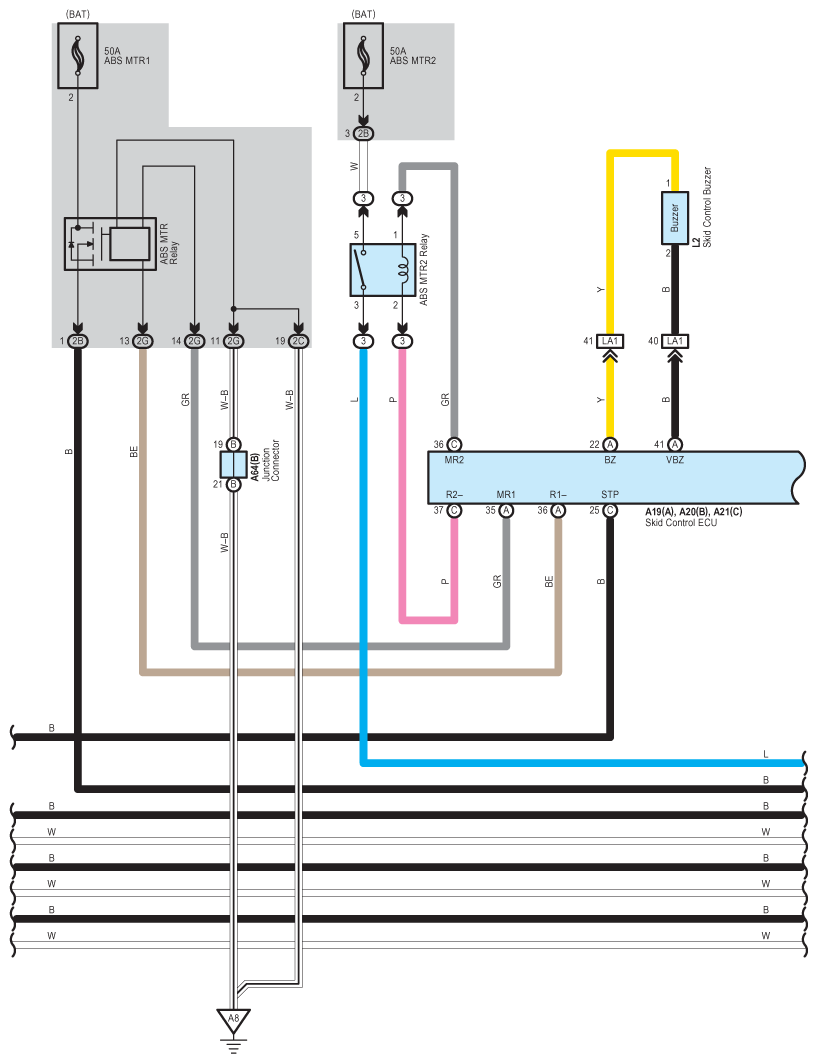

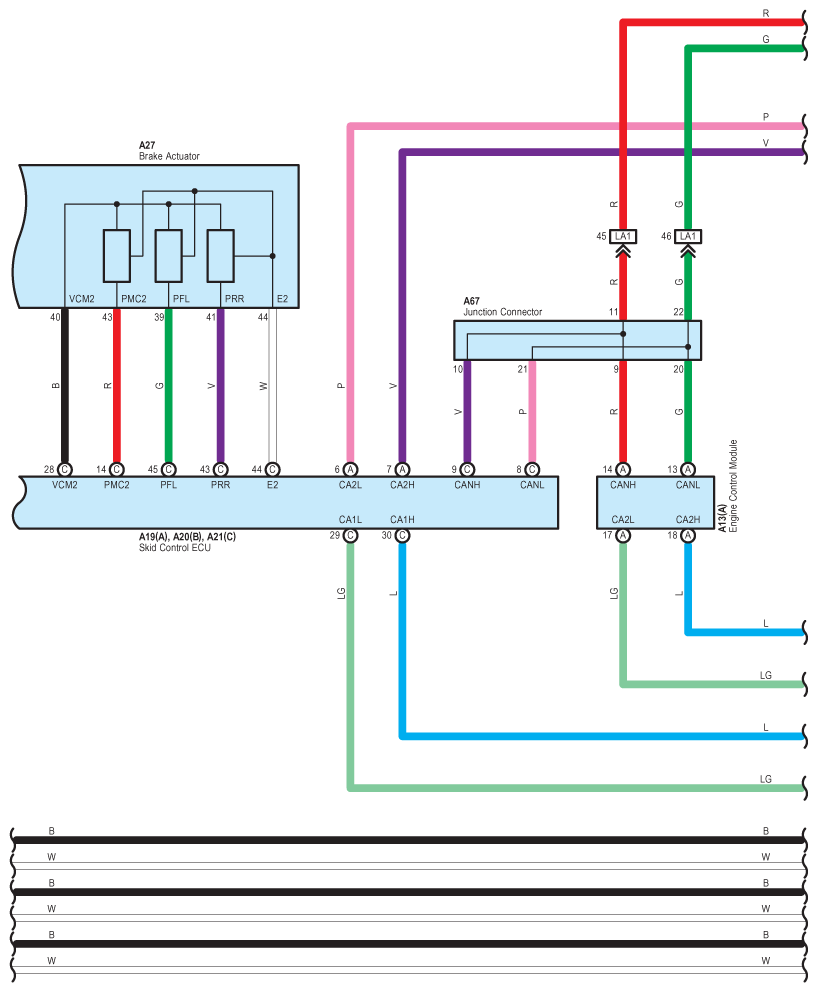

Fig 4: Pre-Collision System - Wiring Diagram (4 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

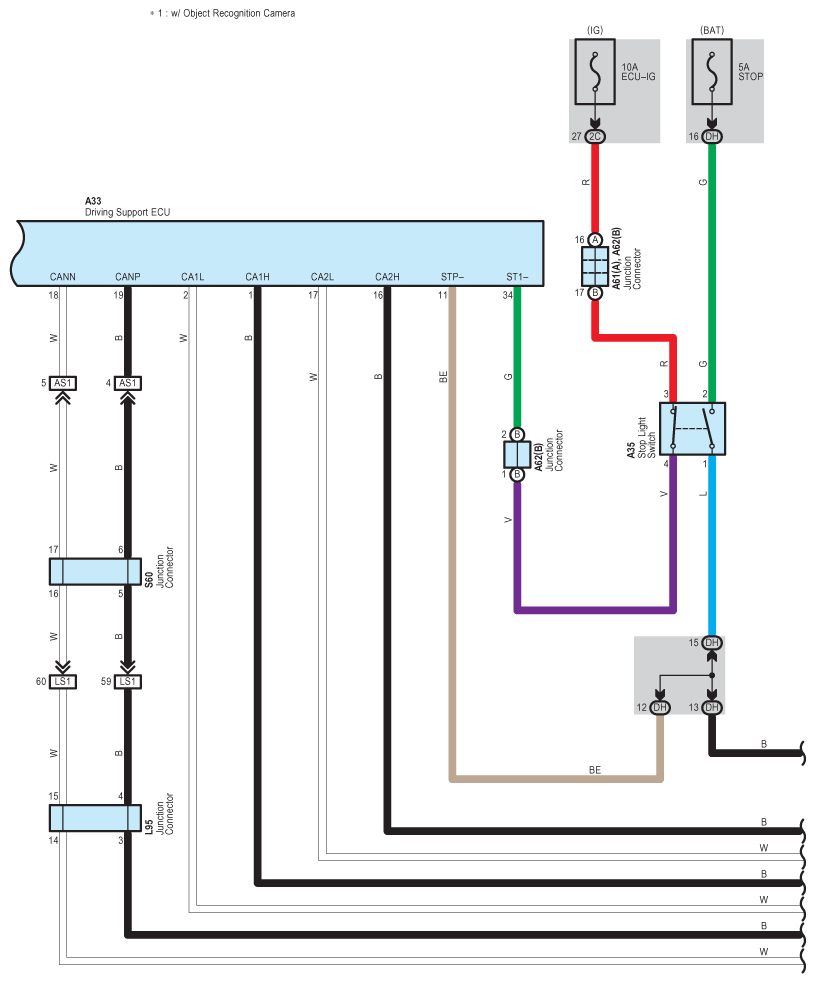

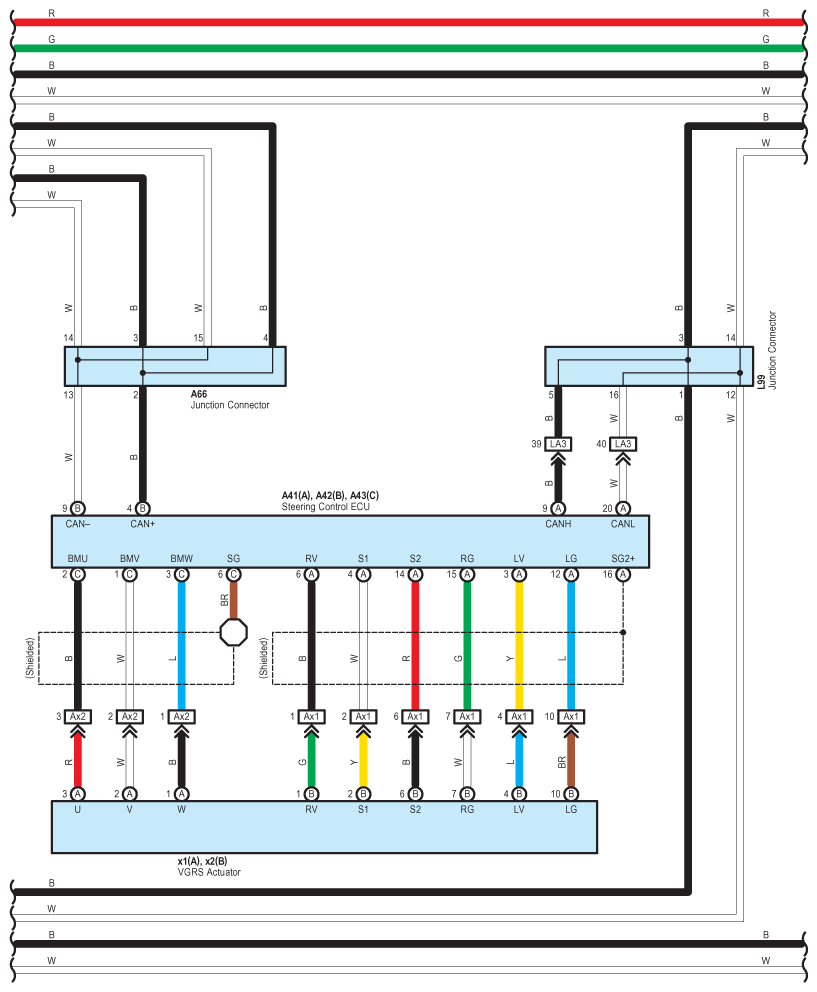

Fig 5: Pre-Collision System - Wiring Diagram (5 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

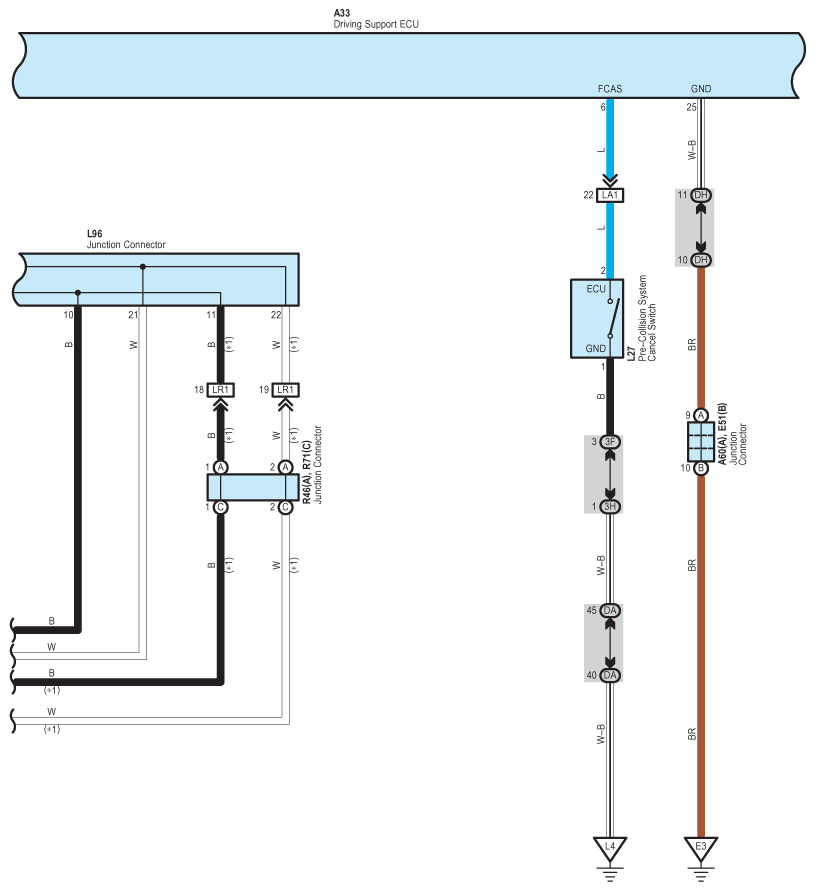

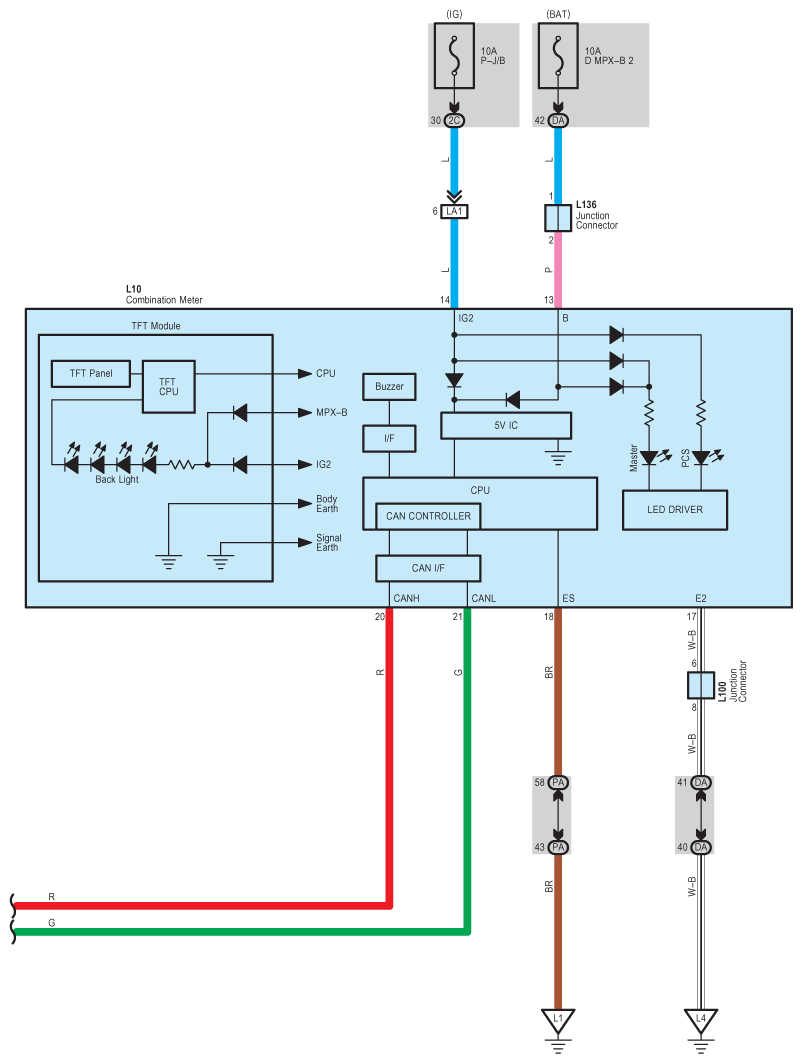

Fig 6: Pre-Collision System - Wiring Diagram (6 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

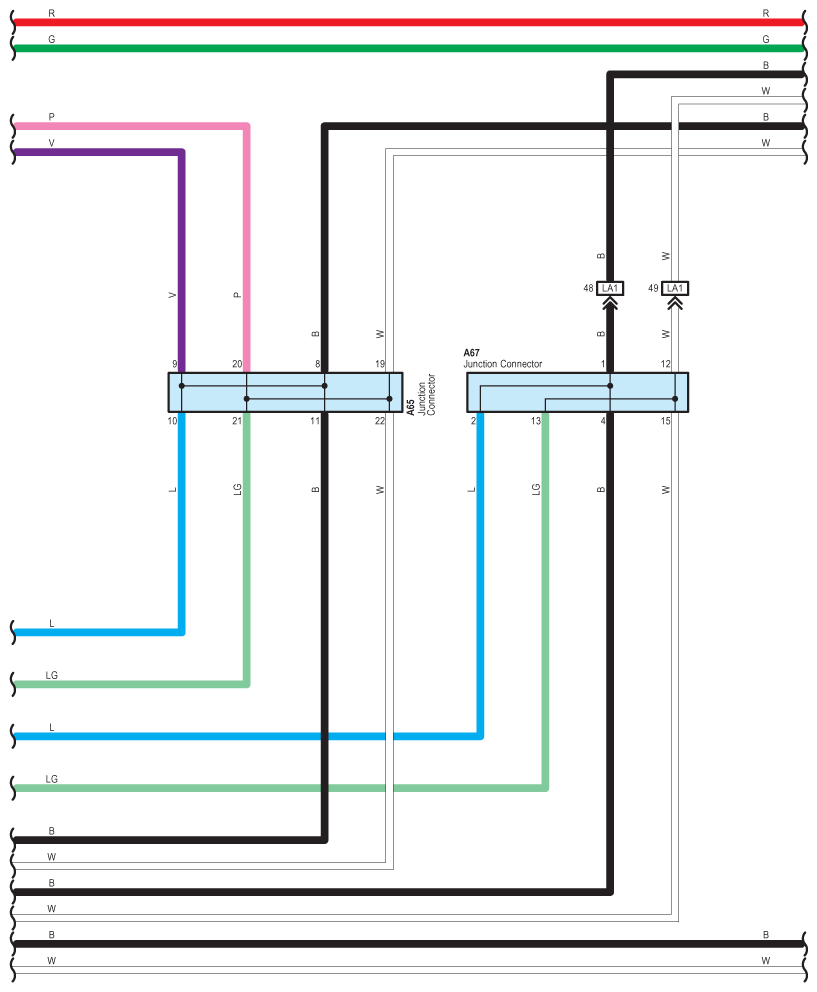

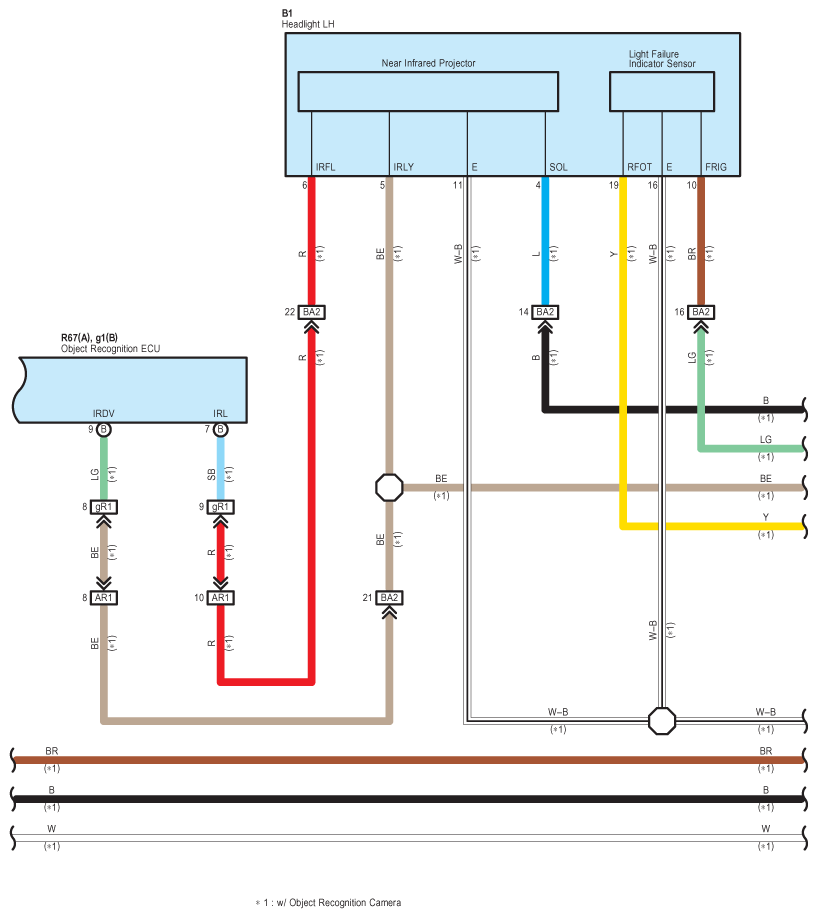

Fig 7: Pre-Collision System - Wiring Diagram (7 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

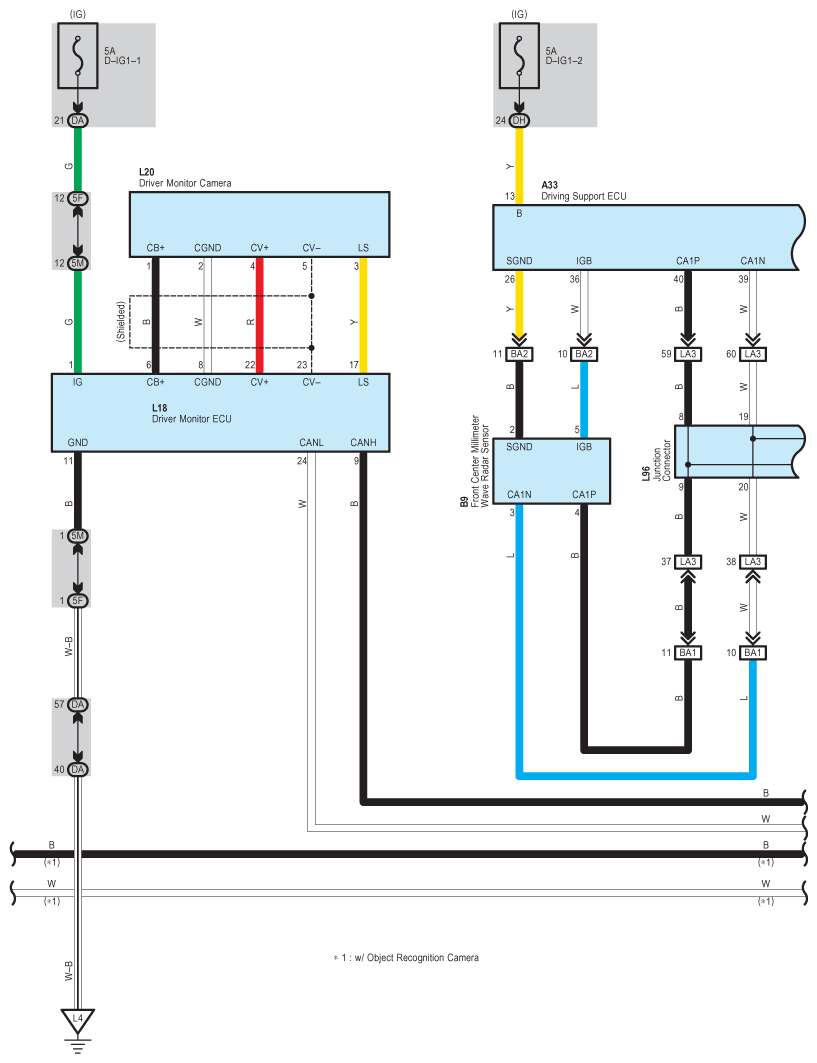

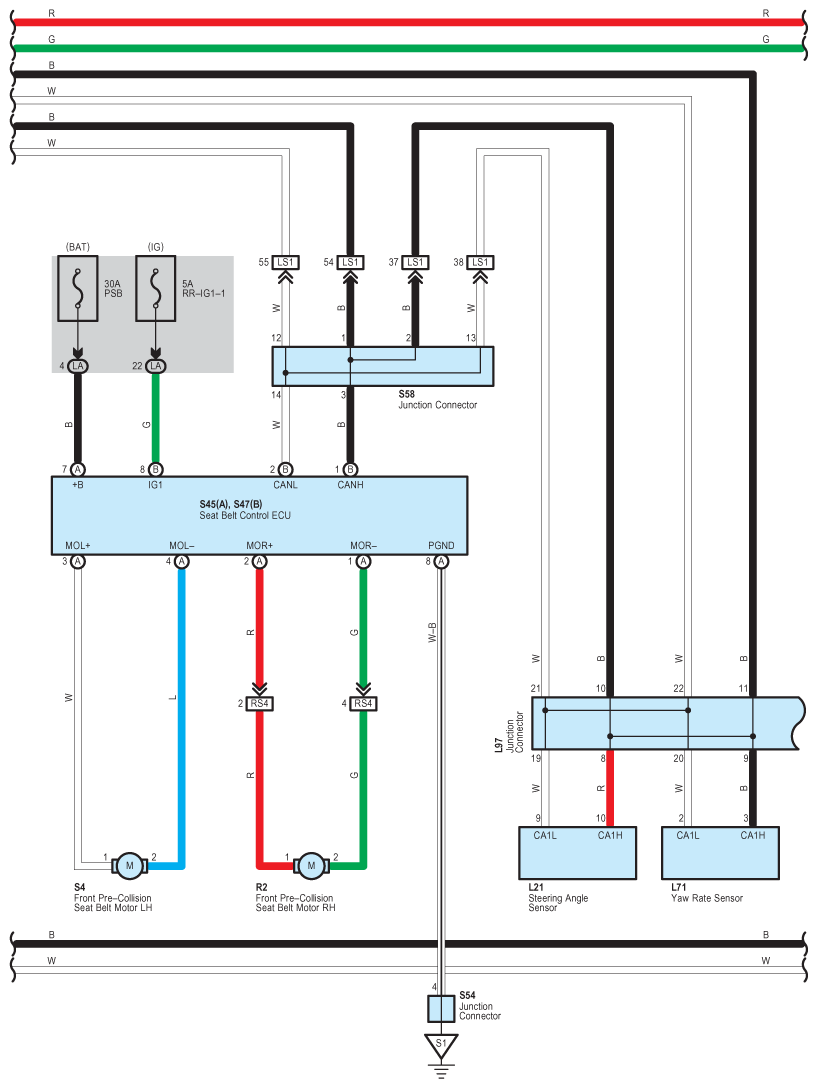

Fig 8: Pre-Collision System - Wiring Diagram (8 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Pre-Collision System - Wiring Diagram (9 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Pre-Collision System - Wiring Diagram (10 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Pre-Collision System - Wiring Diagram (11 Of 16)

Fig 12: Pre-Collision System - Wiring Diagram (12 Of 16)

Fig 13: Pre-Collision System - Wiring Diagram (13 Of 16)

Fig 14: Pre-Collision System - Wiring Diagram (14 Of 16)

Fig 15: Pre-Collision System - Wiring Diagram (15 Of 16)

Fig 16: Pre-Collision System - Wiring Diagram (16 Of 16)
