Theft Deterrent: Notes

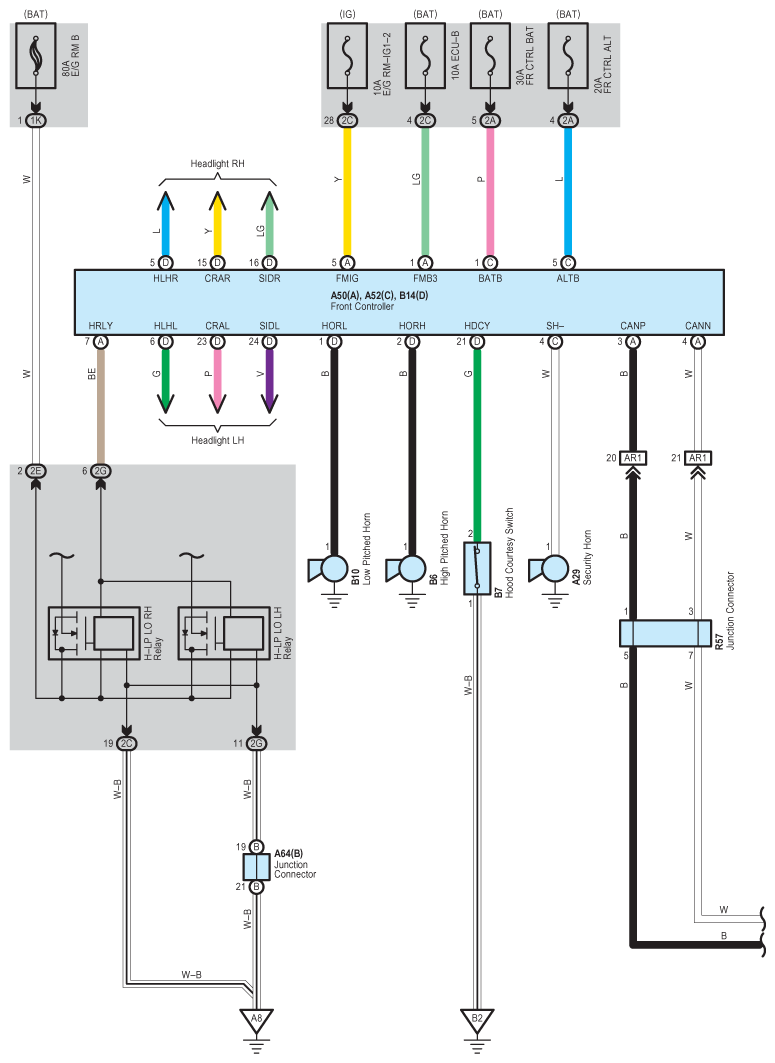

Fig 1: Theft Deterrent - Wiring Diagram (1 Of 10)

G08940716

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

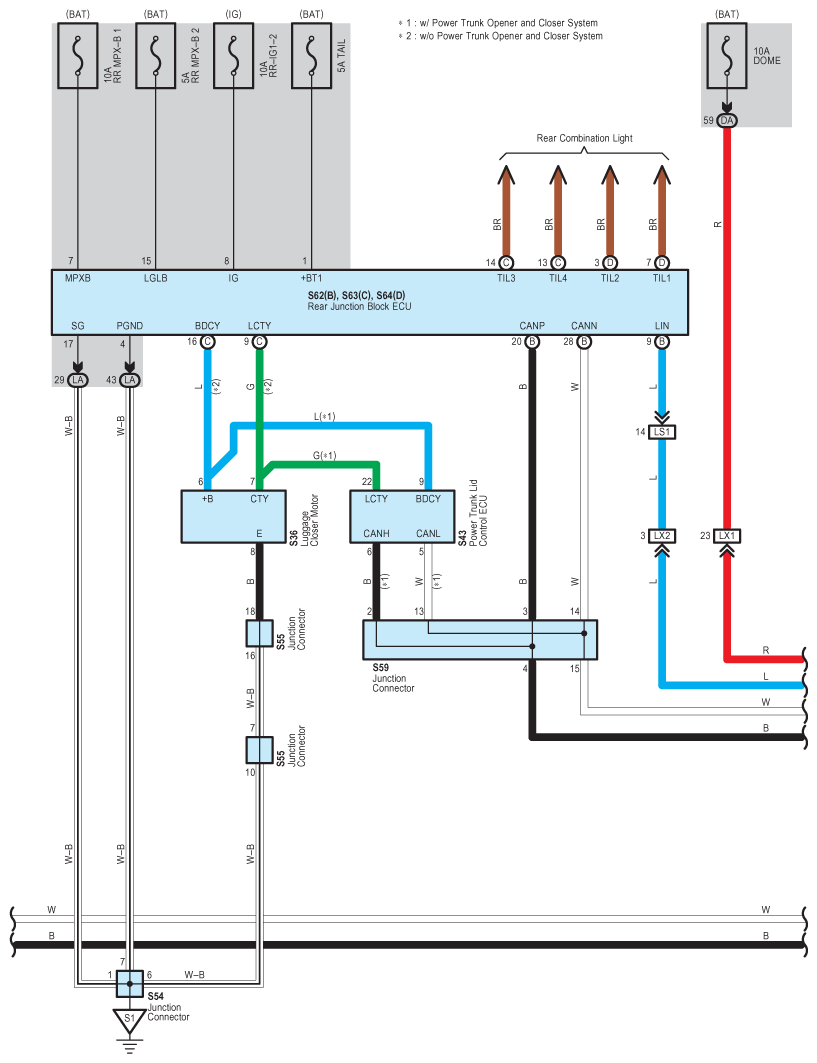

Fig 2: Theft Deterrent - Wiring Diagram (2 Of 10)

G08940717

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

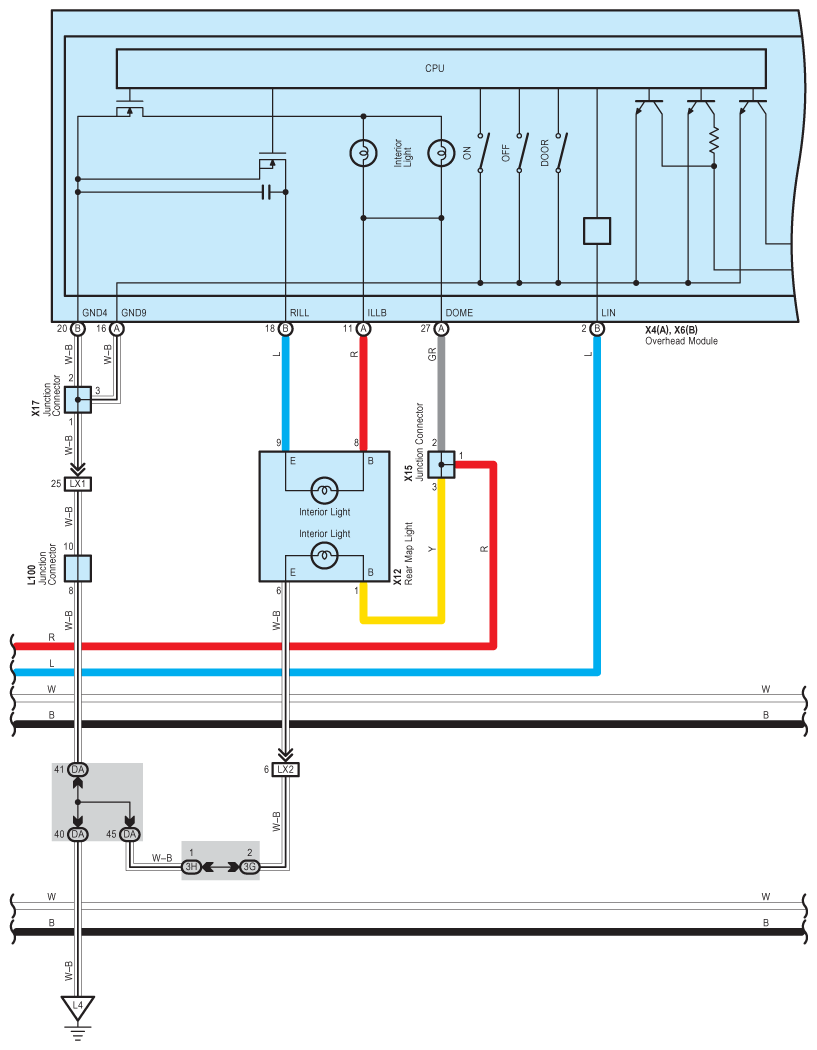

Fig 3: Theft Deterrent - Wiring Diagram (3 Of 10)

G08940718

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

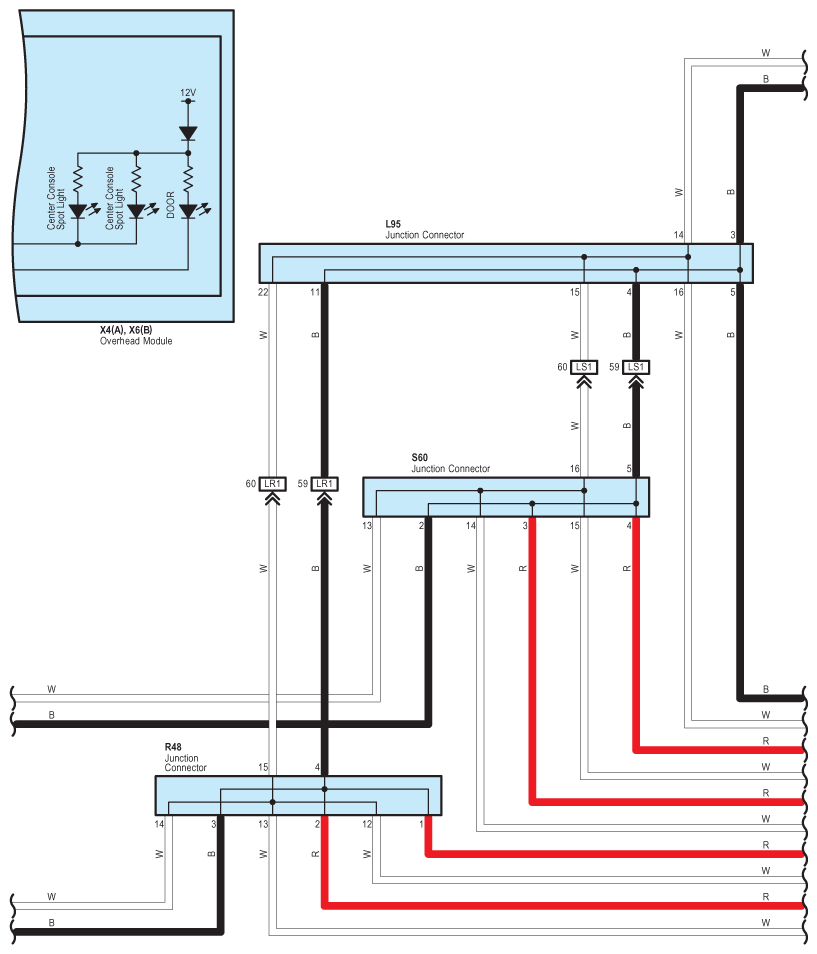

Fig 4: Theft Deterrent - Wiring Diagram (4 Of 10)

G08940719

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

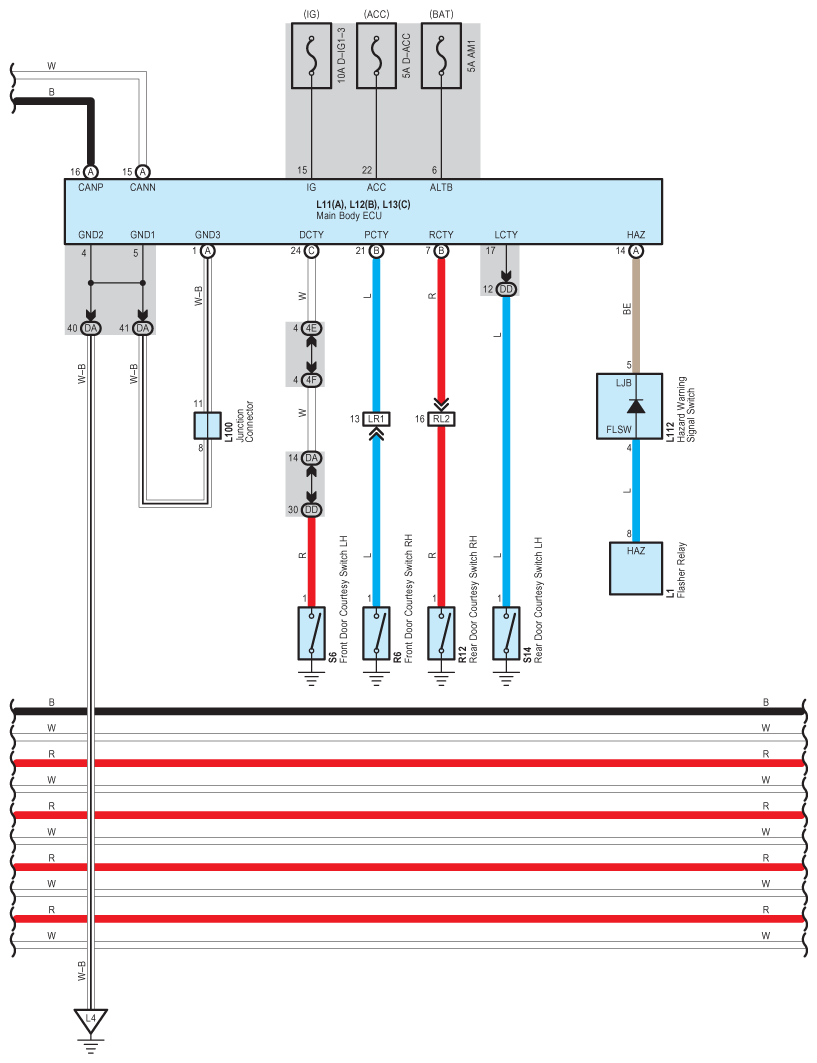

Fig 5: Theft Deterrent - Wiring Diagram (5 Of 10)

G08940720

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

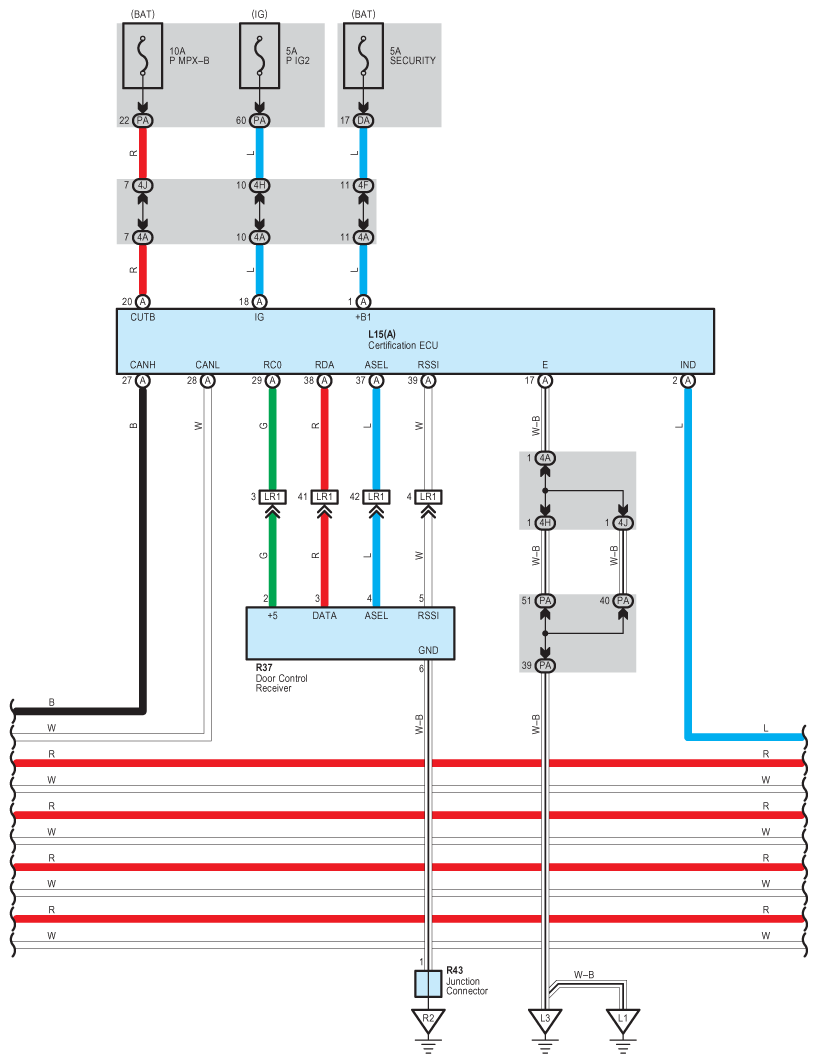

Fig 6: Theft Deterrent - Wiring Diagram (6 Of 10)

G08940721

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

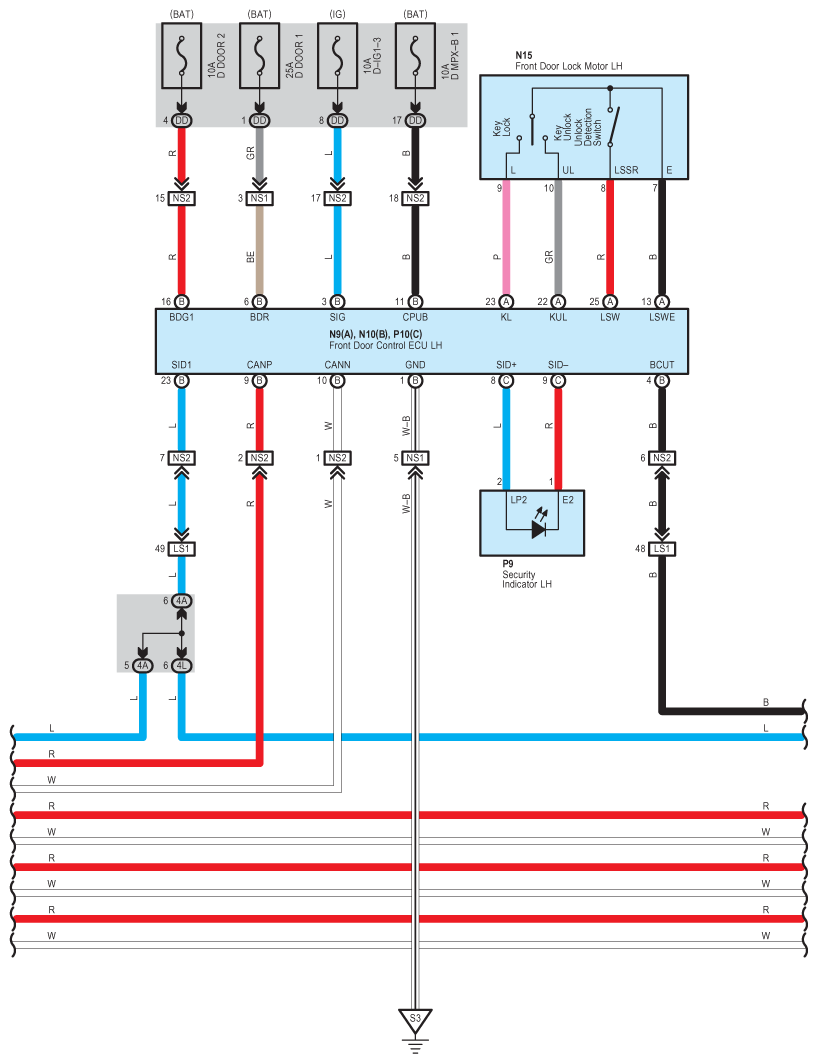

Fig 7: Theft Deterrent - Wiring Diagram (7 Of 10)

G08940722

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

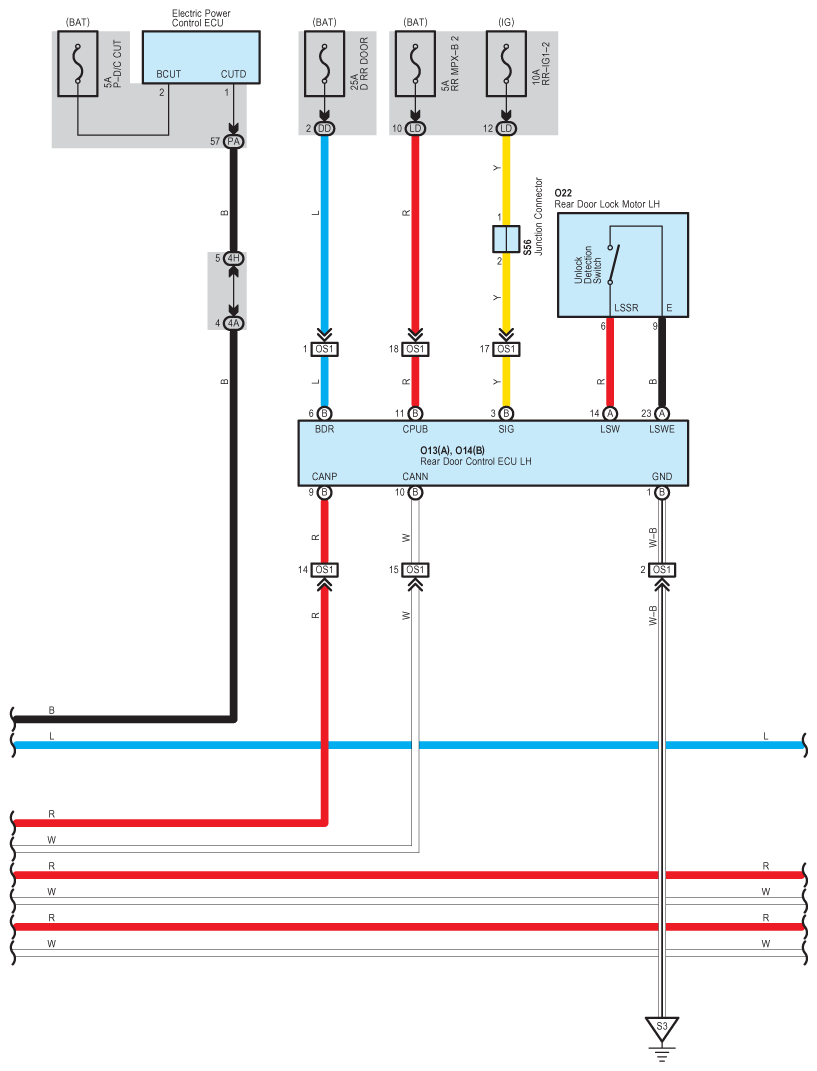

Fig 8: Theft Deterrent - Wiring Diagram (8 Of 10)

G08940723

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

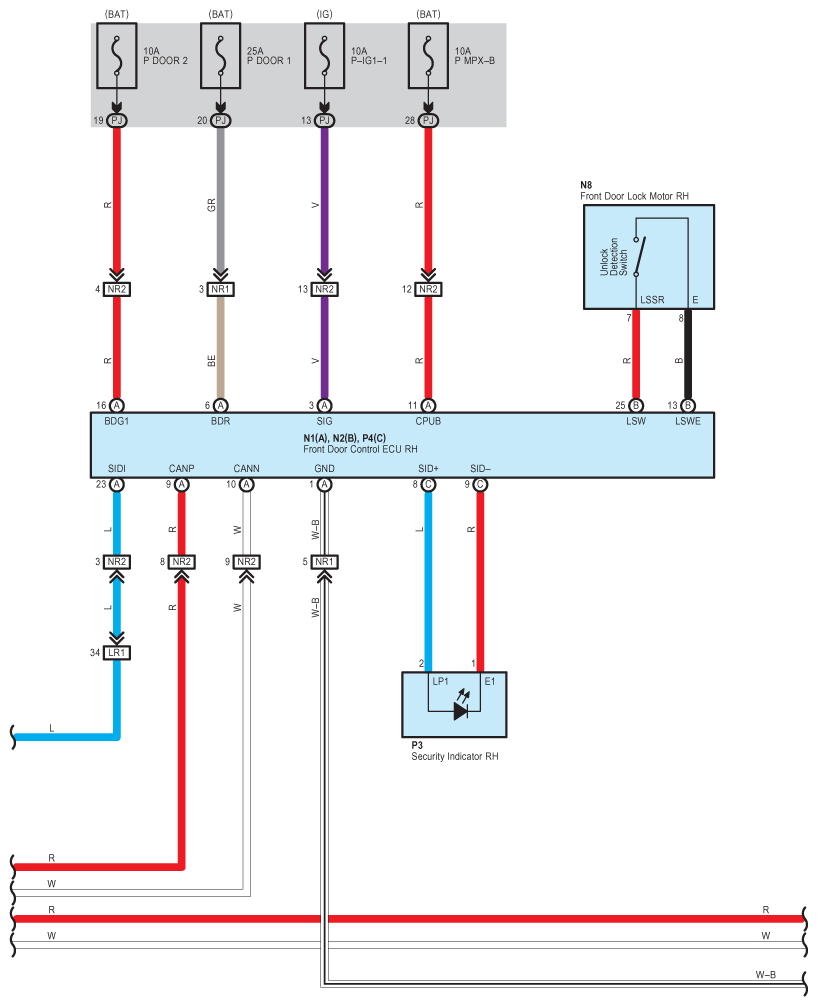

Fig 9: Theft Deterrent - Wiring Diagram (9 Of 10)

G08940724

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

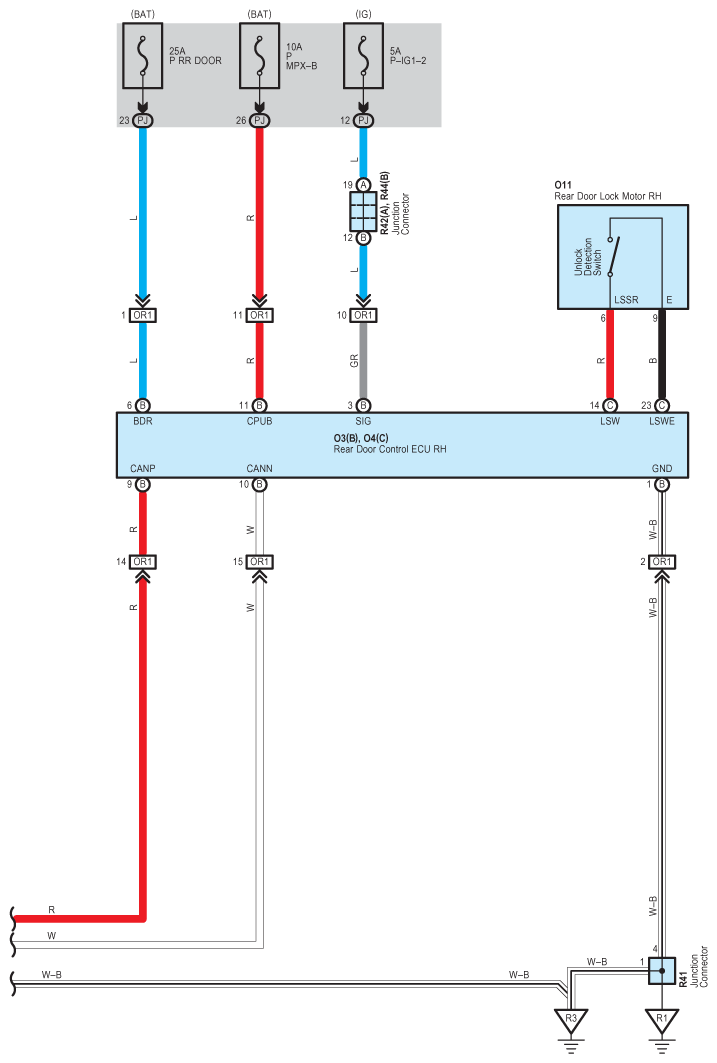

Fig 10: Theft Deterrent - Wiring Diagram (10 Of 10)

G08940725

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
