VGRS System: Notes

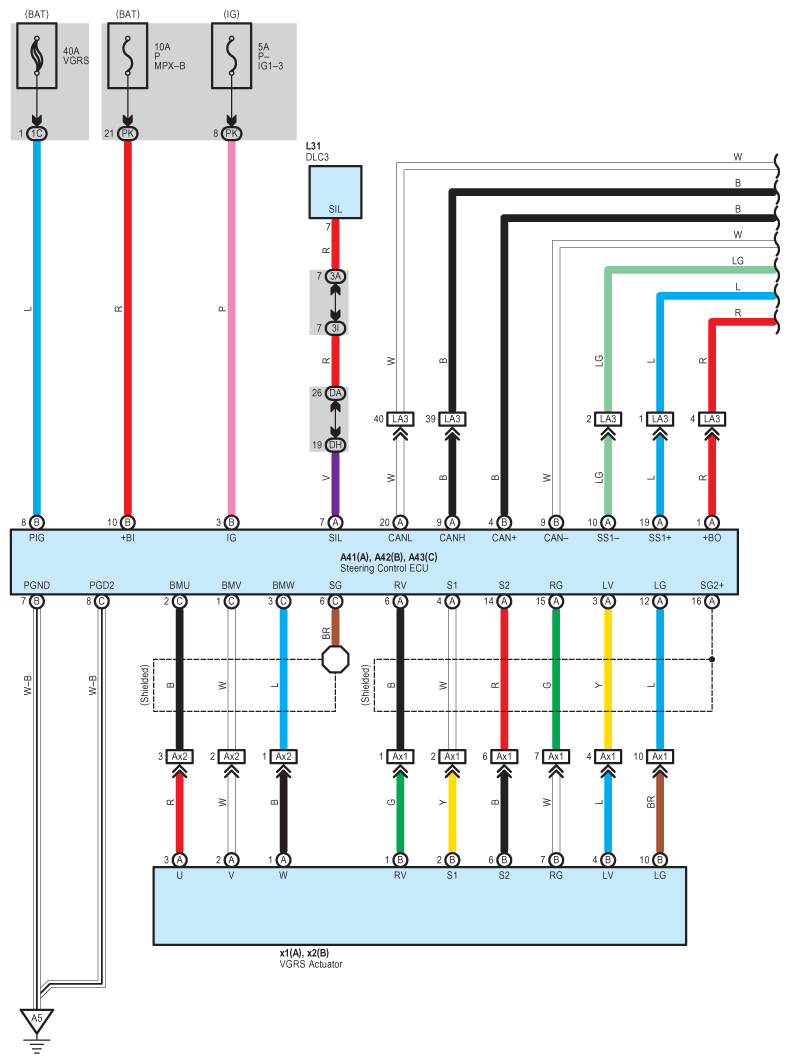

Fig 1: VGRS System - Wiring Diagram (1 Of 5)
G08940810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

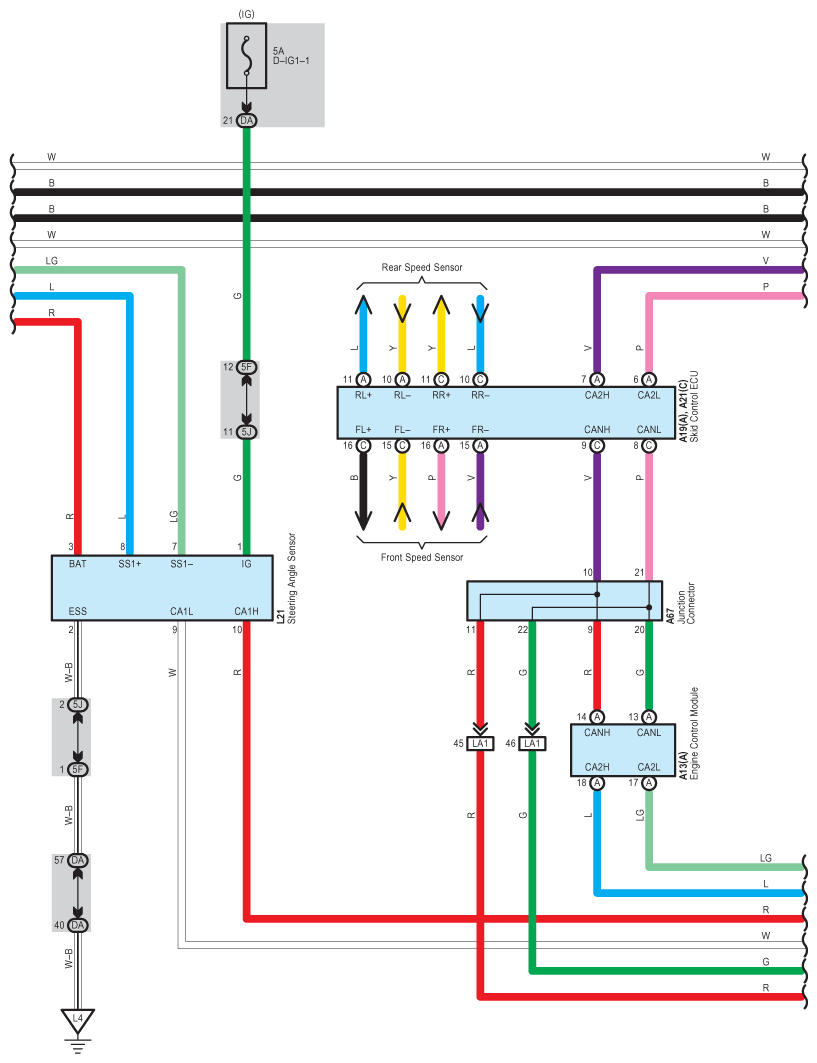

Fig 2: VGRS System - Wiring Diagram (2 Of 5)
G08940811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

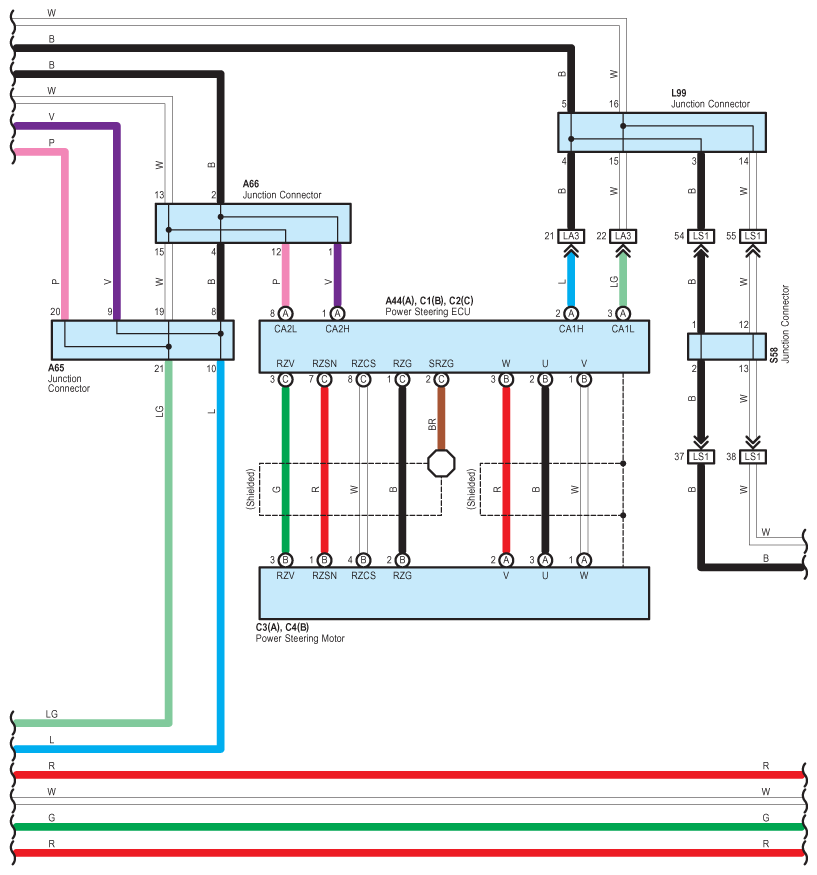

Fig 3: VGRS System - Wiring Diagram (3 Of 5)
G08940812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

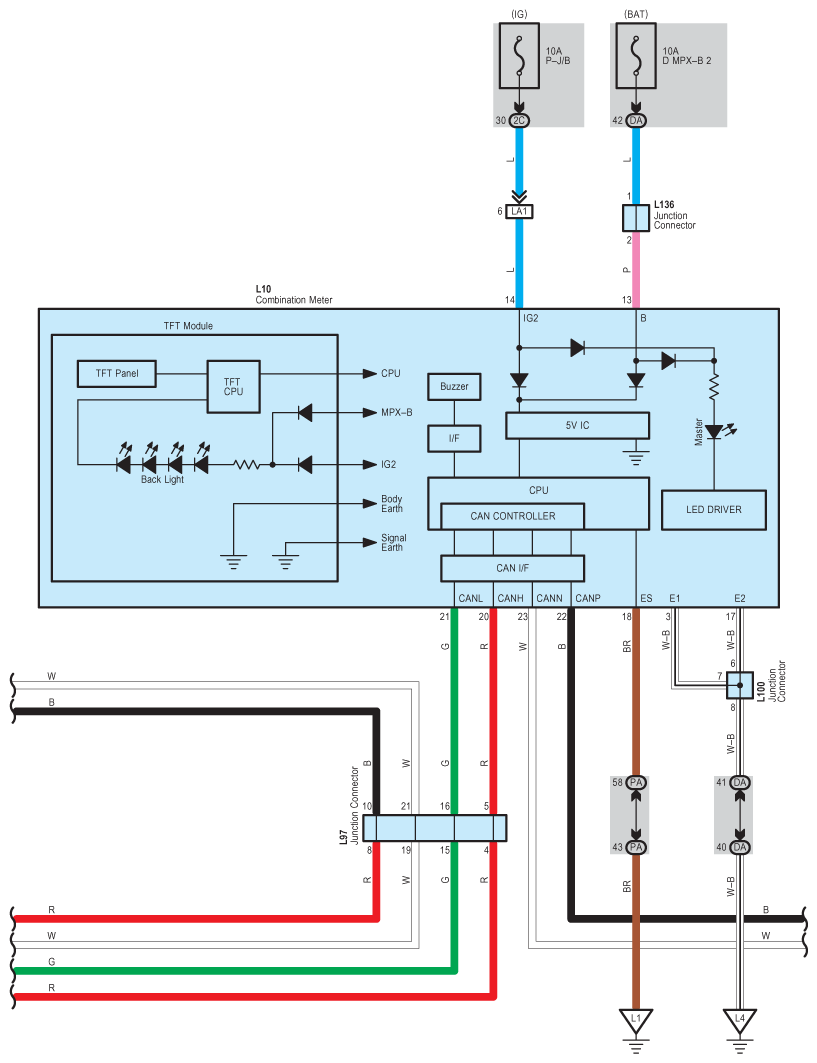

Fig 4: VGRS System - Wiring Diagram (4 Of 5)
G08940813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

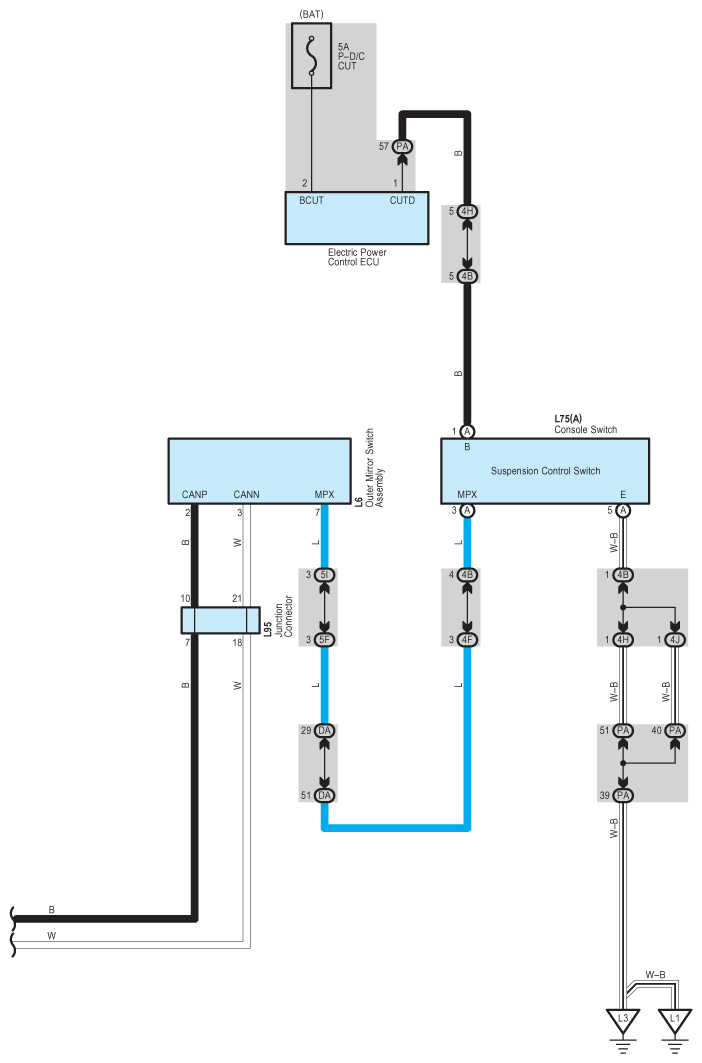

Fig 5: VGRS System - Wiring Diagram (5 Of 5)
G08940814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
