Camshaft Timing Control Motor: Removal: Removal

REMOVE V-BANK COVER SUB-ASSEMBLY See step 3
REMOVE AIR CLEANER INLET COVER SUB-ASSEMBLY See step 4
REMOVE NO. 1 AIR CLEANER INLET See step 5
REMOVE INTAKE AIR CONNECTOR PIPE See step 8
REMOVE CAMSHAFT TIMING CONTROL WITH EDU MOTOR ASSEMBLY RH
1. Disconnect the 2 camshaft timing control with EDU motor connectors.

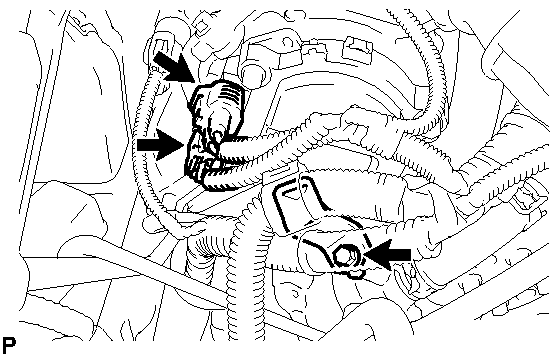

  Fig 1: Identifying Engine Wire Bracket With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt and engine wire bracket.
3. Remove the 3 bolts and camshaft timing control with EDU motor.

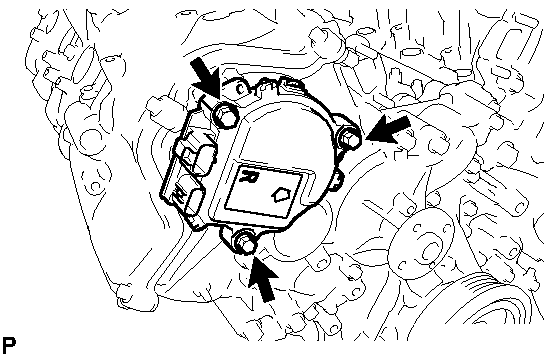

  Fig 2: Identifying Bolts And Camshaft Timing Control With EDU Motor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Do not allow foreign matter to contact the oil seal face of the camshaft timing control with EDU motor (connecting surface with timing chain cover).
4. Remove the O-ring from the timing chain cover.
REMOVE CAMSHAFT TIMING CONTROL WITH EDU MOTOR ASSEMBLY LH
1. Disconnect the 2 camshaft timing control with EDU motor connectors and engine wire clamp.

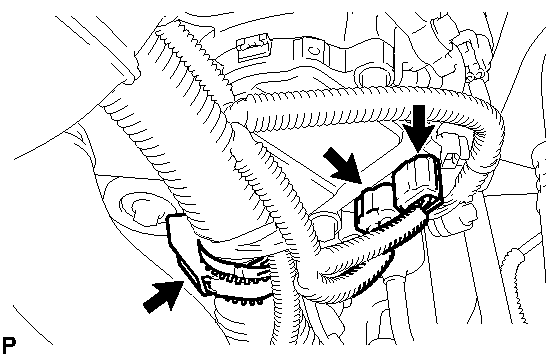

  Fig 3: Identifying Camshaft Timing Control LH With EDU Motor Connectors And Engine Wire Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 3 bolts and camshaft timing control with EDU motor.

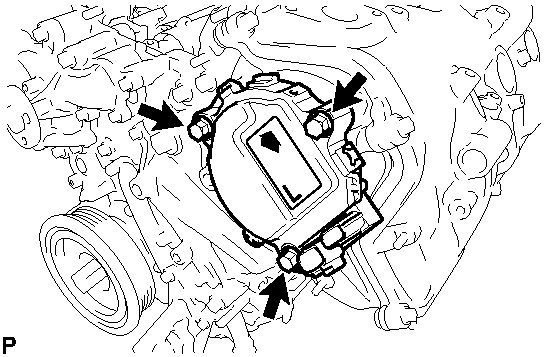

  Fig 4: Identifying Bolts And Camshaft Timing Control With EDU Motor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Do not allow foreign matter to contact the oil seal face of the camshaft timing control with EDU motor (connecting surface with timing chain cover).
3. Remove the O-ring from the timing chain cover.
