Dynamic Radar Cruise Control: Notes

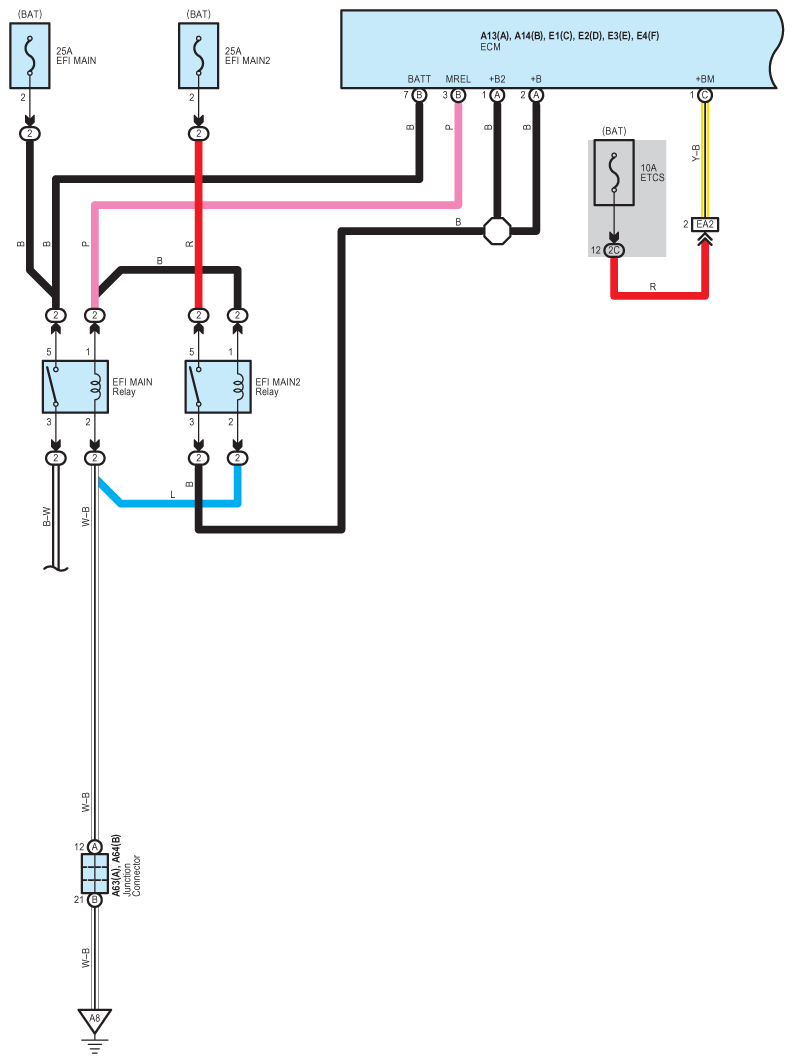

Fig 1: Dynamic Radar Cruise Control - Wiring Diagram (1 Of 22)

G08936850

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

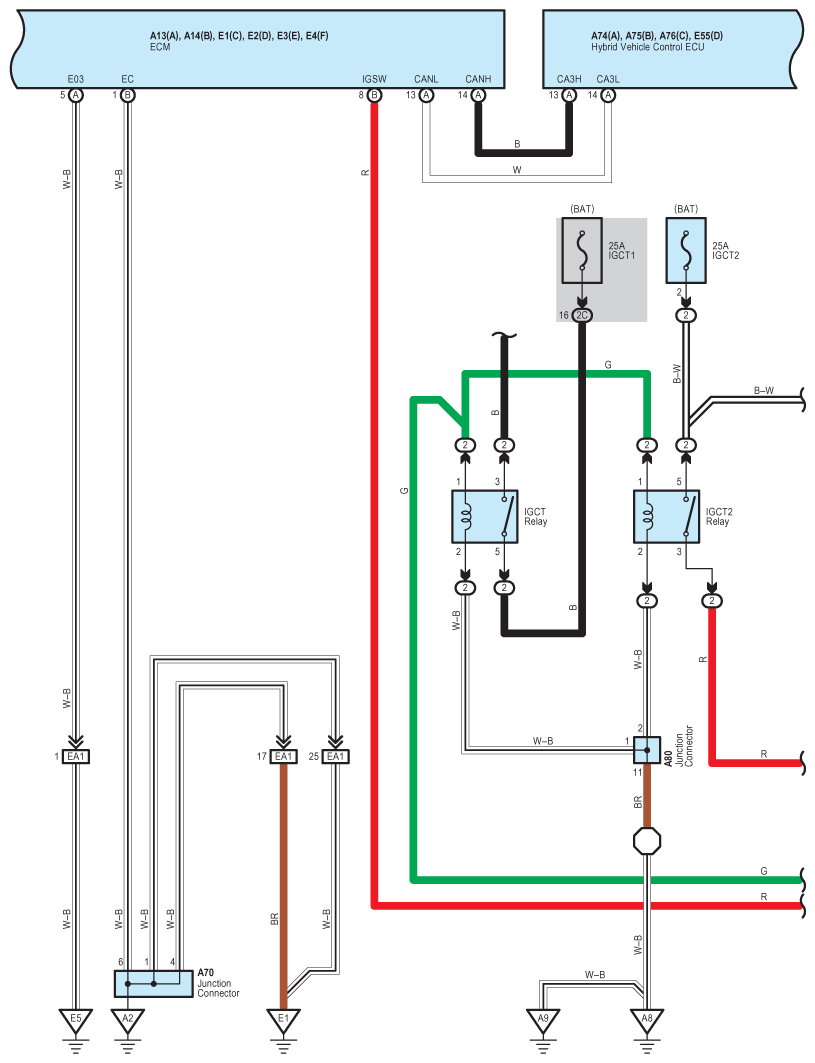

Fig 2: Dynamic Radar Cruise Control - Wiring Diagram (2 Of 22)

G08936851

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

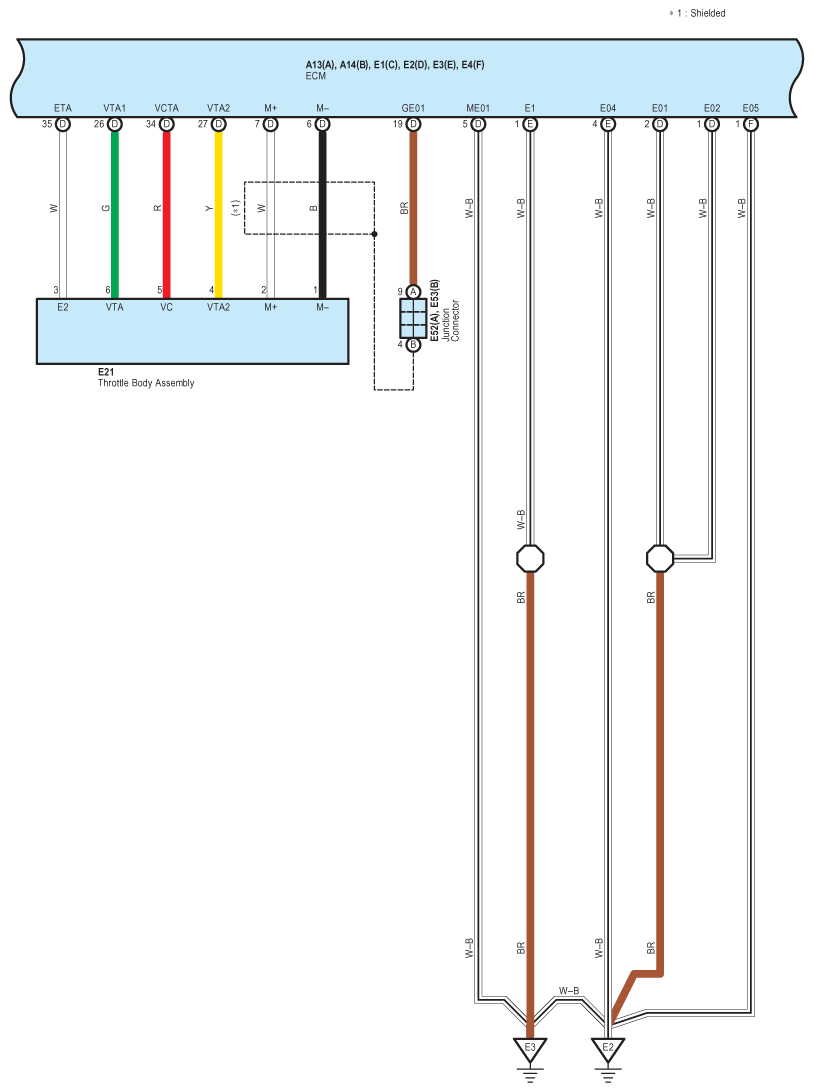

Fig 3: Dynamic Radar Cruise Control - Wiring Diagram (3 Of 22)

G08936852

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

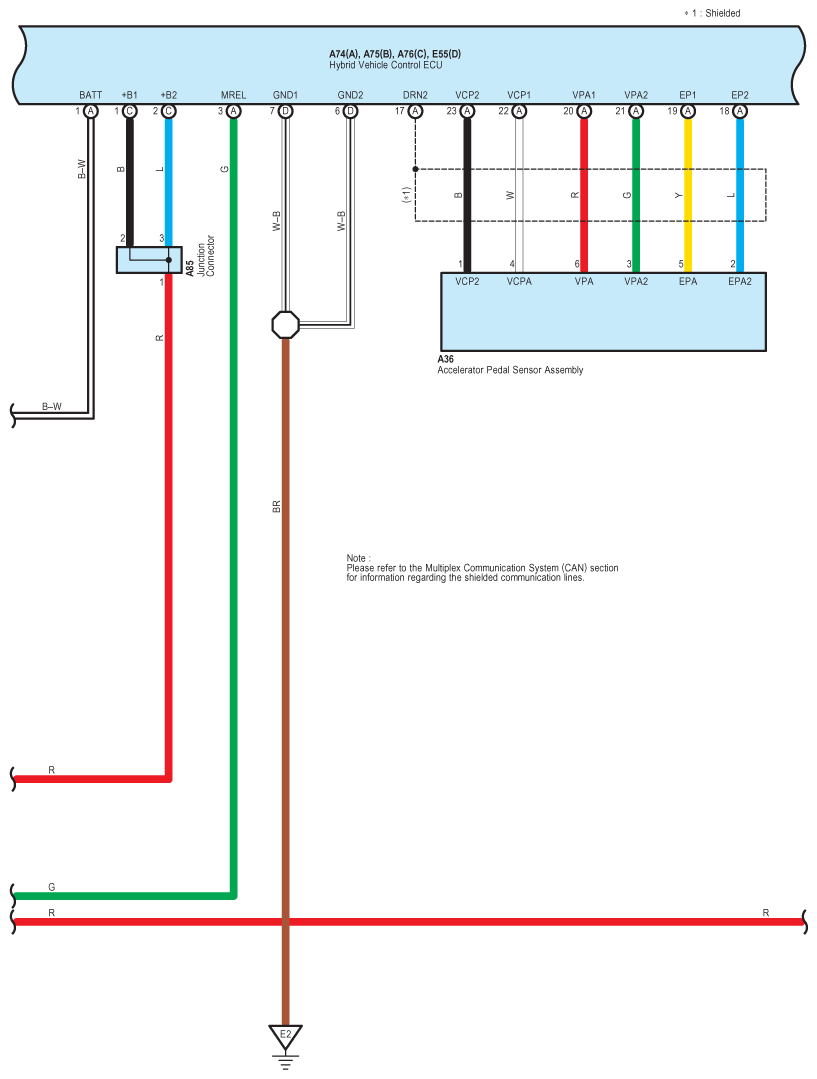

Fig 4: Dynamic Radar Cruise Control - Wiring Diagram (4 Of 22)

G08936853

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

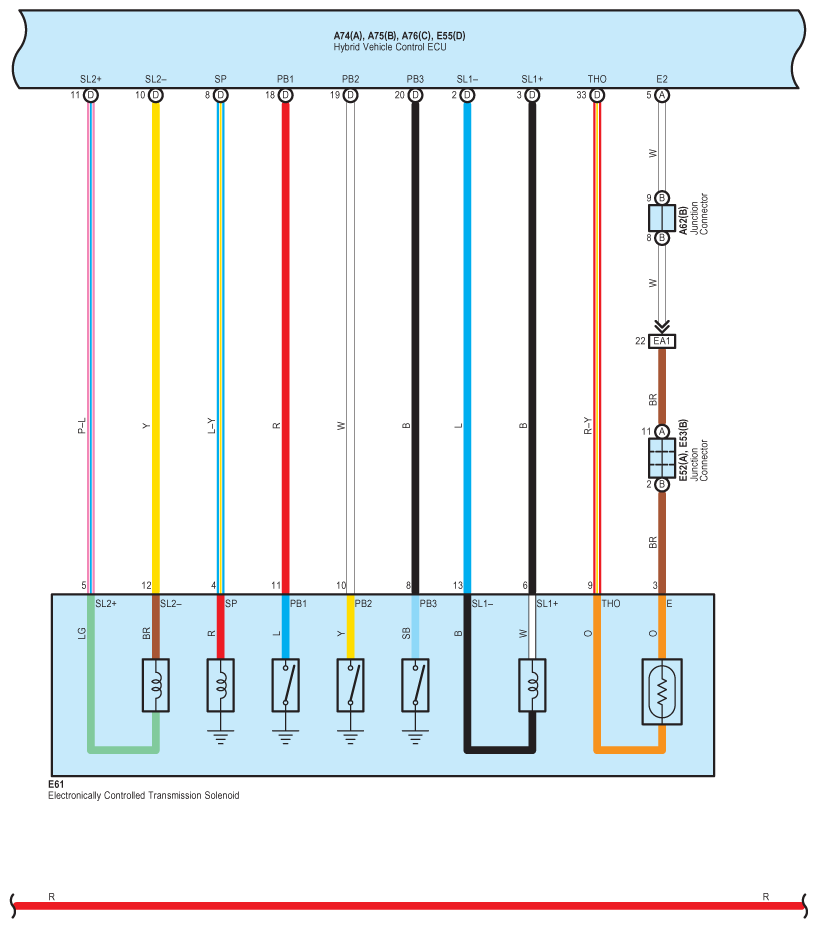

Fig 5: Dynamic Radar Cruise Control - Wiring Diagram (5 Of 22)

G08936854

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Dynamic Radar Cruise Control - Wiring Diagram (6 Of 22)

G08936855

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

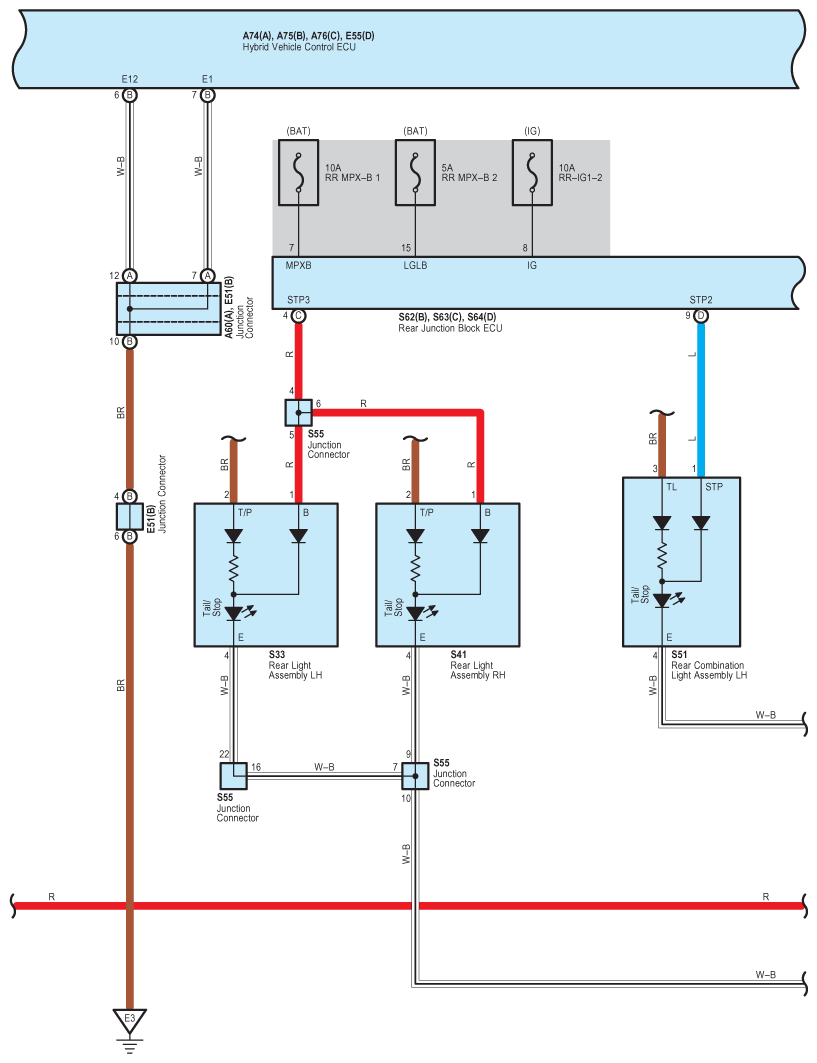

Fig 7: Dynamic Radar Cruise Control - Wiring Diagram (7 Of 22)

G08936856

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

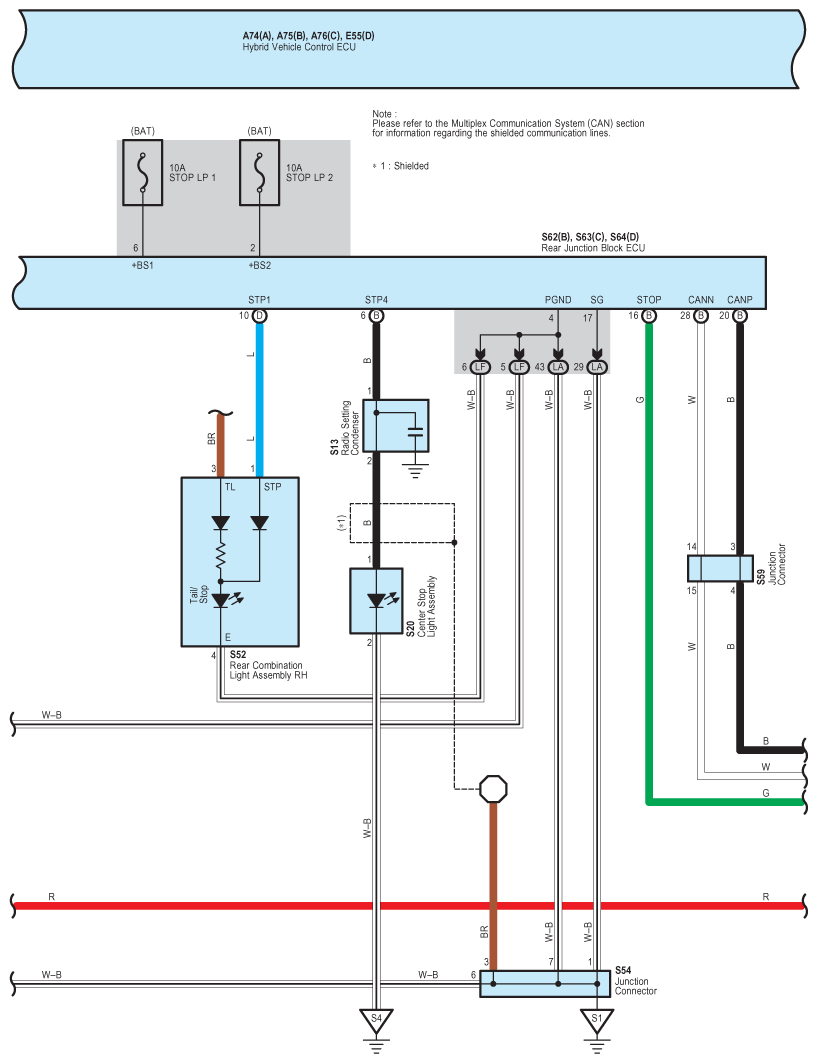

Fig 8: Dynamic Radar Cruise Control - Wiring Diagram (8 Of 22)

G08936857

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Dynamic Radar Cruise Control - Wiring Diagram (9 Of 22)

G08936858

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

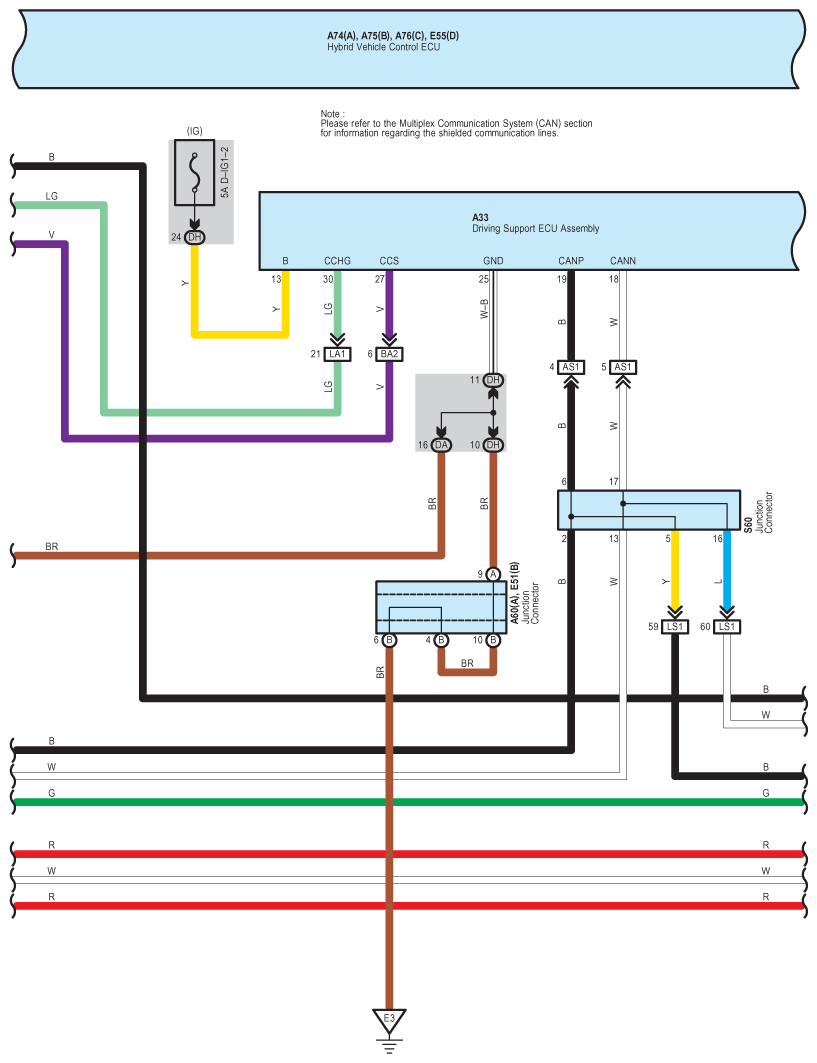

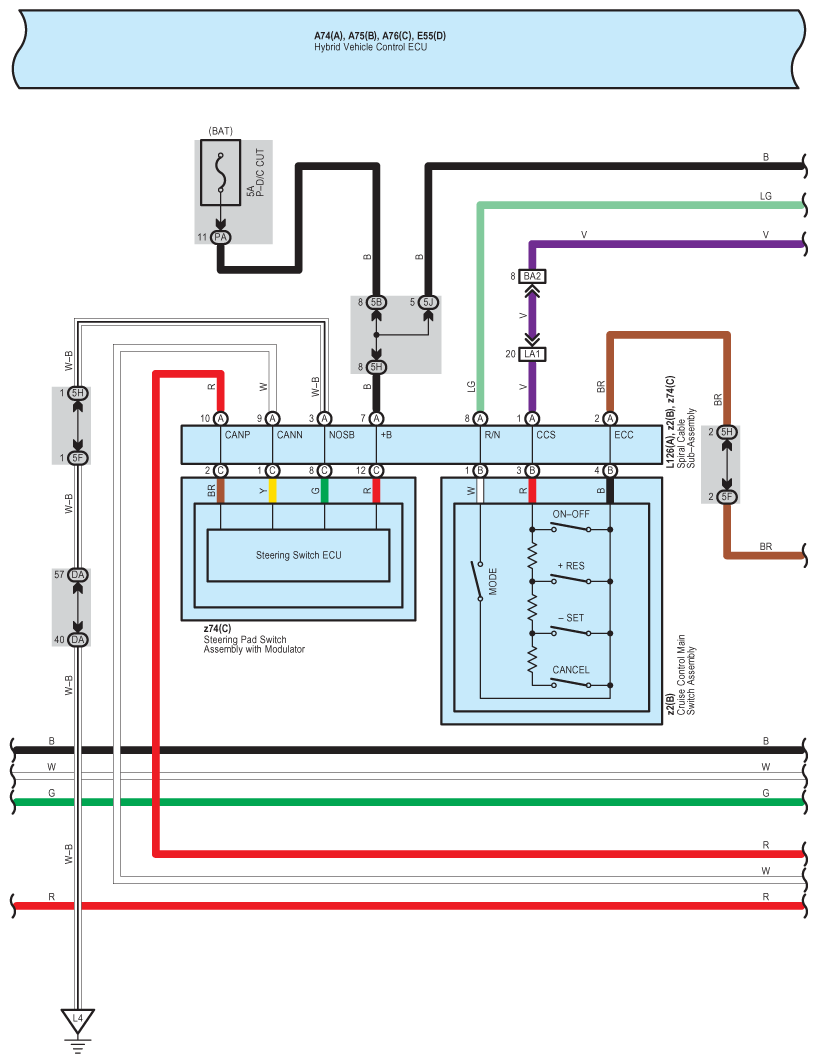

Fig 10: Dynamic Radar Cruise Control - Wiring Diagram (10 Of 22)

G08936859

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

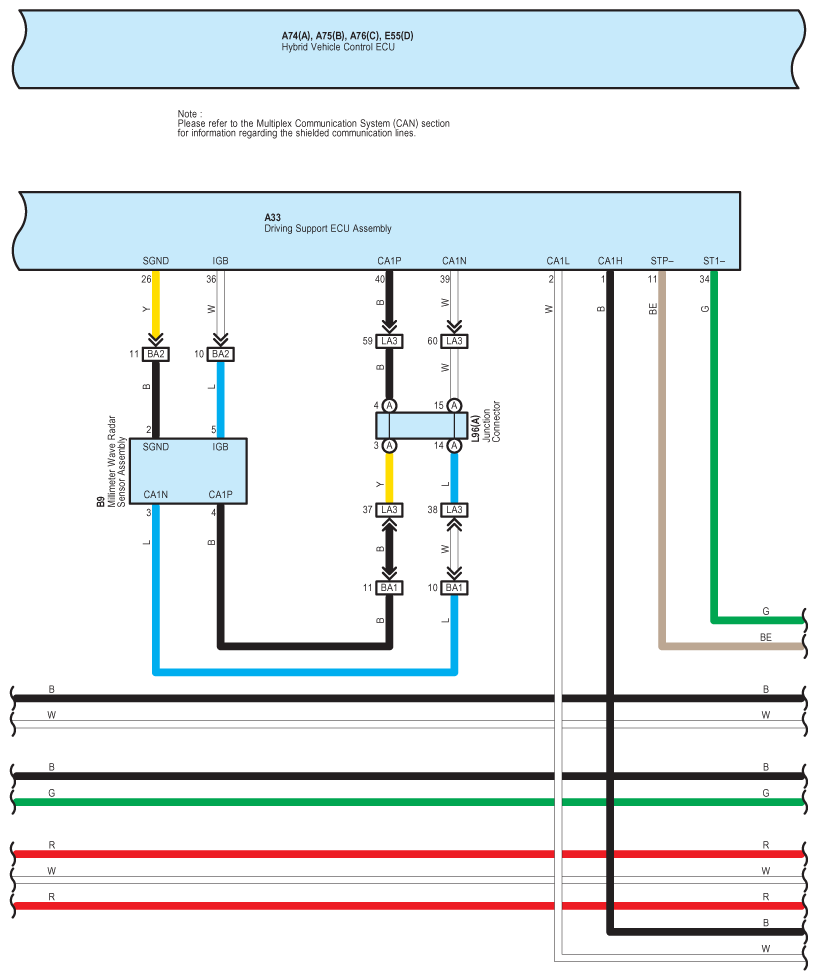

Fig 11: Dynamic Radar Cruise Control - Wiring Diagram (11 Of 22)

G08936860

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

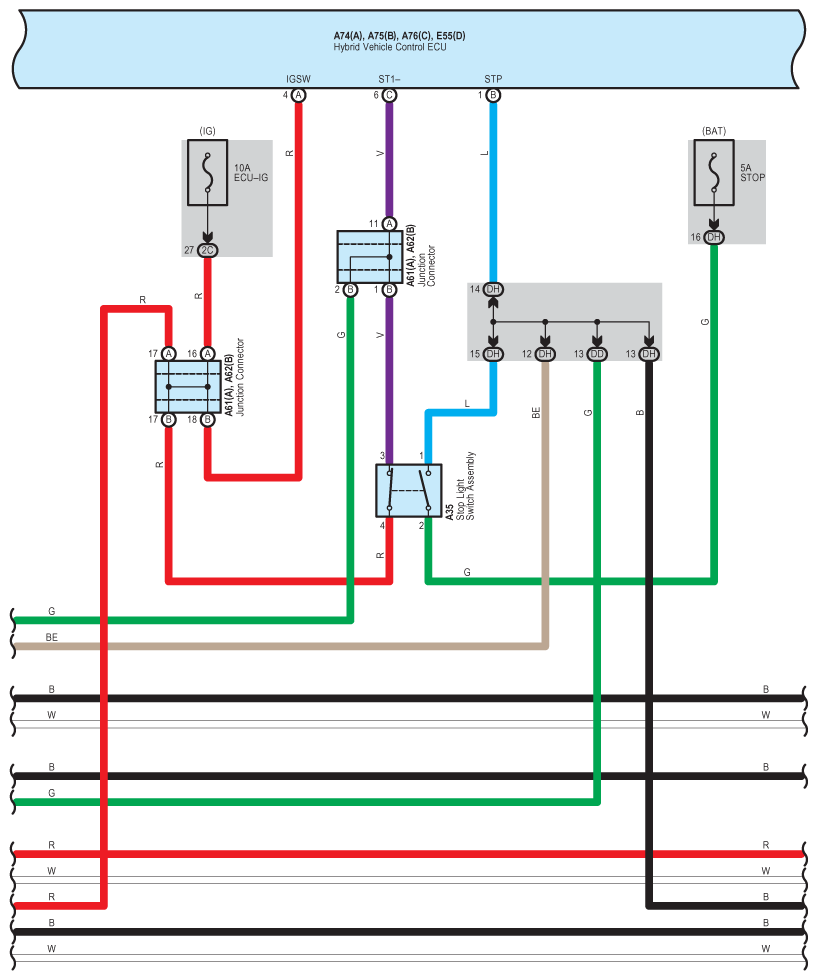

Fig 12: Dynamic Radar Cruise Control - Wiring Diagram (12 Of 22)

G08936861

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Dynamic Radar Cruise Control - Wiring Diagram (13 Of 22)

G08936862

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

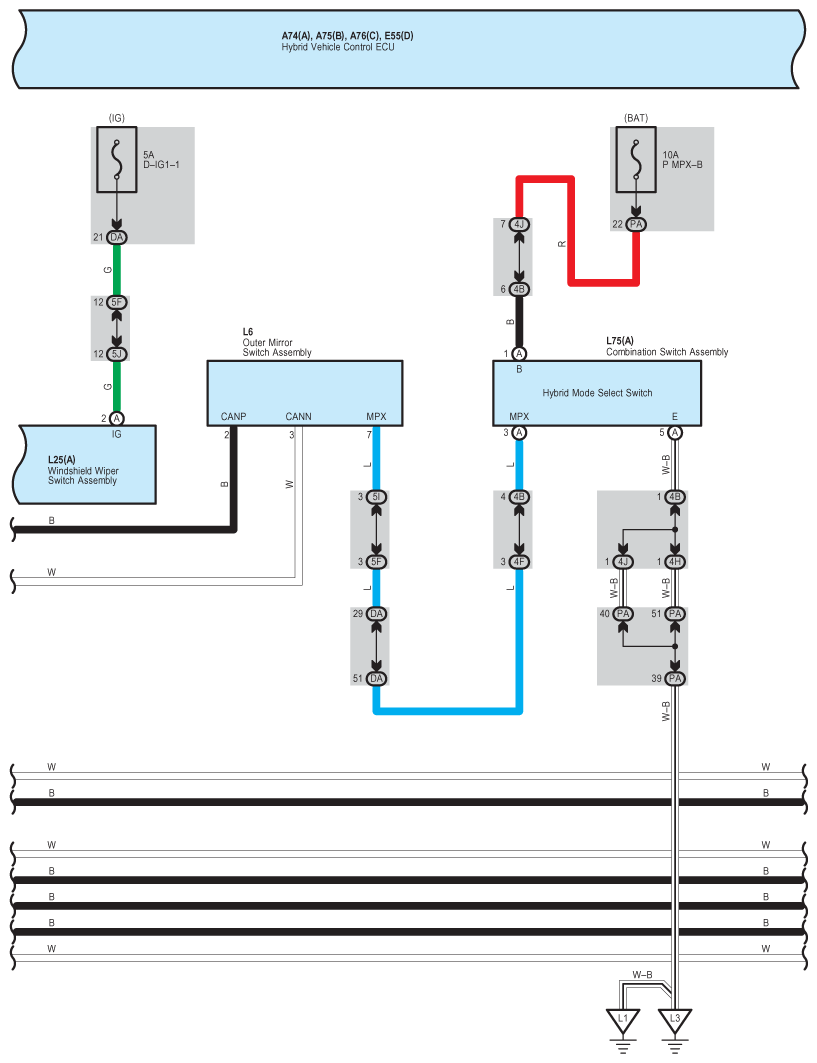

Fig 14: Dynamic Radar Cruise Control - Wiring Diagram (14 Of 22)

G08936863

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

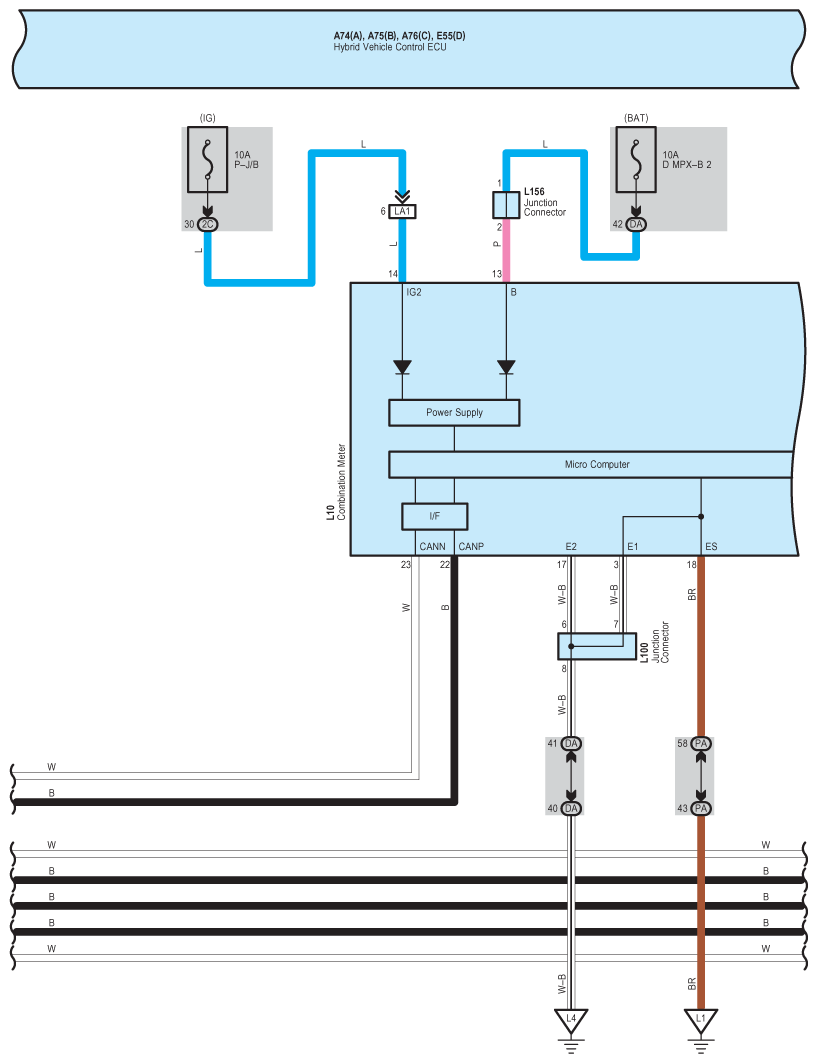

Fig 15: Dynamic Radar Cruise Control - Wiring Diagram (15 Of 22)

G08936864

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

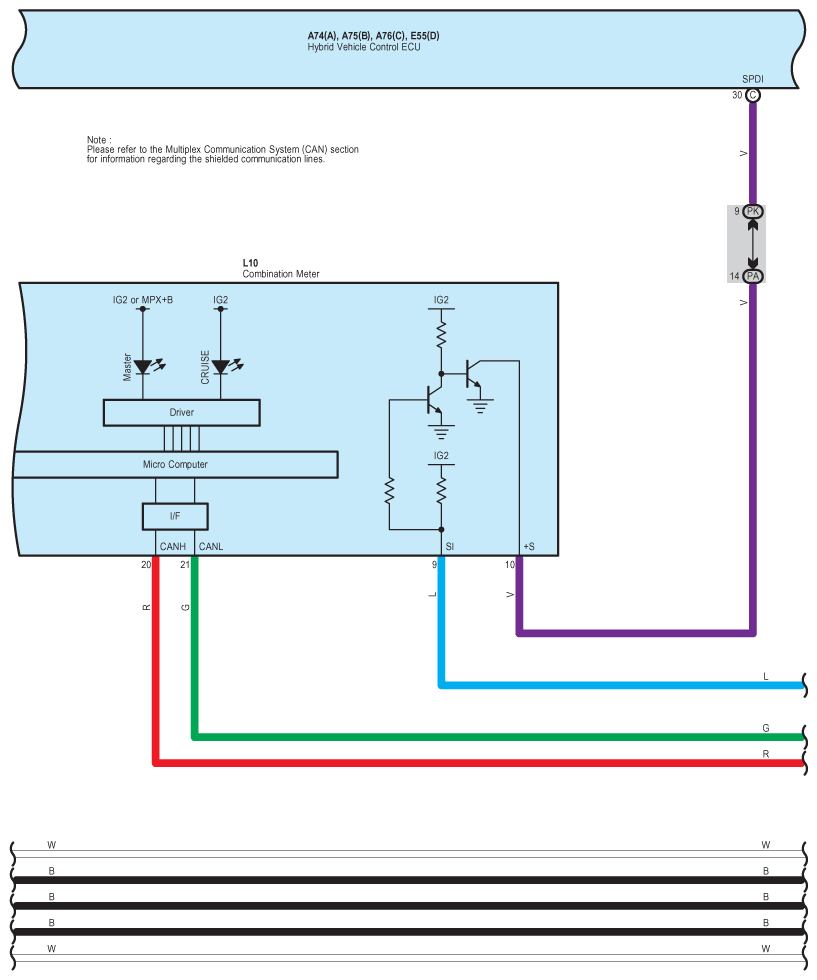

Fig 16: Dynamic Radar Cruise Control - Wiring Diagram (16 Of 22)

G08936865

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

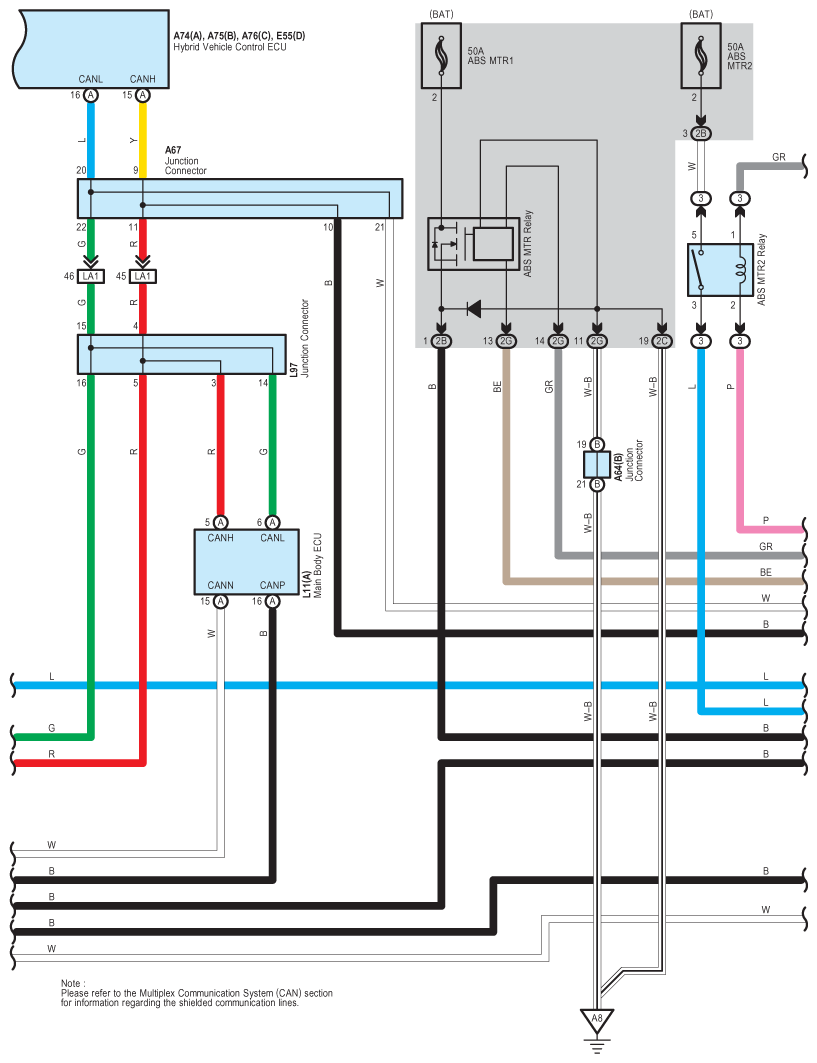

Fig 17: Dynamic Radar Cruise Control - Wiring Diagram (17 Of 22)

G08936866

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

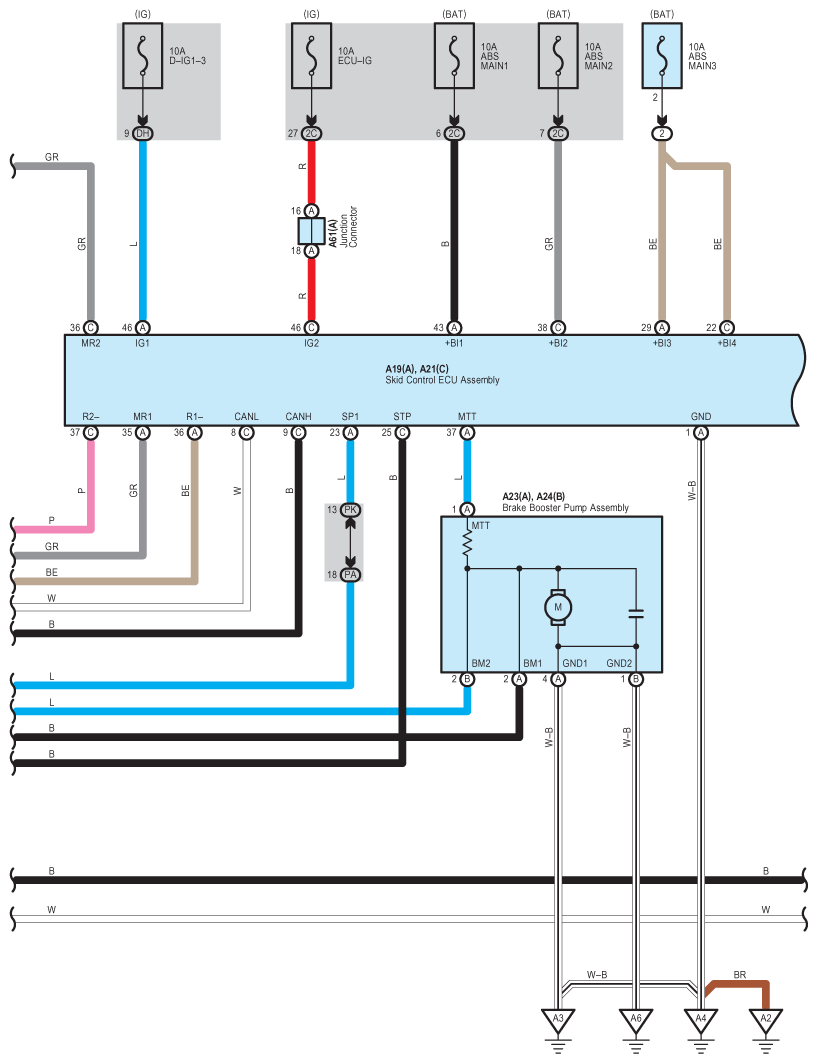

Fig 18: Dynamic Radar Cruise Control - Wiring Diagram (18 Of 22)

G08936867

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

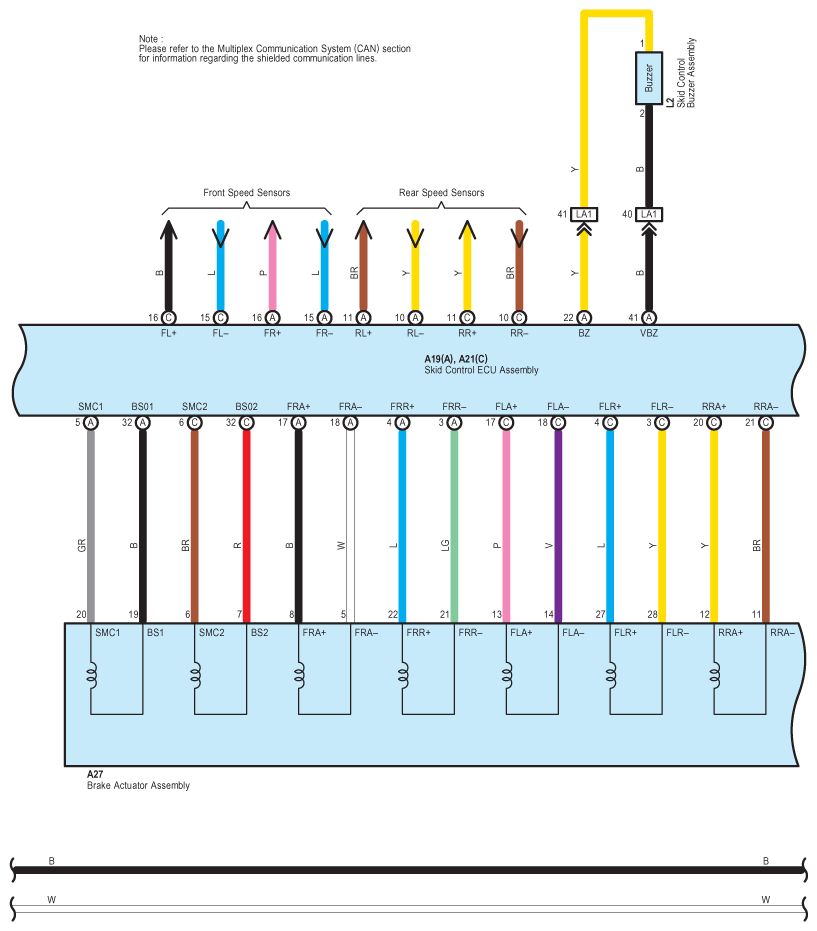

Fig 19: Dynamic Radar Cruise Control - Wiring Diagram (19 Of 22)

G08936868

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

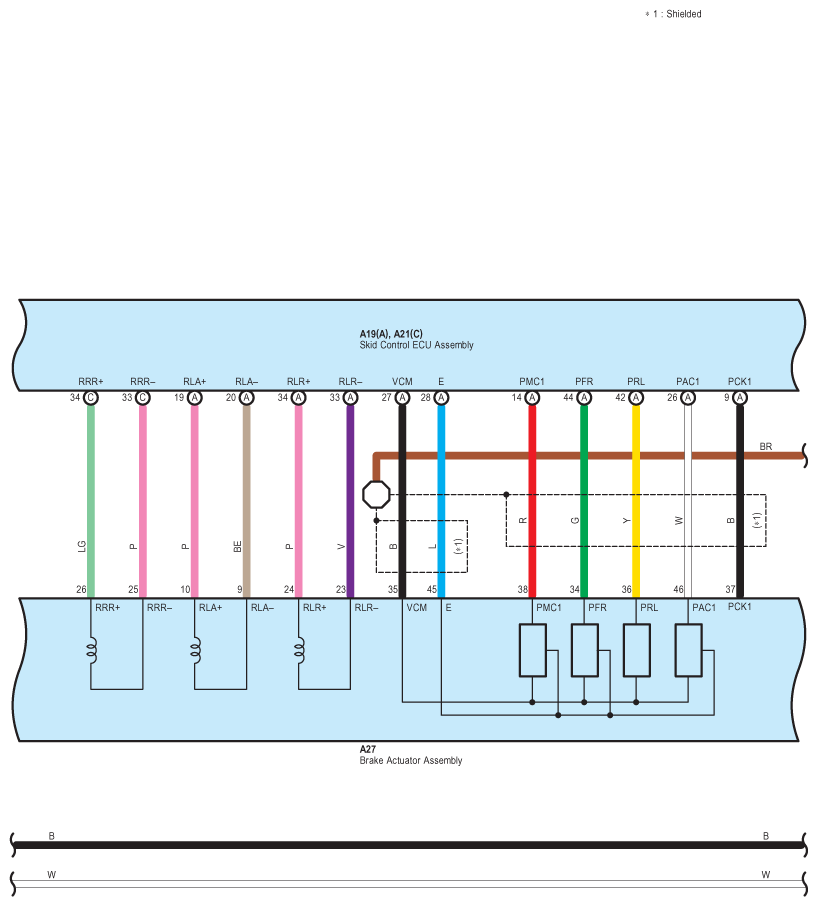

Fig 20: Dynamic Radar Cruise Control - Wiring Diagram (20 Of 22)

G08936869

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

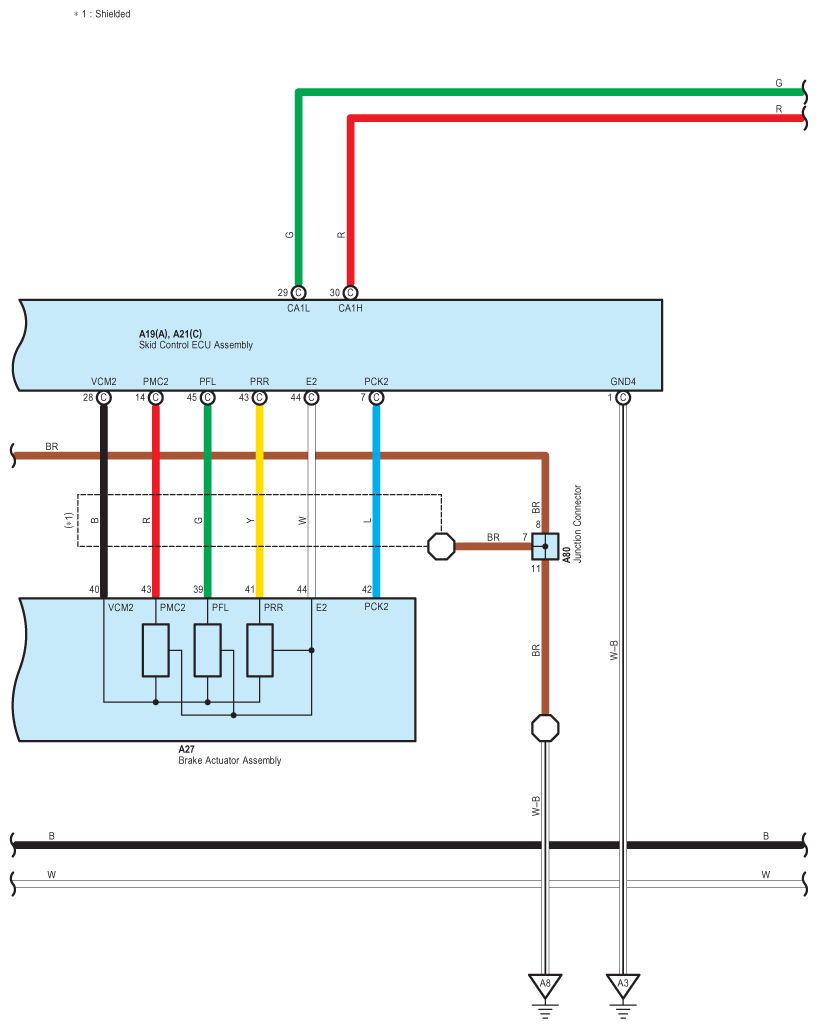

Fig 21: Dynamic Radar Cruise Control - Wiring Diagram (21 Of 22)

G08936870

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

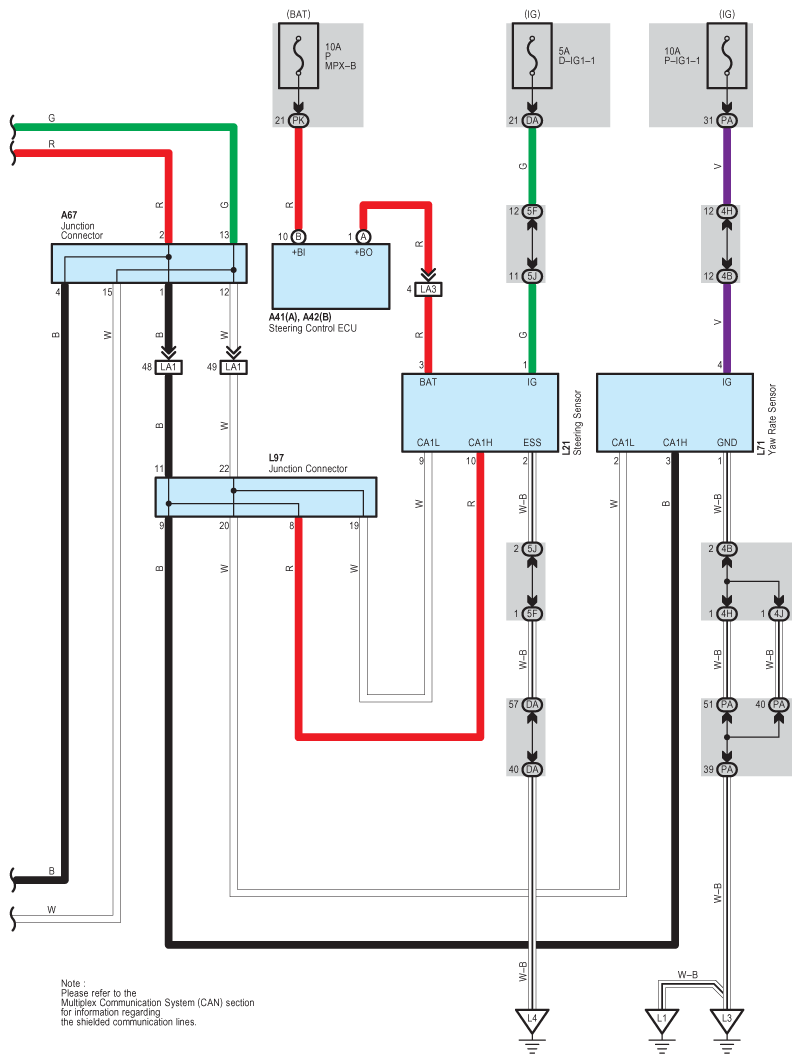

Fig 22: Dynamic Radar Cruise Control - Wiring Diagram (22 Of 22)

G08936871

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
