OEM System Circuits: Headlight: Notes

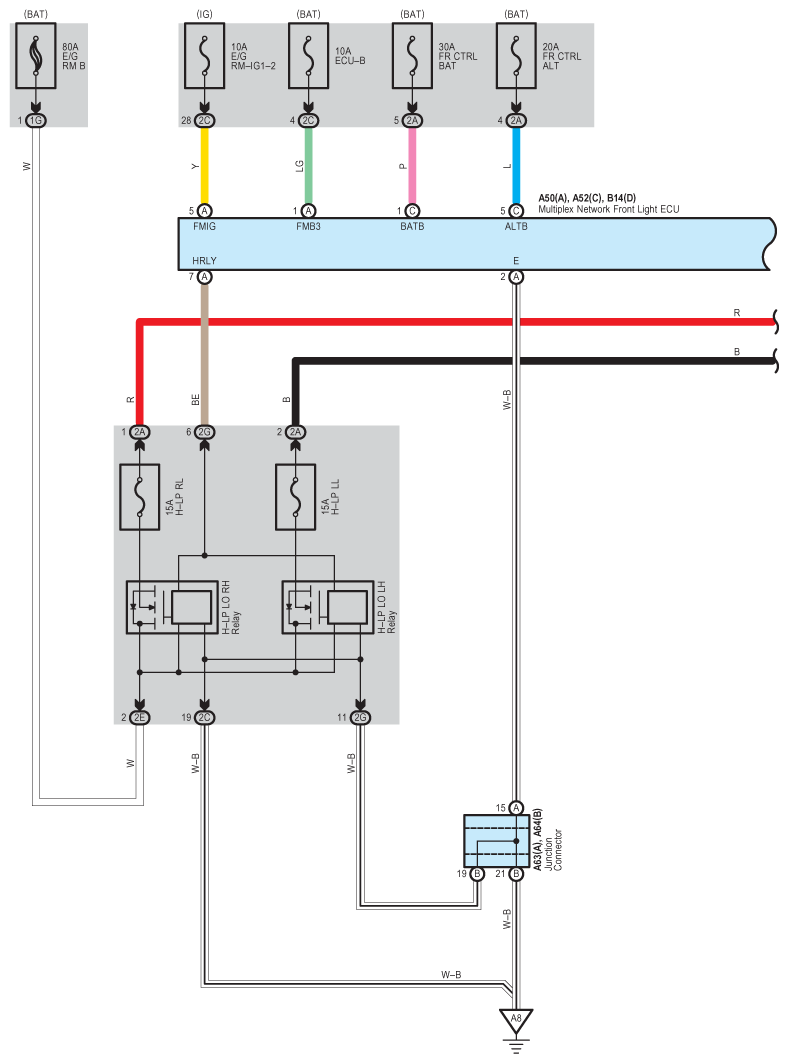

Fig 1: Headlight - Wiring Diagram (1 Of 9)

G08936752

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

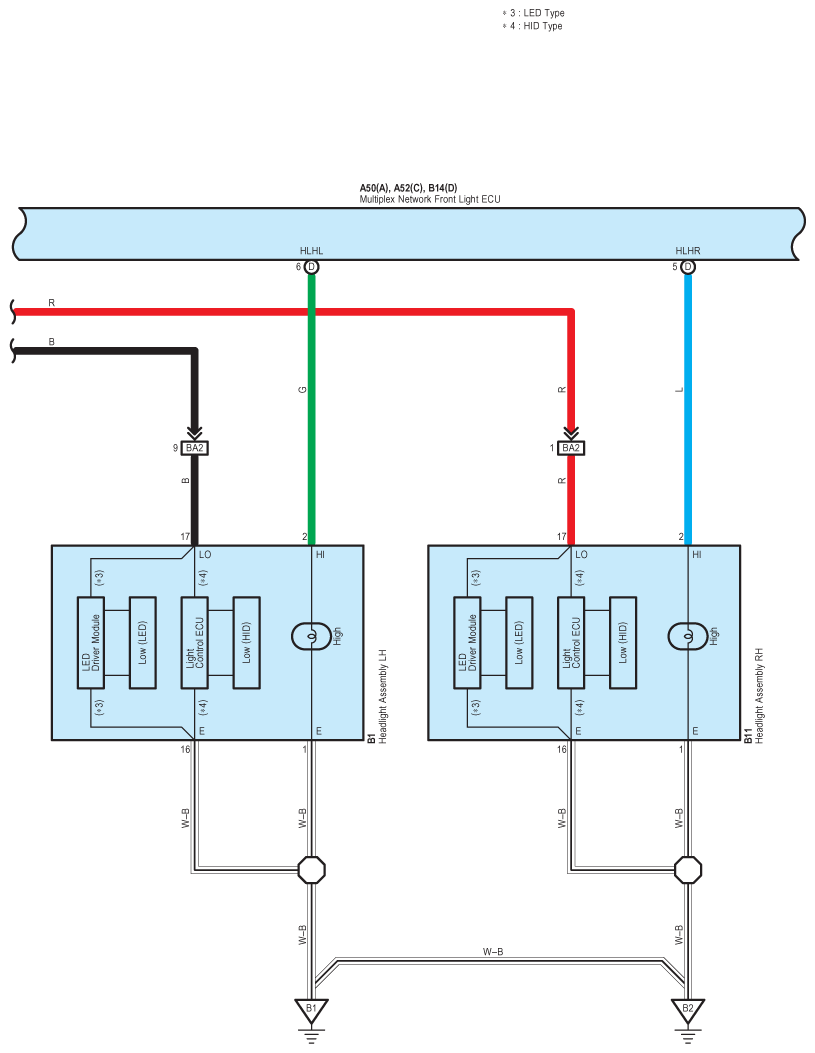

Fig 2: Headlight - Wiring Diagram (2 Of 9)

G08936753

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

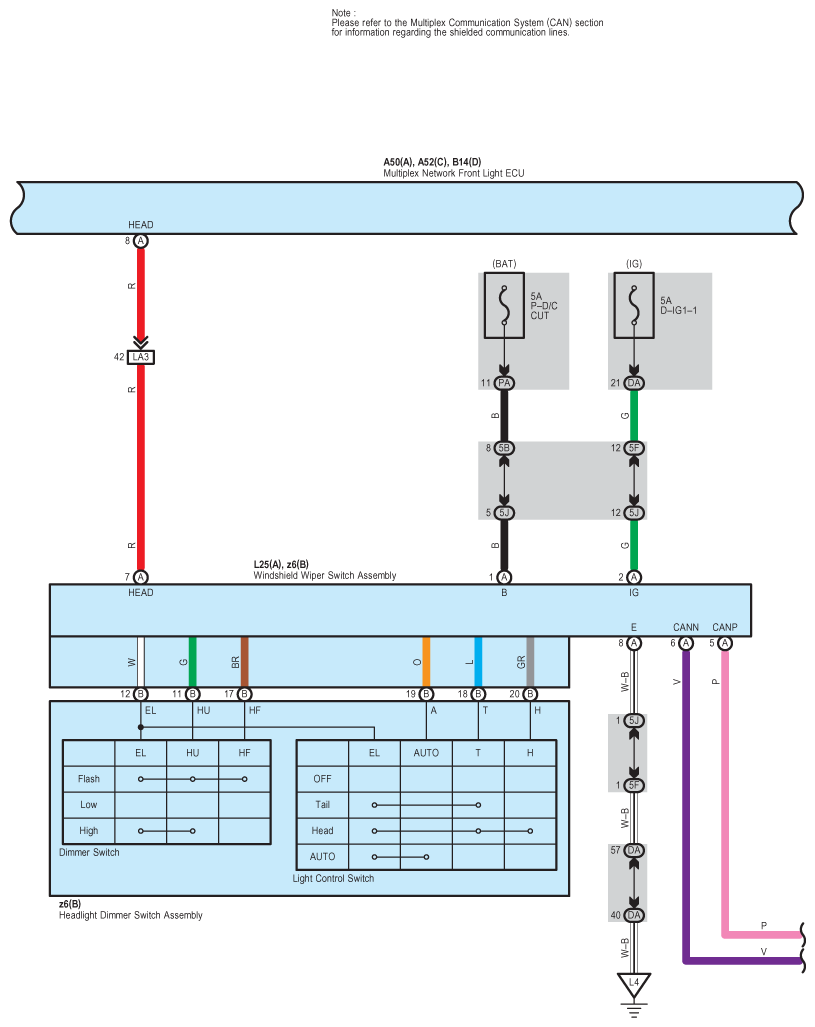

Fig 3: Headlight - Wiring Diagram (3 Of 9)

G08936754

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

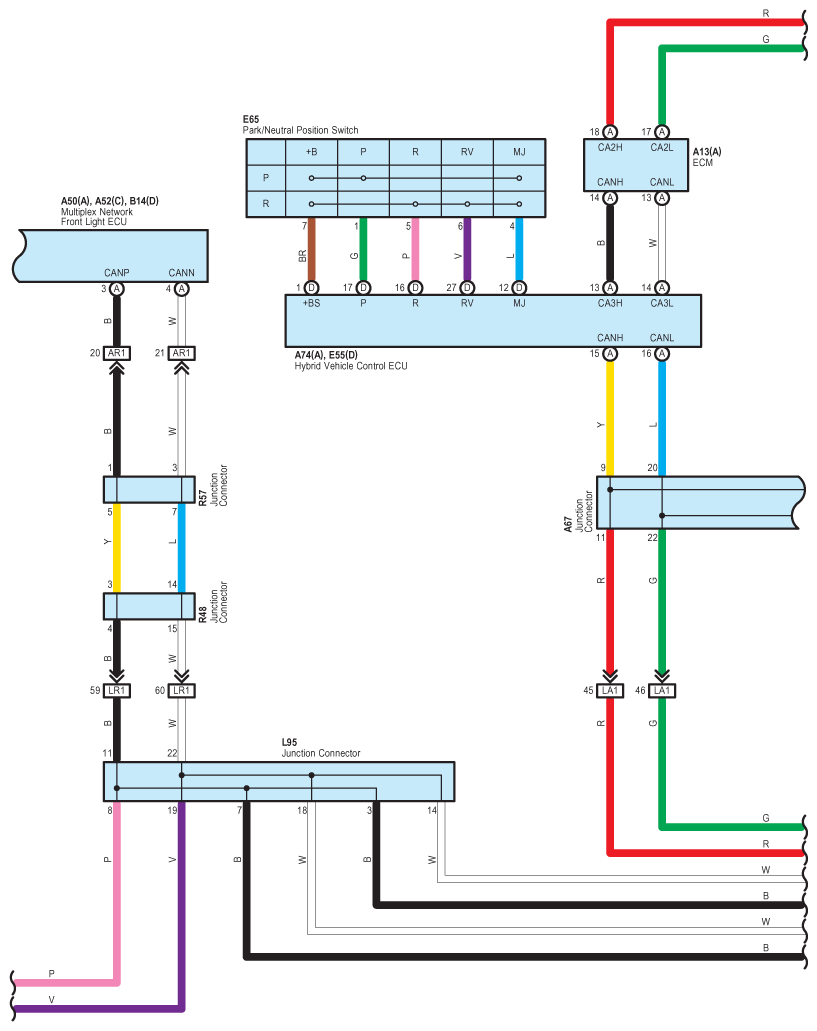

Fig 4: Headlight - Wiring Diagram (4 Of 9)

G08936755

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

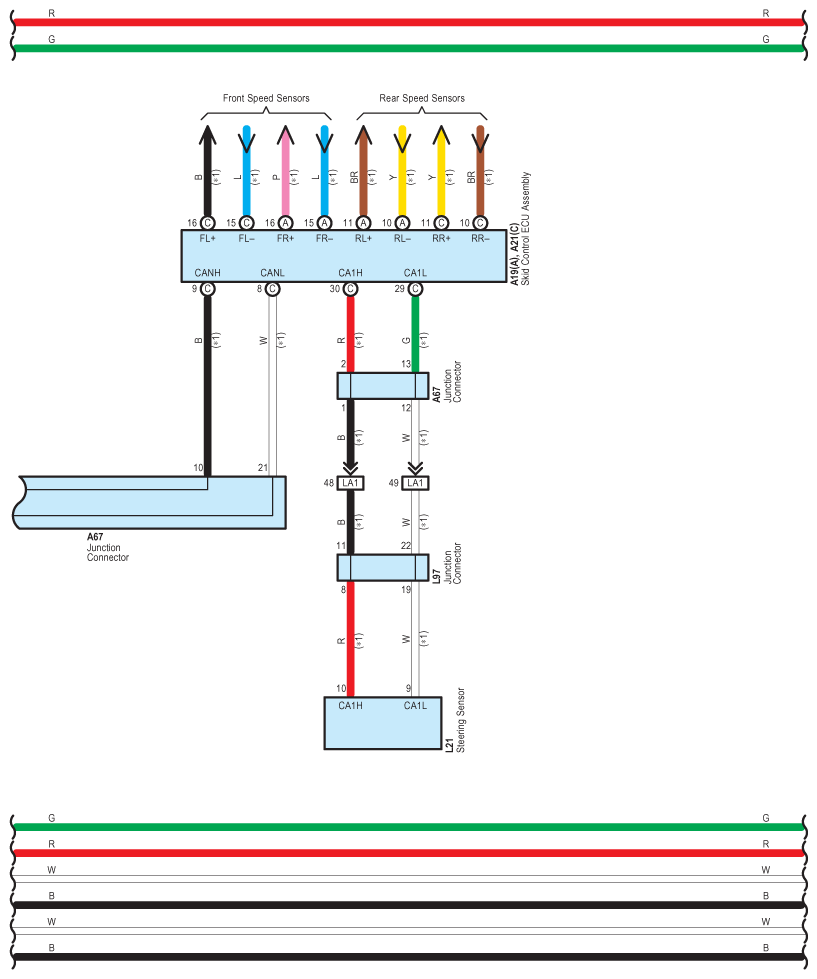

Fig 5: Headlight - Wiring Diagram (5 Of 9)

G08936756

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

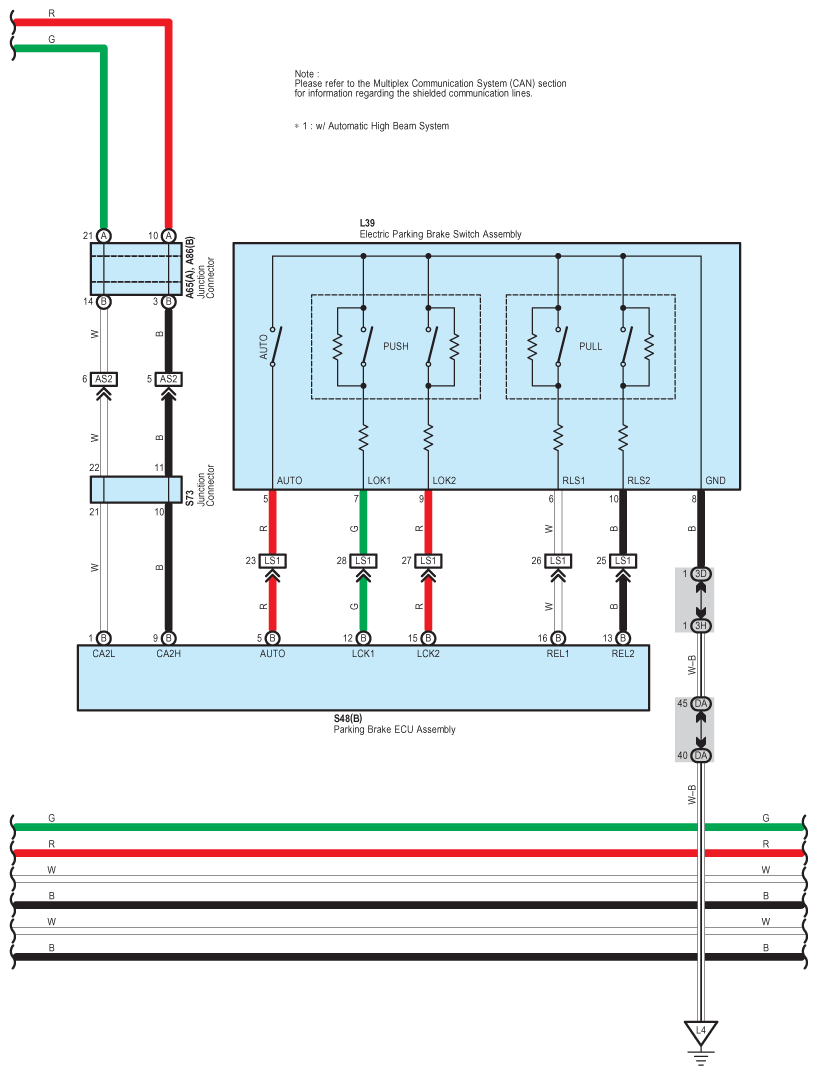

Fig 6: Headlight - Wiring Diagram (6 Of 9)

G08936757

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

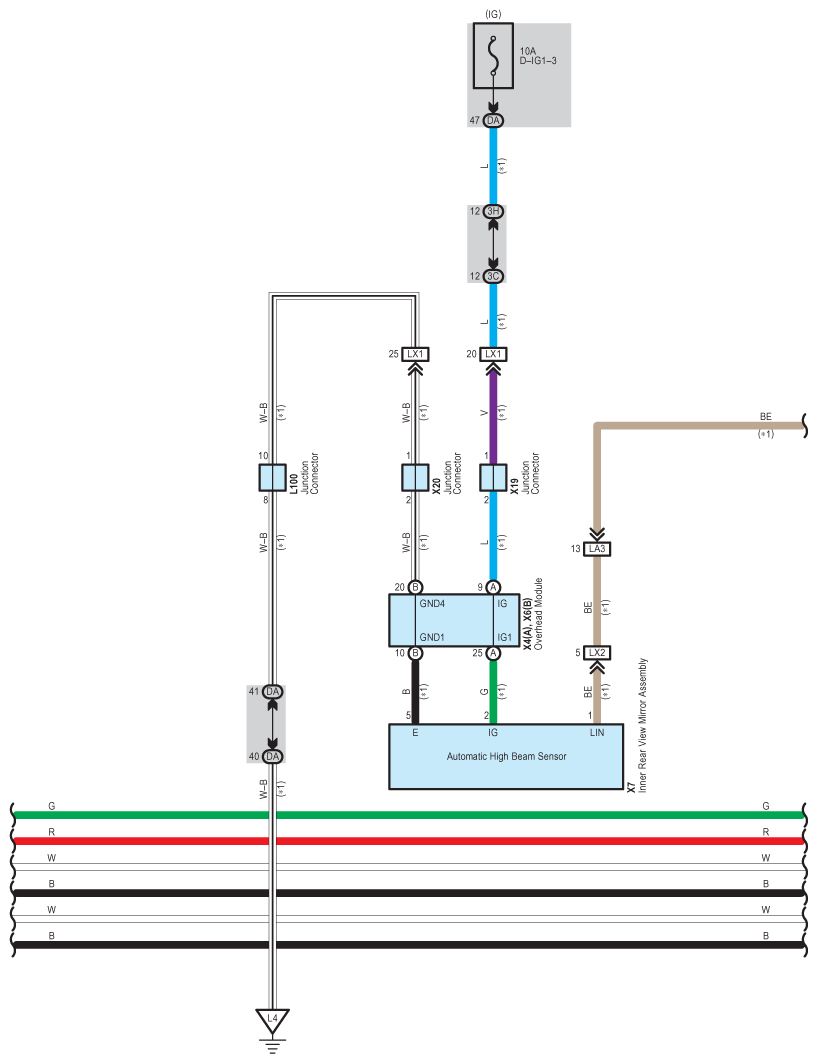

Fig 7: Headlight - Wiring Diagram (7 Of 9)

G08936758

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

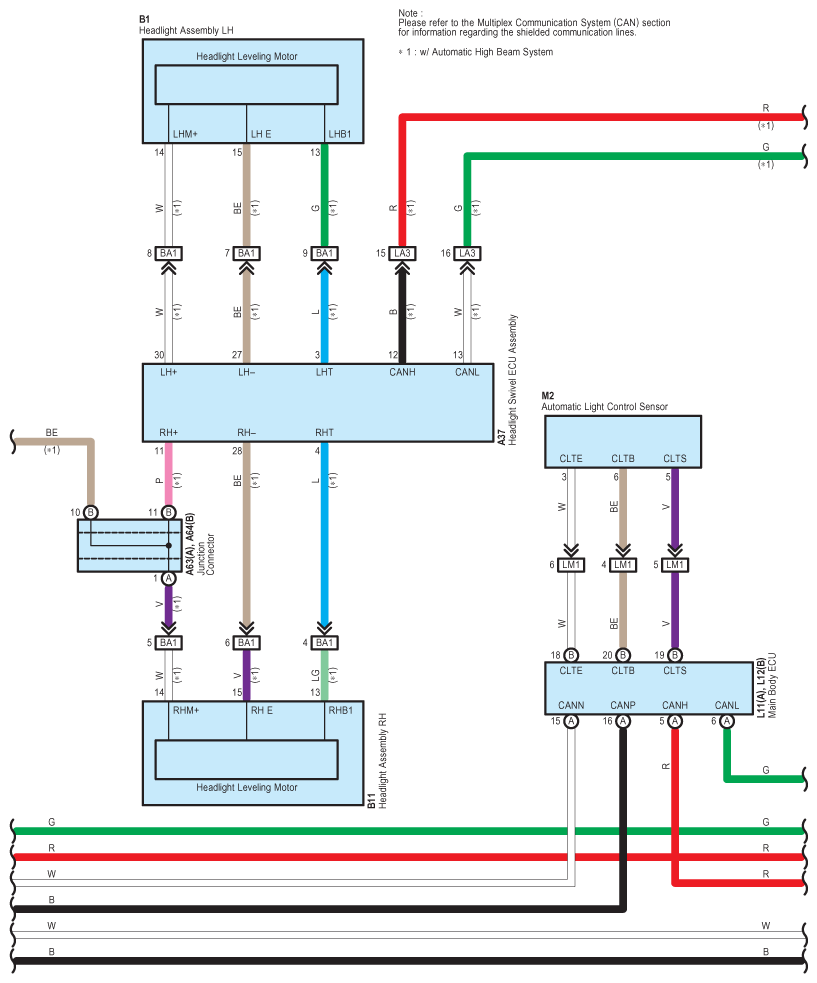

Fig 8: Headlight - Wiring Diagram (8 Of 9)

G08936759

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

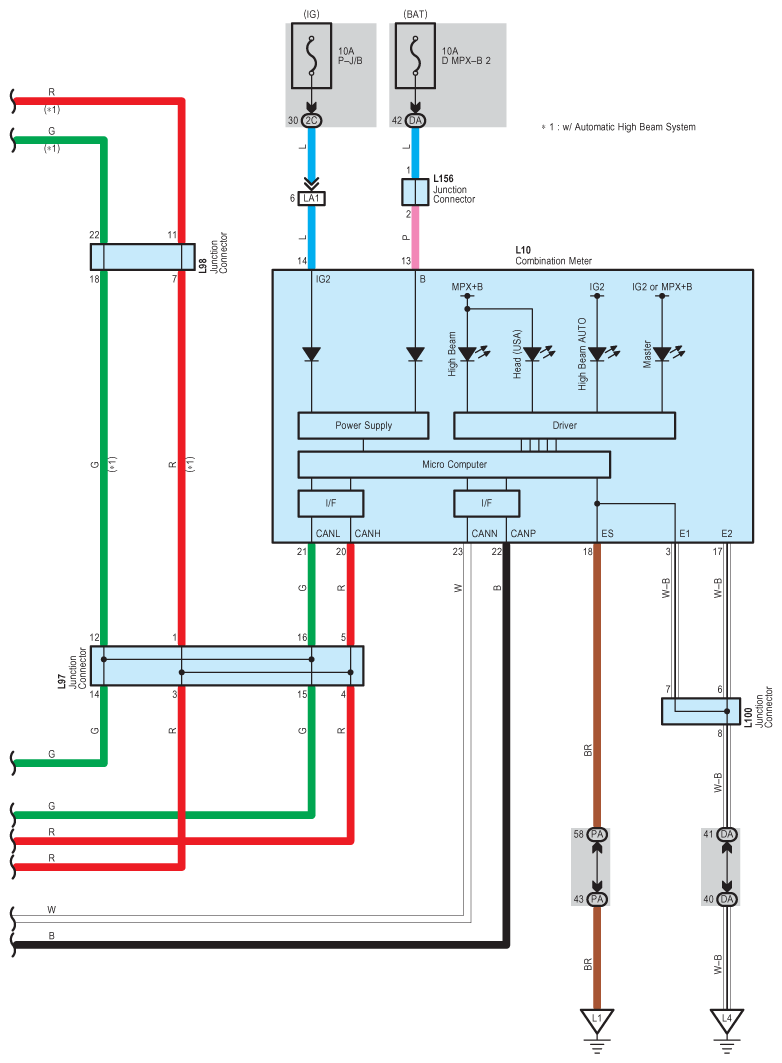

Fig 9: Headlight - Wiring Diagram (9 Of 9)

G08936760

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
