Power Source: Notes

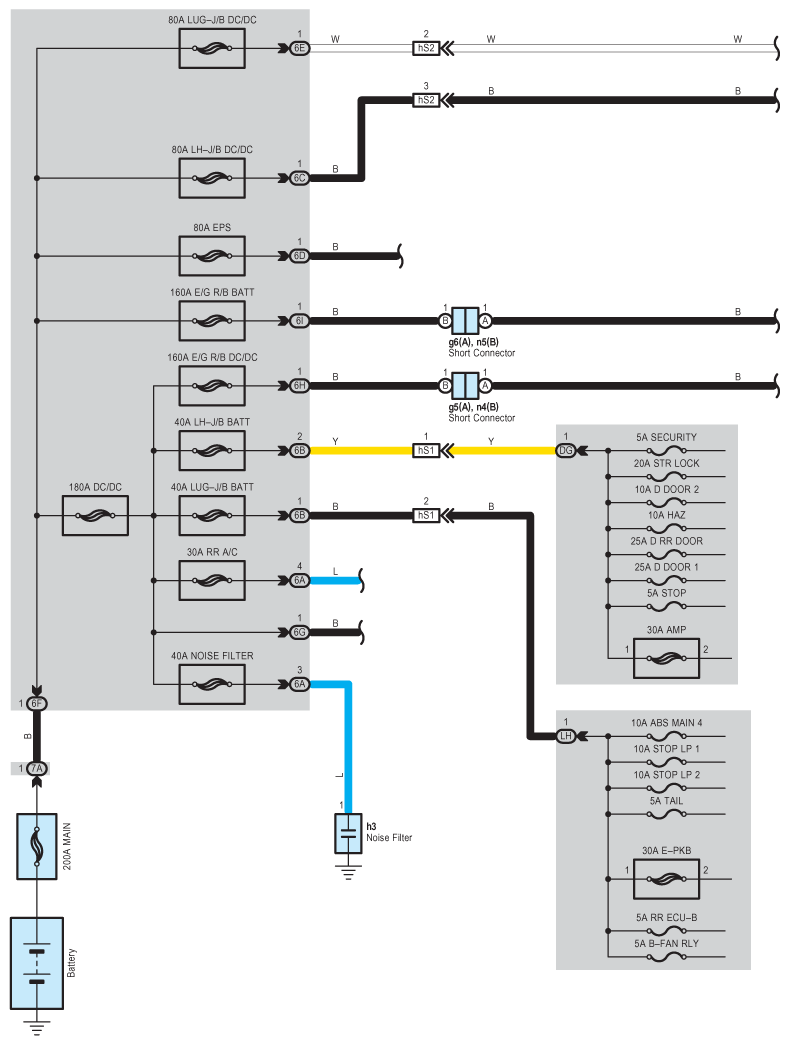

Fig 1: Power Source - Wiring Diagram (1 Of 9)

G08936639

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

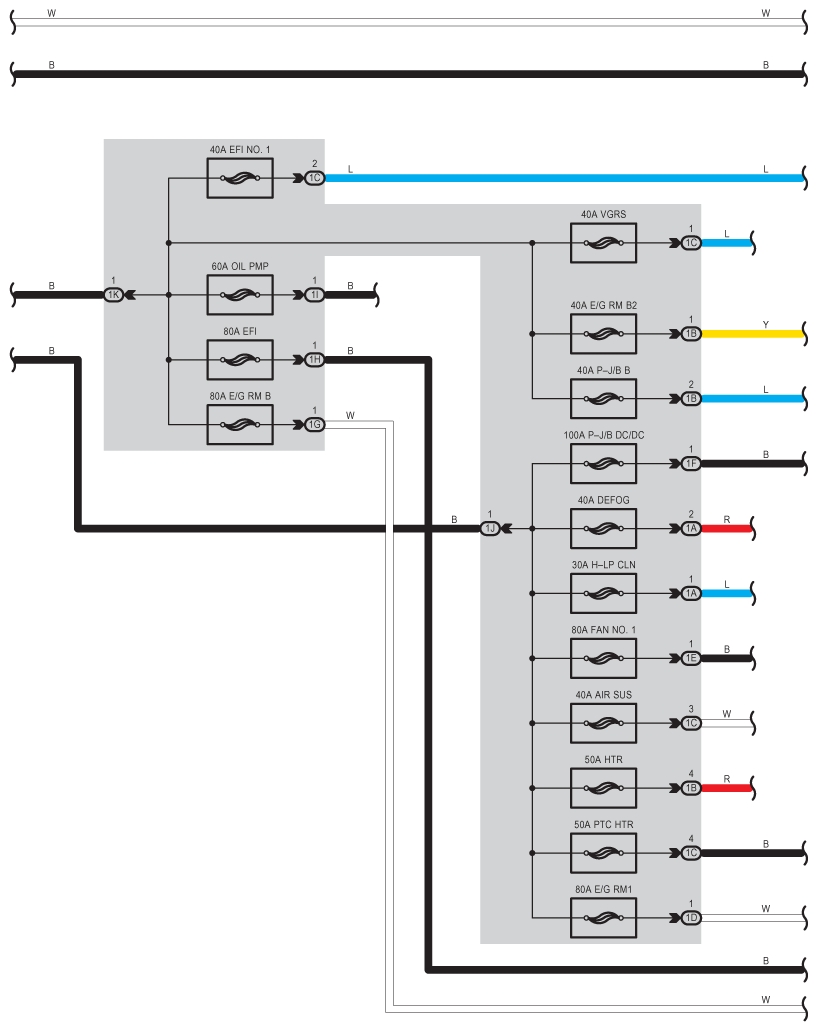

Fig 2: Power Source - Wiring Diagram (2 Of 9)

G08936640

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

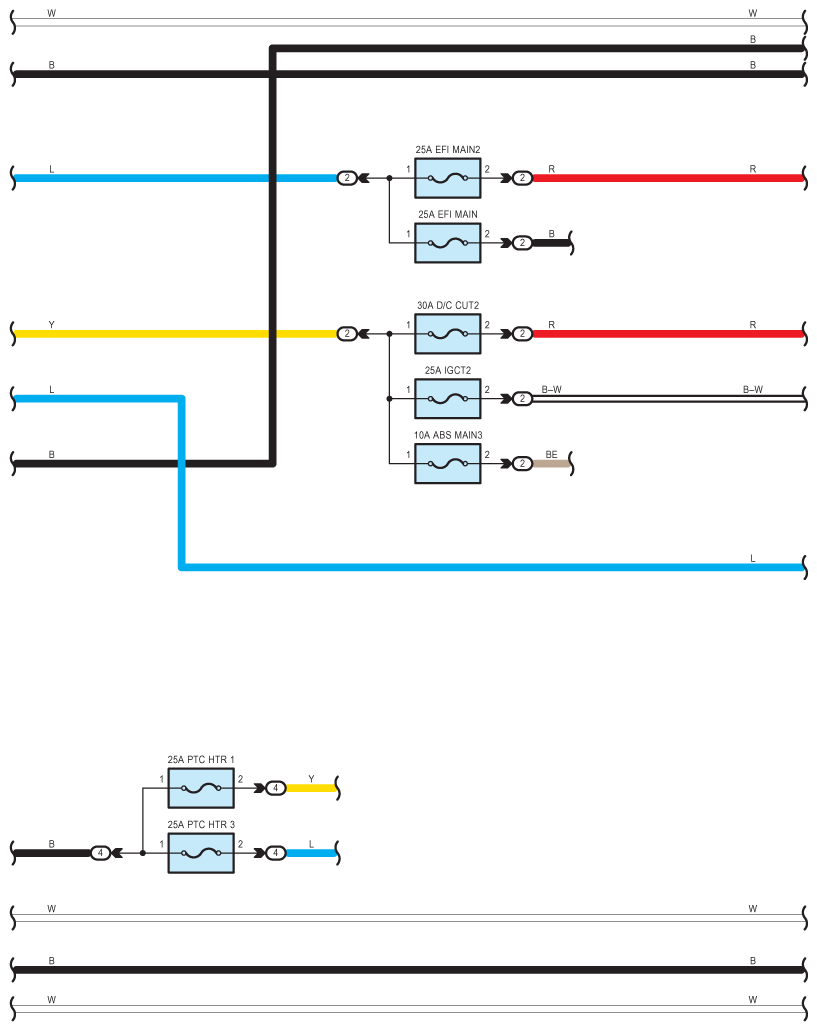

Fig 3: Power Source - Wiring Diagram (3 Of 9)

G08936641

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

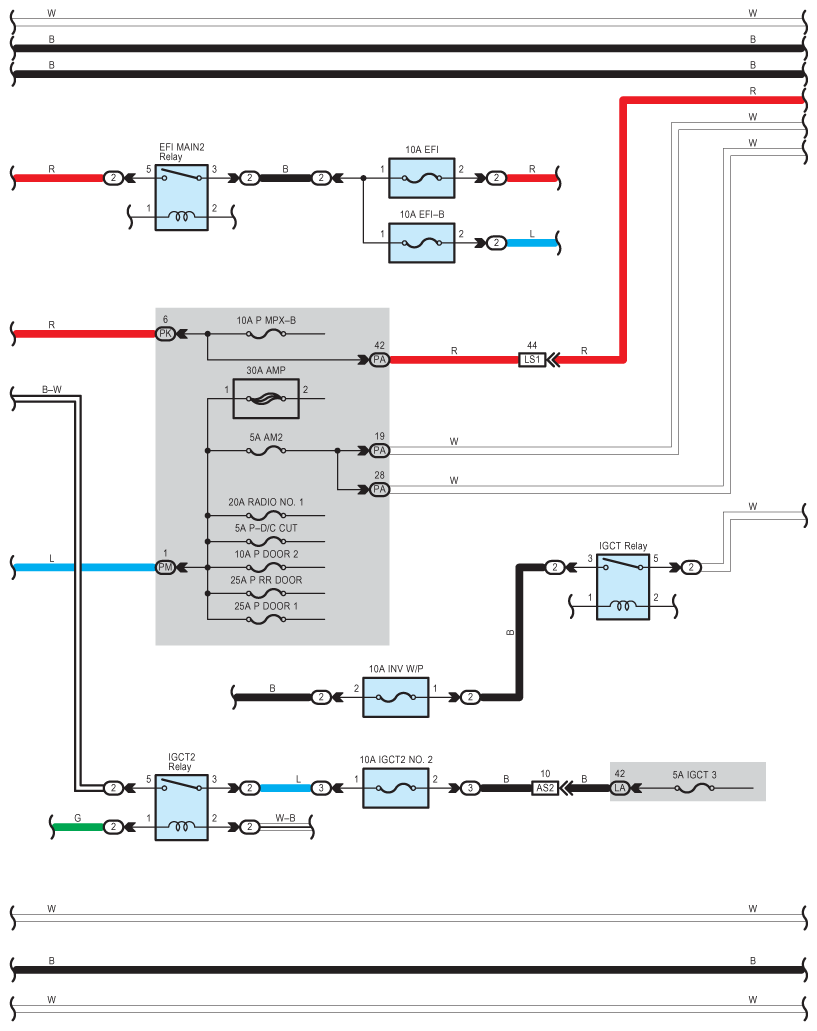

Fig 4: Power Source - Wiring Diagram (4 Of 9)

G08936642

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

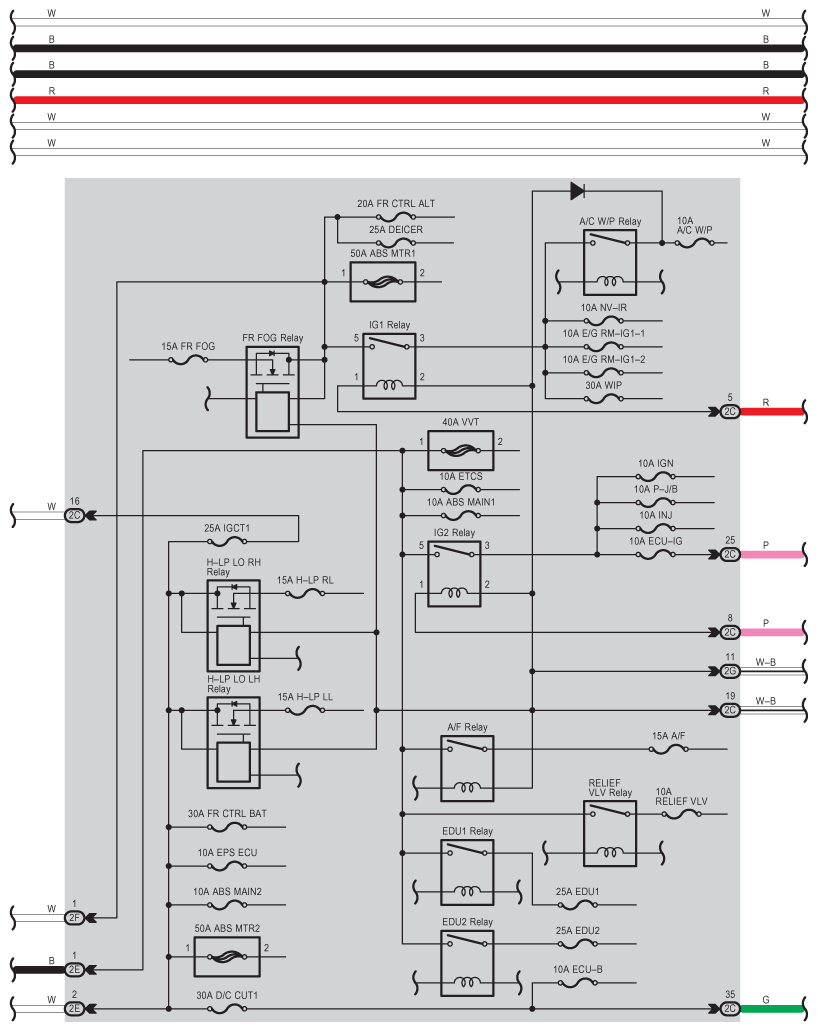

Fig 5: Power Source - Wiring Diagram (5 Of 9)

G08936643

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

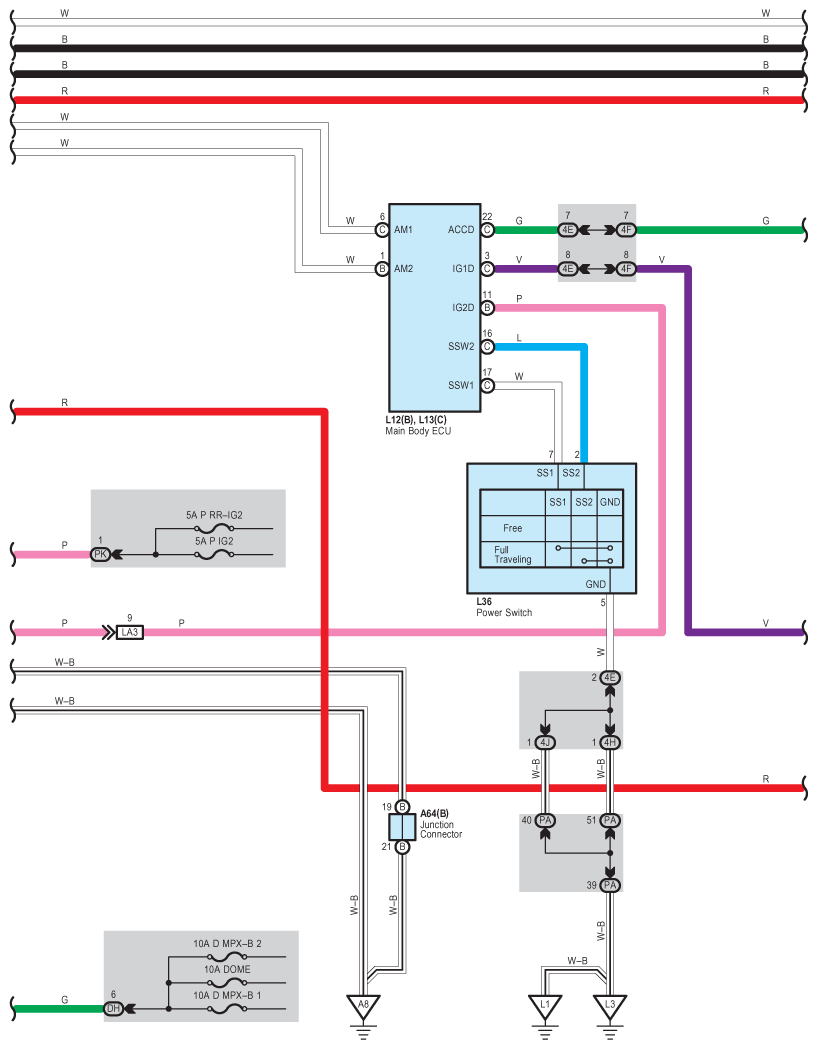

Fig 6: Power Source - Wiring Diagram (6 Of 9)

G08936644

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

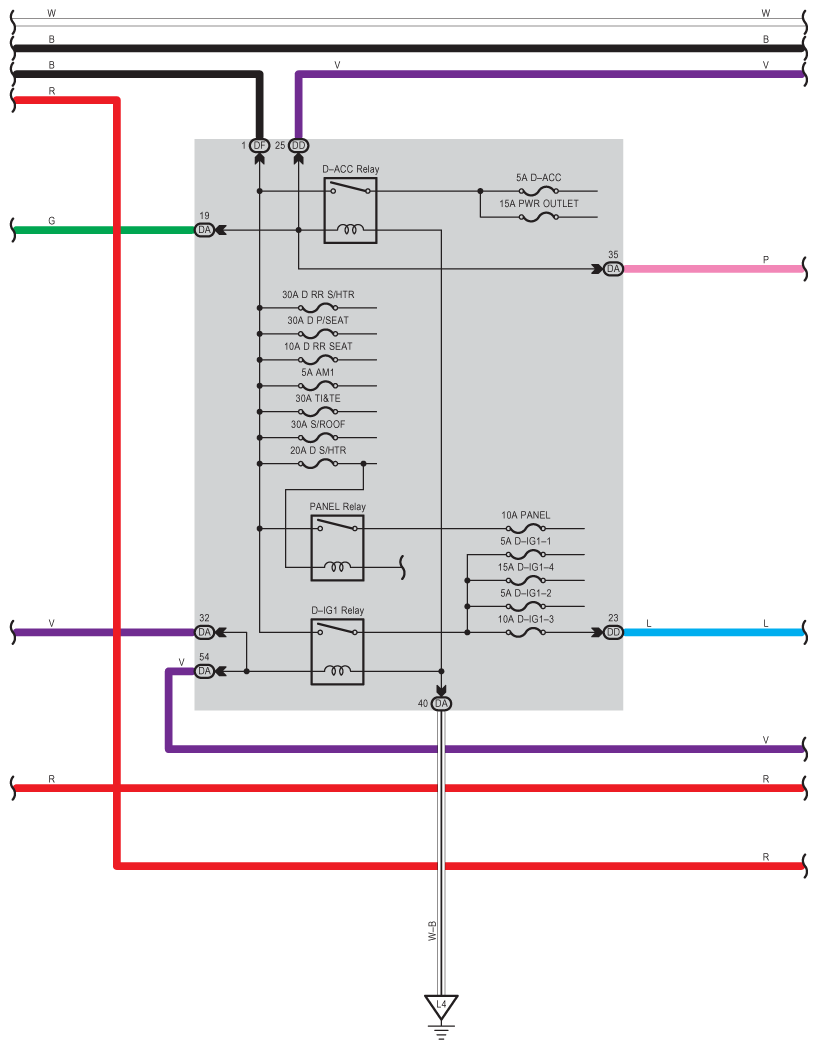

Fig 7: Power Source - Wiring Diagram (7 Of 9)

G08936645

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

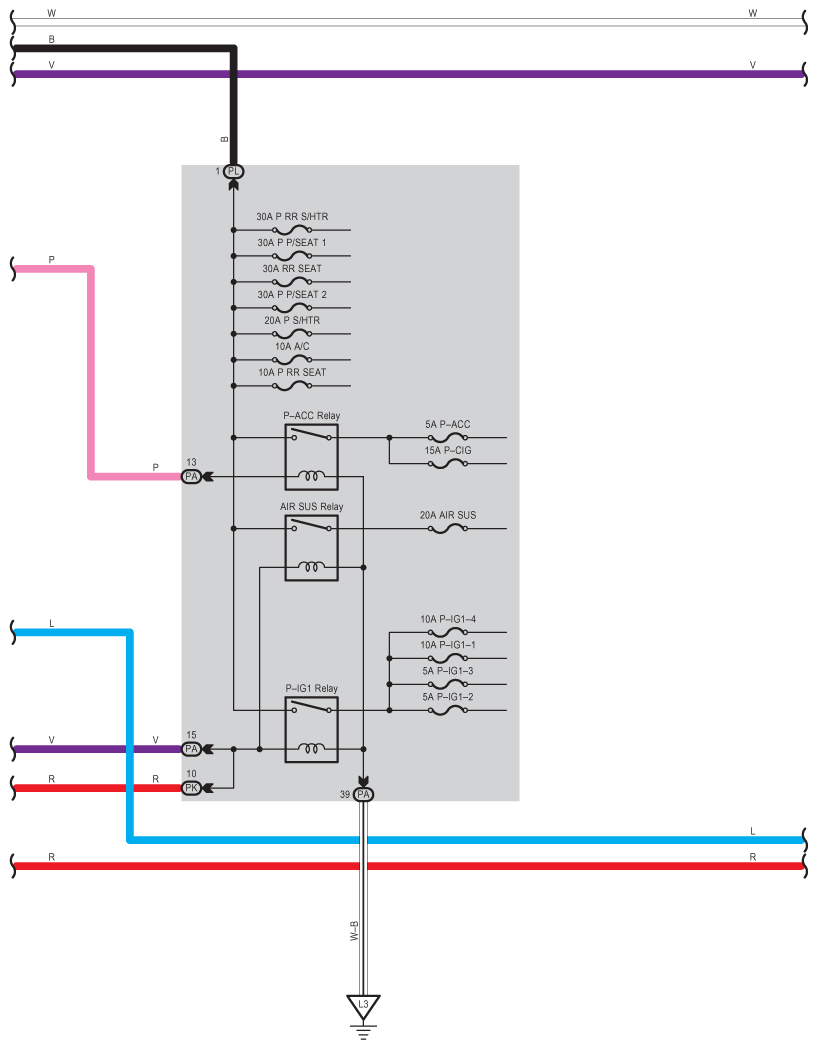

Fig 8: Power Source - Wiring Diagram (8 Of 9)

G08936646

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

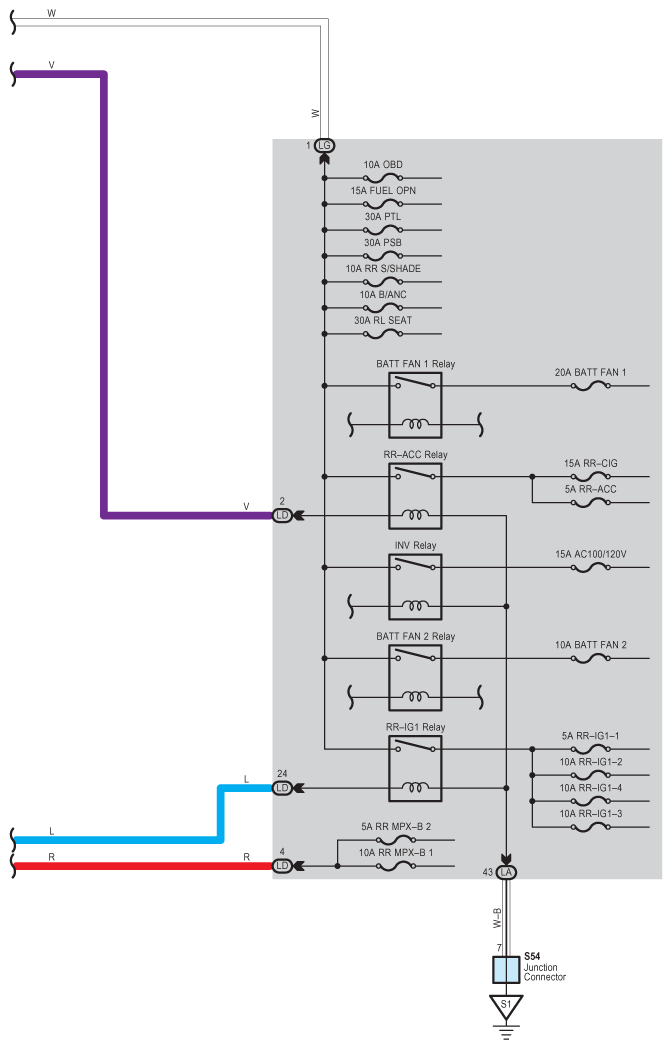

Fig 9: Power Source - Wiring Diagram (9 Of 9)

G08936647

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
