Rear Sunshade: Notes

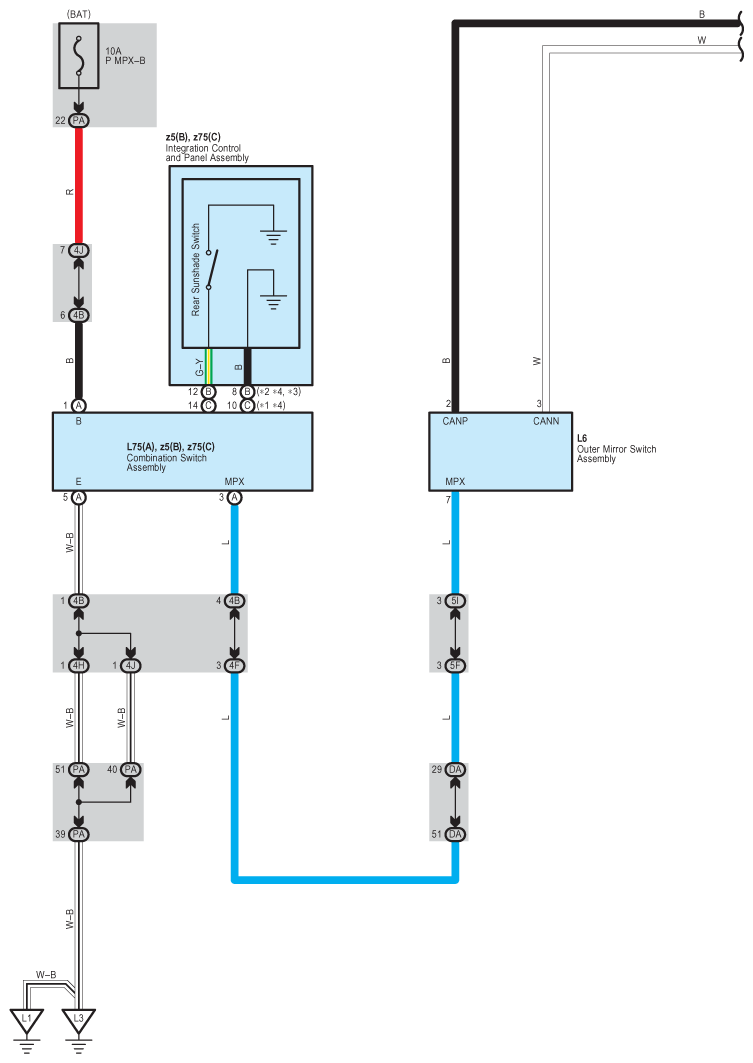

Fig 1: Rear Sunshade - Wiring Diagram (1 Of 4)
G08936983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Rear Sunshade - Wiring Diagram (2 Of 4)
G08936984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

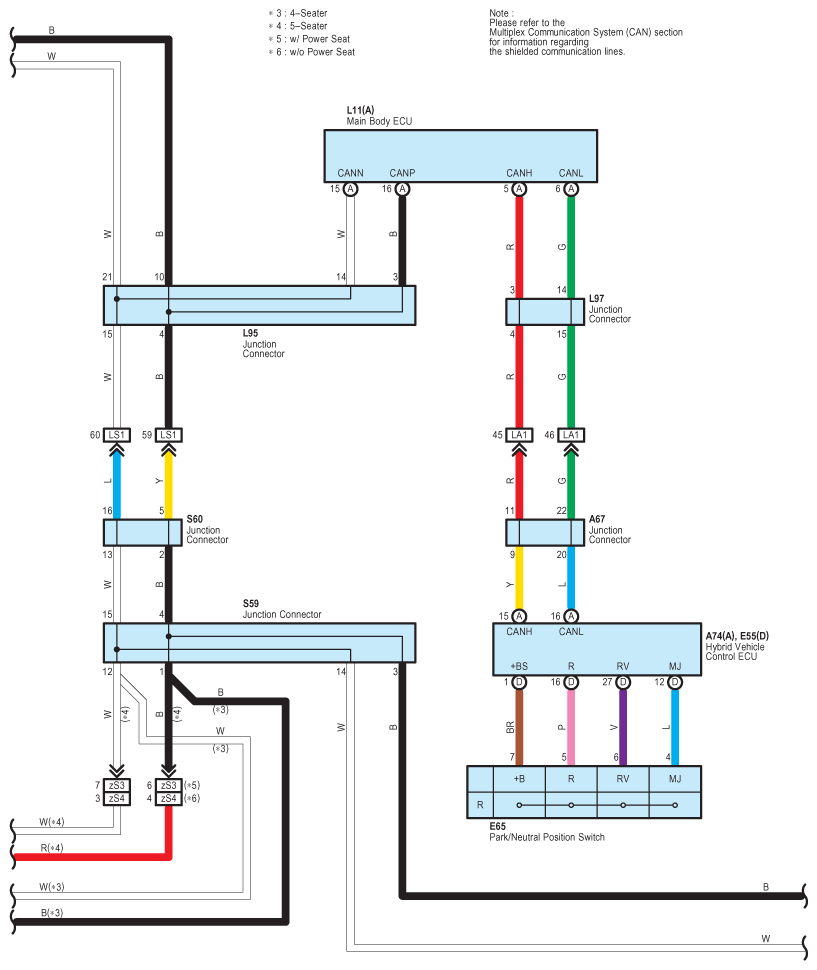

Fig 3: Rear Sunshade - Wiring Diagram (3 Of 4)
G08936985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

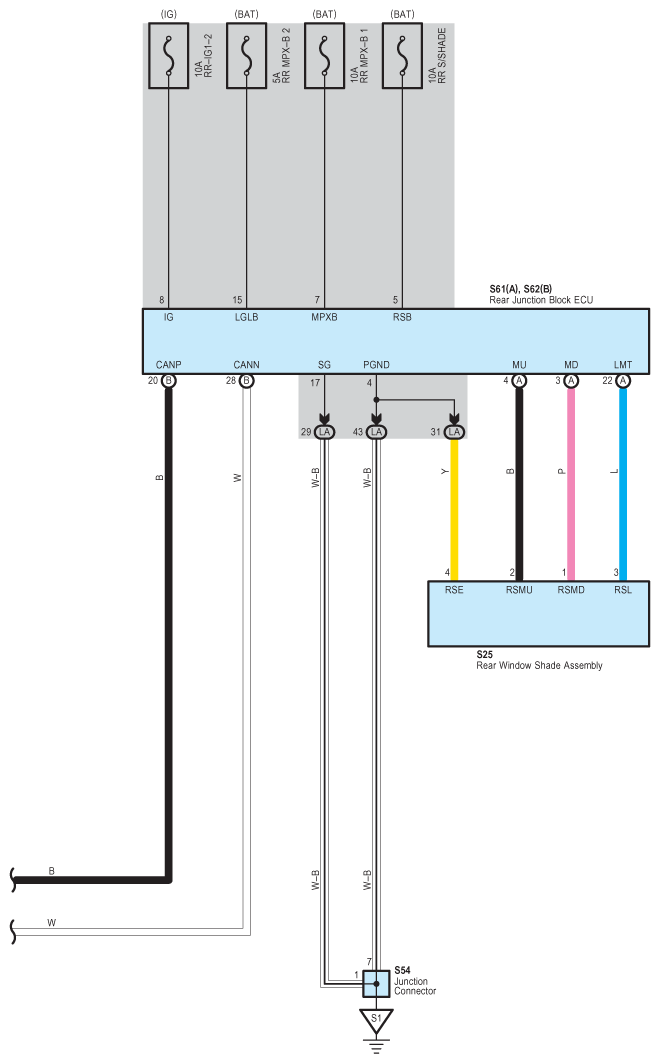

Fig 4: Rear Sunshade - Wiring Diagram (4 Of 4)
G08936986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
