OEM System Circuits: Taillight: Notes

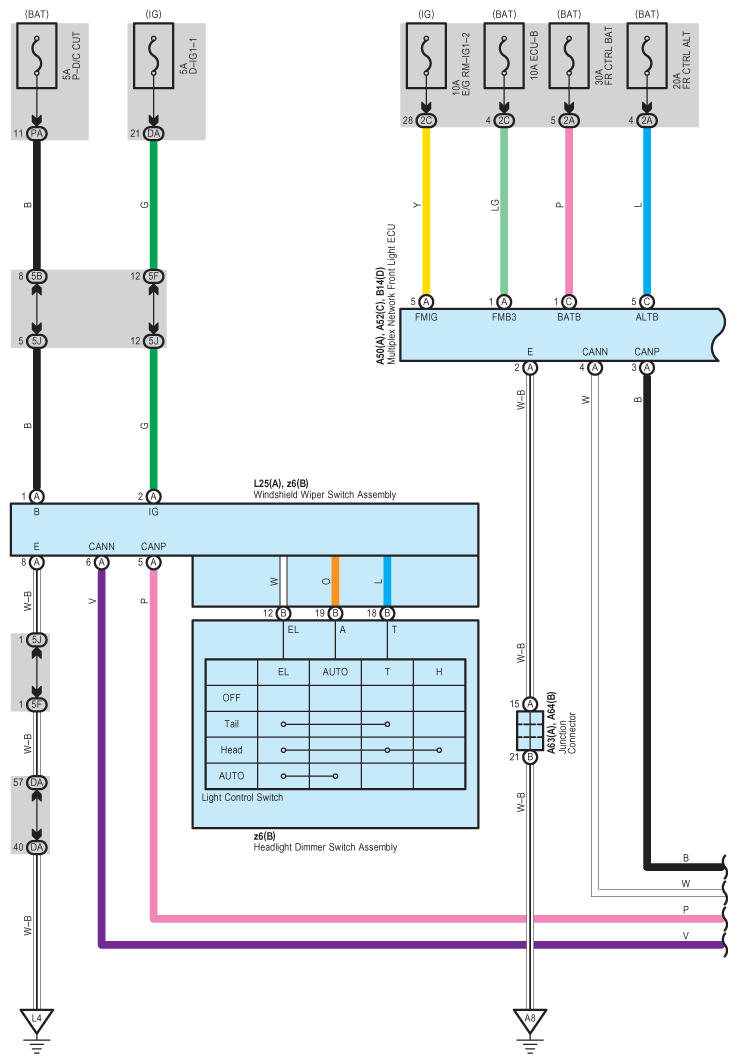

Fig 1: Taillight - Wiring Diagram (1 Of 5)
G08936790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

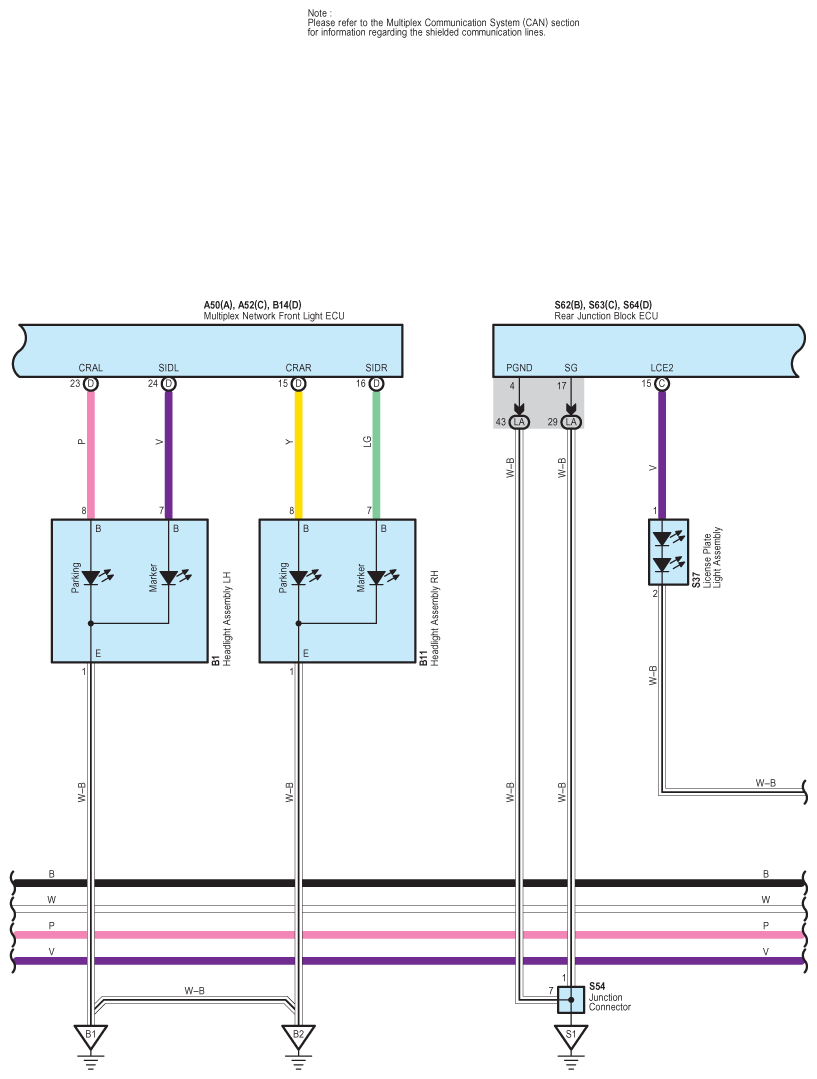

Fig 2: Taillight - Wiring Diagram (2 Of 5)
G08936791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

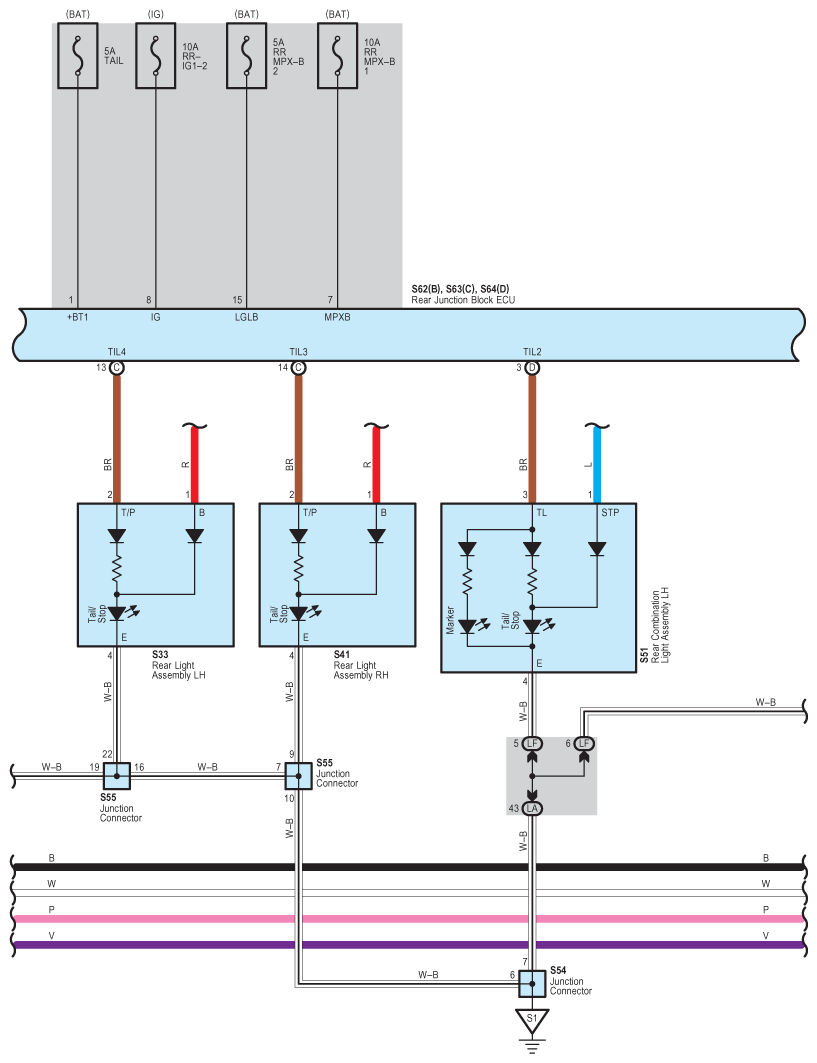

Fig 3: Taillight - Wiring Diagram (3 Of 5)
G08936792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

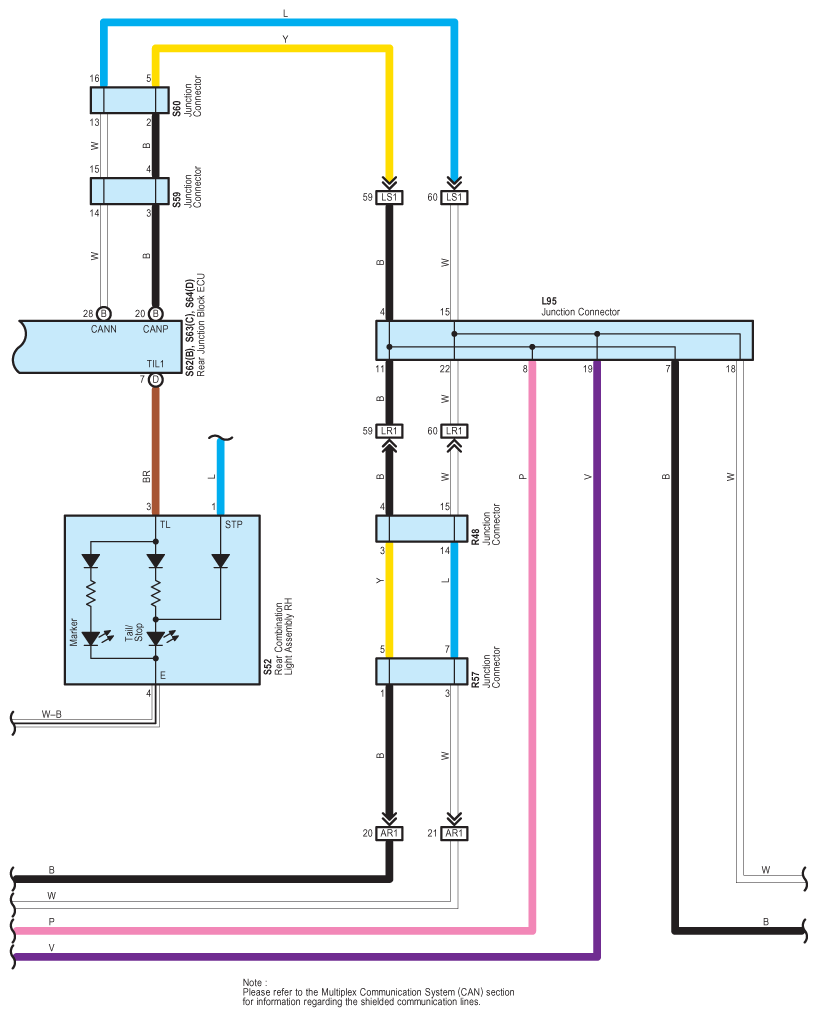

Fig 4: Taillight - Wiring Diagram (4 Of 5)
G08936793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

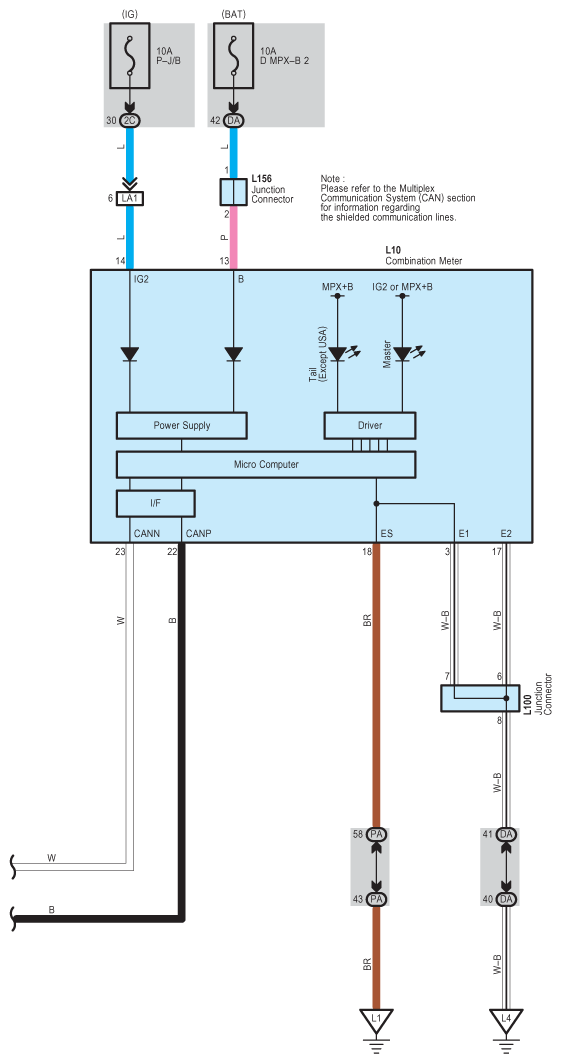

Fig 5: Taillight - Wiring Diagram (5 Of 5)
G08936794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
