SFI System: Precaution: Precaution
- INITIALIZATION NOTE:
Perform the Registration (VIN registration) when replacing the ECM. Refer to REGISTRATION .
HINT:
Reset memory or initialization cannot be completed by only disconnecting and reconnecting the cable of the negative (-) battery terminal.
- FOR USING TECHSTREAM WARNING:
Observe the following items for safety reasons:
- Before using the Techstream, read the instruction manual.
- Prevent the Techstream cable from being caught on the pedals, shift lever or steering wheel when driving with the Techstream connected to the vehicle.
- When driving the vehicle for testing purposes using the Techstream, 2 persons are required. One is for driving the vehicle, and the other operates the Techstream.
- DISCONNECTING AND RECONNECTING NEGATIVE BATTERY CABLE

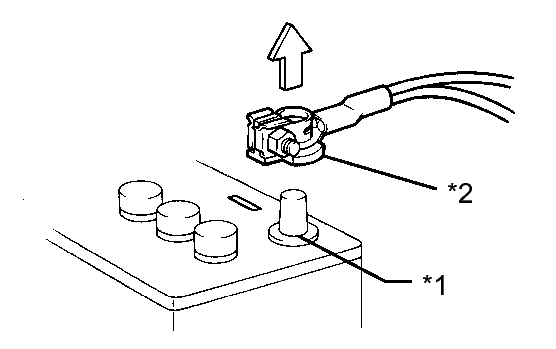

- Before performing work on electronic components, disconnect the cable from the negative (-) battery terminal to prevent damage to the electrical system or electrical components.TEXT IN ILLUSTRATION
*1 Negative (-) Battery Terminal *2 Cable - Before disconnecting and reconnecting the battery cable, turn the engine switch off and the headlight switch off. Then loosen the terminal nut completely. Do not damage the cable or terminal.
- When the battery cable is disconnected, the clock and radio settings and stored DTCs are cleared. Therefore, before disconnecting the battery cable, make a note of them.NOTE:
When the cable is disconnected from the negative (-) battery terminal, initialize the following system(s) after the cable is reconnected.
System Name See Procedure Parking Assist Monitor System Refer to INITIALIZATION Side Monitor System (w/ Parking Assist Monitor System) Back Door Closer System Power Back Door System
- Before performing work on electronic components, disconnect the cable from the negative (-) battery terminal to prevent damage to the electrical system or electrical components.
