Hybrid System and Shift Control System: Notes

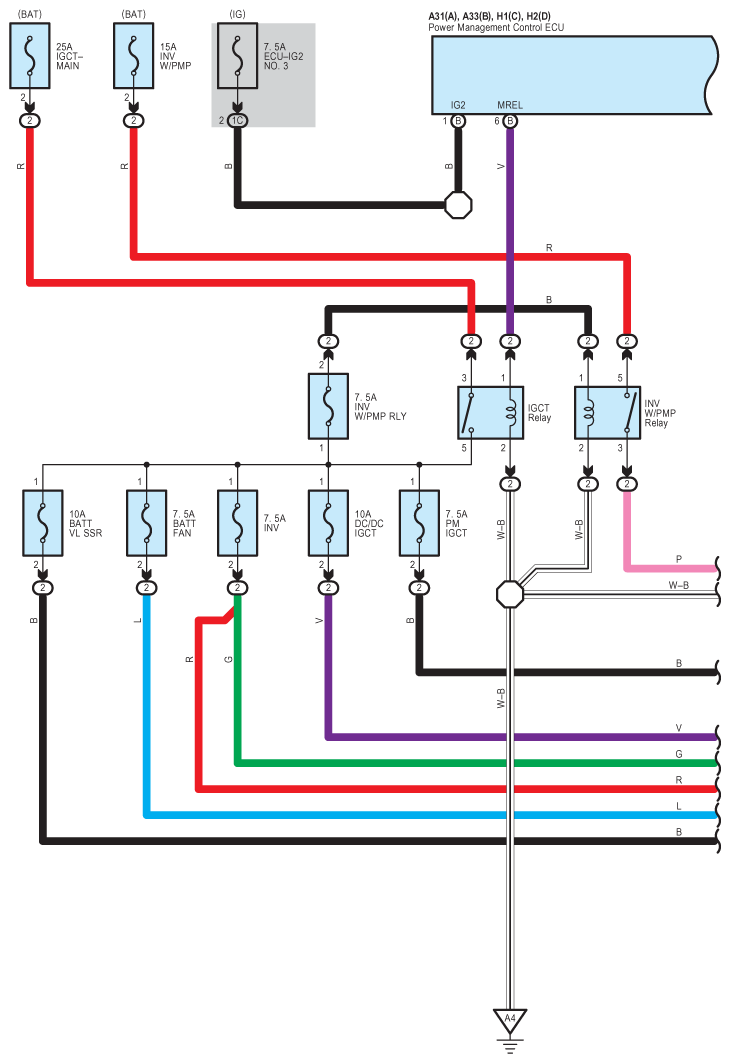

Fig 1: Hybrid System And Shift Control System - Circuit Diagram (1 Of 24)

G08953593

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

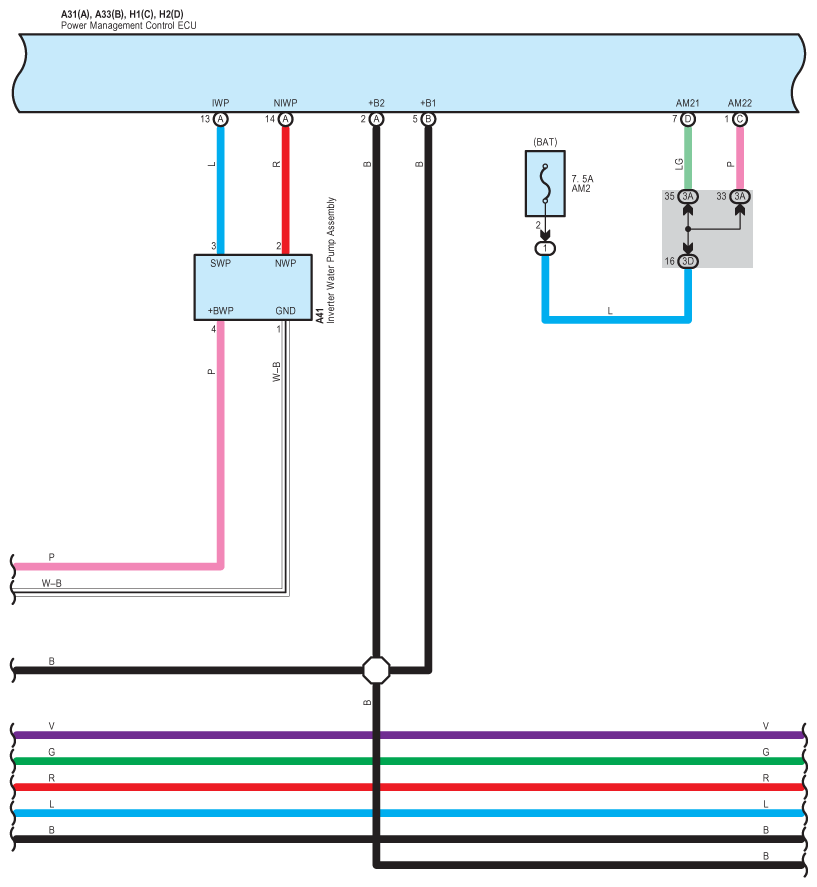

Fig 2: Hybrid System And Shift Control System - Circuit Diagram (2 Of 24)

G08953594

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

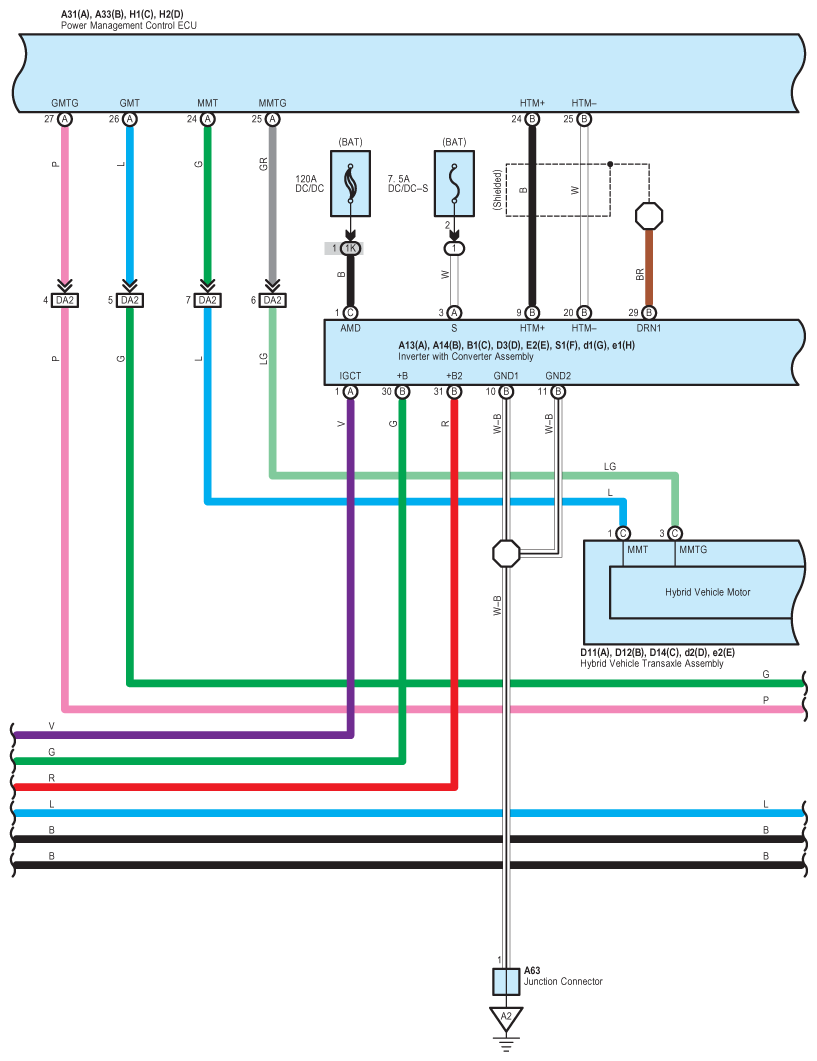

Fig 3: Hybrid System And Shift Control System - Circuit Diagram (3 Of 24)

G08953595

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

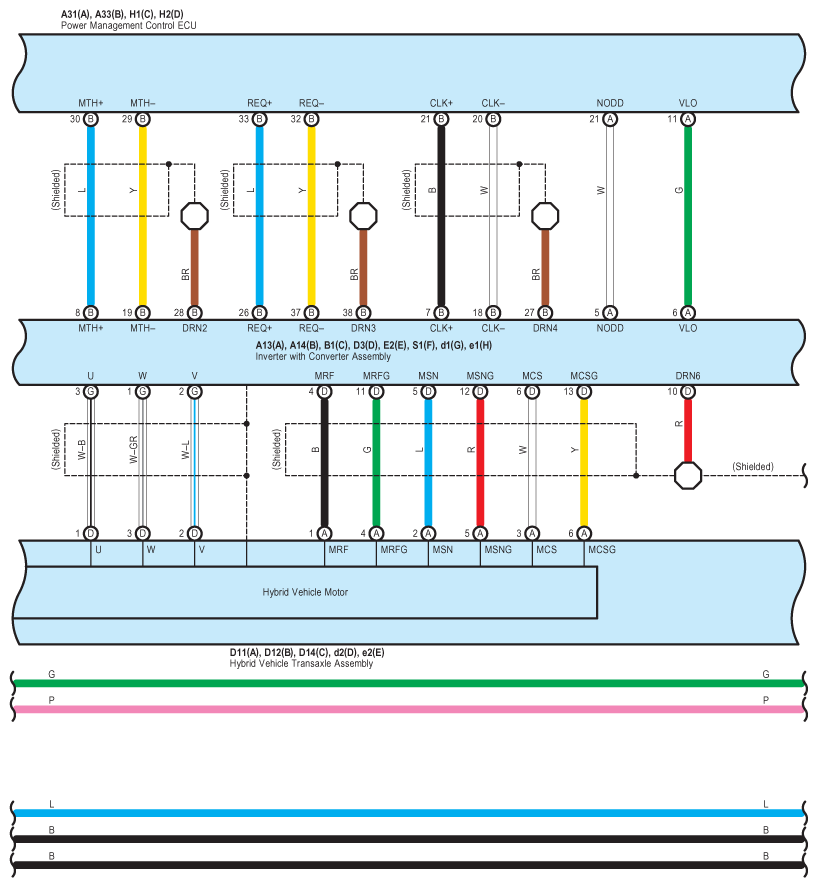

Fig 4: Hybrid System And Shift Control System - Circuit Diagram (4 Of 24)

G08953596

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

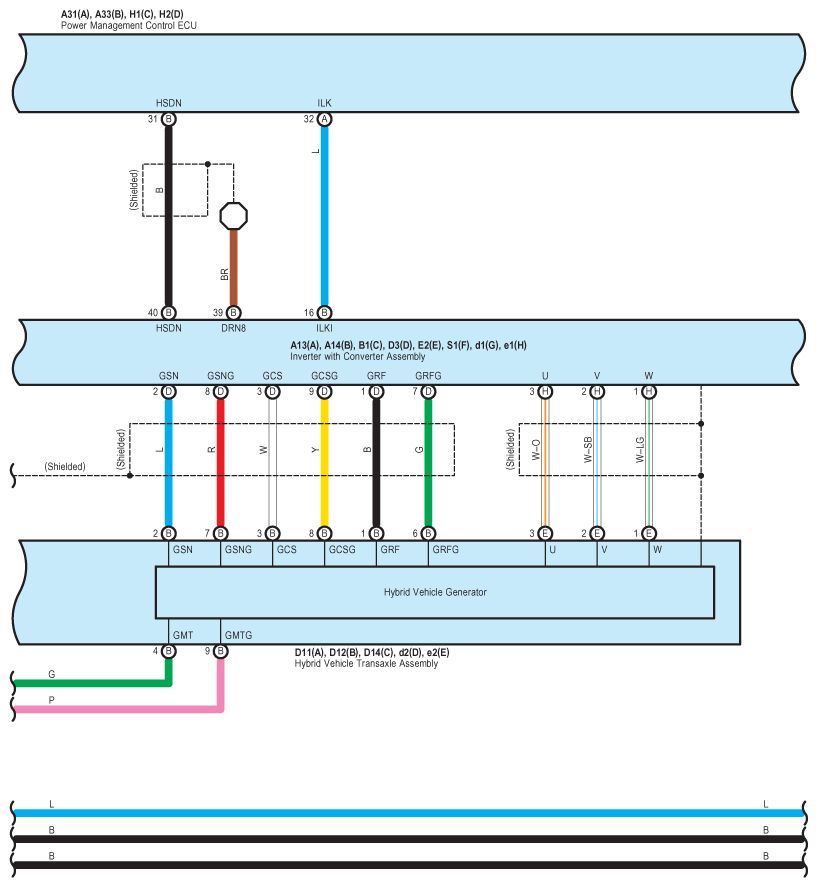

Fig 5: Hybrid System And Shift Control System - Circuit Diagram (5 Of 24)

G08953597

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

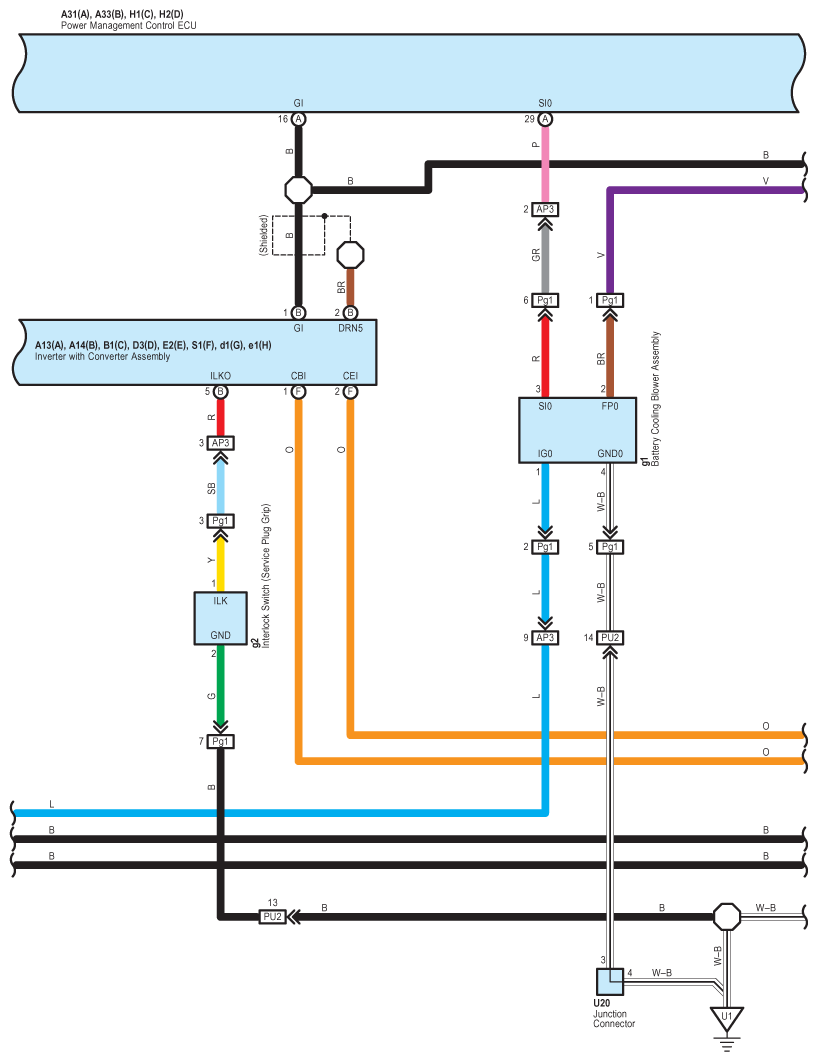

Fig 6: Hybrid System And Shift Control System - Circuit Diagram (6 Of 24)

G08953598

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

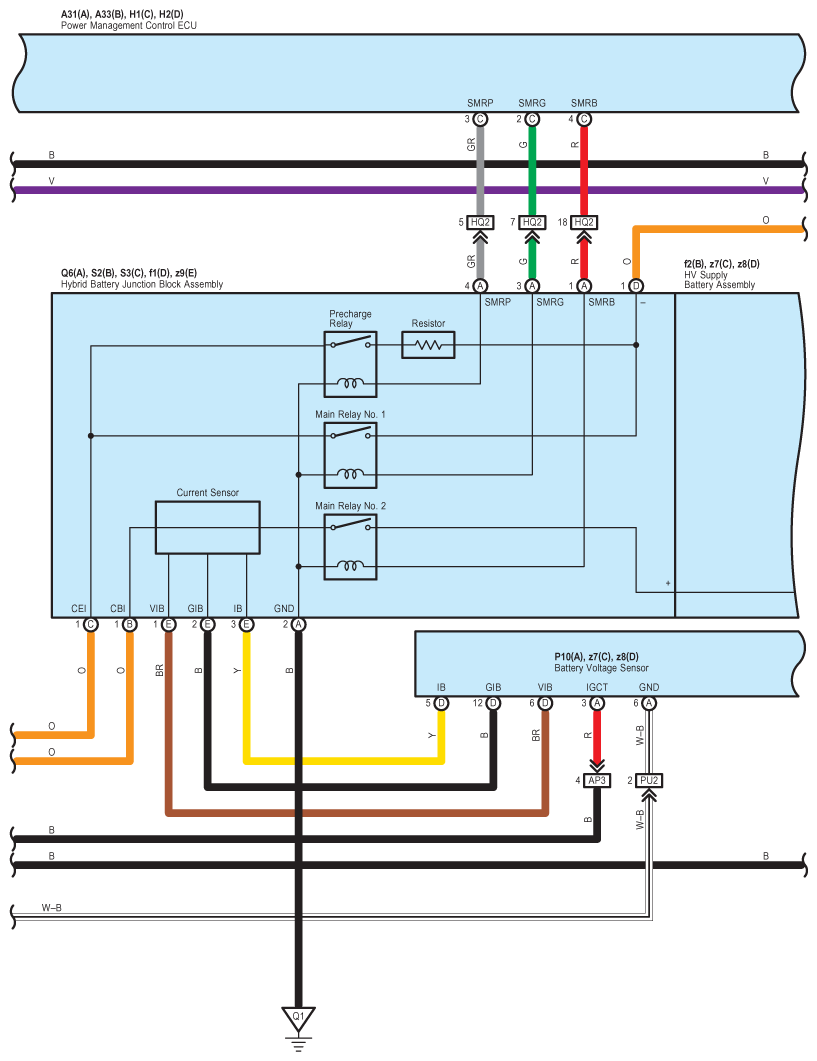

Fig 7: Hybrid System And Shift Control System - Circuit Diagram (7 Of 24)

G08953599

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

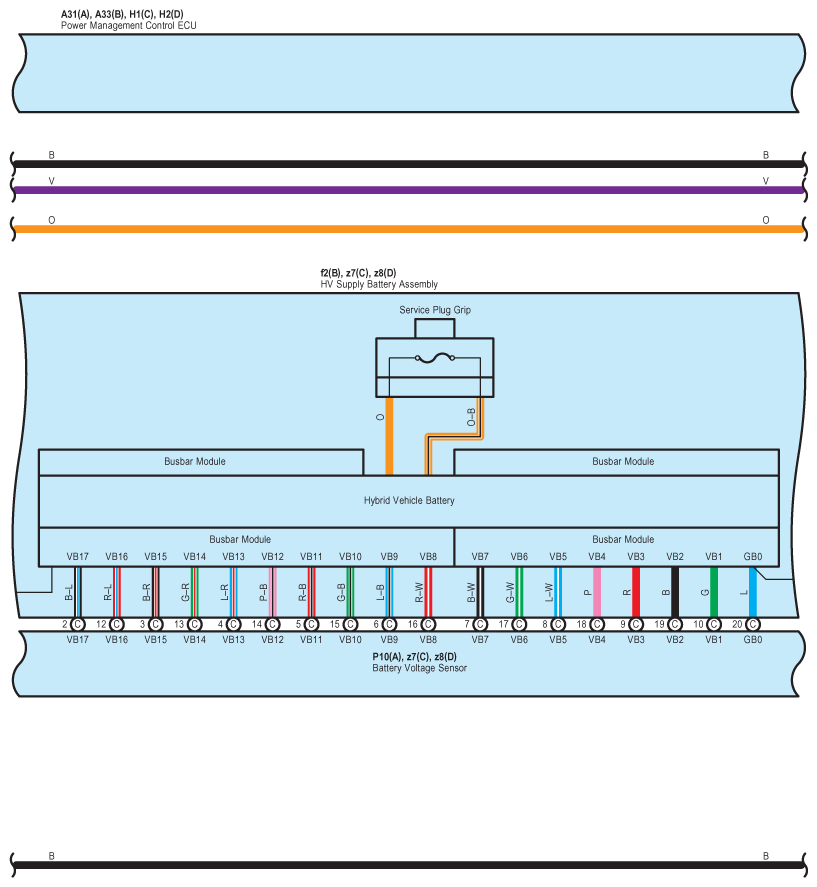

Fig 8: Hybrid System And Shift Control System - Circuit Diagram (8 Of 24)

G08953600

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

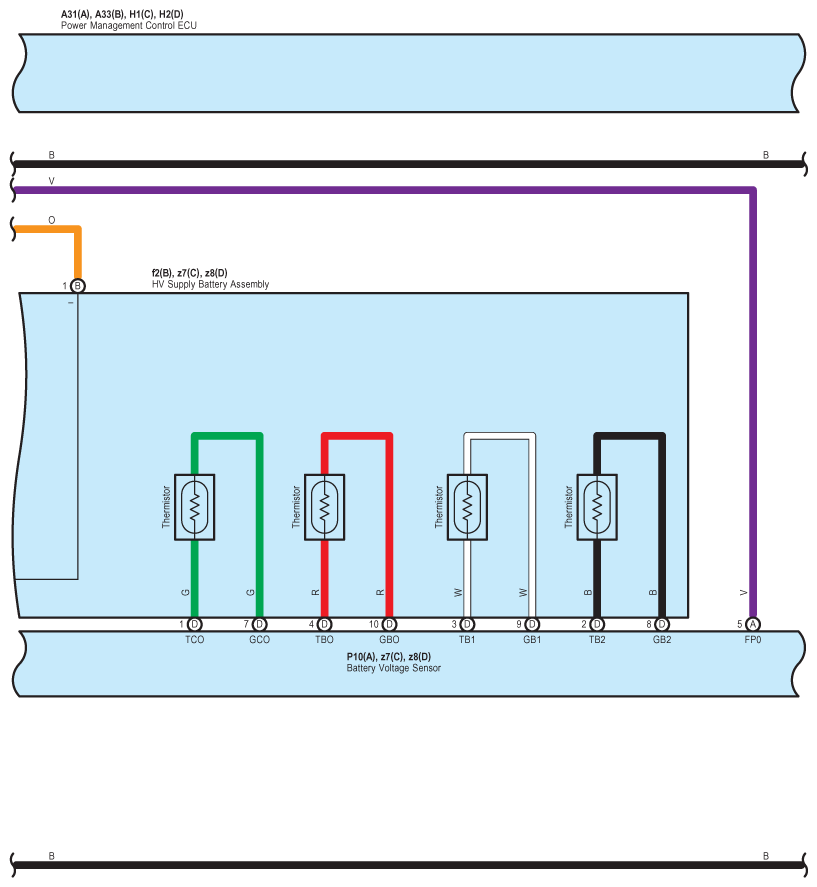

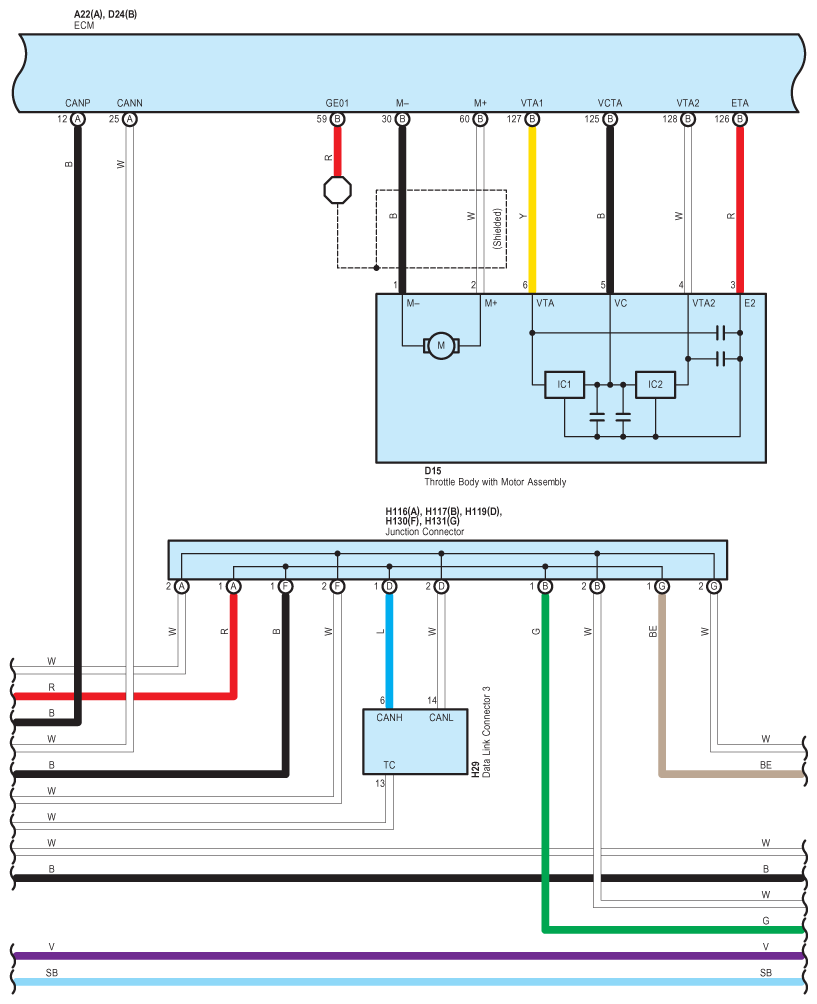

Fig 9: Hybrid System And Shift Control System - Circuit Diagram (9 Of 24)

G08953601

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

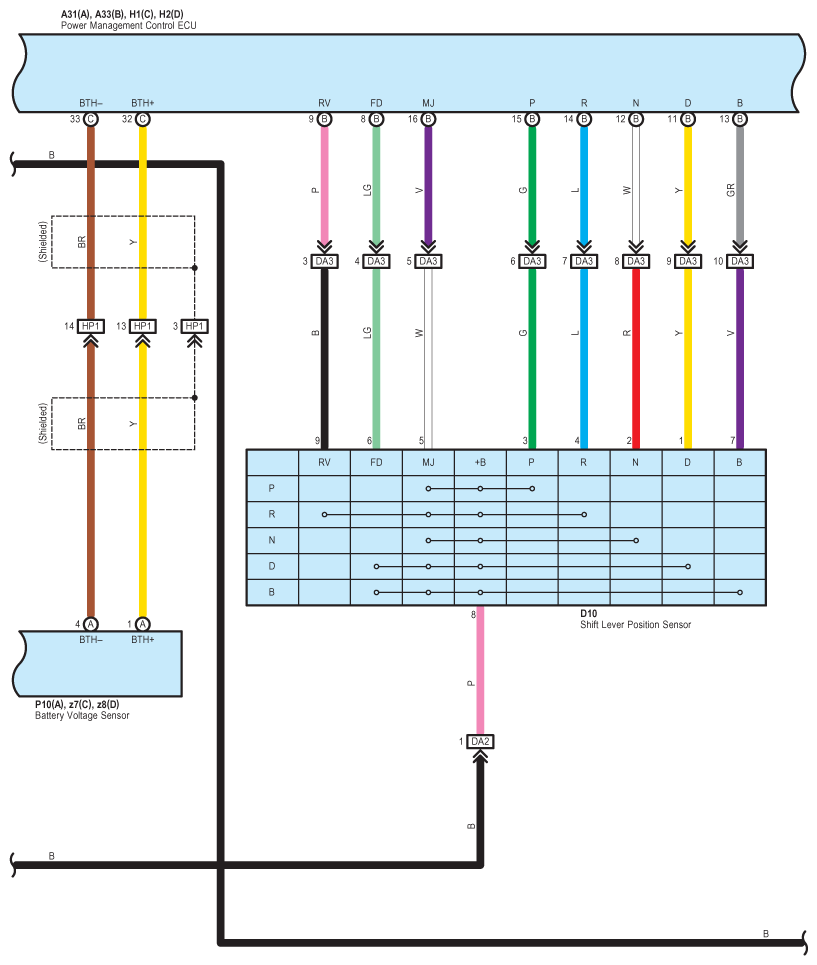

Fig 10: Hybrid System And Shift Control System - Circuit Diagram (10 Of 24)

G08953602

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

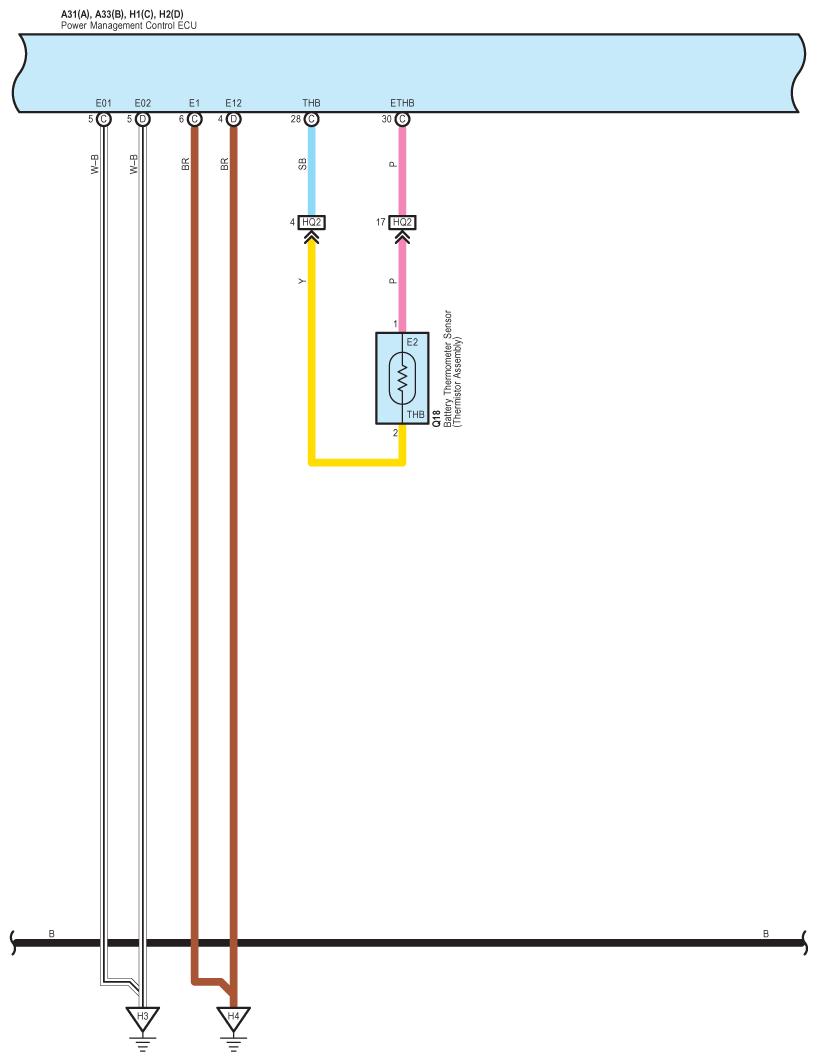

Fig 11: Hybrid System And Shift Control System - Circuit Diagram (11 Of 24)

G08953603

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

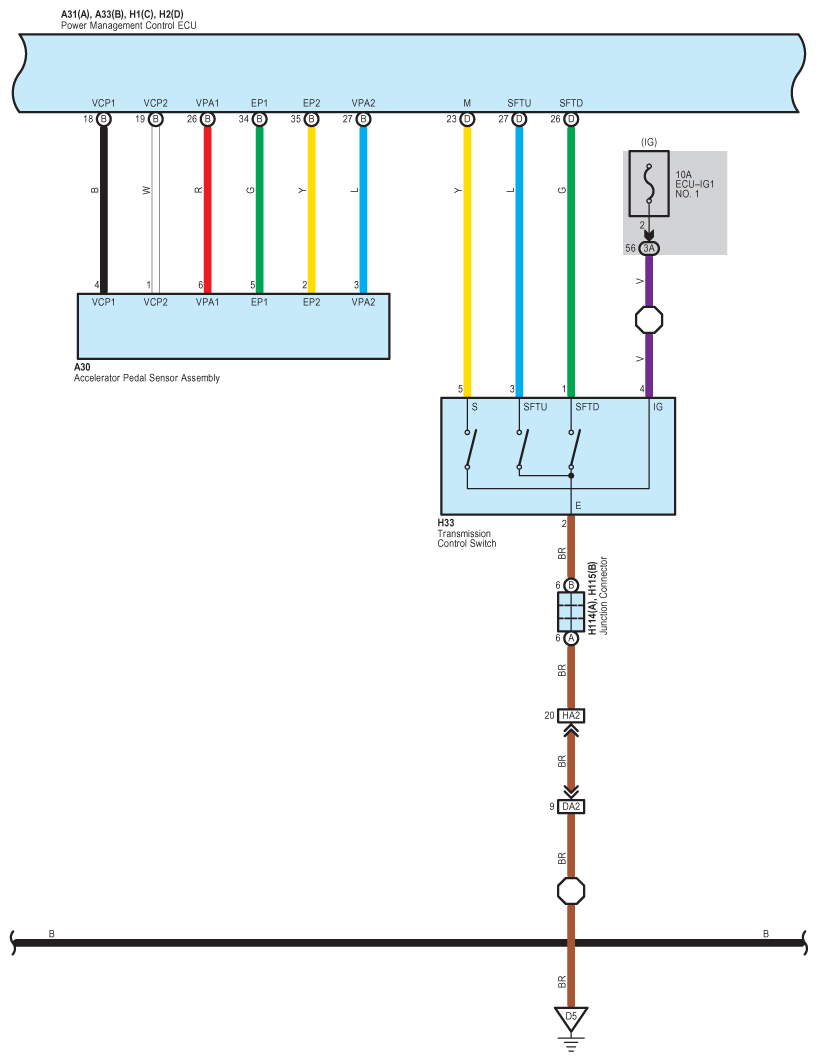

Fig 12: Hybrid System And Shift Control System - Circuit Diagram (12 Of 24)

G08953604

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

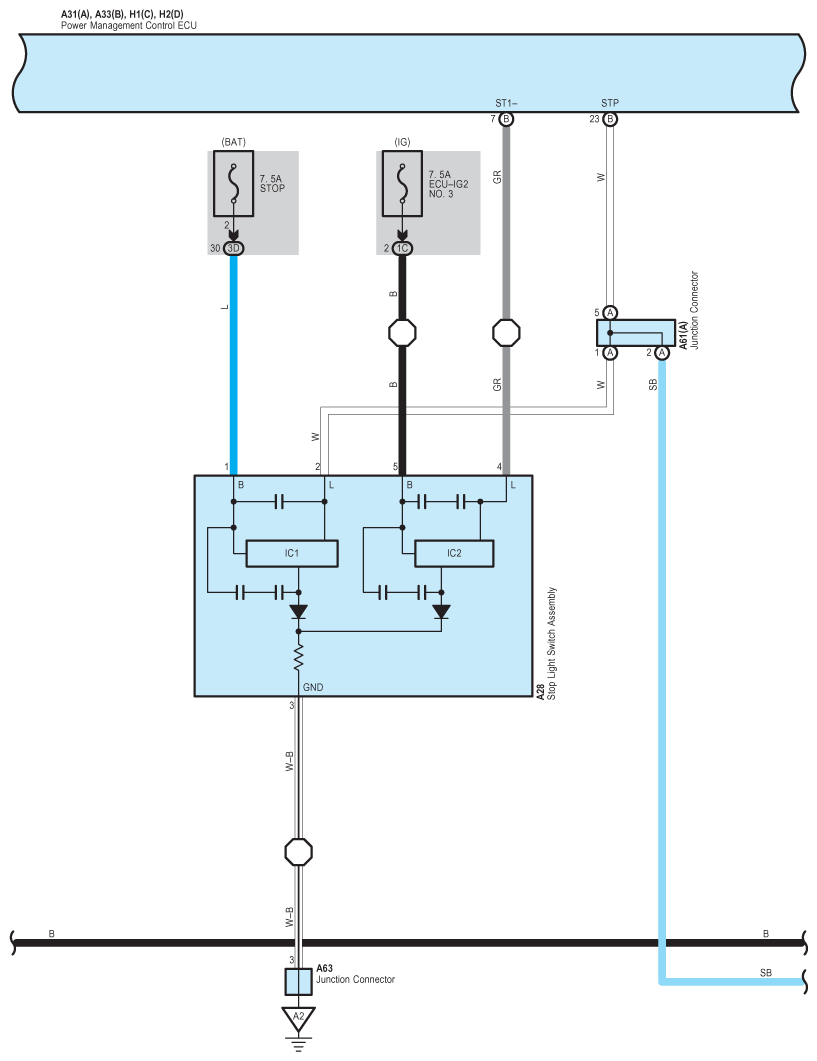

Fig 13: Hybrid System And Shift Control System - Circuit Diagram (13 Of 24)

G08953605

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

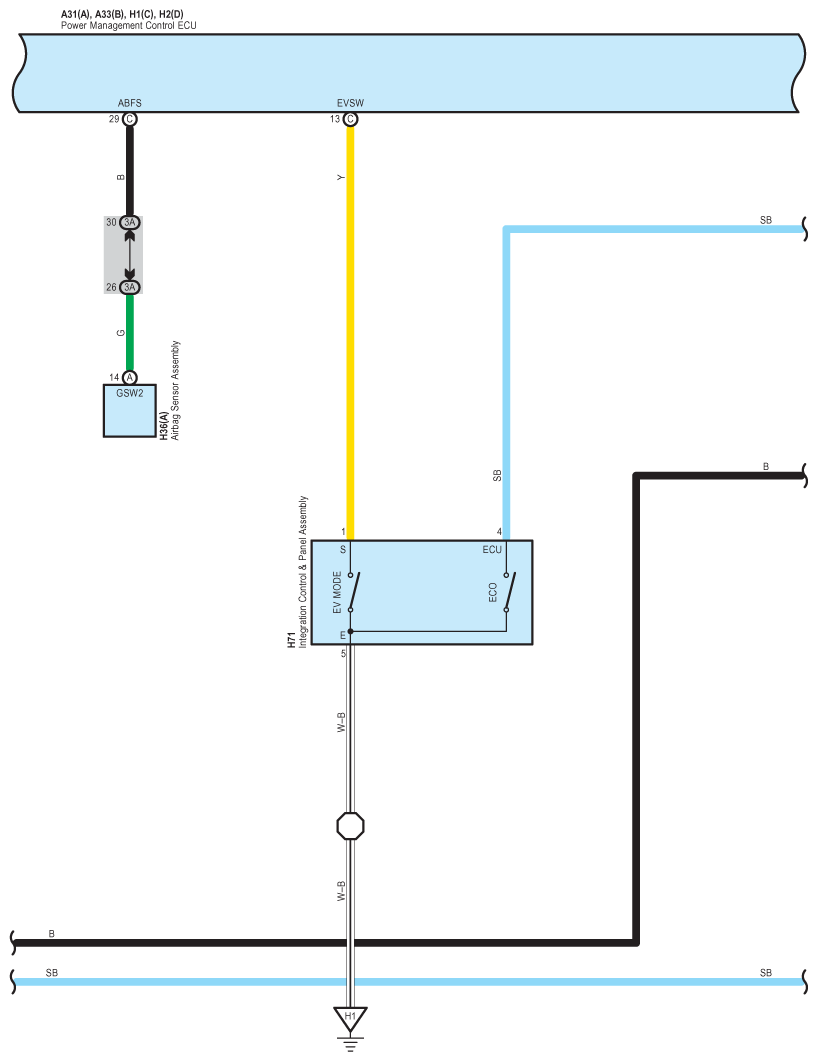

Fig 14: Hybrid System And Shift Control System - Circuit Diagram (14 Of 24)

G08953606

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

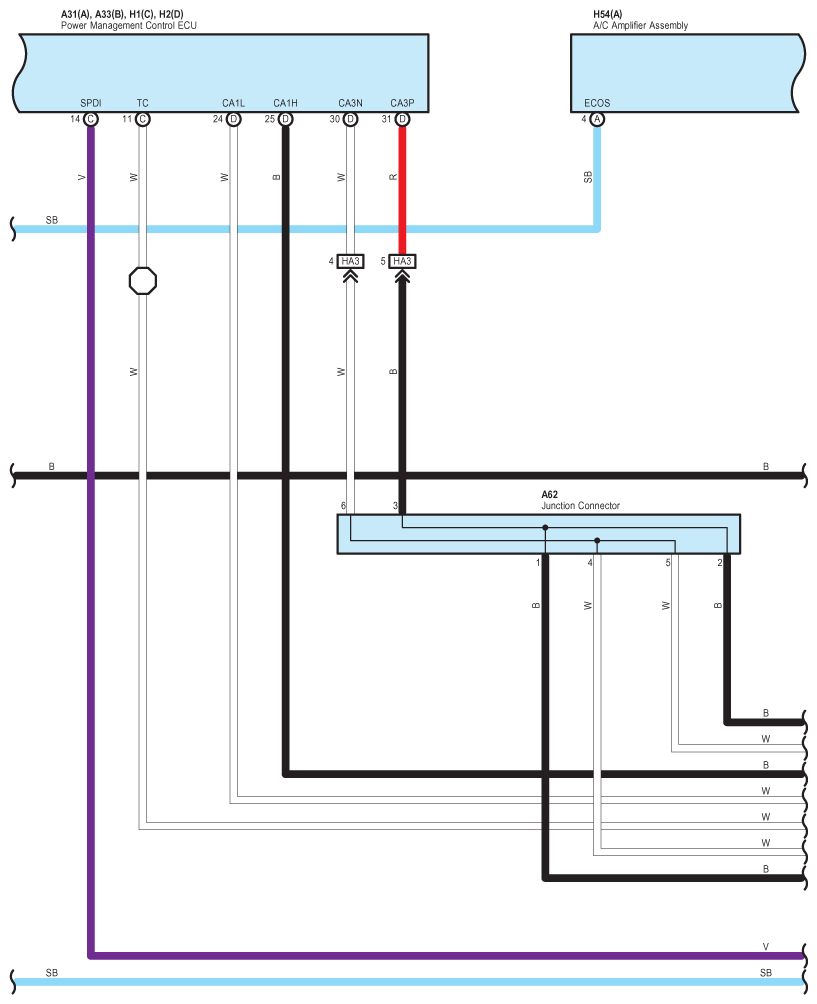

Fig 15: Hybrid System And Shift Control System - Circuit Diagram (15 Of 24)

G08953607

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

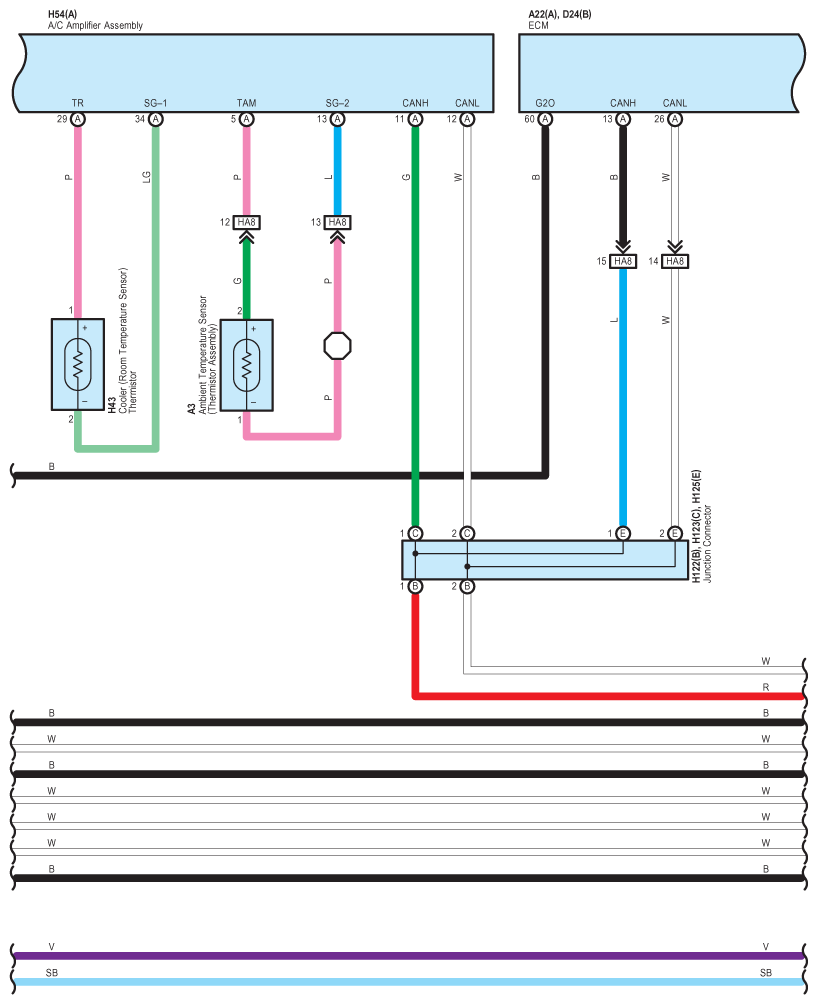

Fig 16: Hybrid System And Shift Control System - Circuit Diagram (16 Of 24)

G08953608

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Hybrid System And Shift Control System - Circuit Diagram (17 Of 24)

G08953609

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

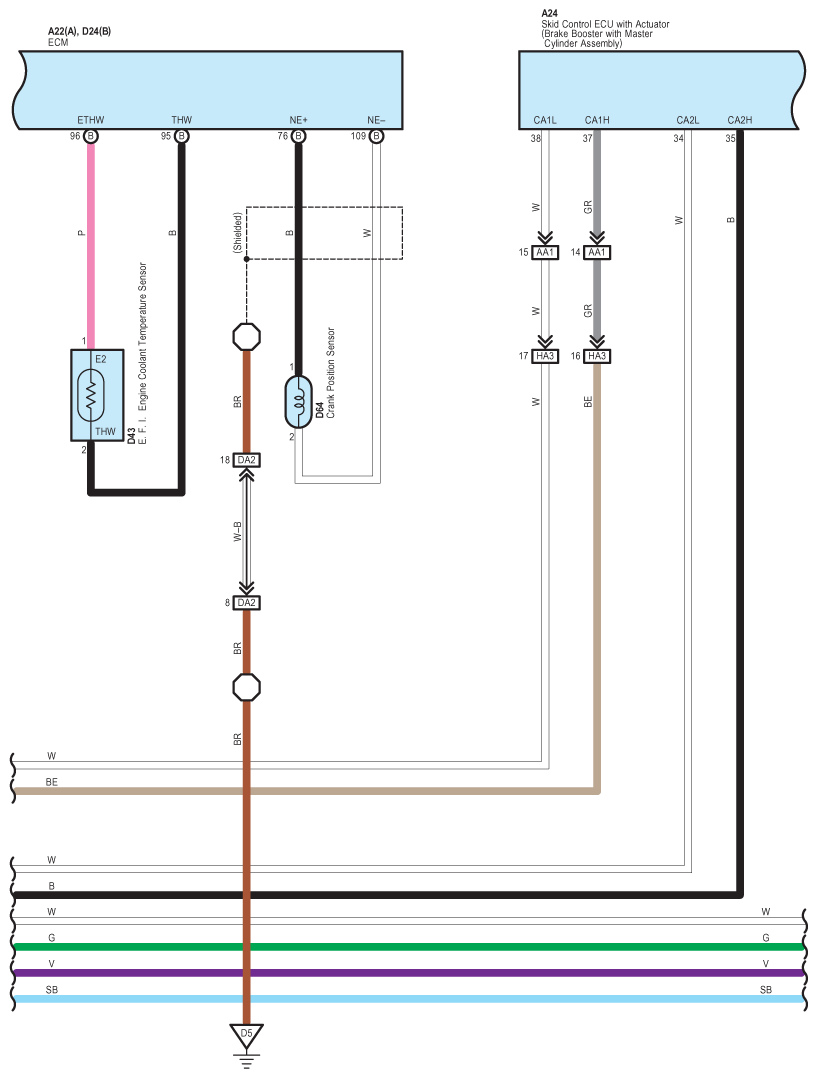

Fig 18: Hybrid System And Shift Control System - Circuit Diagram (18 Of 24)

G08953610

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

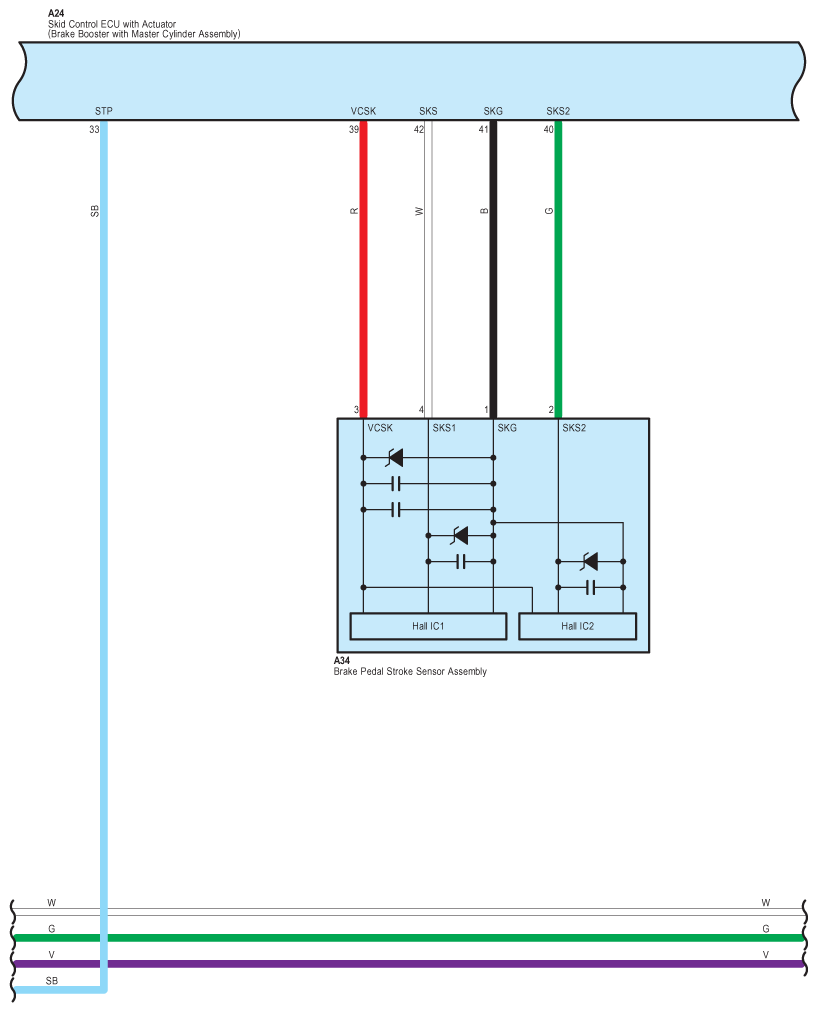

Fig 19: Hybrid System And Shift Control System - Circuit Diagram (19 Of 24)

G08953611

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

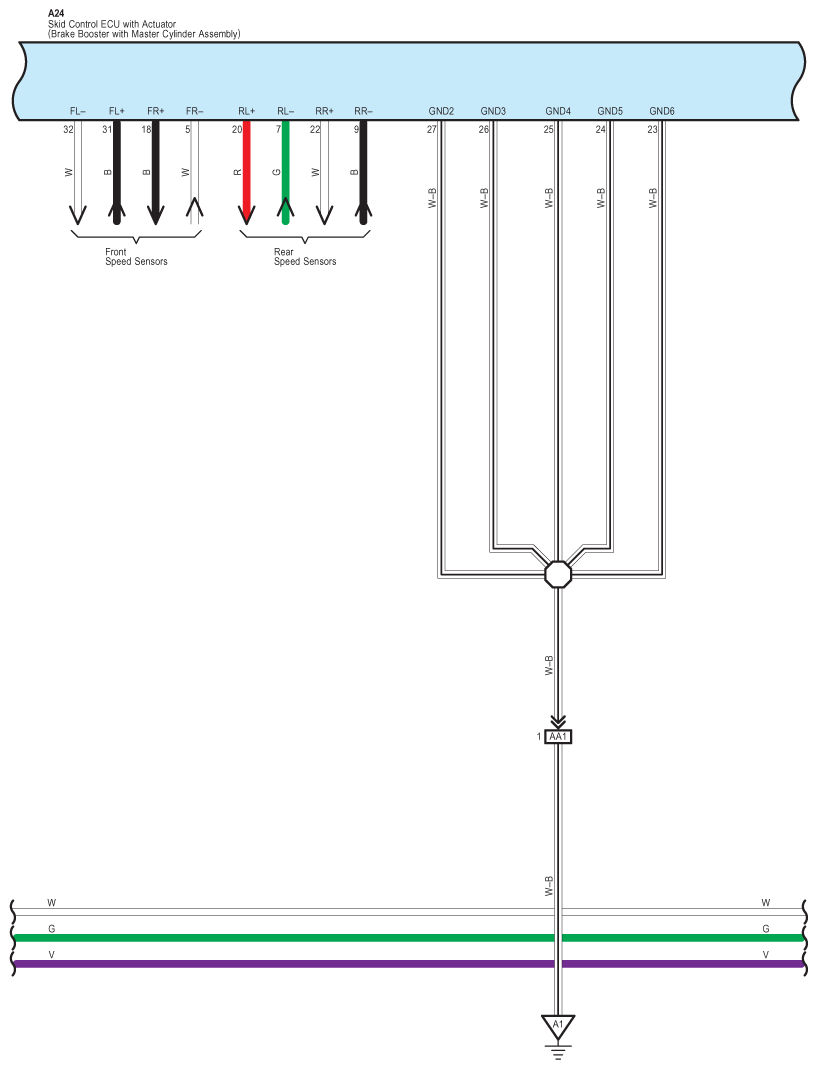

Fig 20: Hybrid System And Shift Control System - Circuit Diagram (20 Of 24)

G08953612

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 21: Hybrid System And Shift Control System - Circuit Diagram (21 Of 24)

G08953613

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

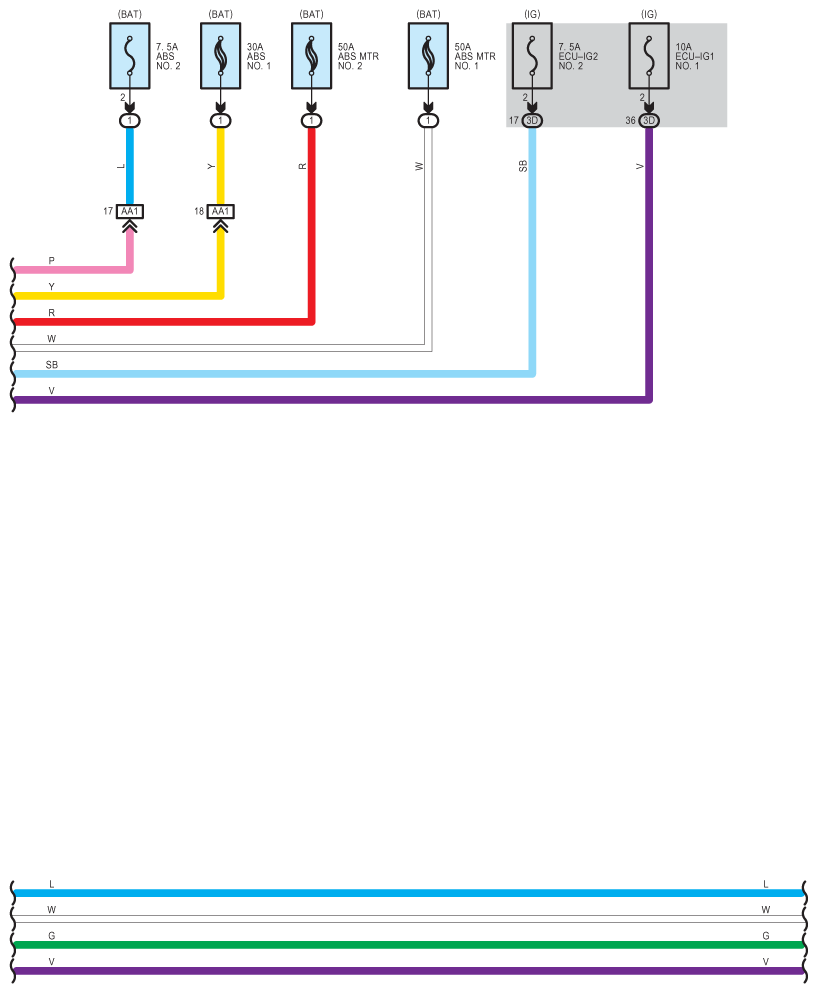

Fig 22: Hybrid System And Shift Control System - Circuit Diagram (22 Of 24)

G08953614

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

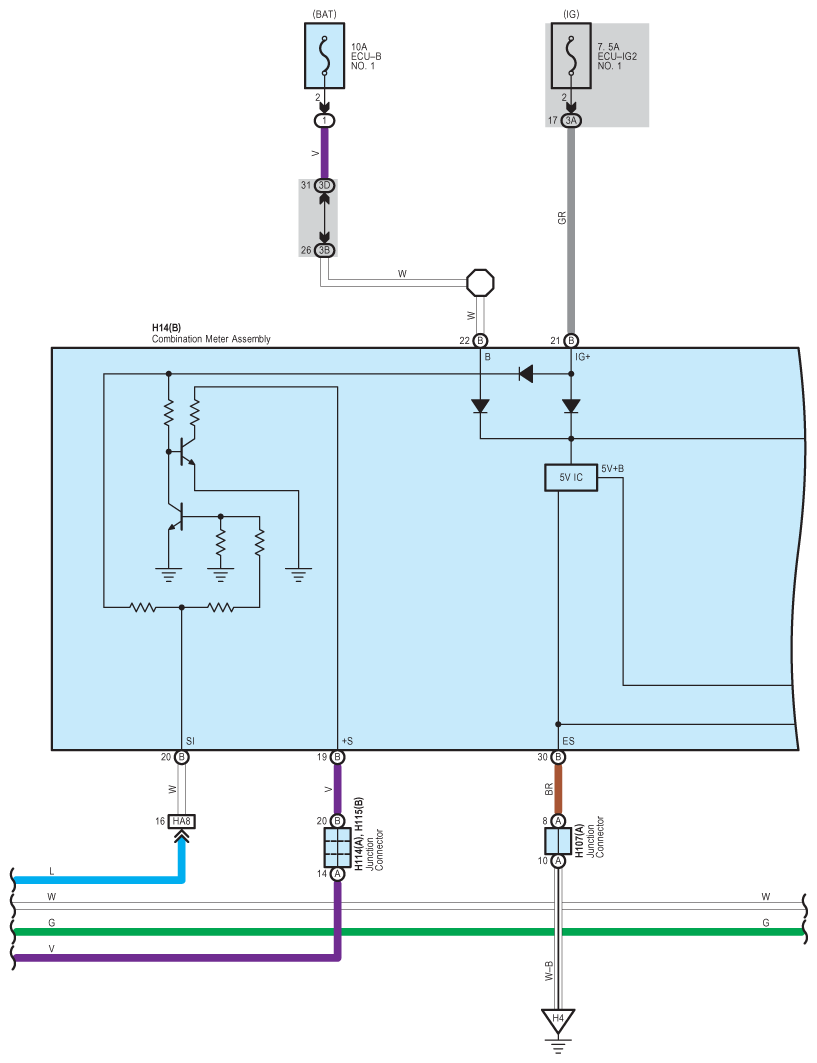

Fig 23: Hybrid System And Shift Control System - Circuit Diagram (23 Of 24)

G08953615

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

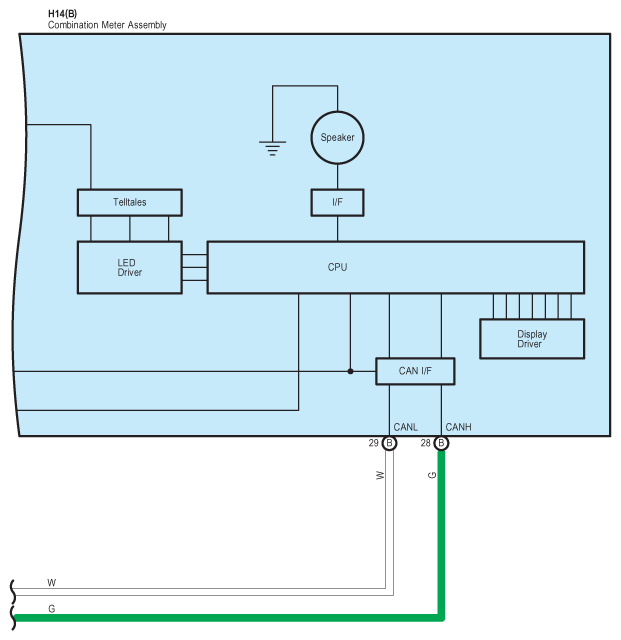

Fig 24: Hybrid System And Shift Control System - Circuit Diagram (24 Of 24)

G08953616

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
