Sliding Roof: Notes

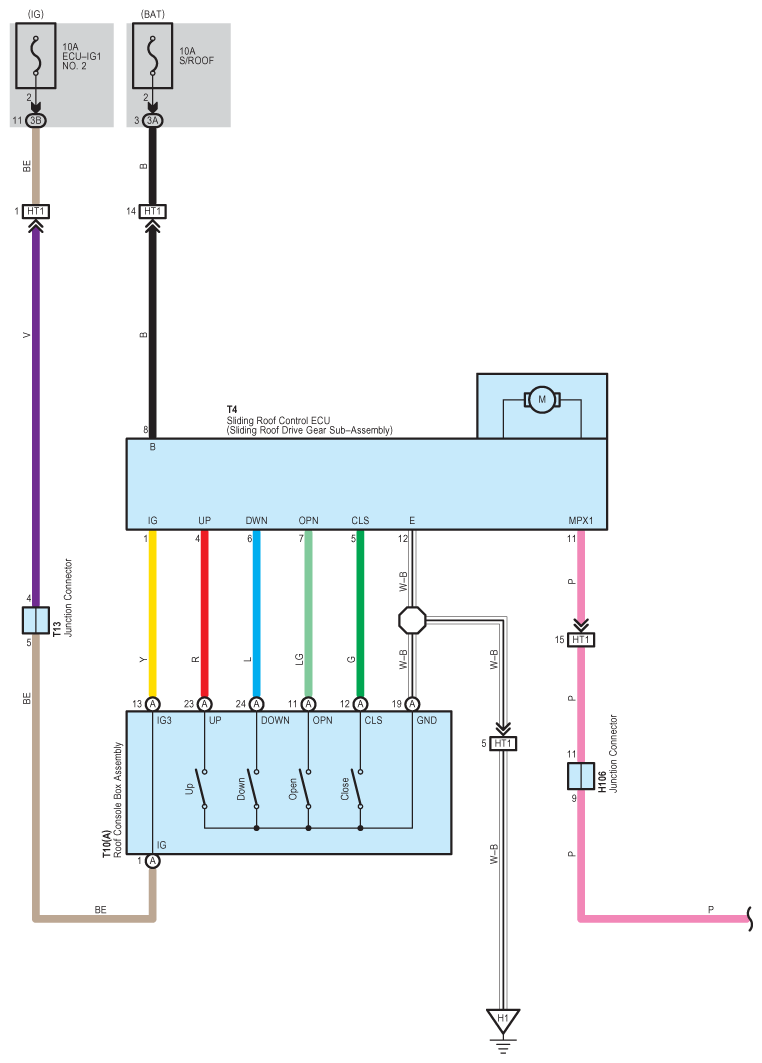

Fig 1: Sliding Roof - Circuit Diagram (1 Of 3)
G08953751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

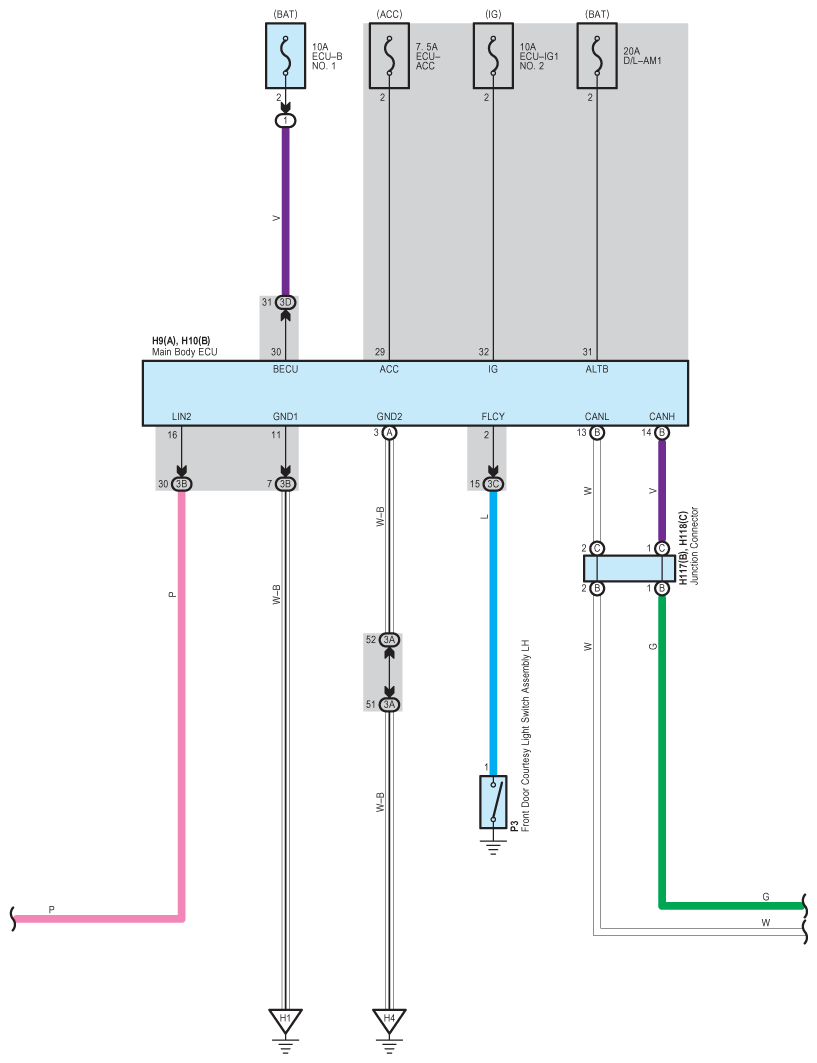

Fig 2: Sliding Roof - Circuit Diagram (2 Of 3)
G08953752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

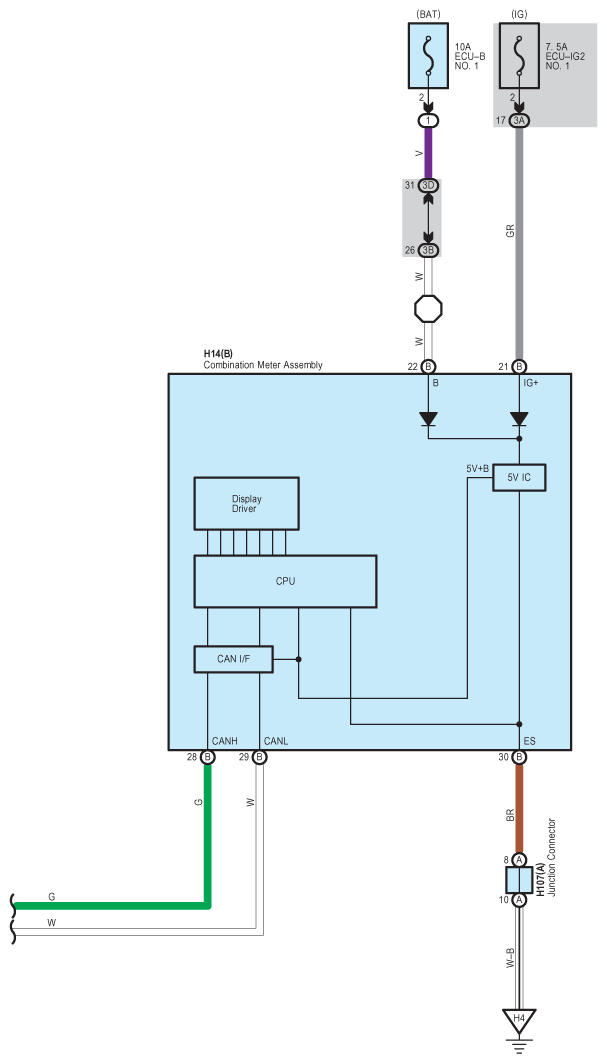

Fig 3: Sliding Roof - Circuit Diagram (3 Of 3)
G08953753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
