Power Seat (Driver's Seat): Notes

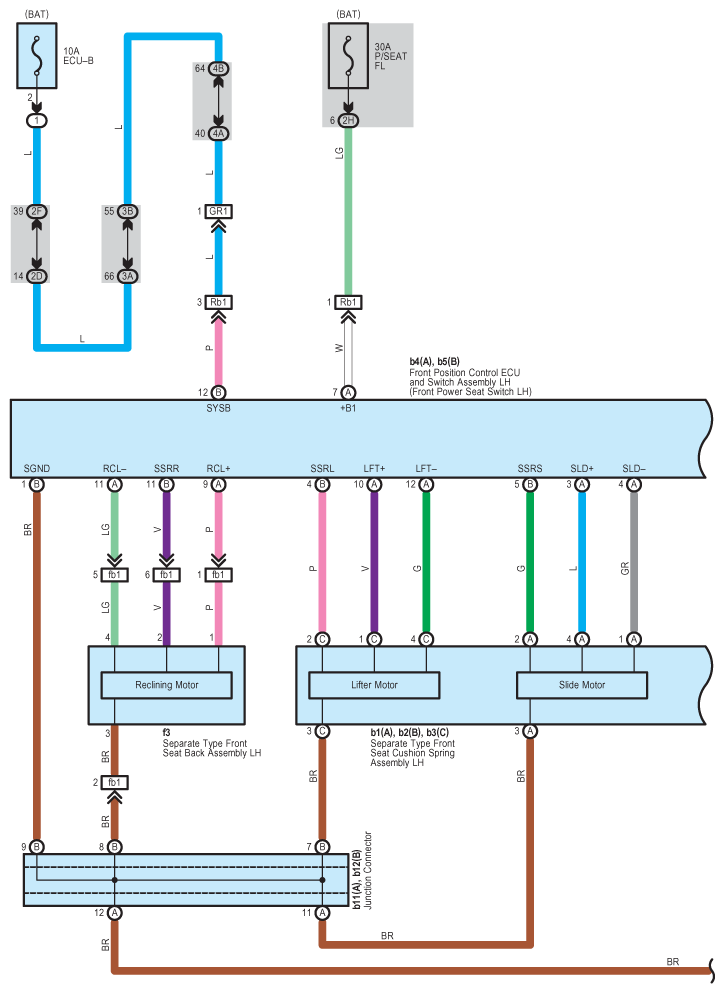

Fig 1: Power Seat (Driver'S Seat) - Wiring Diagram (1 Of 5)
G09114712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Power Seat (Driver'S Seat) - Wiring Diagram (2 Of 5)
G09114713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

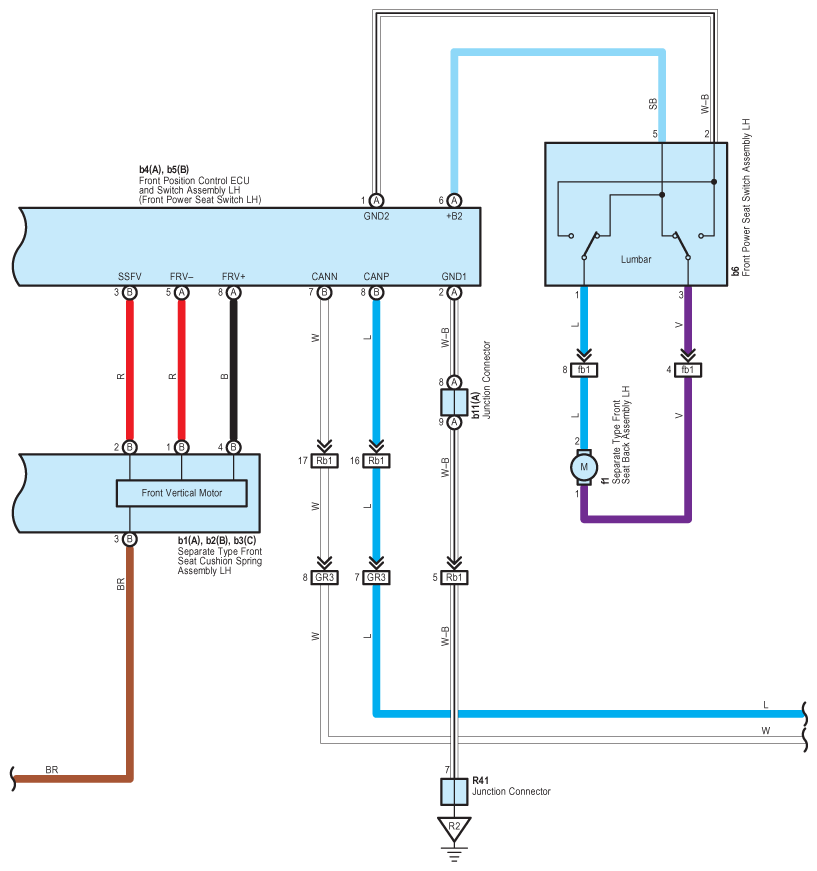

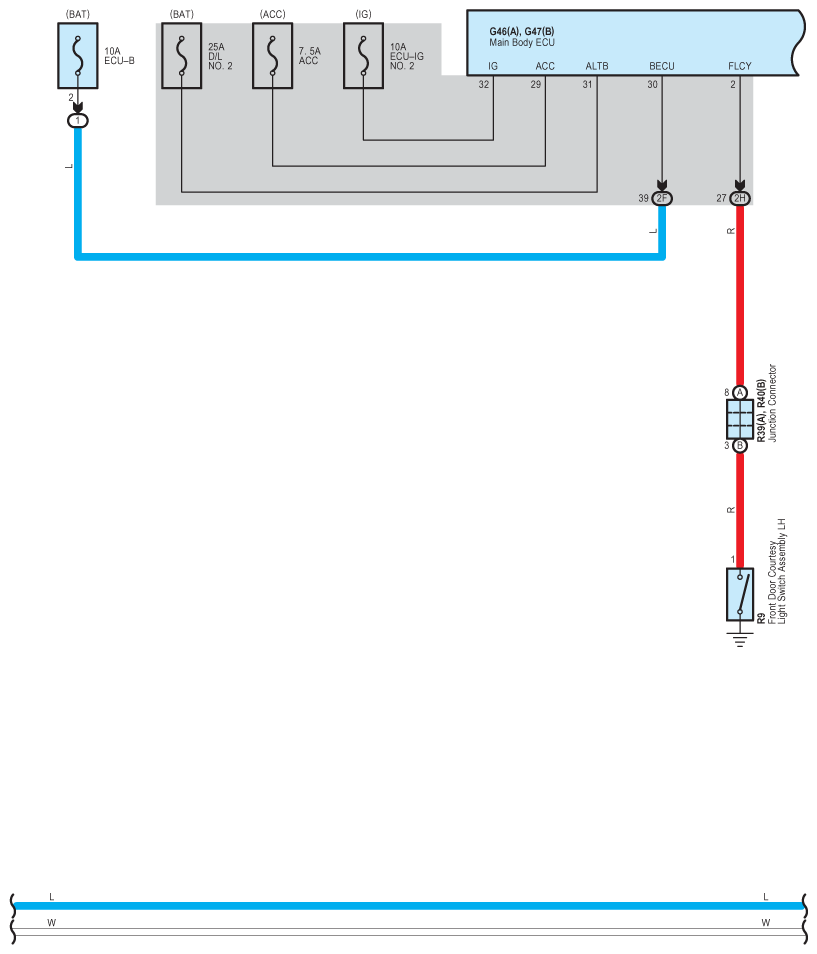

Fig 3: Power Seat (Driver'S Seat) - Wiring Diagram (3 Of 5)
G09114714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

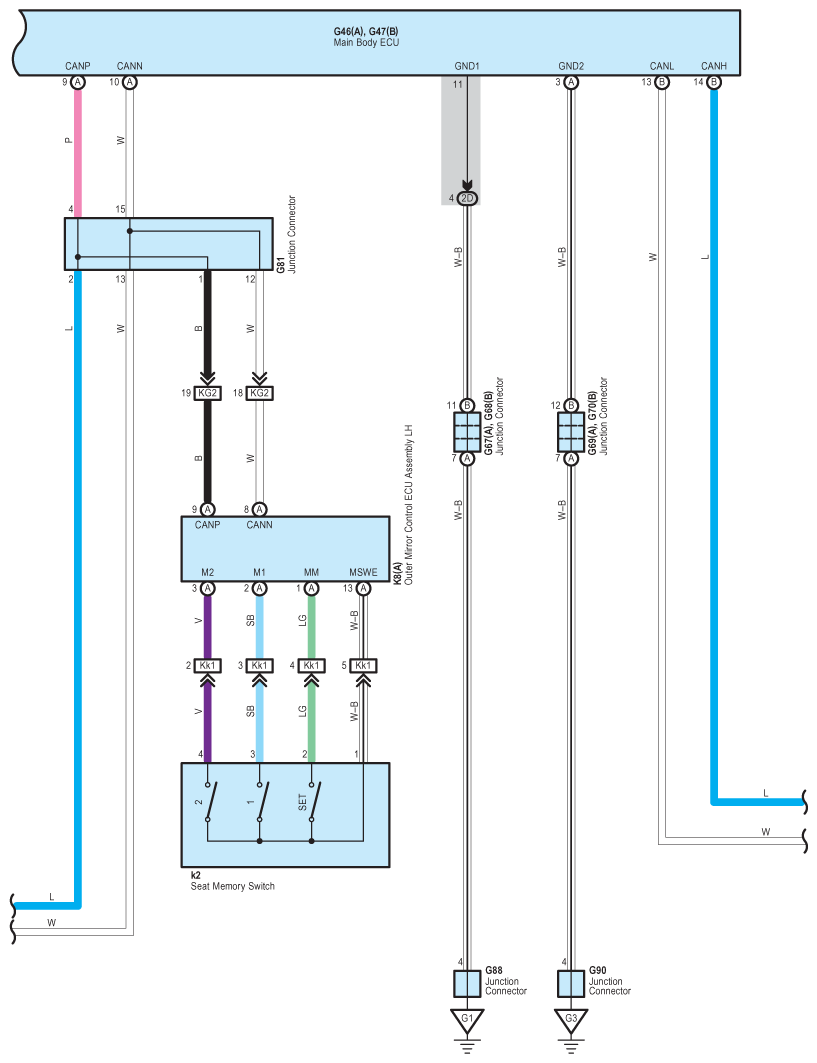

Fig 4: Power Seat (Driver'S Seat) - Wiring Diagram (4 Of 5)
G09114715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

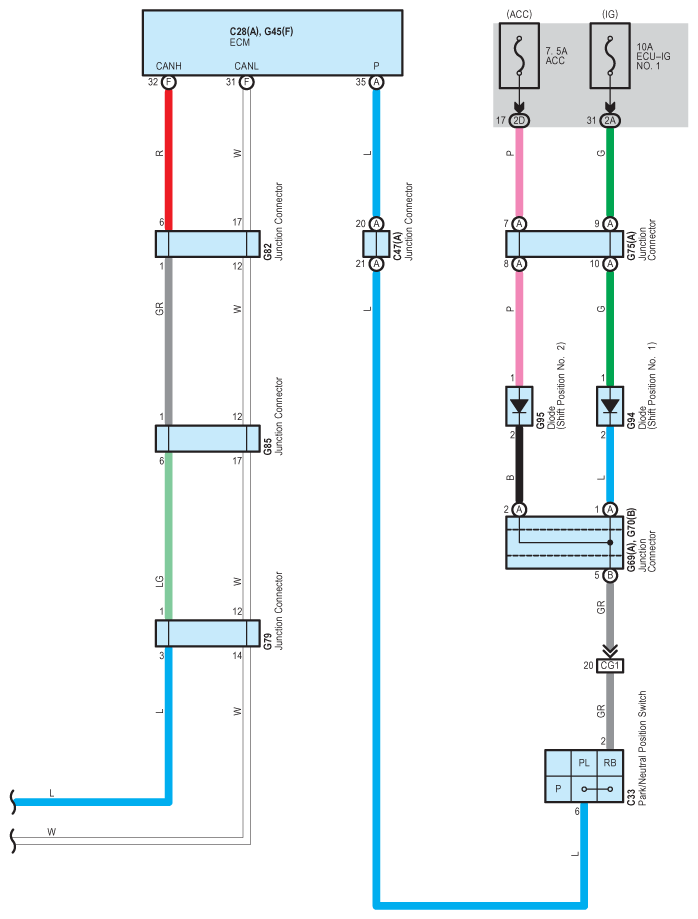

Fig 5: Power Seat (Driver'S Seat) - Wiring Diagram (5 Of 5)
G09114716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
