Rear Wiper and Washer: Notes

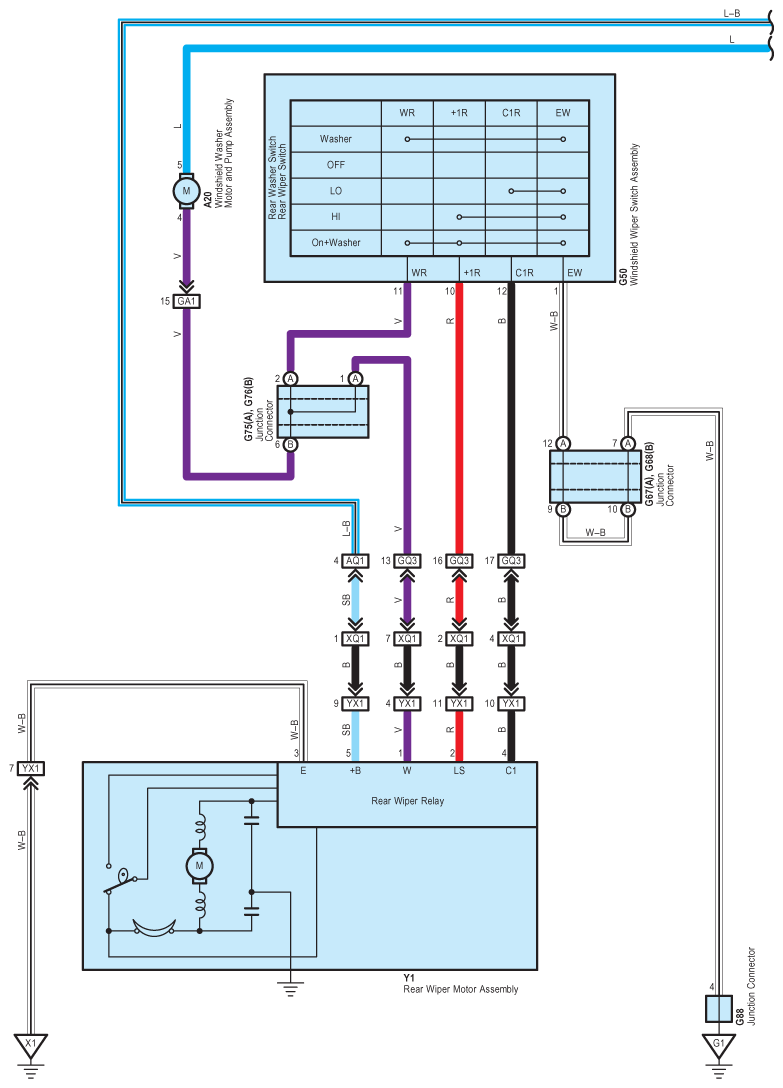

Fig 1: Rear Wiper And Washer - Wiring Diagram (1 Of 4)
G09114598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

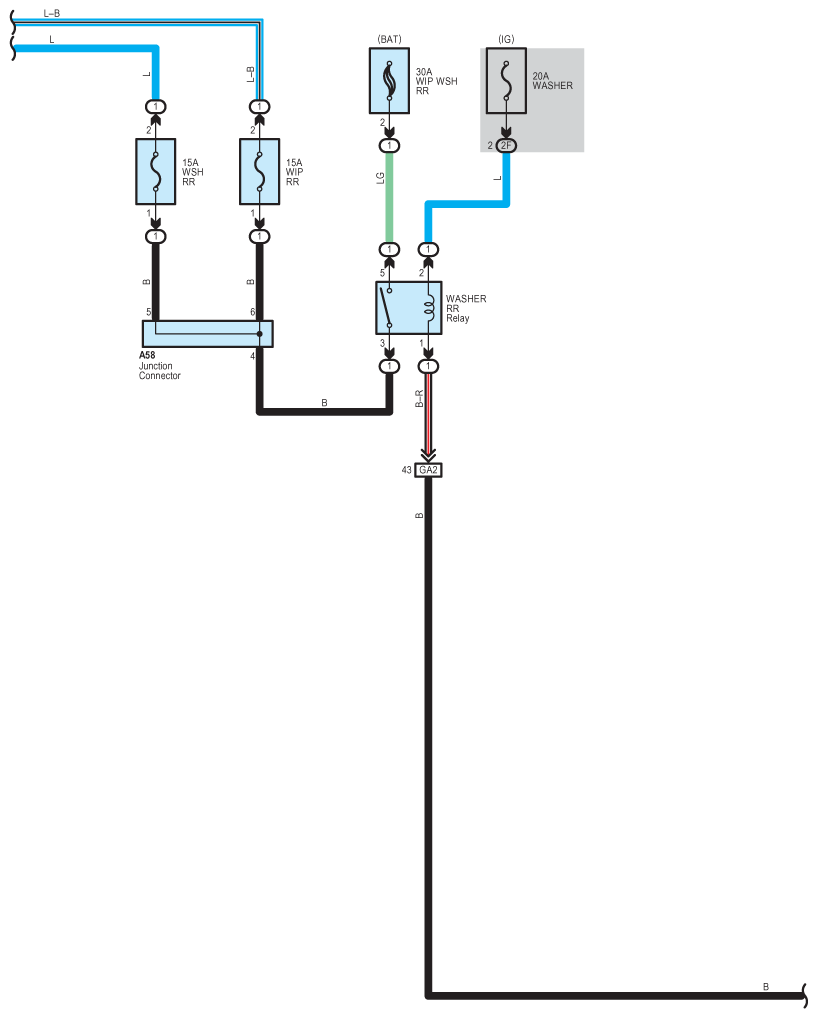

Fig 2: Rear Wiper And Washer - Wiring Diagram (2 Of 4)
G09114599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

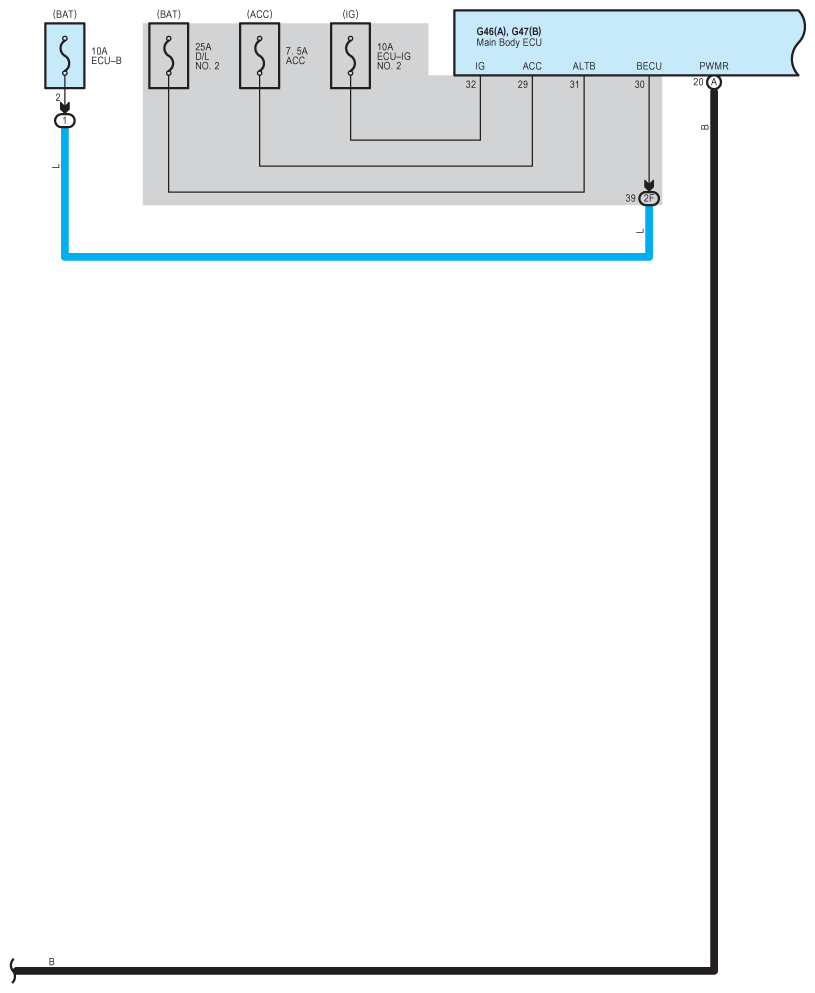

Fig 3: Rear Wiper And Washer - Wiring Diagram (3 Of 4)
G09114600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

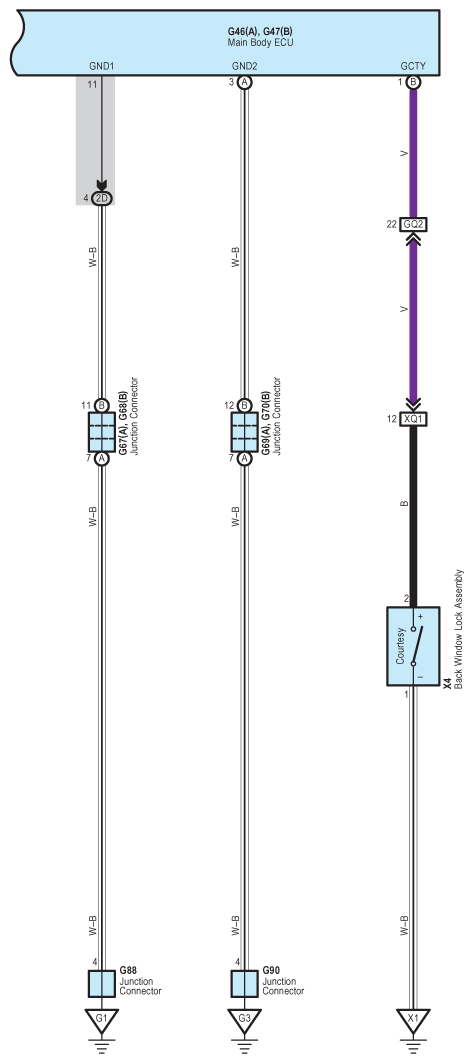

Fig 4: Rear Wiper And Washer - Wiring Diagram (4 Of 4)
G09114601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
